Sendix 5858 Sendix 5858
Sendix 5858 Sendix 5858

Encoders Absolute singleturn

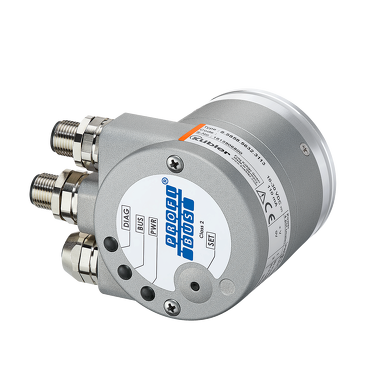

Sendix 5858

  • Particularly resistant
  • Reliable
  • Latest encoder profile
  • Dimension Ø 58 mm
  • 16 bits singleturn
  • Max 10 mm shaft, with flat surface
  • Max 3/8" shaft, with flat surface
PROFIBUS DP

For field bus communication: Encoders with PROFIBUS DP interface.

The singleturn encoders 5858 and 5878 with Profibus interface and optical sensor technology are the ideal solution for all Profibus applications. They offer a maximum resolution of 16 bits, divided over 360°.
These encoders are available with blind hollow shaft up to 15 mm.

Mechanical
Dimension Ø 58 mm
Shaft type 6 mm shaft, with flat surface
10 mm shaft, with flat surface
1/4 " shaft, with flat surface
3/8 " shaft, with flat surface
Flange type Synchro flange / Servo flange
Clamping flange
Square flange

Ø 58.00 mm
❏ 63,50 mm
Working temperature -40 °C ... +80 °C
Protection level IP65
IP67
Connection types M12 connector radial
Terminal box
Max. rotational speed 9.000 min-1
Weight 530 g
Electrical
Scanning optical
Resolution max. 16 bits singleturn
Power supply 10...30 V DC
Interfaces PROFIBUS DP
Reliable
  • Tried-and-tested in applications with the highest demands, such as in wind energy or mobile automation.
  • Ideal for use outdoors thanks to IP67 protection and wide temperature range from -40°C up to +80°C.
Flexible
  • Fast, simple, error-free connection using versions with M12 connector.
  • Wide-ranging programming options thanks to latest encoder profile.
Data sheet

Sendix 5858 / 5878 PROFIBUS

PDF ∼ 978,5 KB | 04.2019
DE
EN
FR
Operation Manual

Multilingual: German, English, French
PDF ∼ 2,9 MB | 11.2021

ATEX 2 / 22

Multilingual: German, English, French
PDF ∼ 3,0 MB | 10.2021

Manual

Drehgeber mit PROFIBUS-Schnittstelle

PDF ∼ 3,3 MB | 09.2020
DE
EN
Safety characteristics

Sendix 5858 MTTFd

Multilingual: German, English
PDF ∼ 185,5 KB | 06.2019

Declaration of conformity

Sendix 5858 / 5878

Multilingual: German, English, French
PDF ∼ 387,0 KB | 04.2016

Device file

Sendix 58x8 PROFIBUS / GSD-File

ZIP ∼ 35,8 KB | 08.2017

mechanical CAD / STEP

Sendix 5858

ZIP ∼ 9,2 MB | 03.2021

electronic CAD / ePlan

5858 / 5878 PROFIBUS_DP

ZIP ∼ 6,2 MB | 02.2020

Product Certificates

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

ATEX 2/22

Multilingual: German, English
PDF ∼ 150,8 KB | 05.2021

Encoder Salt Spray Test (IEC 68-2-11/672h)

PDF ∼ 104,2 KB | 10.2014
DE
EN

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Accessories

Bellows coupling

Bellows coupling

Bellows couplings provide cost-effective connection of the motor and encoder. They are also able to correct any angular errors between the drive and encoder. Compensating larger angle displacements.

Bellows coupling (stainless steel).
8.0000.1202.XXXX
Data sheet
8.000xxxxx Accessories coupling
DE EN FR
mechanical CAD / STEP
8.0000.1202.XXXX Accessories Bellow coupling

Assembly bell

Assembly bell

Easy and quick encoder mounting. Electrical and thermal isolation by means of glass fibre reinforced plastic and isolating spring washer coupling. Supplied as complete set.

Assembly bell, Spring washer type coupling (8.0000.1401.XXXX), 4 hexagon socket head cap screws DIN 912 M4x12, 3 hexagon socket head cap screws DIN 912 M4x10, 7 washers DIN 433.4, 3 fastening eccentrics (8.0000.4B00.0000), 3 hexagon head screws DIN 84 M 4x35, 3 hexagon nuts DIN 934 - M4.
8.0000.4500.XXYY
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0000.4500.XXXX Accessories assembly bell/ CAD

Adapter flange, square, 4 mm

Adapter flange, square, 4 mm

Scope of delivery:
Adapter flange (aluminium), 3 screws for fixing to the encoder
58,0 mm x 4 mm 8.0010.2100.0000
63,5 mm x 3 mm 8.0010.2120.0000
70,0 mm x 10 mm 8.0010.2600.0000
80,0 mm x 4 mm 8.0010.2800.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.2100.0000 Accessories flange, square / CAD

Flange, Ø 115mm Euroflange

Flange, Ø 115mm Euroflange

Converts encoders with a clamping flange into synchro flange.
Flange (aluminium), 3 screws for fixing to the encoder.
Drehgeber 580x/5000 8.0010.2160.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.2160.0000 Accessories flange / CAD

Flange, Ø 58mm

Flange, Ø 58mm

Converts encoders with a clamping flange into synchro flange.

Flange (aluminium), 3 screws for fixing to the encoder.
8.0010.2180.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.2180.0000 Accessories flange / CAD

Flange, Ø 65mm

Flange, Ø 65mm

With this adapter flange, Kuebler encoders with size 58mm can replace encoders with diameter 65 and pitch circle diameter 48mm.

Flange (aluminium), 3 screws for fixing to the encoder.
8.0010.2230.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.2230.0000 Accessories flange / CAD

Flange, Ø 90mm

Flange, Ø 90mm

Converts encoders with a clamping flange into synchro flange. Mechanically compatible with former encoder Type 9000.

Flange (aluminium), 3 screws for fixing to the encoder.
8.0010.2270.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.2270.0000 Accessories flange / CAD

Angular flange

Angular flange

Secure mounting for shaft encoder.

Angular flange (aluminium), 3 screws for encoder mounting.
8.0010.2300.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.2300.0000 Accessories angular flange / CAD

Fastening eccentrics

Fastening eccentrics

Suitable for Kübler encoders with synchro flange
Material ACu Zn 39 Pb 3, Surface finish: galvanised Ni
Scope of delivery:
- 3 eccentrics, 3 screws
8.0010.4100.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.4100.0000 Accessories fastening eccentrics

Bearing box

Bearing box

In applications where the encoder is driven by use of gears, chains, belts etc. and the permitted axial and radial shaft loads are exceeded, we recommend the use of the special designed bearing box which has stronger bearings.

Bearing box with lock cover and sealing, Coupling for shaft Ø 10mm, Flange adapter 8.0010.2100.0000, 3x countersunk head screws DIN 63 M3x8, 4x slotted cheese head screws DIN 84 M4x8.
8.0010.8200.0004
Data sheet
Accessories bearing box
DE EN FR

Robust bearing unit

Robust bearing unit

Separating the bearing load and the sensor technology affords the encoder greater protection in harsh environments. Retrofitting to all encoders with a 58mm clamping flange is very easy and quick.

Robust bearing unit (housing: aluminium, shaft: stainless steel), 3x socket cap screw M4x25 (SW3), 1x washer.
8.0010.8200.000C
Data sheet
Accessories robust bearing unit
DE EN FR
Installation manual
Accessories robust bearing unit

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Female connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3211.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Female connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3311.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Male connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3411.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Male connector 5-pin

Female connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3432.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Male connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3511.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Female connector 5-pin

Male connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3533.XXXM

Data sheet
DE EN FR

SUB-D Connector with cable ,  Doppelkabel

SUB-D Connector with cable , Doppelkabel

Preassembled cable set

PROFIBUS DP
Female connector 5-pin
& Male connector 5-pin

Male connector 9-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6012.5536.XXXM

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

PROFIBUS DP
Male connector 5-pin
05.BMSWS 8151-8.5

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

PROFIBUS DP
Male connector 5-pin
05.BMSWS 8251-8.5

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

PROFIBUS DP
Female connector 5-pin
05.BMWS 8151-8.5

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

PROFIBUS DP
Female connector 5-pin
05.BMWS 8251-8.5

Data sheet
DE EN FR

M12 Connector , Lead-through

M12 Connector , Lead-through

Field-wireable connector

PROFIBUS DP
Female connector 5-pin
05.FKW-FSW45/M12

Data sheet
DE EN FR

M12 Connector , Abschlusswiederstand

M12 Connector , Abschlusswiederstand

Field-wireable connector

PROFIBUS DP
Male connector 5-pin
05.RSS4.5-PDP-TR

Data sheet
DE EN FR
