LM3
LM3

Shaft copying systems

LM3

  • Mounting on the elevator car
  • Slip-free
  • Can be combined with encoders
  • Robust
  • Speed 1,6 m/s

This Product will be discontinued: December 31, 2020.

Get in touch with us. We would be pleased to inform you about a new / comparable product.


Elevator measuring system – with proven toothed belt technology.

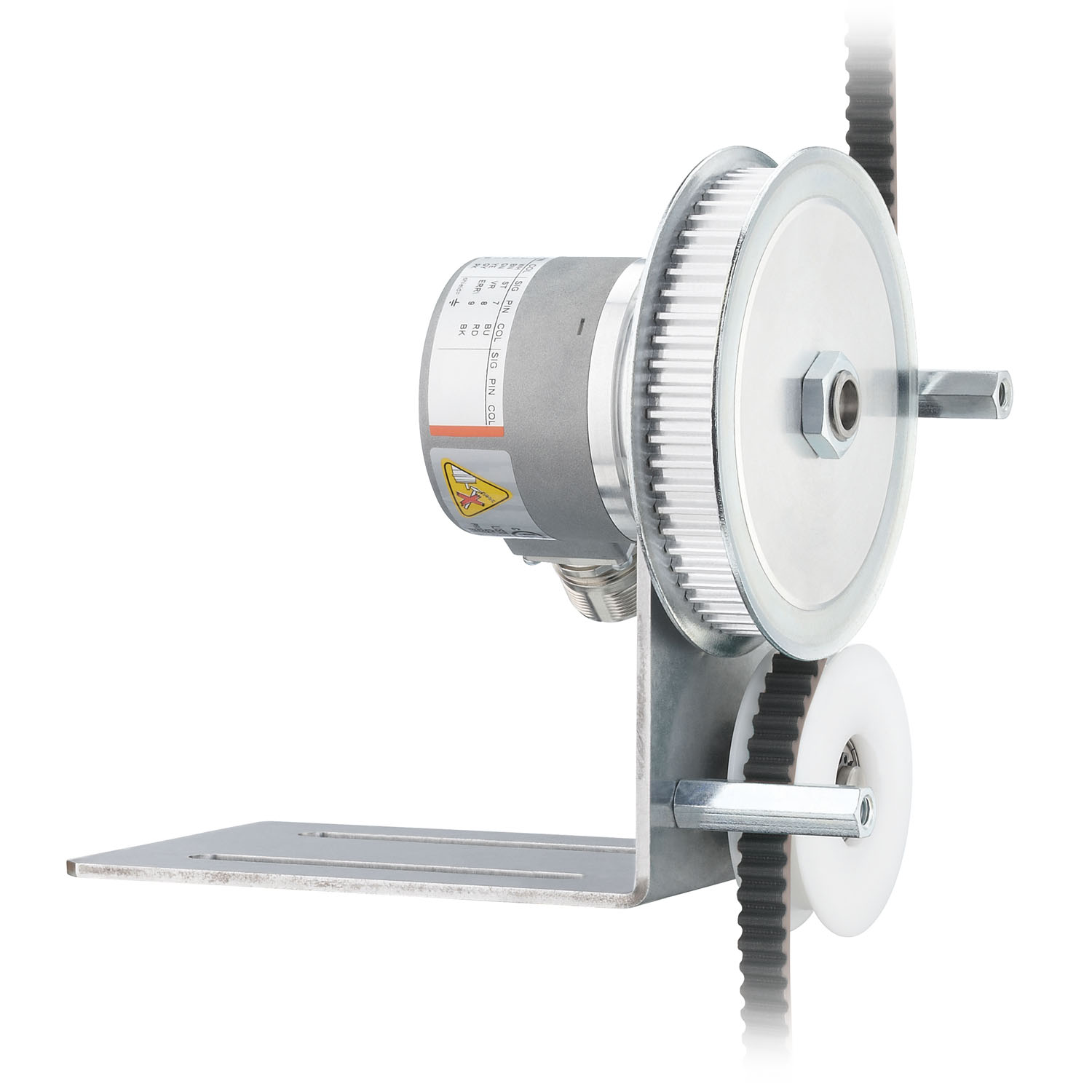

Measuring system for shaft copying with complete mechanical set in proven toothed belt technology.
A smooth-running toothed belt system ensures low-noise operation. The belt wheel can be mounted directly on the encoder shaft. The encoder bracket with the measuring wheel is located on the elevator car of the traveling system.
Particularly suitable for passenger elevators, freight elevators and automatic storage systems.

Mechanical
Measuring system Shaft copying systems
Speed 1,6 m/s
Dimension 167,9 mm x 161,5 mm x 105,5 mm
Working temperature -20 °C ... +85 °C
Electrical
Supply voltage 4,8...30 V DC
11...30 V DC
The compact solution:
  • Traveling shaft copying Up to 53 m height
  • Up to 1.6 m/s travel speed
  • For smaller elevators
Data sheet

LM3

PDF ∼ 166,3 KB | 09.2018
DE
EN
FR
Operation manual

LM3

Multilingual: German, English, French
PDF ∼ 1,1 MB | 06.2019

LM3

Multilingual: German, English, French
PDF ∼ 774,7 KB | 06.2019

Accessories

Toothed belt

Toothed belt

Width 10mm, polyurethane with steel tension member, low belt elongation, high abrasion resistance, resistant to UV radiation, maintenance-free, resistant to aging, temperature range -10°C to +80°C.

Toothed belt (polyurethane reinforced with steel).
05.ZAR1.XXX

Cables and connectors

MIL Connector ,

MIL Connector ,

Field-wireable connector

Female connector 10-pin
8.0000.5062.0000

Data sheet
MIL socket 10-pole 8.0000.5062.0000
DE EN FR
