Shaft copying systems
LES.MK
|
|

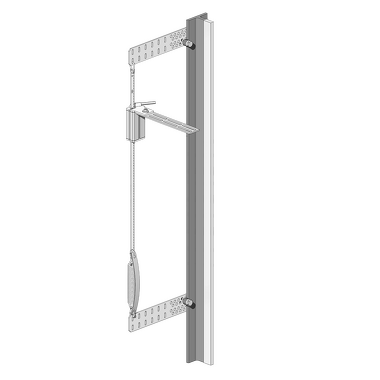

Shaft copying system - mounting kit Safe

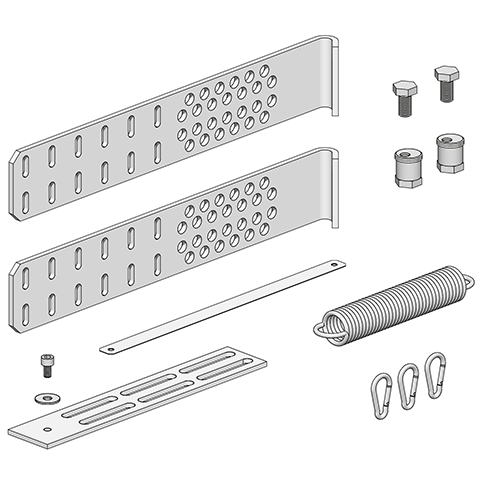

The LES.MK mounting kit contains all components required for installing the Ants LES02, Ants LES02D, and Ants LES03 sensors on the elevator car and for attaching the code band in the elevator shaft.| Mechanical | |
|---|---|
| Measuring system | Shaft copying systems |
| Electrical |
|---|
Mounting options

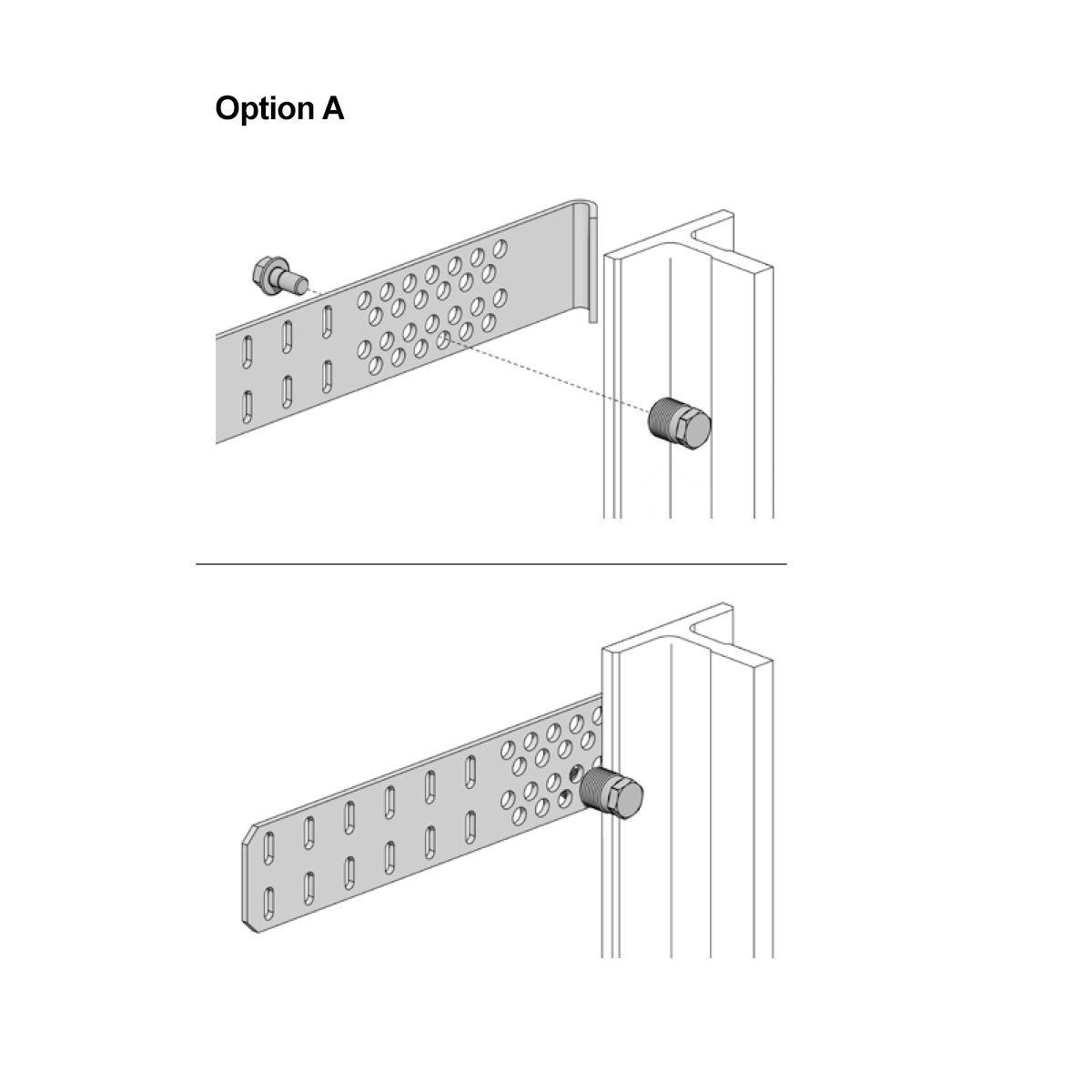

Rail mounting with eccentric claw screws
Mounting principle: The rail fastener is hooked into the lift rail and clamped with a claw screw that can be rotated eccentrically to the counter screw.

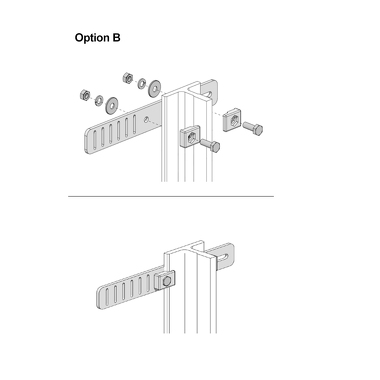

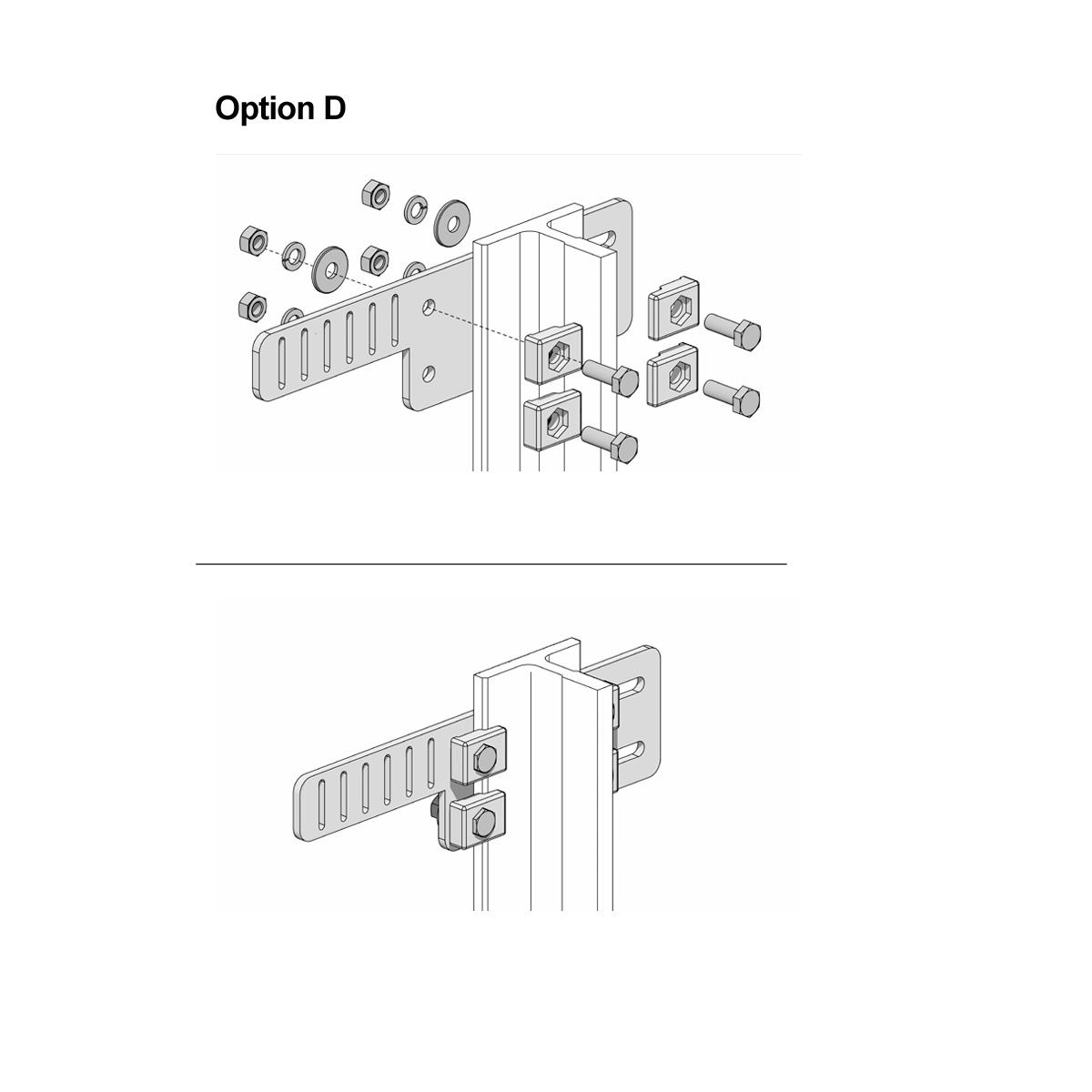

Rail mounting with clamping plates
Mounting principle: The rail fastener is screwed to the lift rail with 4 clamping jaws.
Accessories

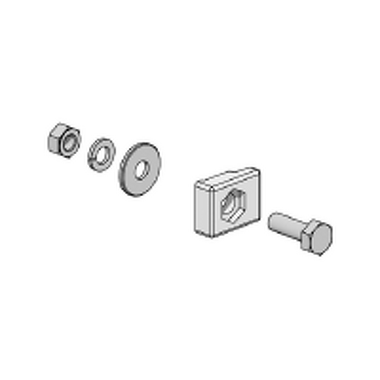

Screw set for clamping plate mounting
Scope of delivery:4 x clamping plates
4 x M10x30 hexagon screws
4 x M10 sheet metal screw, d = 10,5
4 x M10 hexagon nut
4 x M10 spring washer, d = 10,2
| 8.LEB.ZB.0008 |
Claw screw + counter screw
Set: 2 x claw screw / 2 x counter screw| 8.LEB.ZB.0016 |

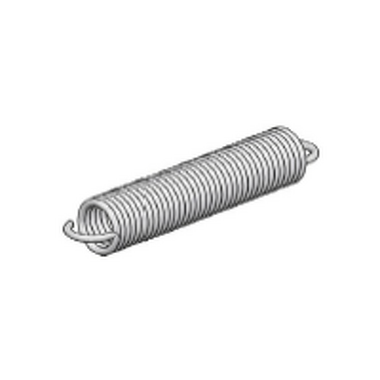

Tension spring, open
Material: Galvanized spring steel wire strength class SHWire diameter: 3.20 mm [0.13“]
External diameter: 29 mm [1.14“]
Untensioned length: 170 mm [6.69“]
Tensioned length: 320 mm [12.60“]
Spring travel: 150 mm [5.90“]
External hook diameter: 29 mm [1.14“]
Load: 263.26 N
| 8.LES.ZB.0003 |

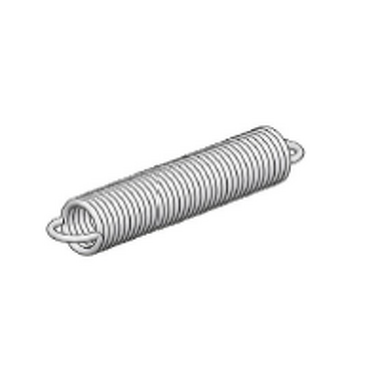

Tension spring, closed
Material: Galvanized spring steel wire strength class SHWire diameter: 3.20 mm [0.13“]
External diameter: 29 mm [1.14“]
Untensioned length: 170 mm [6.69“]
Tensioned length: 320 mm [12.60“]
Spring travel: 150 mm [5.90“]
External hook diameter: 29 mm [1.14“]
Load: 263.26 N
| 8.LES.ZB.0004 |
Code band precense detector (CPD)
With carabiner hook as a set.| 8.LES.ZB.0017 |

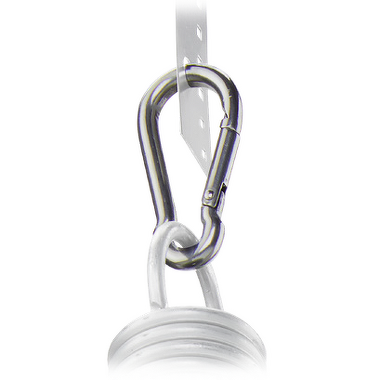

Carabiner hook (3x)
Carabiner hook for fastening the code band LEX.BA to the rail fastening plates.Material: V4A stainless steel
Dimensions:
4 x 22 x 40 mm [0.16 x 0.87 x 1.57“]
Breaking load: 590 kg
Scope of delivery:
3 x carabiner hook
| 8.LEX.ZB.0006 |
