Shaft copying systems
PSU03
|
|

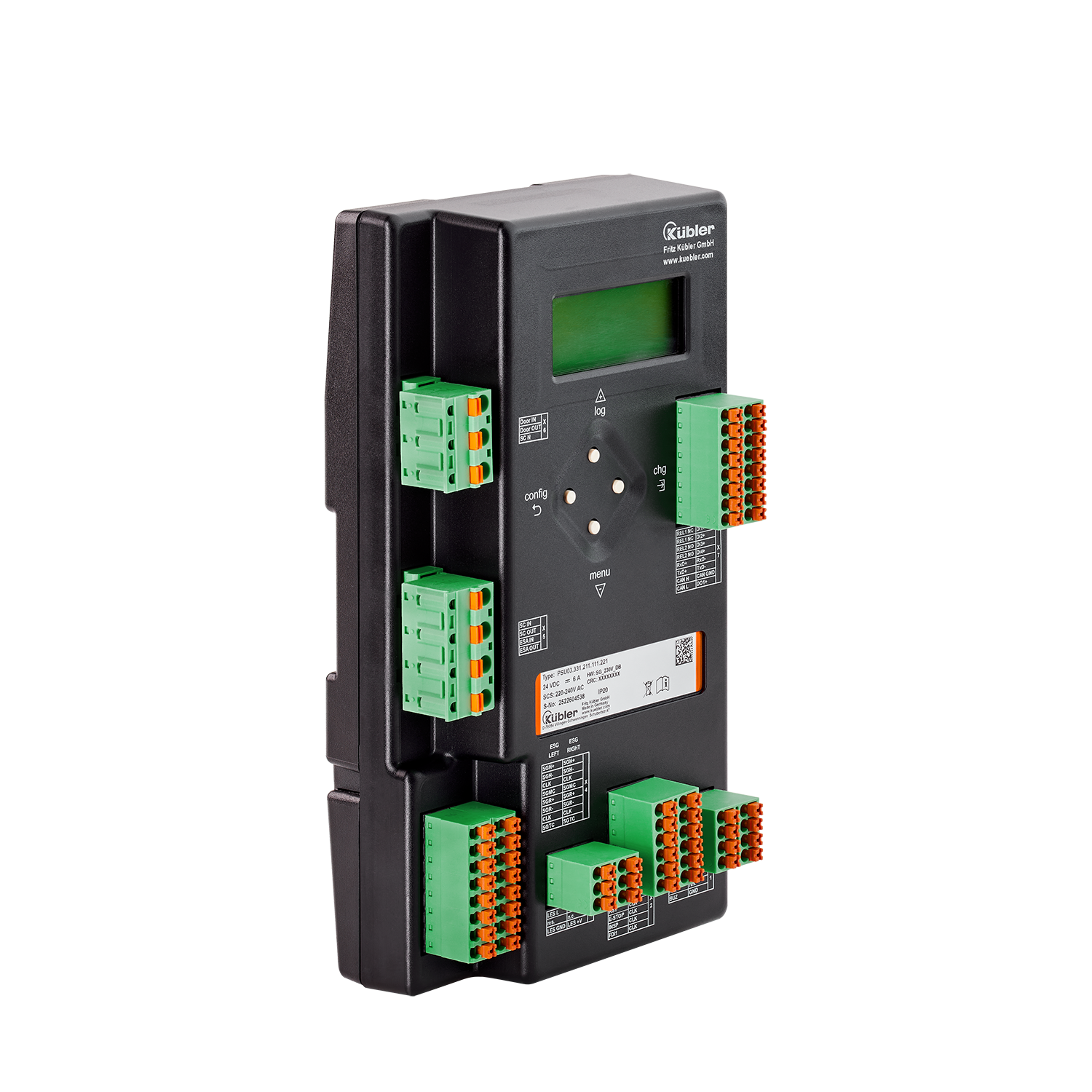

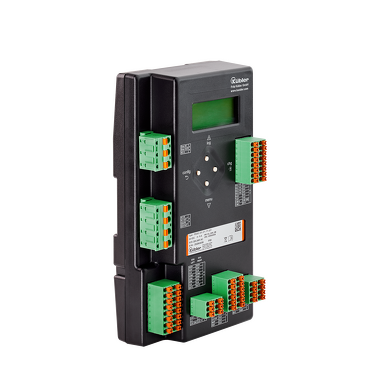

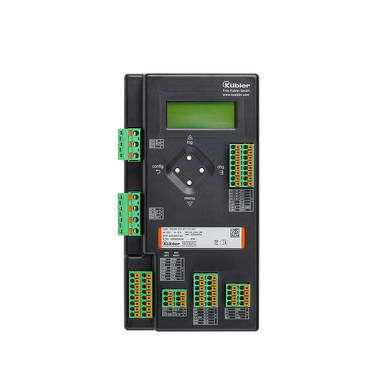

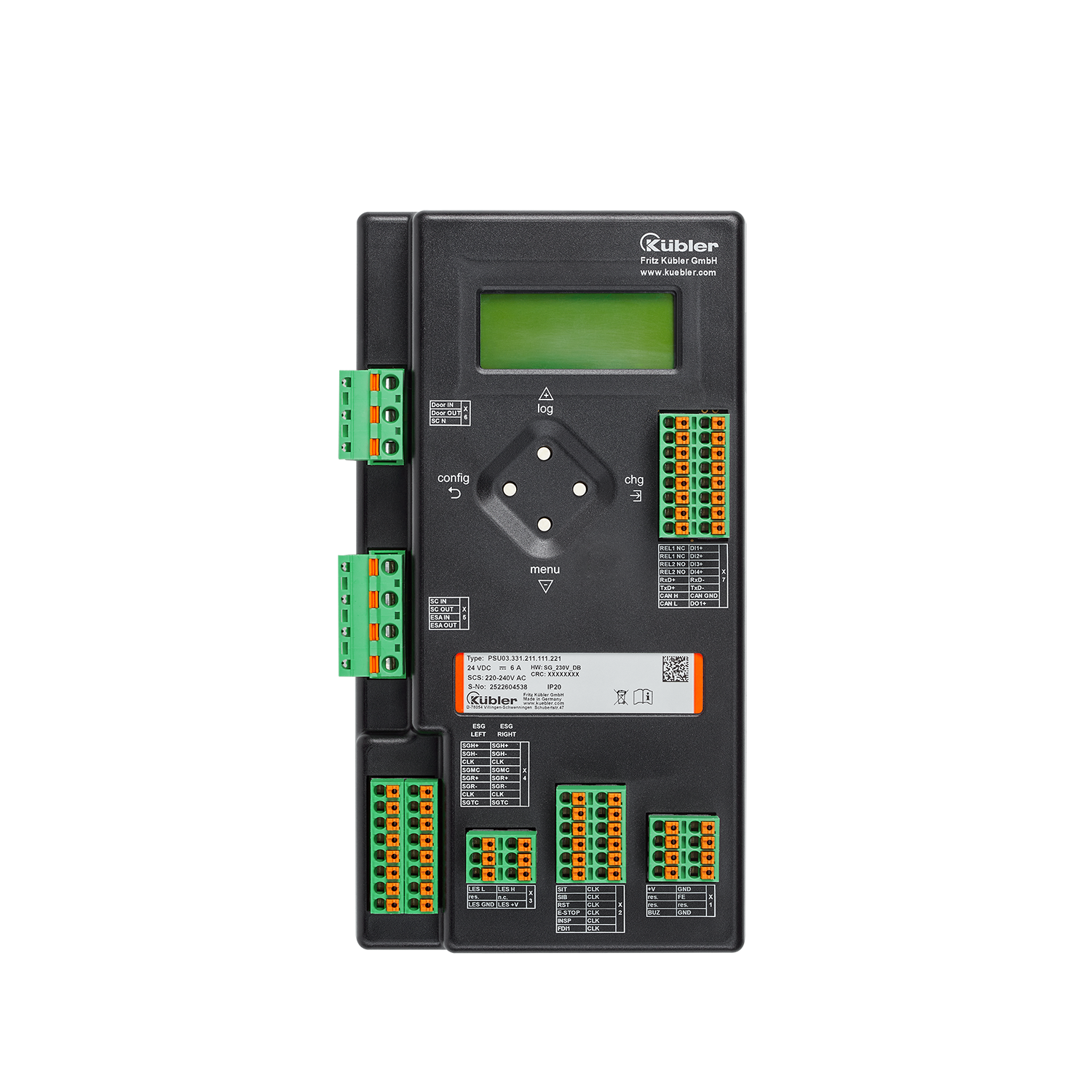

Shaft copying system - realization of elevator and safety functions with intelligent safety gear management
The PSU03 evaluation unit is used in combination with Ants LES03 sensors to implement elevator and safety functions in accordance with EN 81-20/-21/-50 and to trigger and monitor the electromechanical safety gear.| Mechanical | |
|---|---|
| Measuring system | Shaft copying systems |
| Dimension | 178 mm x 95 mm x 45 mm |
| Working temperature | -20 °C ... +65 °C |
| Protection level |
IP20 |
| Weight | 390 g |
| Electrical | |
|---|---|
| Interfaces |
CANopen-Lift RS485 SSI |
| Power supply |
24 V DC |
Digitization of elevator systems
Reliable evaluation of the position and speed information of the elevator car determined by the Ants LES03 sensor.
Safety circuit
The PSU03 evaluation unit communicates with the elevator control system and opens the safety circuit via safety relays depending on the application or in the event of a fault.
Reduced number of components
Numerous mechanical components such as magnetic switches, ramps, and roller limit switches can be omitted.
MODBOX – faster installation and even greater safety
PSU03 evaluation unit optionally pre-wired with power supply and backup batteries in IP66 plastic housing.
Emergency power supply for safety gear for at least 1 hour.
Opening of electromechanical safety gear for emergency release (e.g., in the event of a blackout)
