Sendix 7000
|
|
Explosion protection: Encoders with ATEX / IECEx approval.

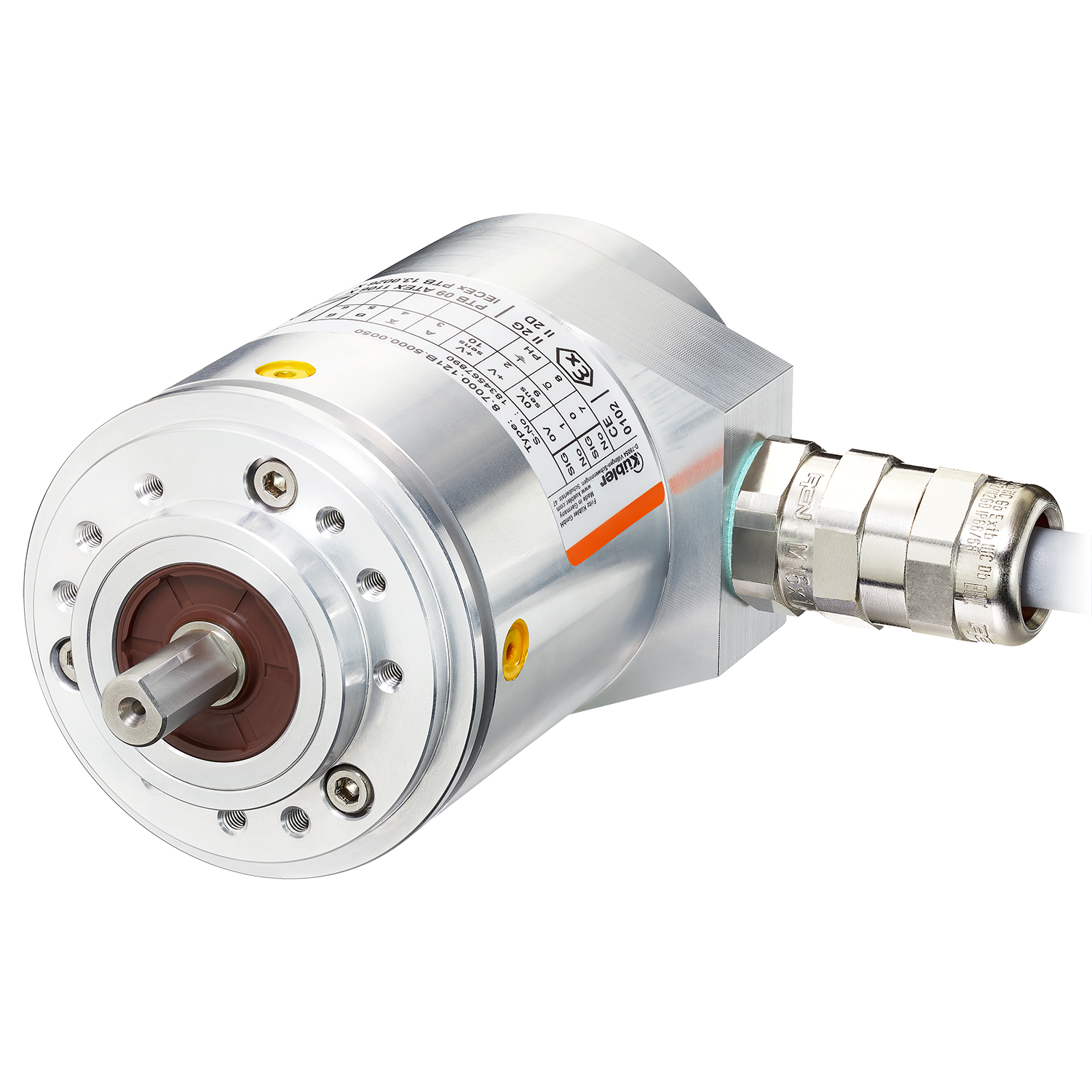

The Sendix 7000 / 7020 incremental encoders offer explosion protection in a compact 70 mm housing made of seawater-resistant aluminum. These shock- and vibration-resistant encoders operate flexibly with a resolution of up to 5000 pulses per revolution and are available with axial and radial cable outlets.
| Mechanical | |
|---|---|
| Dimension | Ø 70 mm |
| Shaft type |
10 mm shaft, with flat surface 12 mm shaft, with keyway |
| Flange type |
Synchro flange / Servo flange Clamping flange Ø 70.00 mm |
| Working temperature | -40 °C ... +60 °C |
| Protection level |
IP40 IP67 |
| Connection types |
Axial cable Radial cable |
| Max. rotational speed |
6.000 min-1 |
| Weight | 1500 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
5.000 ppr incremental |
| Power supply |
5 V DC 5...30 V DC 10...30 V DC |
| Interfaces |
Gegentakt TTL / RS422 |
- Installation in limited installation space possible.
- Small installation depth, diameter 70 mm.
- Compact cable outlet axial or radial.
- Can be used in maritime applications – housing and flange made of seawater-resistant aluminum.
- Remains leak-free even in rough everyday use and offers high protection against field failures (IP67 protection).
- Type "Flameproof enclosure".
- ATEX with EU type examination certificate.
- IECEx with Certificate of Conformity (CoC).
Accessories
Bellows coupling
Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.Bellows coupling (stainless steel).
| 8.0000.1202.XXXX |
Flange, Ø 115mm Euroflange
For shaft encoders with flange ø 70 mmScope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder
Connection to application (not included in delivery)
- 6 screws
| Drehgeber 70xx | 8.0010.2170.0000 |
Cables and connectors
