Encoders Absolute multiturn

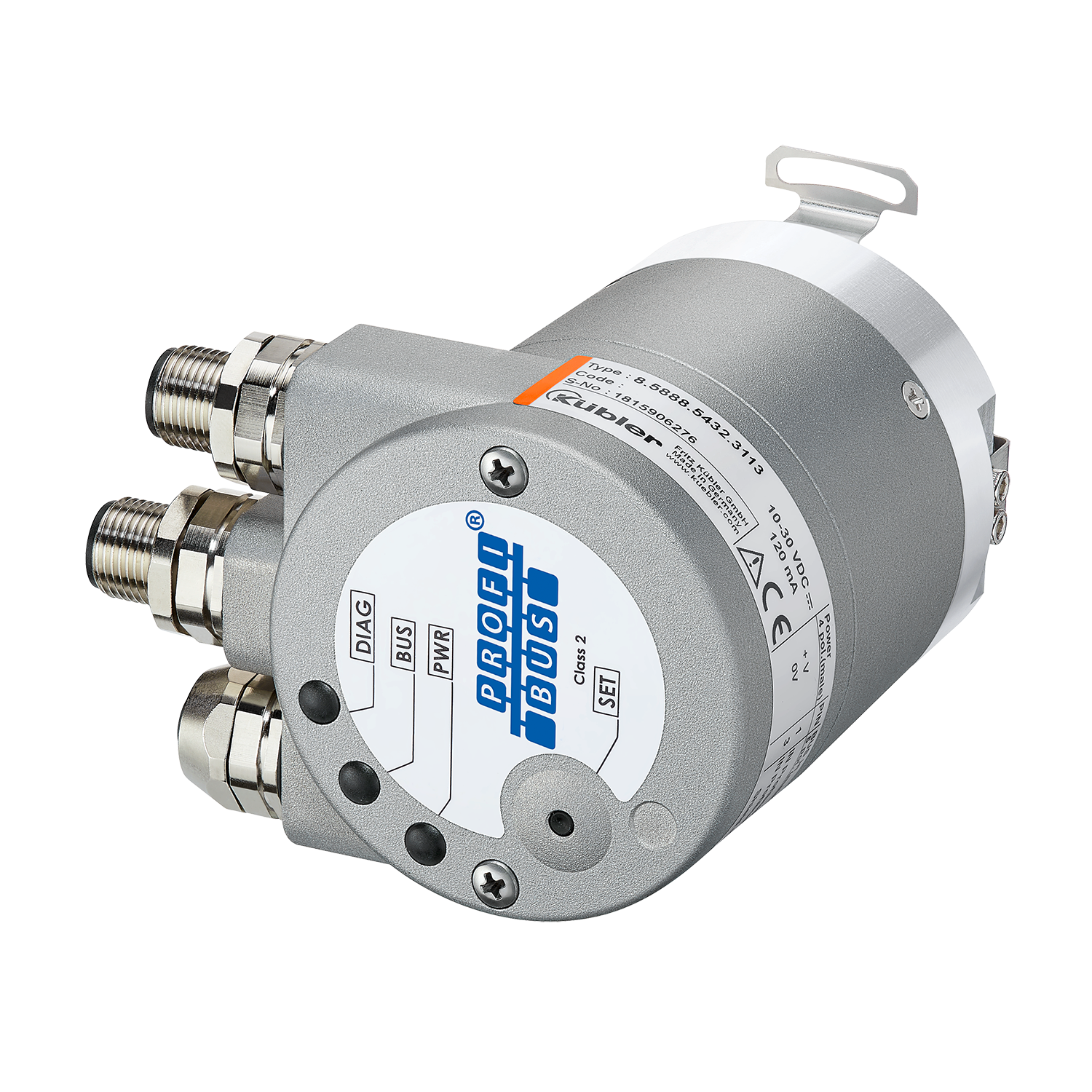

Sendix 5888

  • Particularly resistant
  • Reliable
  • Latest encoder profile
  • Dimension Ø 58 mm
  • 16 bits singleturn
  • 12 bits multiturn
  • Max 1/2" hollow shaft, blind hole
  • Max 15 mm hollow shaft, blind hole
PROFIBUS DP

For field bus communication: Encoders with PROFIBUS DP interface.

The absolute encoders Multiturn Sendix 5868 / 5888 with PROFIBUS DP interface and optical sensors are suitable for all Profibus applications.
With a maximum resolution of 28 bits, these encoders are also available in a version with blind hollow shaft up to 15 mm.

Mechanical
Dimension Ø 58 mm
Shaft type 3/8 " hollow shaft, blind hole
10 mm hollow shaft, blind hole
12 mm hollow shaft, blind hole
14 mm hollow shaft, blind hole
15 mm hollow shaft, blind hole
1/2 " hollow shaft, blind hole
Flange type Ø 58.00 mm
Ø 63.00 mm
Ø 65.00 mm
Ø 72.00 mm
Working temperature -40 °C ... +80 °C
Protection level IP65
IP67
Connection types Radial cable
M23 connector radial
Max. rotational speed 9.000 min-1
Weight 470 g
Electrical
Scanning optical
Resolution max. 16 bits singleturn
12 bits multiturn
Power supply 10...30 V DC
Interfaces PROFIBUS DP
Reliable
  • Proven use in applications with the highest demands such as wind power or mobile automation.
  • Absolutely reliable operation in the range of strong magnetic fields due to mechanical gear with optical sensor technology.
Flexible
  • Fast, simple, error-free connection thanks to variant with M12 plug.
  • Extensive programming possibilities by using the latest encoder profile.
Data sheet

Sendix 5868 / 5888 PROFIBUS

PDF ∼ 867,1 KB | 04.2019
DE
EN
FR
Operation Manual

ATEX 2 / 22

Multilingual: German, English, French
PDF ∼ 3,0 MB | 10.2021

General operating instructions for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 11.2021

Manual

Drehgeber mit PROFIBUS-Schnittstelle

PDF ∼ 3,3 MB | 09.2020
DE
EN
Safety characteristics

Sendix 5888 MTTFd

Multilingual: German, English
PDF ∼ 215,0 KB | 06.2019

Declaration of conformity

Sendix 5868 / 5888

Multilingual: German, English
PDF ∼ 387,9 KB | 04.2016

Sendix 58x8 PROFIBUS \ Conformance Test

PDF ∼ 128,2 KB | 10.2014
EN
Device file

Sendix 58x8 PROFIBUS / GSD-File

ZIP ∼ 35,8 KB | 08.2017

mechanical CAD / STEP

Sendix 5888

ZIP ∼ 10,9 MB | 12.2017

electronic CAD / ePlan

Sendix 5868 / 5888 PROFIBUS_DP

ZIP ∼ 6,5 MB | 02.2020

Product Certificates

ATEX 2/22

Multilingual: German, English
PDF ∼ 150,8 KB | 05.2021

Encoder Salt Spray Test (IEC 68-2-11/672h)

PDF ∼ 104,2 KB | 10.2014
DE
EN

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Accessories

Stator coupling

Stator coupling

For applications with axial and radial clearance and high dynamics.
Stator coupling (stainless steel), 4 screws for mounting on the encoder.

8.0010.1602.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.1602.0000

Torque stop, flexible

Torque stop, flexible

Designed for functional safety.
For applications with axial and radial play and low dynamics.
Pitch circle diameter 79 ... 285 mm

8.0010.4047.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.4047.00FS Accessories torque stop, flexible (FS) / CAD
Operation Manual
8.0010.4047.00FS Accessories torque stop, flexible (FS)

Fastening arm set, rigid

Fastening arm set, rigid

Scope of delivery:
Torque brackets (stainless steel), 3 screws M3x6 mm for mounting
on encoder, torque pin
8.0010.4051.00FS
mechanical CAD / STEP
8.0010.4051.00FS Accessories torque stop, rigid (FS) / CAD
Operation Manual
8.0010.4051.00FS Accessories torque stop, rigid (FS)

Stator coupling (FS)

Stator coupling (FS)

Designed for functional safety thanks to the 4-screw-principle.
Pitch circle diameter in 63 mm / 2.48"

8.0010.40B2.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.40B2.00FS Stator Coupling
Operation Manual
Supplement to stator coupling operating instructions (FS)

Fastening arm, medium (flexible)

Fastening arm, medium (flexible)

For applications with axial play and radial play with constant rotational movements.

Torque brackets (stainless steel), 3 screws for mounting on the encoder.
8.0010.40E0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.40E0.0000

Stator coupling

Stator coupling

For applications with axial and radial clearance and high dynamics.
Stator coupling (stainless steel), 4 screws for mounting on the encoder.

8.0010.40L0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.40L0.0000 / CAD

Fastening arm, short (flexible)

Fastening arm, short (flexible)

For applications with axial play and radial play with low dynamics.
Torque brackets (stainless steel), 3 screws for mounting on the encoder.
8.0010.40M0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.40M0.0000

Spring tether element

Spring tether element

For applications with low radial and axial backlash and low dynamics.
Wire spring element, 1 screw for fastening to the encoder.
8.0010.40W0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR

Cylindrical pin, long with fastening thread

Cylindrical pin, long with fastening thread

Suitable for short spring element (8.0010.4H00.0000) and long spring element (8.0010.4I00.0000).
8.0010.4700.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR

Stator coupling, double-winged

Stator coupling, double-winged

For lateral mounting on the encoder flange. For applications with high accuracy requirements.
Stator coupling (stainless steel), 4 screws for mounting on the encoder.

8.0010.4D00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.4D00.0000

Spring element, short

Spring element, short

For applications with limited axial play, low dynamics, and limited installation space:
Spring element (plastic), 1 screw for fastening to the encoder.
8.0010.4H00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.4H00.0000 Accessories spring element, short

Spring element, long

Spring element, long

For applications with high axial backlash and low dynamics:
Spring element (plastic), 1 screw for fastening to the encoder.
8.0010.4I00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.4I00.0000

Fastening arm, long, (flexible)

Fastening arm, long, (flexible)

For applications with axial play and radial play with low dynamics:
Torque brackets (stainless steel), 3 screws for mounting on the encoder.
8.0010.4R00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.4R00.0000

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Female connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3211.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Female connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3311.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Male connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3411.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Male connector 5-pin

Female connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3432.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Male connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3511.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Female connector 5-pin

Male connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3533.XXXM

Data sheet
DE EN FR

SUB-D Connector with cable ,  Doppelkabel

SUB-D Connector with cable , Doppelkabel

Preassembled cable set

PROFIBUS DP
Female connector 5-pin
& Male connector 5-pin

Male connector 9-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6012.5536.XXXM

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

PROFIBUS DP
Male connector 5-pin
05.BMSWS 8151-8.5

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

PROFIBUS DP
Male connector 5-pin
05.BMSWS 8251-8.5

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

PROFIBUS DP
Female connector 5-pin
05.BMWS 8151-8.5

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

PROFIBUS DP
Female connector 5-pin
05.BMWS 8251-8.5

Data sheet
DE EN FR

M12 Connector , Lead-through

M12 Connector , Lead-through

Field-wireable connector

PROFIBUS DP
Female connector 5-pin
05.FKW-FSW45/M12

Data sheet
DE EN FR

M12 Connector , Abschlusswiederstand

M12 Connector , Abschlusswiederstand

Field-wireable connector

PROFIBUS DP
Male connector 5-pin
05.RSS4.5-PDP-TR

Data sheet
DE EN FR
