Encoders Absolute multiturn

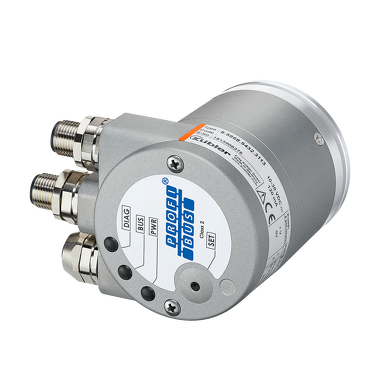

Sendix 5868

  • Particularly resistant
  • Reliable
  • Latest encoder profile
  • Dimension Ø 58 mm
  • 16 bits singleturn
  • 12 bits multiturn
  • Max 10 mm shaft, with flat surface
  • Max 3/8" shaft, with flat surface
PROFIBUS DP

For field bus communication: Encoders with PROFIBUS DP interface.

The absolute encoders Multiturn Sendix 5868 / 5888 with PROFIBUS DP interface and optical sensors are suitable for all Profibus applications.
With a maximum resolution of 28 bits, these encoders are also available in a version with blind hollow shaft up to 15 mm.

Mechanical
Dimension Ø 58 mm
Shaft type 6 mm shaft, with flat surface
10 mm shaft, with flat surface
1/4 " shaft, with flat surface
3/8 " shaft, with flat surface
Flange type Synchro flange / Servo flange
Clamping flange
Square flange

Ø 58.00 mm
Working temperature -40 °C ... +80 °C
Protection level IP65
IP67
Connection types Radial cable
M12 connector radial
Max. rotational speed 9.000 min-1
Weight 570 g
Electrical
Scanning optical
Resolution max. 16 bits singleturn
12 bits multiturn
Power supply 10...30 V DC
Interfaces PROFIBUS DP
Reliable
  • Proven use in applications with the highest demands such as wind power or mobile automation.
  • Absolutely reliable operation in the range of strong magnetic fields due to mechanical gear with optical sensor technology.
Flexible
  • Fast, simple, error-free connection thanks to variant with M12 plug.
  • Extensive programming possibilities by using the latest encoder profile.
Data sheet

Sendix 5868 / 5888 PROFIBUS

PDF ∼ 867,1 KB | 04.2019
DE
EN
FR
Operation Manual

ATEX 2 / 22

Multilingual: German, English, French
PDF ∼ 3,0 MB | 10.2021

General operating instructions for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 11.2021

Manual

Drehgeber mit PROFIBUS-Schnittstelle

PDF ∼ 3,3 MB | 09.2020
DE
EN
Safety characteristics

Sendix 5868 MTTFd

Multilingual: German, English
PDF ∼ 157,9 KB | 06.2019

Declaration of conformity

Sendix 5868 / 5888

Multilingual: German, English
PDF ∼ 387,9 KB | 04.2016

Sendix 58x8 PROFIBUS \ Conformance Test

PDF ∼ 128,2 KB | 10.2014
EN
Device file

Sendix 58x8 PROFIBUS / GSD-File

ZIP ∼ 35,8 KB | 08.2017

mechanical CAD / STEP

Sendix 5868

ZIP ∼ 12,2 MB | 10.2021

electronic CAD / ePlan

Sendix 5868 / 5888 PROFIBUS_DP

ZIP ∼ 6,5 MB | 02.2020

Product Certificates

ATEX 2/22

Multilingual: German, English
PDF ∼ 150,8 KB | 05.2021

Encoder Salt Spray Test (IEC 68-2-11/672h)

PDF ∼ 104,2 KB | 10.2014
DE
EN

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Accessories

Bellows coupling

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).
8.0000.1102.XXXX
Data sheet
8.000xxxxx Accessories coupling
DE EN FR
mechanical CAD / STEP
8.0000.1102.XXXX Accessories Bellow coupling

Assembly bell

Assembly bell

Fast encoder mounting. Electrical and thermal insulation by glass-fiber reinforced plastic and insulating spring spacer coupling - complete delivery as set.

Mounting bell, spring spacer coupling (8.0000.1401.XXXX), 4 DIN 912 M4x12 hexagon socket screws, 3 DIN 912 M4x10 hexagon socket screws, 7 DIN 433.4 washers, 3 mounting attachments (8.0000.4B00.0000), 3 DIN 84 M4x35 cylinder head screws, 3 DIN 934 - M4 hexagon nuts.
8.0000.4500.XXYY
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0000.4500.XXXX Accessories assembly bell/ CAD

Adapter flange, square, 4 mm

Adapter flange, square, 4 mm

Flange adapter, square. For shaft encoders with clamping flange.
Scope of delivery
Flange adapter (aluminum), 3 screws for fastening
Encoders
58,0 mm x 4 mm 8.0010.2100.0000
63,5 mm x 3 mm 8.0010.2120.0000
70,0 mm x 10 mm 8.0010.2600.0000
80,0 mm x 4 mm 8.0010.2800.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.2100.0000 Accessories flange, square / CAD

Flange, Ø 115mm Euroflange

Flange, Ø 115mm Euroflange

Adapter for converting a clamping flange into a synchro flange.
Flange adapter (aluminum), 3 screws for mounting on the encoder.
Drehgeber 580x/5000 8.0010.2160.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.2160.0000 Accessories flange / CAD

Flange, Ø 58mm

Flange, Ø 58mm

Adapter for converting a clamping flange into a synchro flange.

Flange adapter (aluminum), 3 screws for mounting on the encoder.
8.0010.2180.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.2180.0000 Accessories flange / CAD

Flange, Ø 65mm

Flange, Ø 65mm

With this flange adapter, Kübler encoders of dimension 58 mm can replace other makes of dimension 65 mm with 48 mm pitch circle.

Flange adapter (aluminum), 3 screws for mounting on the encoder.
8.0010.2230.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.2230.0000 Accessories flange / CAD

Flange, Ø 90mm

Flange, Ø 90mm

Adapter for converting a clamping flange into a synchro flange. Mechanically compatible with encoder type 9000.

Flange adapter (aluminum), 3 screws for mounting on the encoder.
8.0010.2270.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.2270.0000 Accessories flange / CAD

Angular flange

Angular flange

Stable mounting for shaft encoders.

Angled flange (aluminum), 3 screws for mounting on the encoder.
8.0010.2300.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.2300.0000 Accessories angular flange / CAD

Fastening eccentrics

Fastening eccentrics

Suitable for Kübler encoders with synchro flange
Material ACu Zn 39 Pb 3, surface galv. Ni
Scope of delivery:
3 attachments, 3 screws
8.0010.4100.0000
Data sheet
Accessories shaft encoders
DE EN FR
mechanical CAD / STEP
8.0010.4100.0000 Accessories fastening eccentrics

Bearing box

Bearing box

If the encoder is driven by a toothed or sprocket wheel, V-belt or toothed belt, impeller, etc., the permissible axial or radial shaft loads are usually exceeded during operation. The bearing box equipped with reinforced bearings is ideally suited for these cases. This can be combined with all encoders with 58mm clamping flange and 10x20mm shaft.

Bearing box with lock and O-ring, coupling for shaft 10 mm, adapter flange 8.0010.2100.0000, 3 countersunk screws DIN 63 M3x8, 4 cylinder head screws DIN 84 M4x8.
8.0010.8200.0004
Data sheet
Accessories bearing box
DE EN FR

Robust bearing unit

Robust bearing unit

Technical data: Speed: max. 6000 RPM/,protection: IP67, weight: approx. 560g, temperature: -40°C to +85°C. The separation of bearing load and sensors provides the encoder with additional protection in harsh environments. Retrofitting is particularly quick and easy on all encoders with 58 mm clamping flange.

Bearing unit (housing: aluminum, shaft: stainless steel), 3 M4x25 (SW3) cheese head screws, 1 O-ring.
8.0010.8200.000C
Data sheet
Accessories robust bearing unit
DE EN FR
Installation manual
Accessories robust bearing unit

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Female connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3211.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Female connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3311.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Male connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3411.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Male connector 5-pin

Female connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3432.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Male connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3511.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

PROFIBUS DP
Female connector 5-pin

Male connector 5-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6011.3533.XXXM

Data sheet
DE EN FR

SUB-D Connector with cable ,  Doppelkabel

SUB-D Connector with cable , Doppelkabel

Preassembled cable set

PROFIBUS DP
Female connector 5-pin
& Male connector 5-pin

Male connector 9-pin PUR Ø 7,6 mm ± 0,2 mm
2 x 0,34 mm2
05.00.6012.5536.XXXM

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

PROFIBUS DP
Male connector 5-pin
05.BMSWS 8151-8.5

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

PROFIBUS DP
Male connector 5-pin
05.BMSWS 8251-8.5

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

PROFIBUS DP
Female connector 5-pin
05.BMWS 8151-8.5

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

PROFIBUS DP
Female connector 5-pin
05.BMWS 8251-8.5

Data sheet
DE EN FR

M12 Connector , Lead-through

M12 Connector , Lead-through

Field-wireable connector

PROFIBUS DP
Female connector 5-pin
05.FKW-FSW45/M12

Data sheet
DE EN FR

M12 Connector , Abschlusswiederstand

M12 Connector , Abschlusswiederstand

Field-wireable connector

PROFIBUS DP
Male connector 5-pin
05.RSS4.5-PDP-TR

Data sheet
DE EN FR
