Preset counter electromechanical
MVs13
|
|

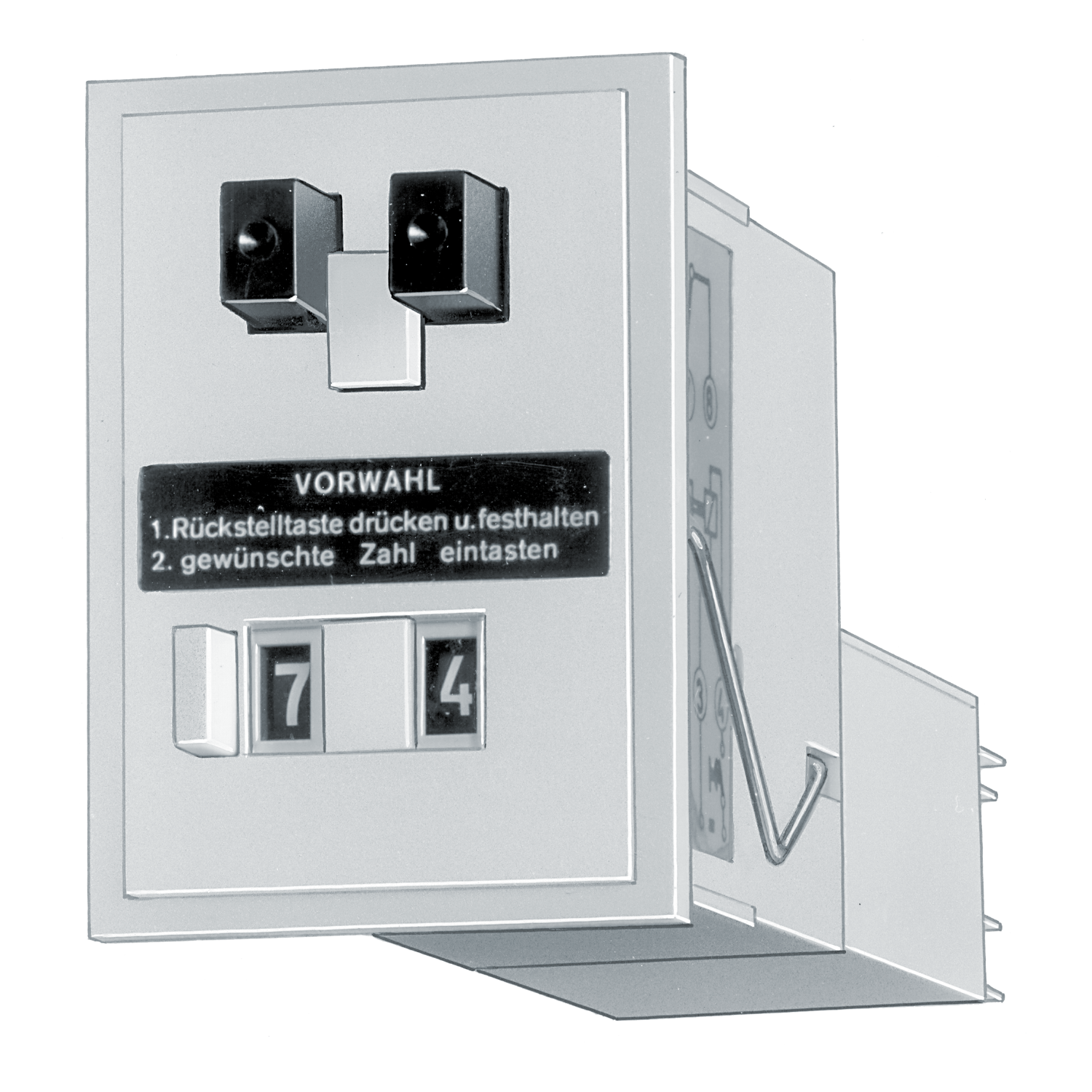

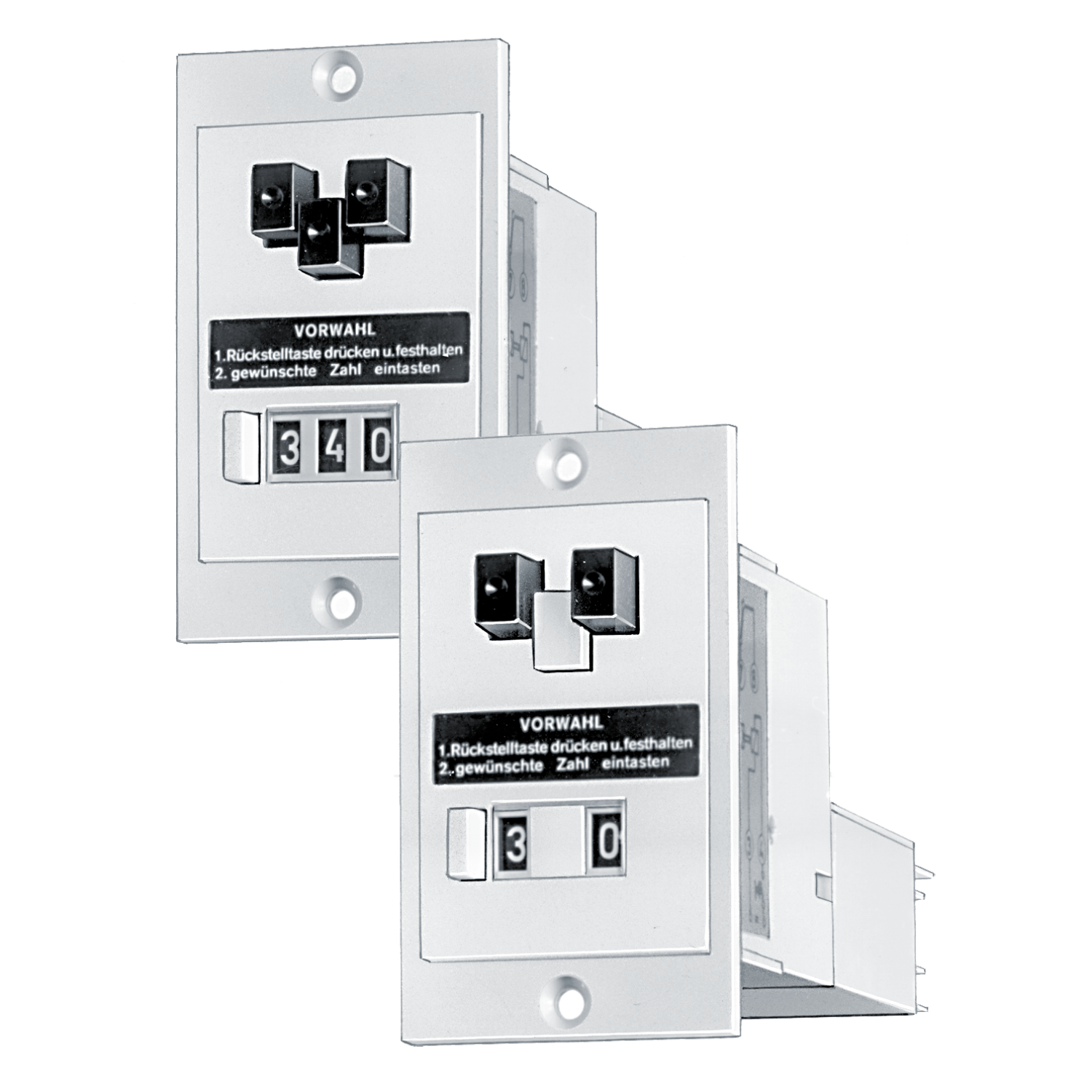

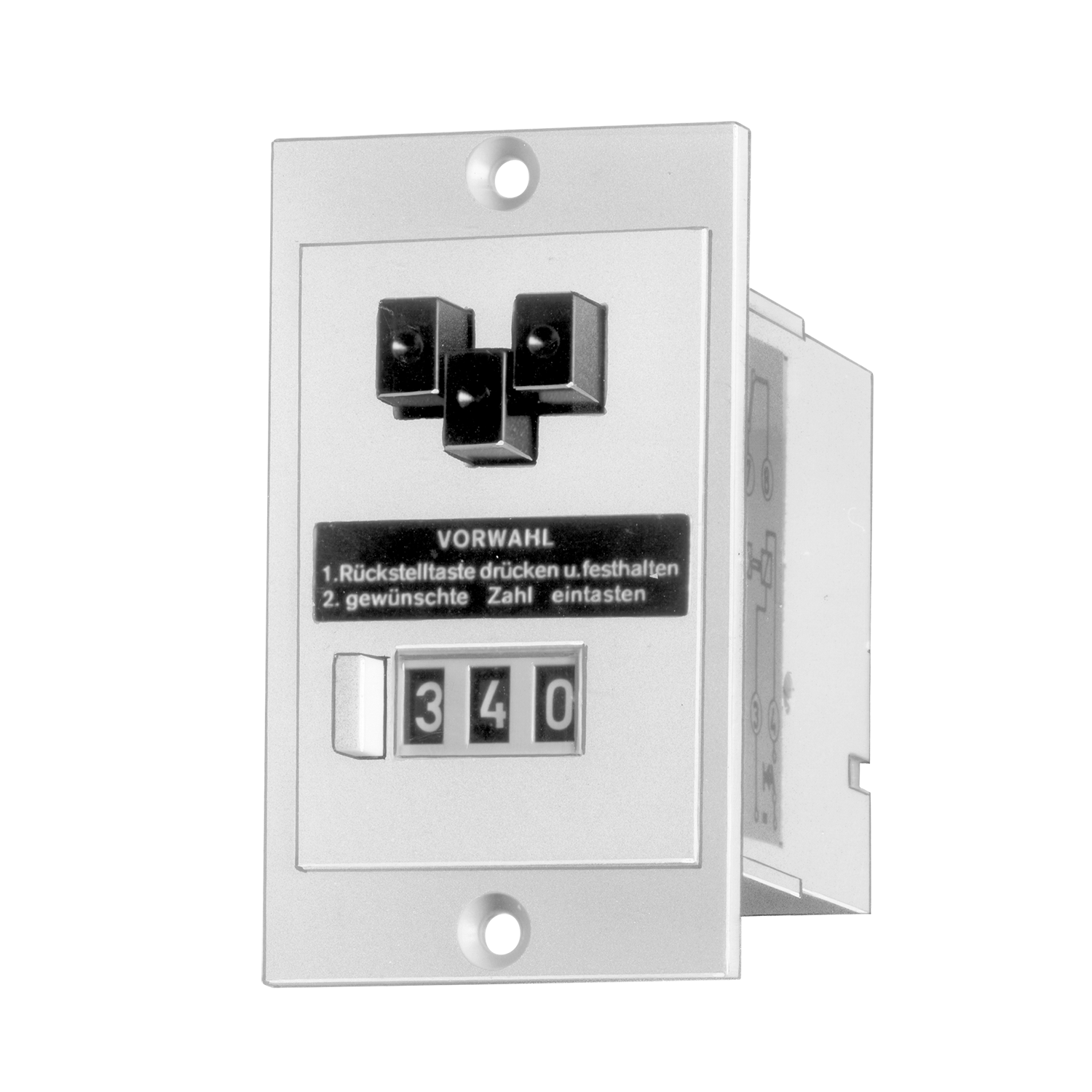

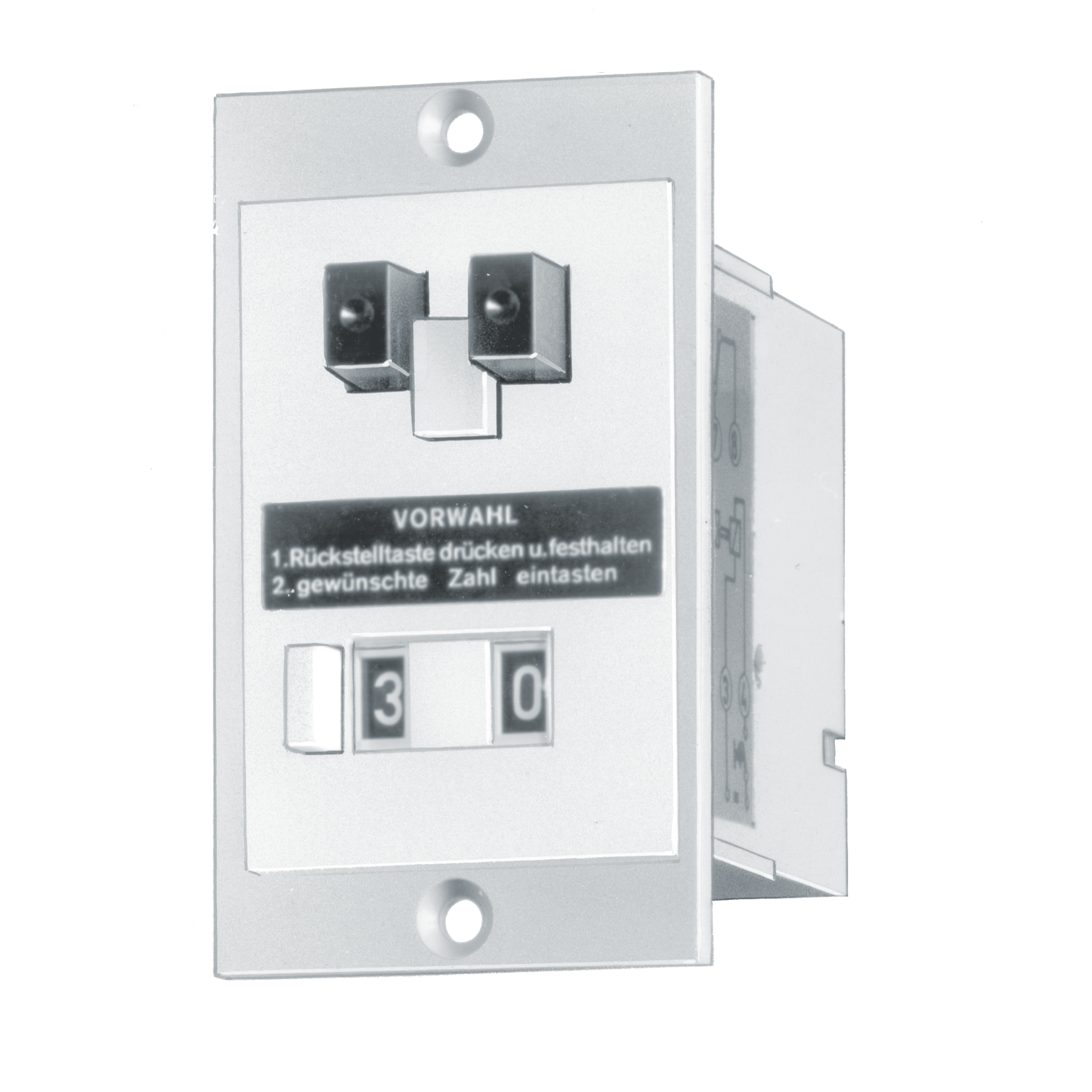

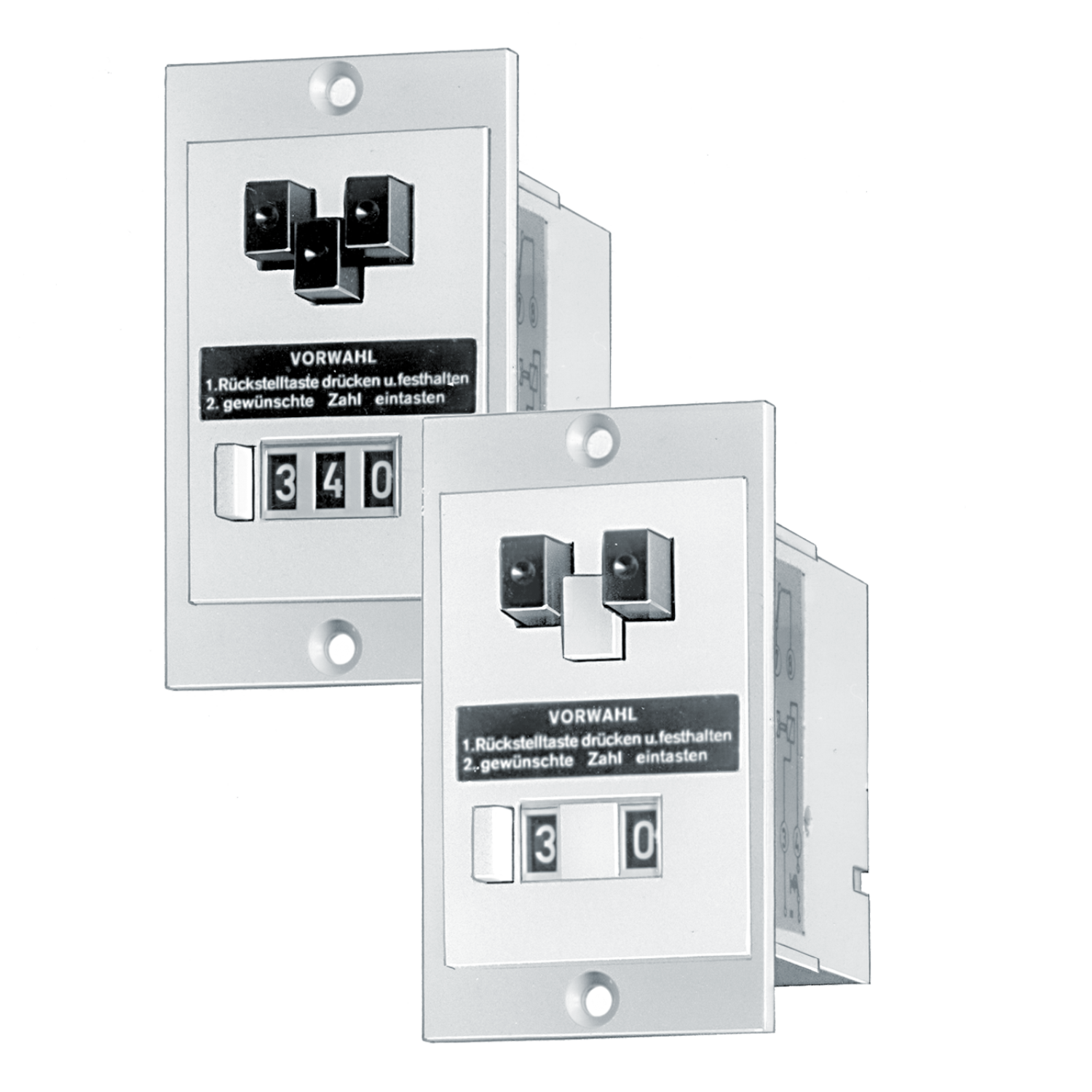

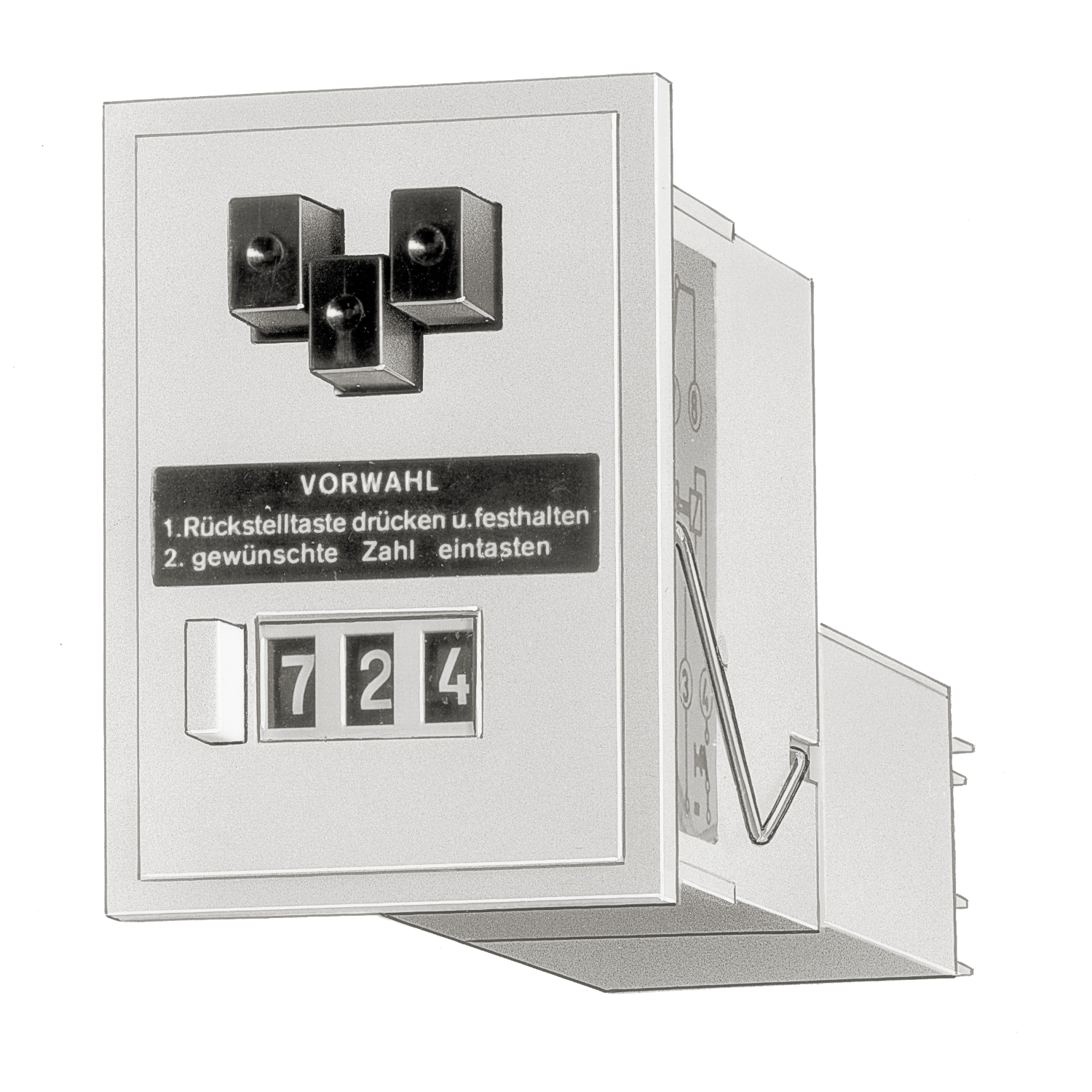

Subtracting miniature preset counter.
The electromechanical preset counters MVs 13 (manually and manually/electrically resettable) have a robust design with the smallest size. They are used in harsh industrial environments. The subtracting counter is set to a value via the keyboard, the signal is output at counter reading 0.| Mechanical | |
|---|---|
| Model | electromechanical |
| Function |
Preset counter |
| Dimension 1 |
39 x 55 mm | 33,3 x 50 mm 39 x 68 mm | 33,3 x 50 mm |
| Protection level |
IP40 |
| Working temperature | -10 °C ... +45 °C |
| Weight | 150 g |
| Reset |
electronic |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Power supply |
115 V AC 230 V AC 24 V DC |
| Signal output |
1 x Relais |
Properties
Piece counting, quantity counting and automation
- 2- or 3-digit subtracting preset counter
- Manual or manual and electrical reset
- Potential-free changeover switch when zero is reached (microswitch)
- Contact remains switched until reset
- Scope of delivery complete with receptacles
- Very small dimensions
- Versions with sealing cap on request
