Process displays for standard signals electronic

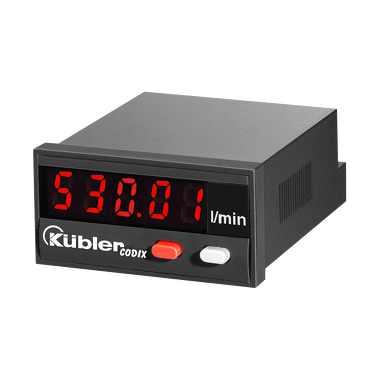

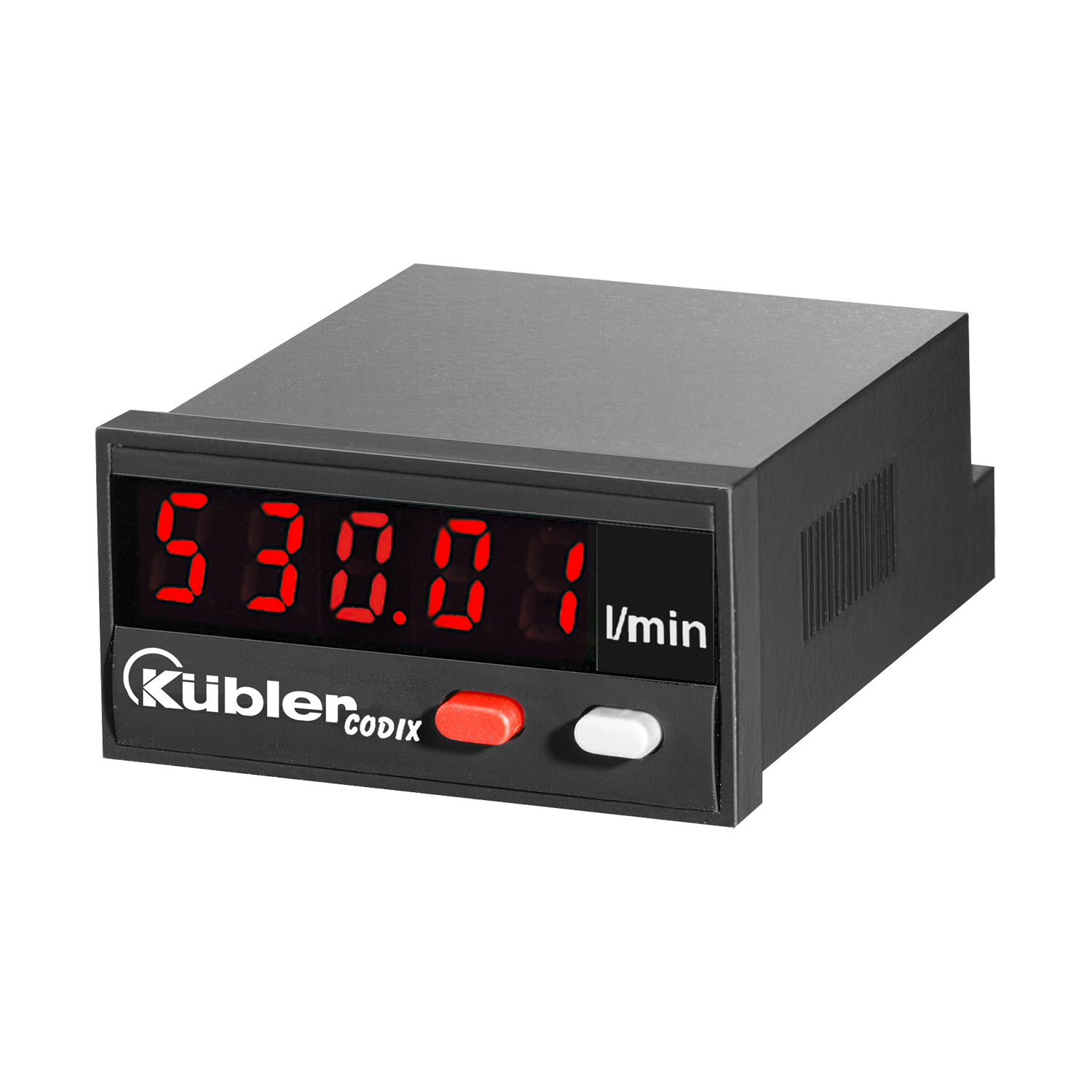

Codix 530
|
|
Product is discontinued
This product is no longer available. We would be pleased to support you in the selection of a comparable product.
Process display with scalable total counter.
Cost-effective standard signal display for front panel mounting with scalable, bright, 5-digit LED display. Due to 14 bit resolution, precise measured value display range with scalable total counter for time-controlled totalization of the measured value.| Mechanical | |
|---|---|
| Model | electronic |
| Dimension 1 |
48 x 24 mm | 45 x 22 mm |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Power supply |
10...30 V DC |
Product features
Benefits
- Entrance area: 1 current measuring input, 1 voltage measuring input
- Display range -19,999 to 99,999 with leading zero suppression
- Contemporary industrial design
- Programmable ripple filter
Benefits
- Compact display for analog measured values and totalizer with programmable factor
- Galvanic isolation with reverse polarity protection
- Programmable input (MPI) for display hold input or reset input for totalizer
- Freely definable characteristic curve end points
