Encoders Incremental
5825
|
|
This Product will be discontinued: March 31, 2026.
A new / comparable product is available for this product.
High-resolution – for maximum accuracy.

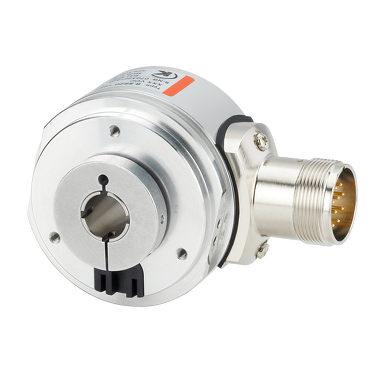

The incremental encoders 5805 / 5825 offer resolutions of up to 36000 pulses per revolution.
When maximum accuracy is required, these encoders are the optimum sensor solution.
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
6 mm hollow shaft, blind hole 8 mm hollow shaft, blind hole 6 mm hollow shaft, through 10 mm hollow shaft, blind hole 8 mm hollow shaft, through 12 mm hollow shaft, blind hole 10 mm hollow shaft, through 12 mm hollow shaft, through |
| Flange type |
Spring elements, short Stator coupling Ø 58.00 mm Ø 65.00 mm |
| Working temperature | -20 °C ... +105 °C |
| Protection level |
IP40 IP66 |
| Connection types |
Radial cable M23 connector radial M12 connector radial |
| Max. rotational speed |
12.000 min-1 |
| Weight | 400 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
36.000 ppr incremental |
| Power supply |
5 V DC 10...30 V DC |
| Interfaces |
Gegentakt TTL / RS422 |
| Options | |
|---|---|
| on request |
|
- High shaft load capacity.
- Maximum speed up to 12000 revolutions per minute.
- High IP protection up to max. IP66.
- With RS422 or push-pull interface.
- With cable or plug connection.
Accessories
Stator coupling
For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 32.5 mm
For lateral mounting on the encoder flange.
For applications with axial and radial play at high dynamics.
Scope of delivery
- Stator coupling (stainless steel)
- 4 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 3 screws
| 8.0010.1602.0000 |
Torque stop, flexible
For hollow shaft encoders
with flange ø 58 mm
Mounting radius 39.5 ... 142.75 mm
Designed for functional safety technology.
For applications with axial and radial play at low dynamics.
Scope of delivery
- Torque support (stainless steel)
- 3 M3x6 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 1 screw
| 8.0010.4047.00FS |
Fastening arm set, rigid
For hollow shaft encoderswith flange ø 58 mm
Mounting radius 32.5 ... 143.5 mm
Designed for functional safety technology.
For applications with very low axial and radial play at low dynamics.
Scope of delivery
- Torque support (stainless steel)
- 3 screws M3x6 for mounting to the encoder
Connection to the application (not included in delivery)
- 1 torque pin 8.0010.4049.0075
| 8.0010.4051.00FS |
Stator coupling (FS)
For hollow shaft encoders
with flange ø 58 mm
Mounting radius 31.5 mm
Designed for functional safety technology by 4-screw principle.
Scope of delivery
- Stator coupling (stainless steel)
- 4 screws M3x6 for mounting to the encoder
Connection to application (not included in delivery)
- 4 screws
| 8.0010.40B2.00FS |
Fastening arm, medium (flexible)
For hollow shaft encoderswith flange ø 50 ... 58 mm
Mounting radius 32.5 ... 45.75 mm
For applications with axial and radial play with constant rotary movements.
Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 1 screw
| 8.0010.40E0.0000 |
Stator coupling
For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 32.5 mm
For lateral mounting on the encoder flange.
For applications with axial and radial play at high dynamics.
Scope of delivery
- Stator coupling (stainless steel)
- 4 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 3 screws
| 8.0010.40L0.0000 |
Fastening arm, short (flexible)
For hollow shaft encoderswith flange ø 50 ... 58 mm
Mounting radius 32.25 mm
For applications with axial and radial play at low dynamics.
Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 1 screw
| 8.0010.40M0.0000 |
Spring tether element
For hollow shaft encoderswith flange ø 50 ... 58 mm
For applications with low radial and axial play and low dynamics.
Scope of delivery
- Wire spring element
- 1 screw for mounting on the encoder.
Connection to the application (not included in delivery)
- 1 screw
| 8.0010.40W0.0000 |
Stator coupling, double-winged
For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 31.5 mm
For lateral mounting on the encoder flange. For applications with high accuracy requirements.
Scope of delivery
- Stator coupling (stainless steel)
- 4 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 2 screws
| 8.0010.4D00.0000 |
Spring element, short
For hollow shaft encoderswith flange ø 36 ... 58 mm
Mounting radius 16 ... 27 mm
For applications with limited axial play at low dynamics and limited installation space.
Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder
Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
| 8.0010.4H00.0000 |
Spring element, long
For hollow shaft encoderswith flange ø 36 ... 58 mm
Mounting radius 30.7 ... 36.7 mm
For applications with high axial play, at low dynamics.
Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder
Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
| 8.0010.4I00.0000 |
Fastening arm, long, (flexible)
For hollow shaft encoderswith flange ø 50 ... 58 mm
Mounting radius 36.5 ... 85 mm
For applications with axial and radial play at low dynamics.
Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 1 screw
| 8.0010.4R00.0000 |
