Encoders Incremental
2400
|
|
Ideal for the tightest installation spaces: Optical miniature encoders.

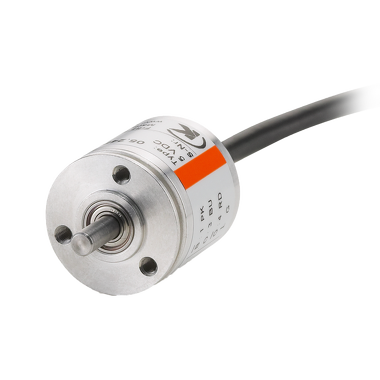

The 2400 / 2420 incremental miniature encoders with their optical sensor technology provide a resolution of up to 1024 pulses per revolution.
With a diameter of only 24 mm, these encoders are particularly suitable for use in confined spaces.
| Mechanical | |
|---|---|
| Dimension | Ø 24 mm |
| Shaft type |
4 mm shaft, round 6 mm shaft, round 5 mm shaft, with flat surface 6 mm shaft, with flat surface 1/4 " shaft, with flat surface |
| Flange type |
Ø 24.00 mm Ø 28.00 mm Ø 30.00 mm |
| Working temperature | -20 °C ... +85 °C |
| Protection level |
IP50 IP64 IP65 |
| Connection types |
Axial cable Radial cable |
| Max. rotational speed |
12.000 min-1 |
| Weight | 60 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
1.024 ppr incremental |
| Power supply |
5...24 V DC 8...30 V DC |
| Interfaces |
Gegentakt TTL / RS422 |
| Options | |
|---|---|
| on request |
|
Reliable
- Robust bearing structure.
- Multiple clamping gives the cable outlet a high strain relief.
- Short-circuit resistant outputs.
- Ideally suited for use in small devices.
Accessories
Bellows coupling
Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.Variants – for shaft diameters d1/d2 in mm
04/04 – 06/04 – 06/06 – 08/06
| 8.0000.1202.XXXX |
Cables and connectors
01
2400/2420: the most versatile miniature encoder
