PSU01

Shaft copying systems

PSU01

  • SIL3, EN 81-20/50
  • Eliminates existing components
  • Reduces total costs
  • Simple integration
  • Safe evaluation
CANopen-Lift
SSI, binary

Shaft copy system – Realization of elevator and safety functions.

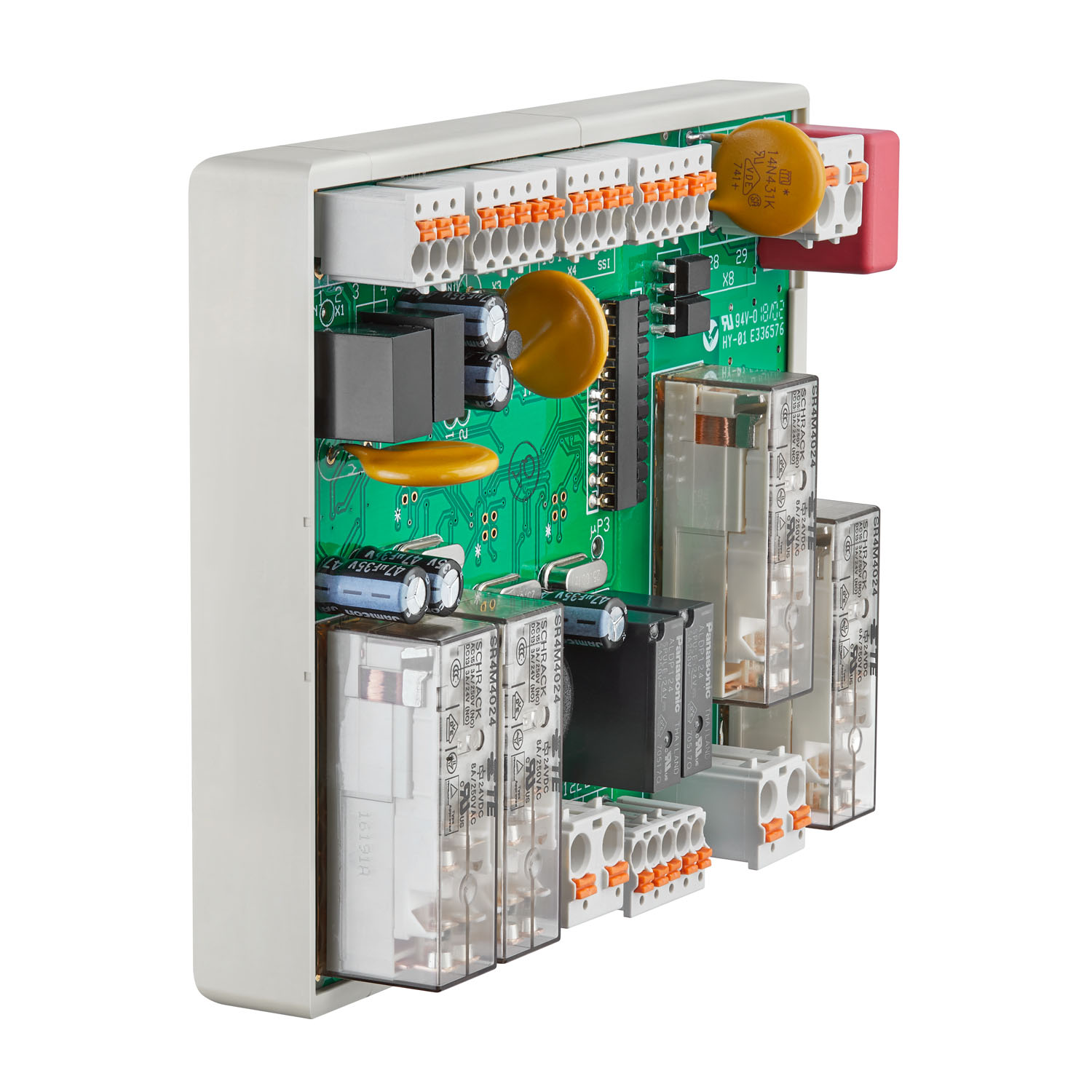

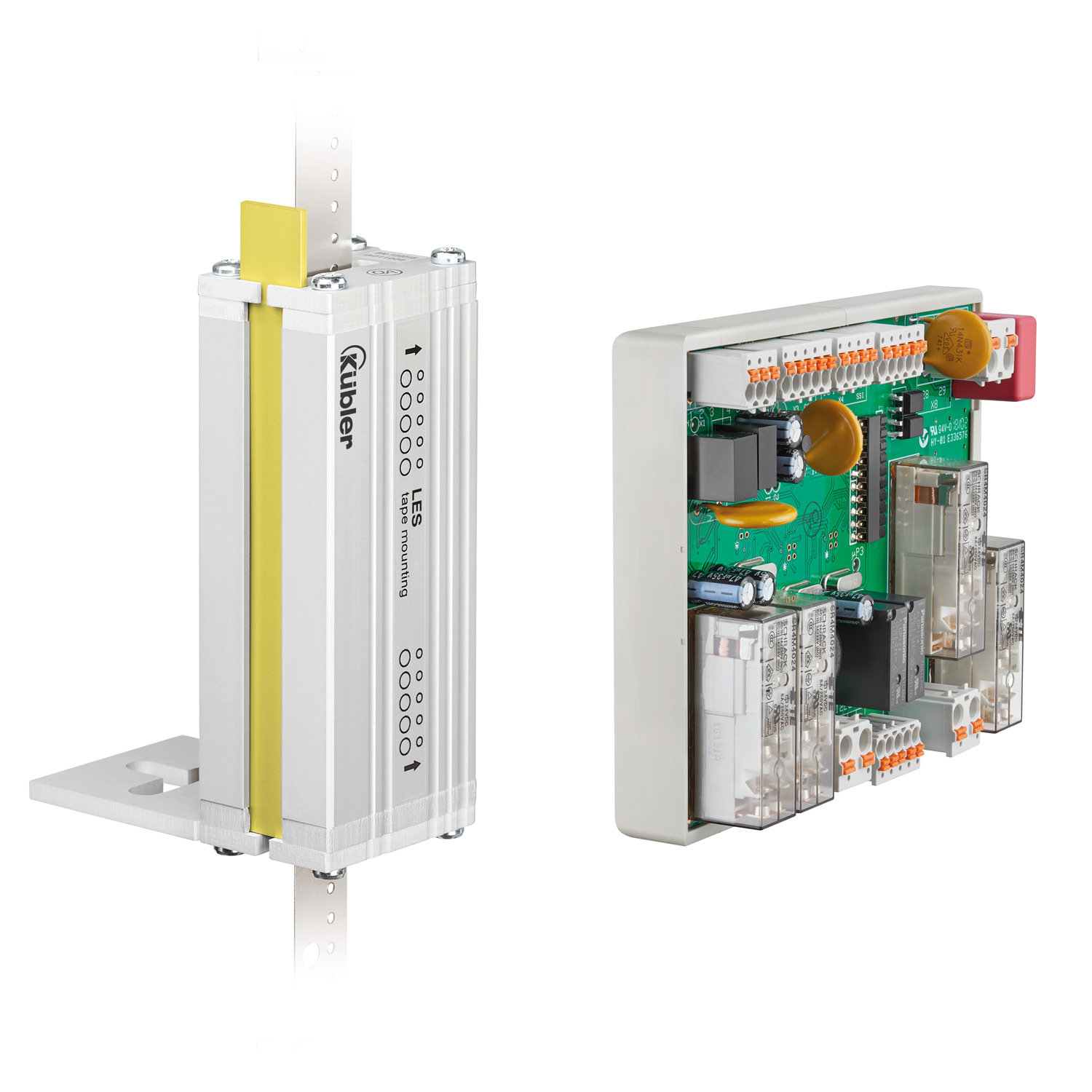

The PSU01 is an SIL3-certified safe system consisting of a sensor (Ants LES01) and an evaluation unit (PSU) for implementing lift and safety functions in accordance with EN81-20/21/50. The Ants LES01 is used to determine the absolute car position 100% slip-free. The PSU evaluates the safe position feedback and triggers the required safety functions via safety relays together with the lift controller. Existing limit switches as well as inspection limit switches can be replaced when the shaft head/pit is shortened. In addition to UCM, numerous other EN81-20/21/50 requirements can also be met. The safe system thus not only saves installation and maintenance time, but above all costs.

Mechanical
Measuring system Shaft copying systems
Dimension 115,6 mm x 96 mm x 30,8 mm
Working temperature -5 °C ... 55 °C
Weight 440 g
Electrical
Interfaces CANopen-Lift
SSI, binary

PSU01

Properties
  • Secure position detection and evaluation
  • Integrated UCM function
  • Extremely compact
  • SIL3-certified

Benefits
  • Implementation of lift and safety functions according to EN81-20/-21/-50.
  • Replaces existing components such as limit switches, magnetic flags and door zone magnets
  • Reduces installation and maintenance time
  • Exact car positioning
Data sheet

PSU01

PDF ∼ 767,9 KB | 02.2019
DE
EN
FR
User manual

PSU01

Multilingual: German, English, US_ENGLISH, French, Italian, Spanish
PDF ∼ 2,1 MB | 01.2019

Installation manual

Tape measure packaging Ants Base, Ants Safe

Multilingual: German, English, French, Italian, Spanish, Chinese
PDF ∼ 1,1 MB | 04.2019

Manual

PSU01

PDF ∼ 724,2 KB | 01.2019
EN
Brochures

Ants LEB / Ants LES Shaft copying system

PDF ∼ 169,3 KB | 11.2017
DE
EN
IT

Accessories

Cables and Connectors
