Magnetic length measuring systems

Limes LA10 / BA1

  • High resolution
  • Simple mounting
  • High mounting tolerance
  • Wear-free
  • Compact design
  • Max. measuring length 8 m
  • Speed 10 m/s
  • Resolution max. 1 μm
CANopen
SinCos
SSI, binary

Magnetic length measuring system, absolute – no reference run necessary.

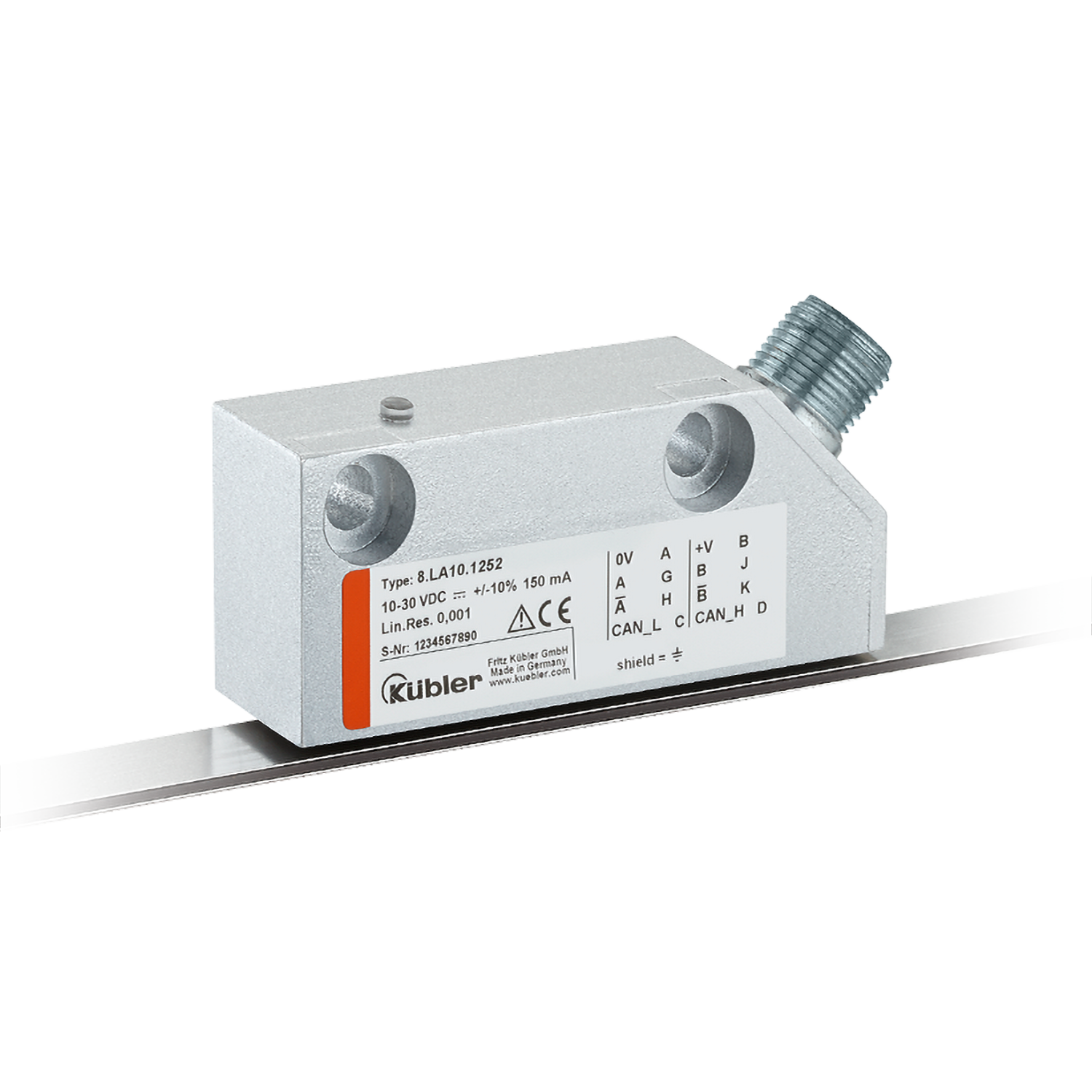

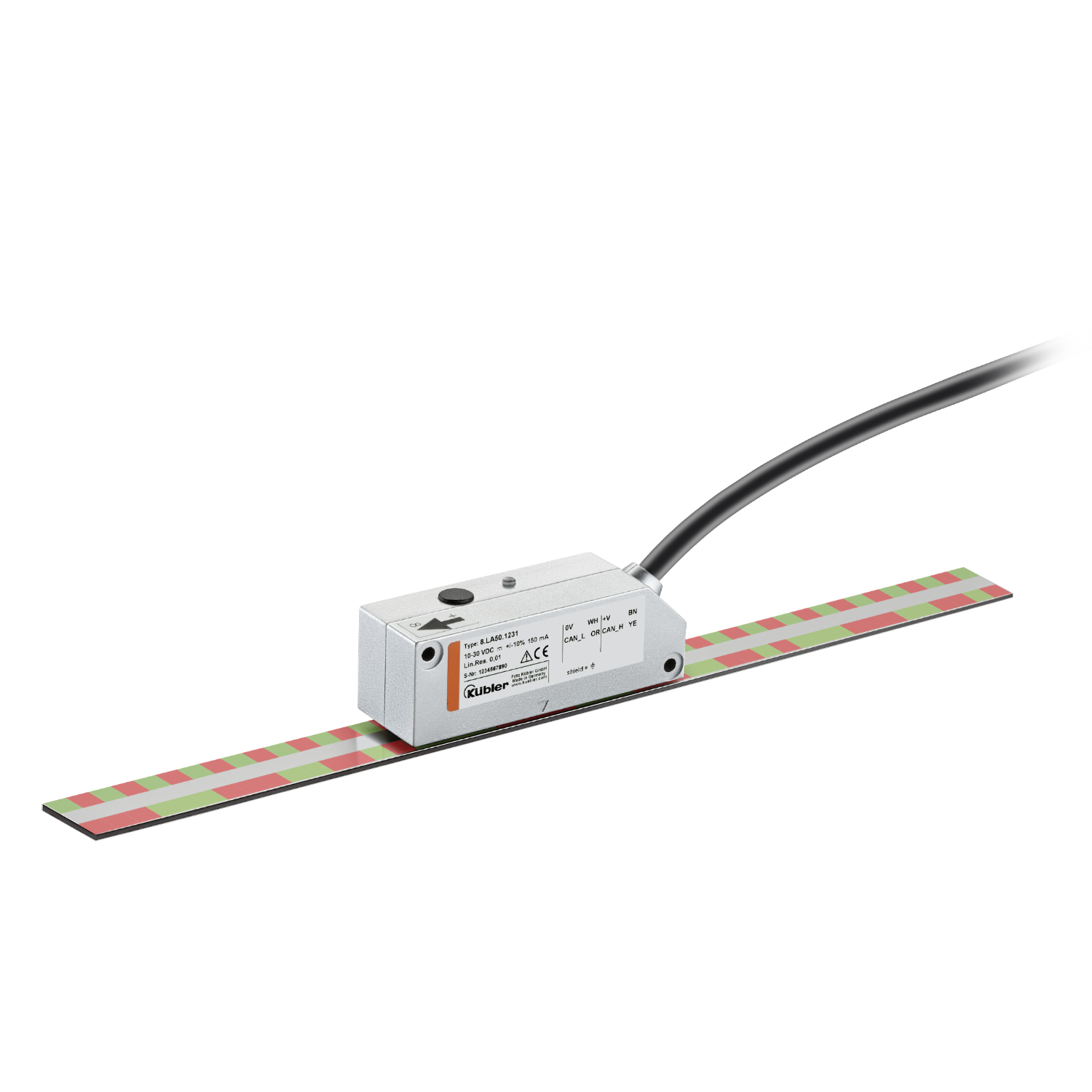

The Limes LA10 contactless absolute magnetic length measuring system. / BA1 contactless absolute magnetic length measuring system - consisting of the sensor head LA10 and the magnetic tape BA1 - enables a resolution of up to 1 μm with a maximum distance of 0.2 mm between sensor and tape (including cover tape).
Thanks to the additional SinCos interface, the LA10 / BA1 measuring system is ideally suited for use in linear drive technology.

Mechanical
Measuring system Magnetic length measuring systems
Measuring length 8 m
Speed 10 m/s
Dimension 16 mm x 70 mm x 30 mm
Working temperature -20 °C ... +80 °C
Protection level IP64
Weight 100 g
Electrical
Resolution max. 1 μm
Interfaces CANopen
SinCos
SSI, binär
Power supply 10...30 V DC
Robust and versatile
  • High resolution - 1μm / measuring length max. 8 m.
  • Non-contact magnetic absolute measuring technology – therefore no wear – no referencing movement required.
  • Sturdy housing with IP64 protection.
  • For highly dynamic control.
  • Optional SinCos signal (1 Vpp) for dynamic movement control with 1 mm pole pitch.
  • Masking tape protecting the magnetic band.
Easy installation
  • Simple glued assembly of the magnetic band.
  • Requires very little installation space.
  • Robust measuring principle – insensitive to dirt, smoke and humidity.
Data sheet

LA10 / BA1

PDF ∼ 460,3 KB | 12.2019
DE
EN
FR
Installation manual

LA10 / LA50

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 1,3 MB | 10.2016

Manual

LA10

PDF ∼ 1,5 MB | 10.2016

Declaration of conformity

LA10 / LA50 CE

Multilingual: German, English, French
PDF ∼ 377,8 KB | 04.2016

Device file

LA10 / LA50

ZIP ∼ 2,1 KB | 10.2014

Mechanical CAD / STEP

LA10

ZIP ∼ 149,6 KB | 10.2014

Notice

Instructions for sticking the magnetic tape

Multilingual: German, English
PDF ∼ 597,1 KB | 10.2016

Accessories

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
SSI, binary
BiSS
Female connector 12-pin PUR Ø 7,5 mm ± mm
6 x 2 x 0,14 mm2
05.00.60B1.B211.XXXM

Data sheet
M12 cordset, PUR, socket, 12-pin, A-coded, open end
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI, binary
BiSS
HTL
Female connector 12-pin
8.0000.5162.0000

Data sheet
M12 socket, 12-pin, A-coded
DE EN FR
