RLI200

  • Wear-free
  • Space and cost savings
  • Contactless
  • 16.000 ppr incremental
  • Max 180 mm hollow shaft, through
Push-pull
TTL / RS422

RLI200

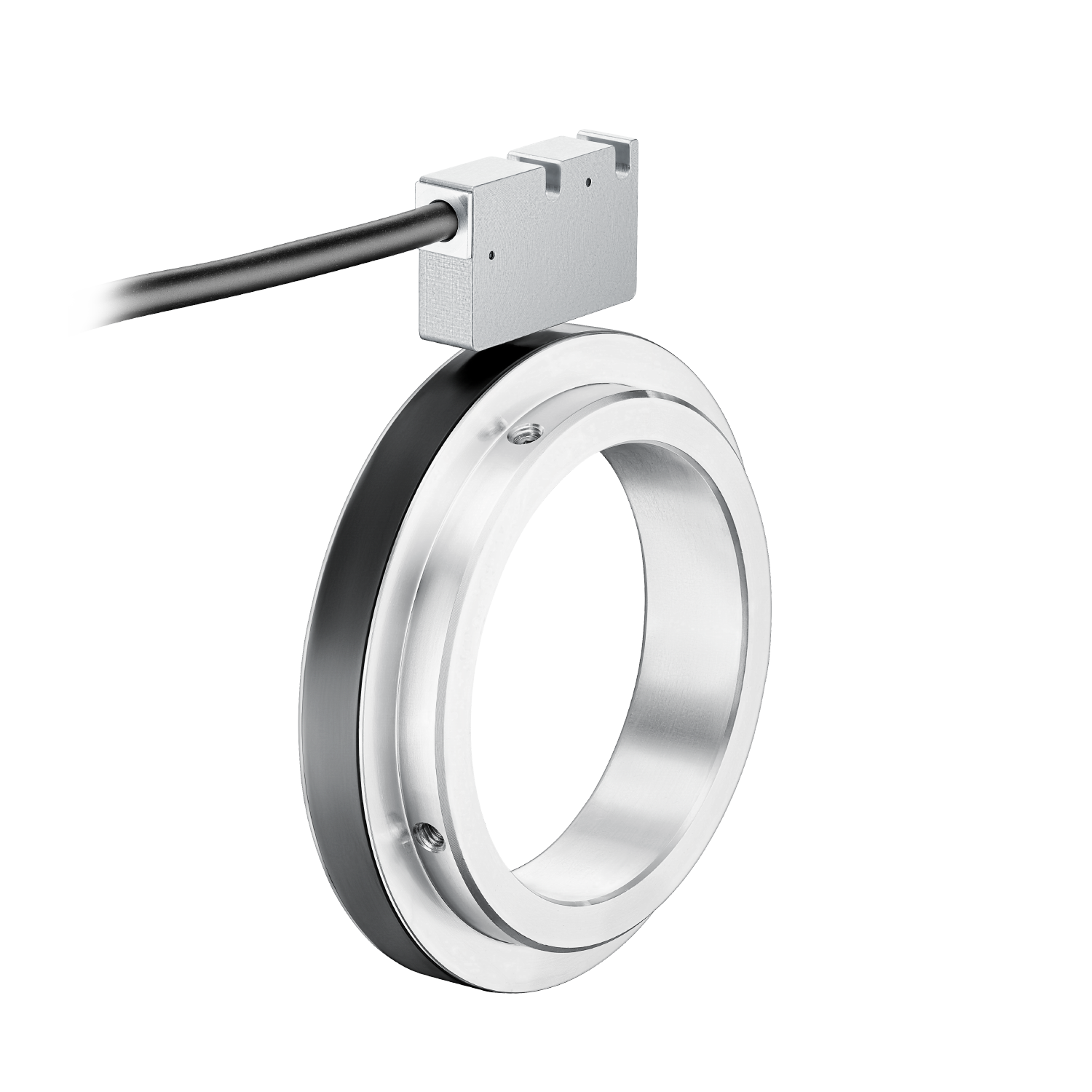

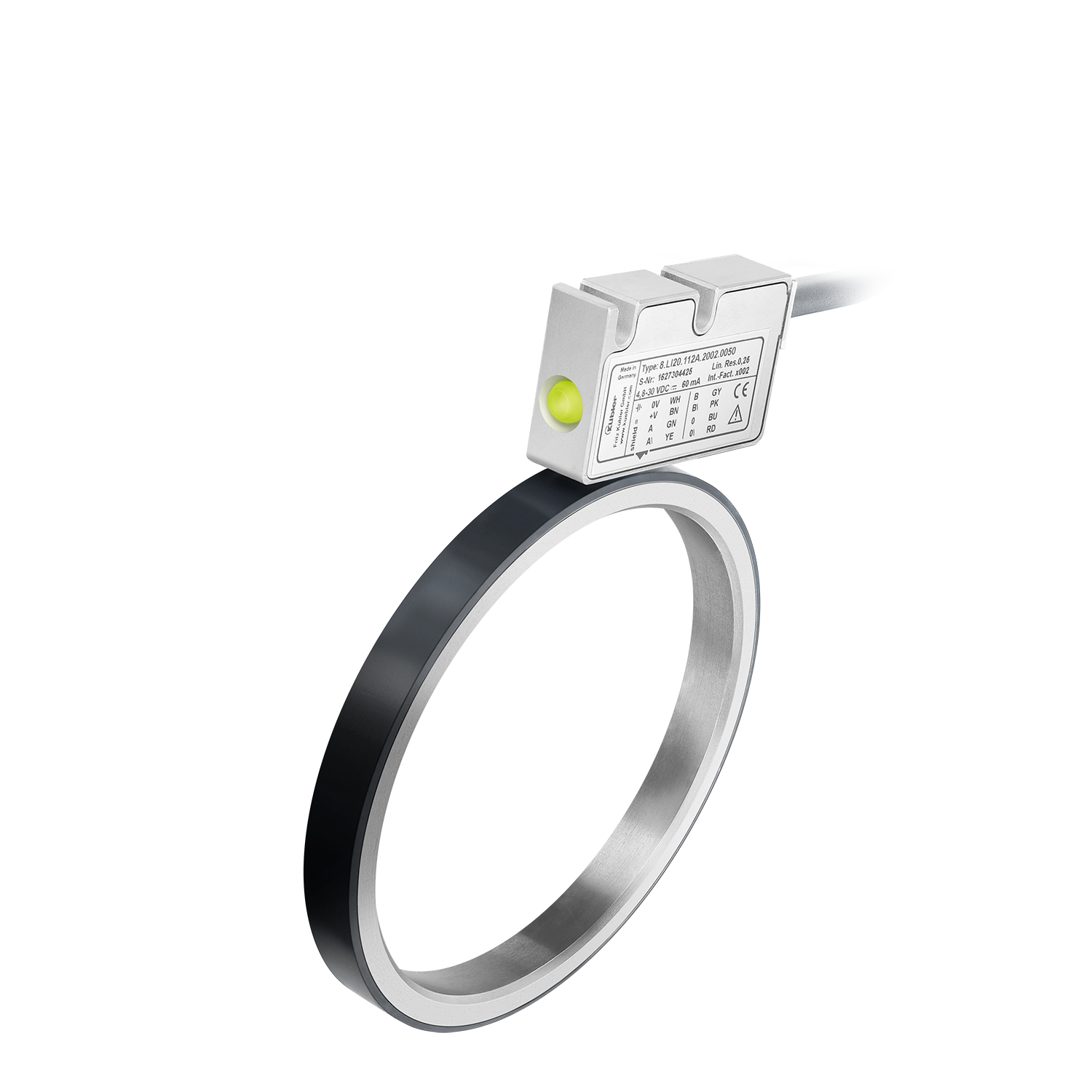

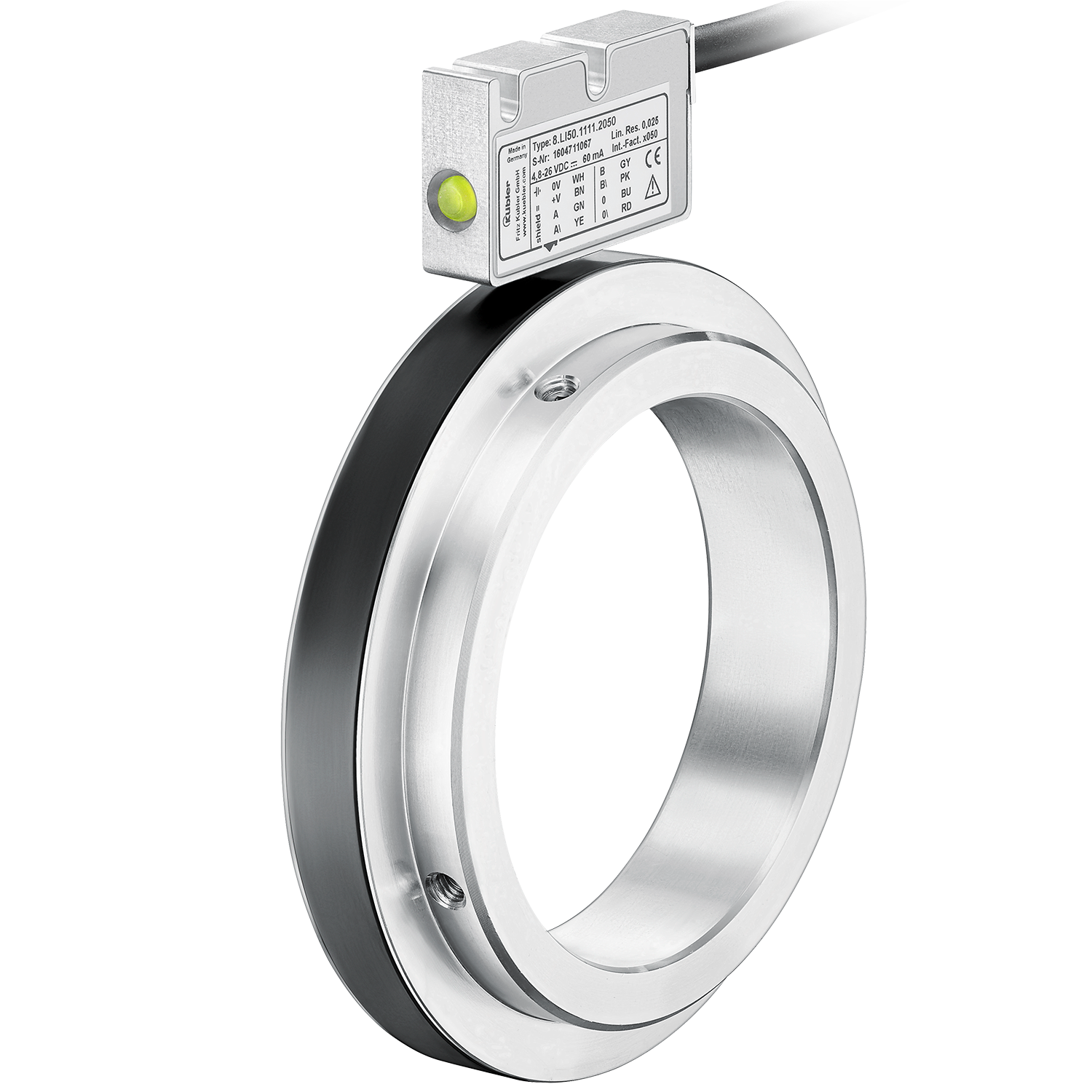

The RLI200 bearingless encoder, consisting of magnetic ring and sensor head, with its installation depth of min. 10 mm is ideally suited for narrow installation possibilities. Its contactless measuring principle enables error-free operation even under adverse environmental conditions and a long service life. IP68 / IP69k protection, special encapsulation technology, and tested resistance to cyclic humidity and heat provide maximum reliability even in unprotected outdoor use. This bearingless encoder can be mounted on shafts up to max. 390 mm diameter.

Mechanical

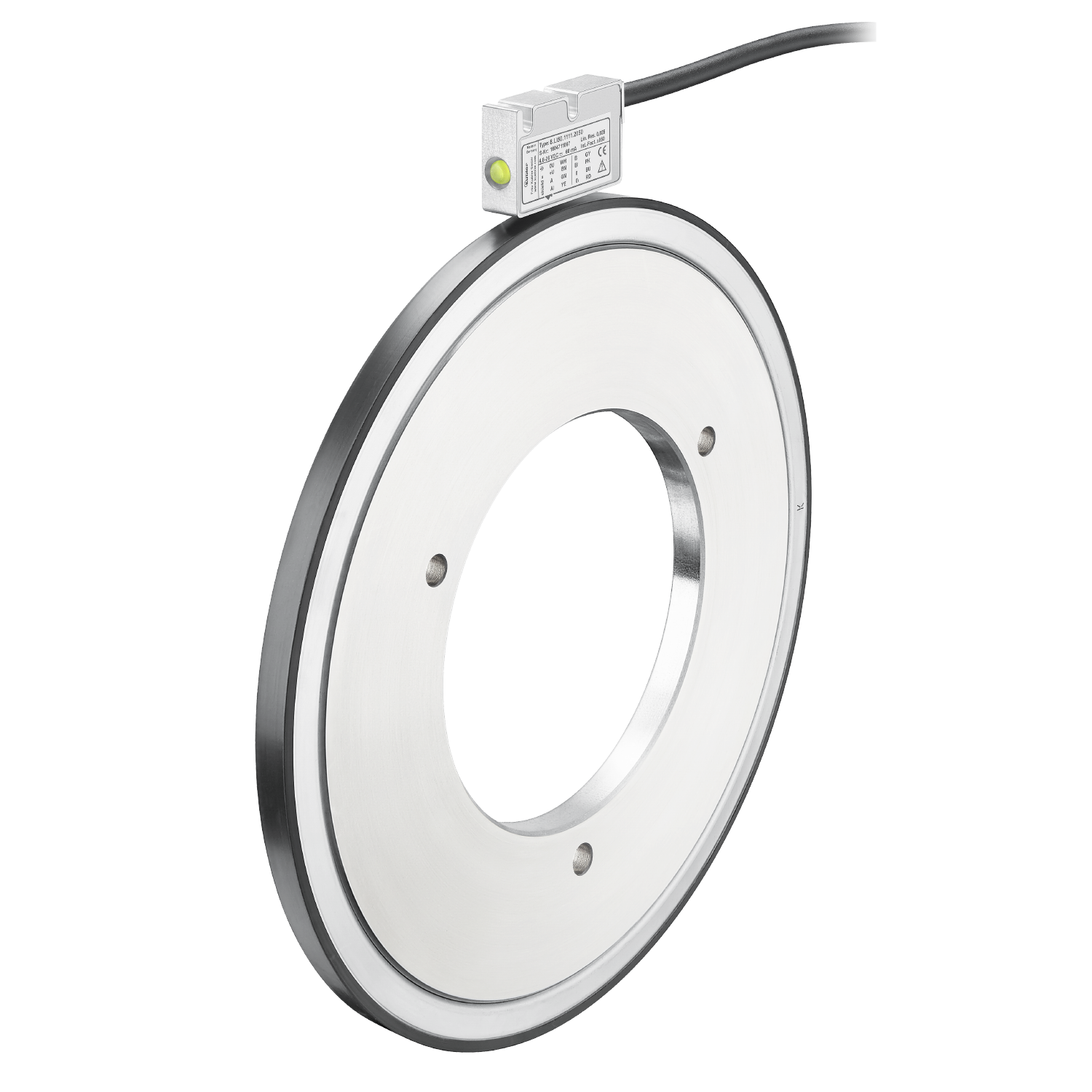

Shaft type 76 mm hollow shaft, through
180 mm hollow shaft, through
Working temperature -20 °C ... +80 °C
Protection level IP67
IP68
IP69k
Connection types Radial cable
Max. rotational speed 12.000 min-1
Electrical
Scanning magnetic
Resolution max. 16.000 ppr incremental
Supply voltage 4,8...26 V DC
4,8...30 V DC
Interfaces Push-pull
TTL / RS422

RLI200

Resistant and insensitive
  • High shock and vibration resistance.
  • Sturdy housing with IP67 protection, optionally with special housing for high resistance against condensation (IP68 / IP69k, resistance against cyclic humidity per EN 60068-3-38 as well as humidity and heat per EN 60068-3-78).
  • Contactless and wear-free measuring system for long service life.
Fast commissioning
  • Requires very little installation space.
  • Large mounting tolerance between magnetic ring and sensor head.
  • Easy adjustment by mounting via slotted holes.

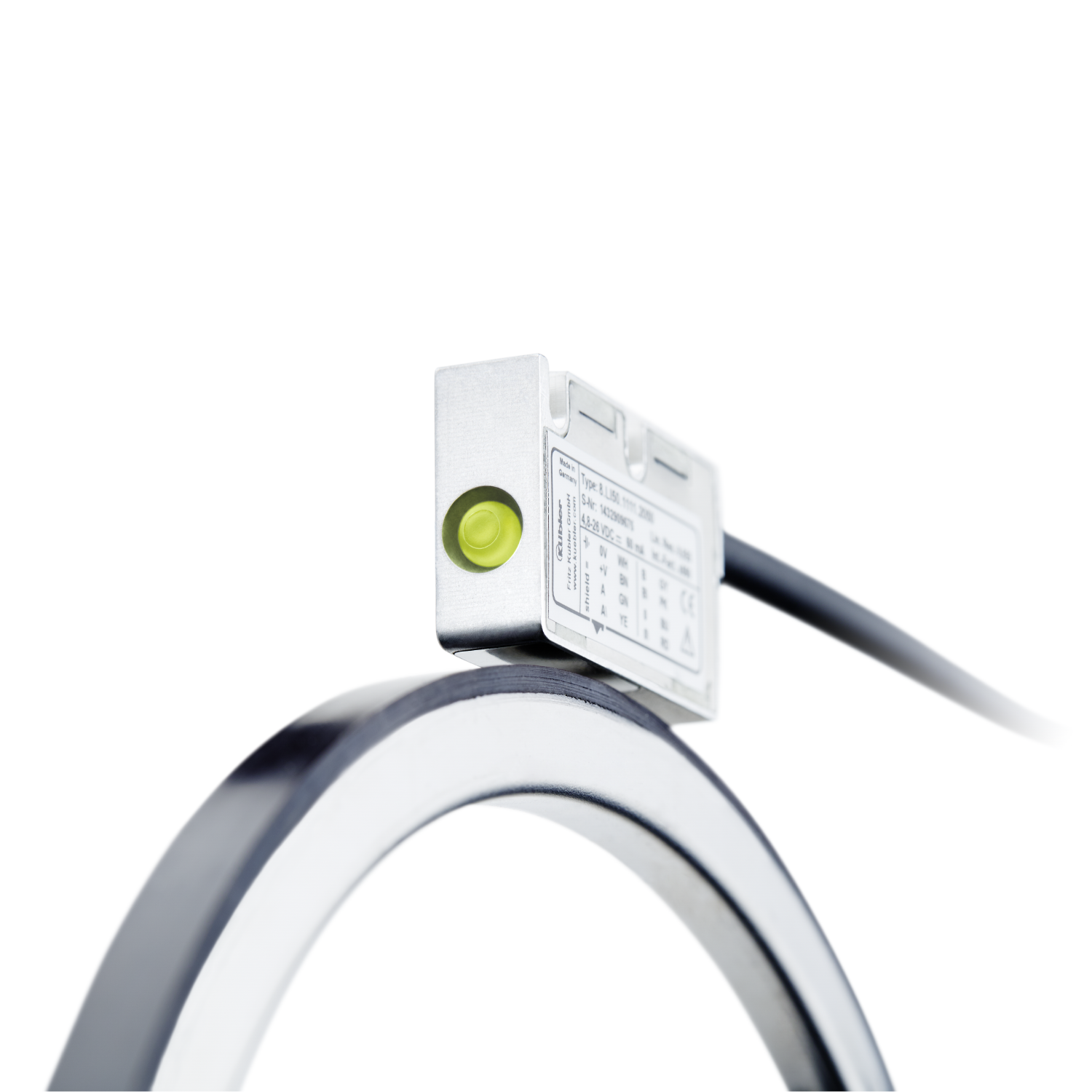

  • Function indication by LED.
Data sheet

RLI200 Incremental

PDF ∼ 379,1 KB | 09.2018
DE
EN
FR
Installation manual

RLI200 / RLI500

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 224,2 KB | 09.2016

Declaration of conformity

LI20 / RI20 / RLI20 / RLI200 / LI50 / RI50 / RLI50 / RLI500

Multilingual: German, English, French
PDF ∼ 353,6 KB | 05.2017

mechanical CAD / STEP

RLI200

ZIP ∼ 689,0 KB | 05.2017

electronic CAD / ePlan

RLI200

ZIP ∼ 908,2 KB | 02.2020

Notice

Safety instructions for magnetic rings

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 566,2 KB | 05.2017

Accessories

Cables and connectors
