Pulse counter Pneumatics

PMk16

  • Manual reset
  • Also available with quick plug-in system
  • Counting via anchor escapement system with diaphragm
  • Dimension

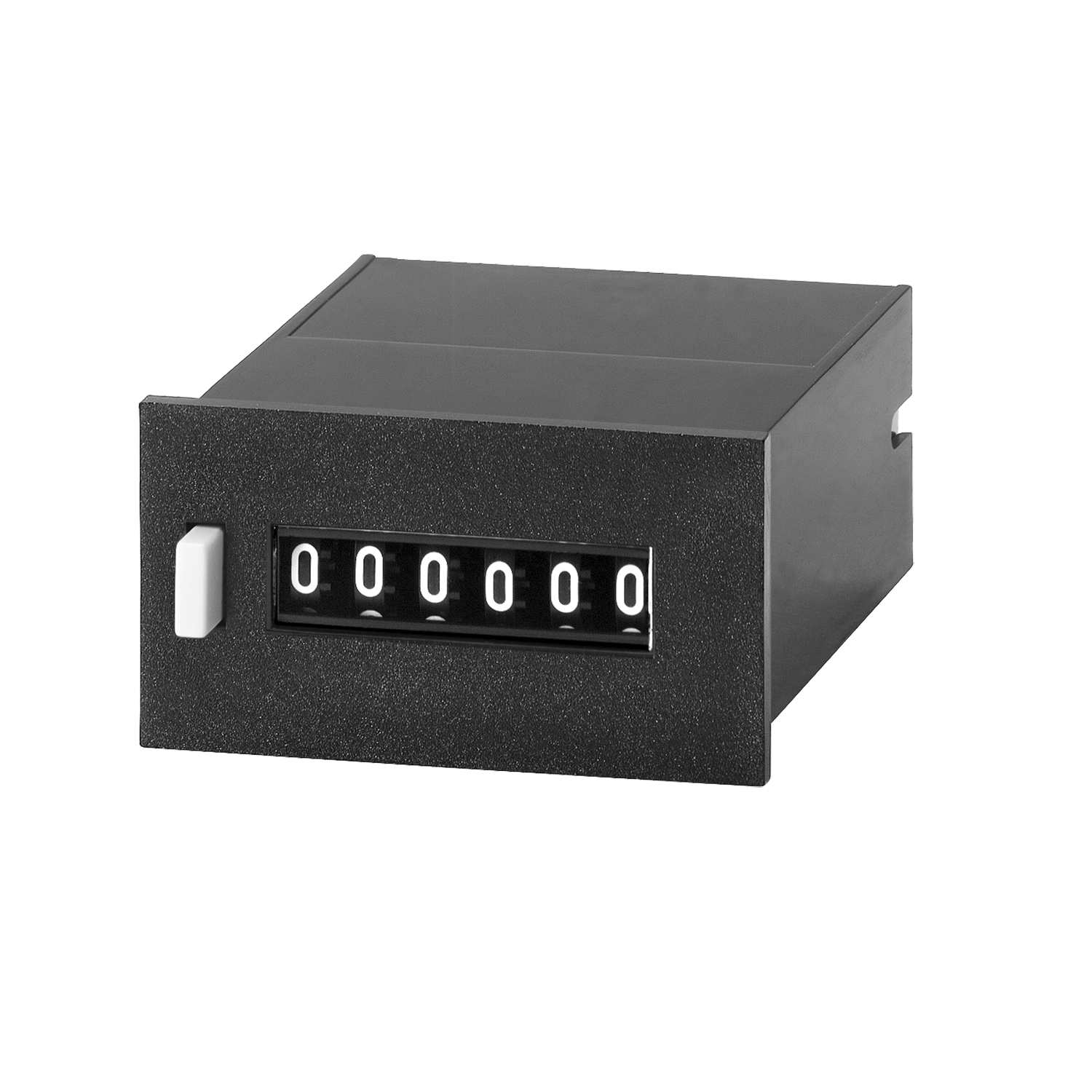

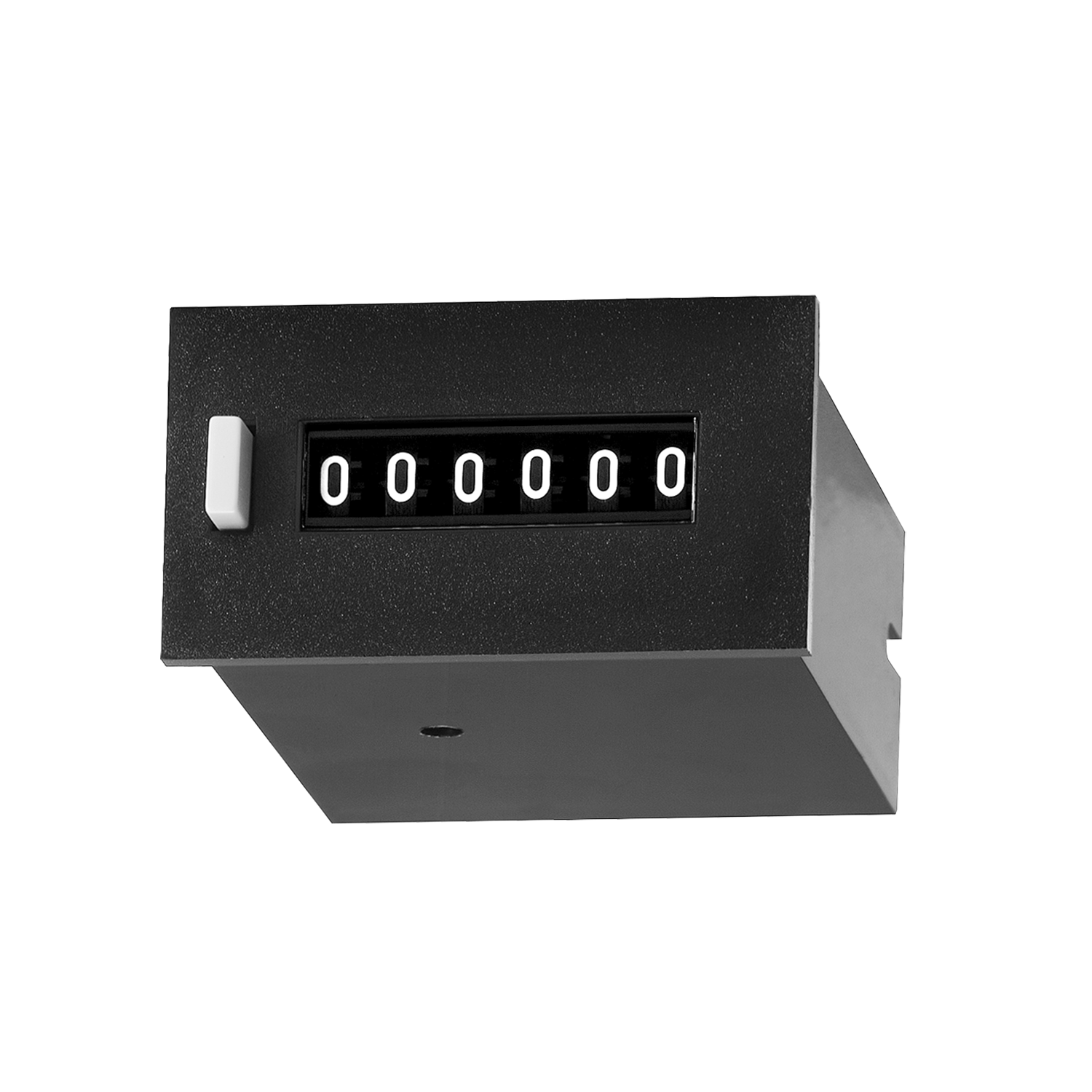

    · 52 x 28 mm | 48 x 24 mm

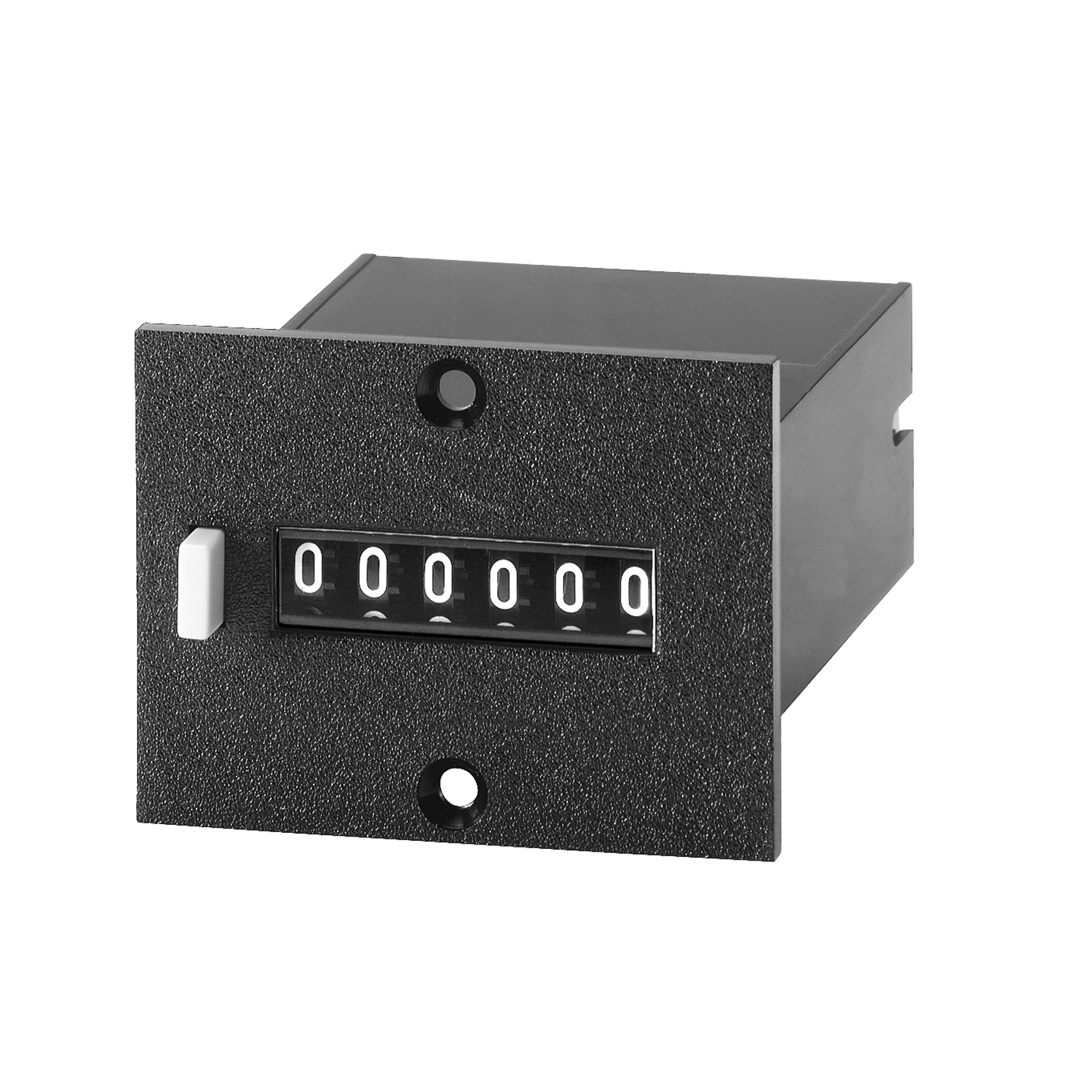

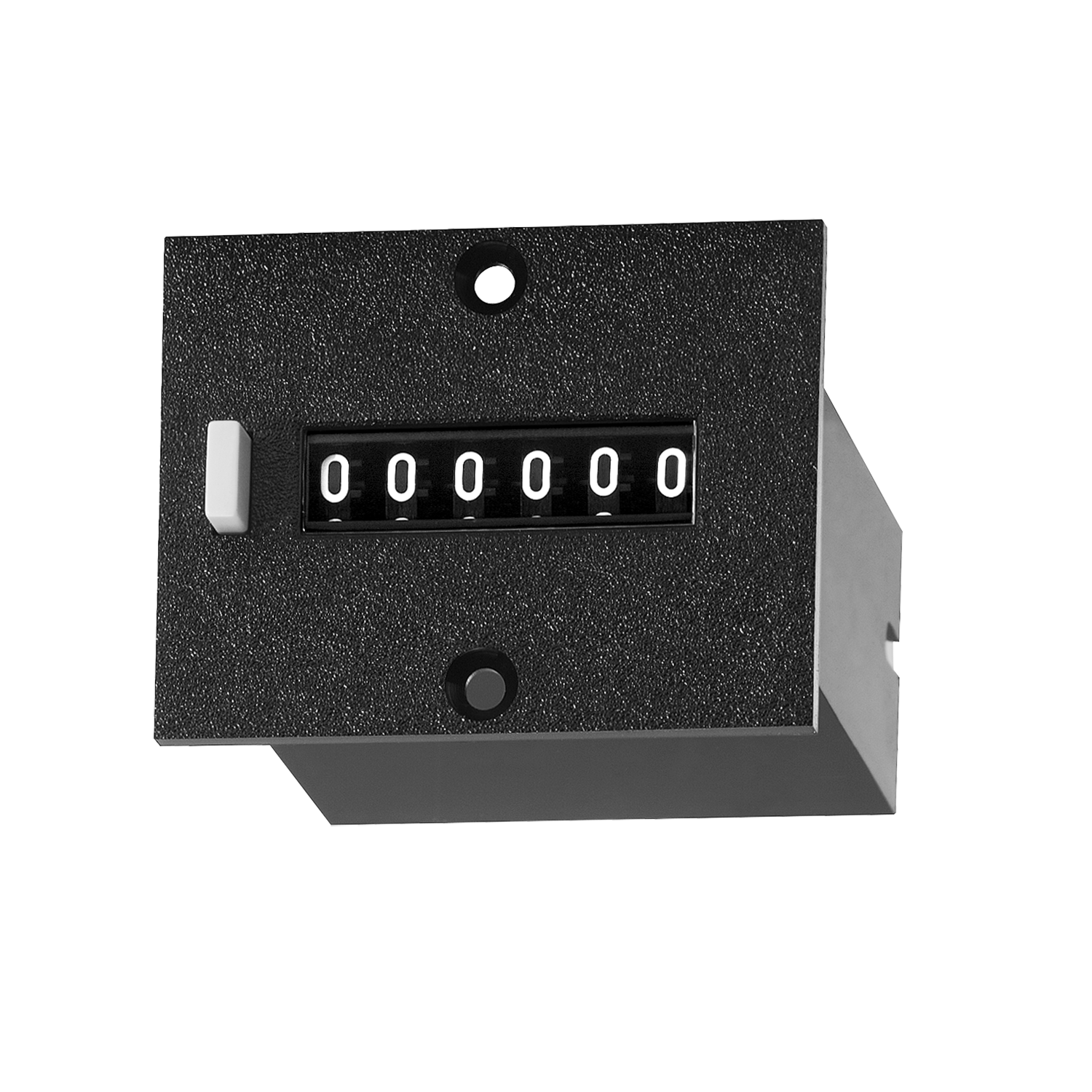

    · 53 x 40 mm | 48 x 24 mm
  • Display 6-digit number, mech. roller counter

Mini totaling counter, 6-digit actuated via compressed air.

The pneumatic totalizers PMk14, PMk16 (manually resettable) and PMk18 (not resettable) have a robust design. They are used in harsh industrial environments where the meters are controlled directly via compressed air.

Mechanical
Model Pneumatics
Dimension 1 52 x 28 mm | 48 x 24 mm
53 x 40 mm | 48 x 24 mm
Protection level IP41
Working temperature -10 °C ... +60 °C
Reset electronic

(1) Front panel size | Panel cut-out
Electrical
Signal input 1,5...8 bar
Properties
  • Low-cost pneumatic totalizers.
  • PMk 14 and PMk 16 with manual zero setting.
  • PMk 18 without zero position.
  • Counting via anchor escapement system with diaphragm.
Benefits
  • No leakage.
  • Also available with quick plug-in system.
Applications
Pneumatically operated devices and systems.
Data sheet

PMk14 / PMk16 / PMk18

PDF ∼ 1,2 MB | 03.2024
DE
EN
FR
Declaration of conformity

PMk14 / PMk16 / PMk18 CE

Multilingual: German, English, French
PDF ∼ 341,8 KB | 04.2016

Notice

Safety instructions for electromechanical meters

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 147,7 KB | 04.2015
