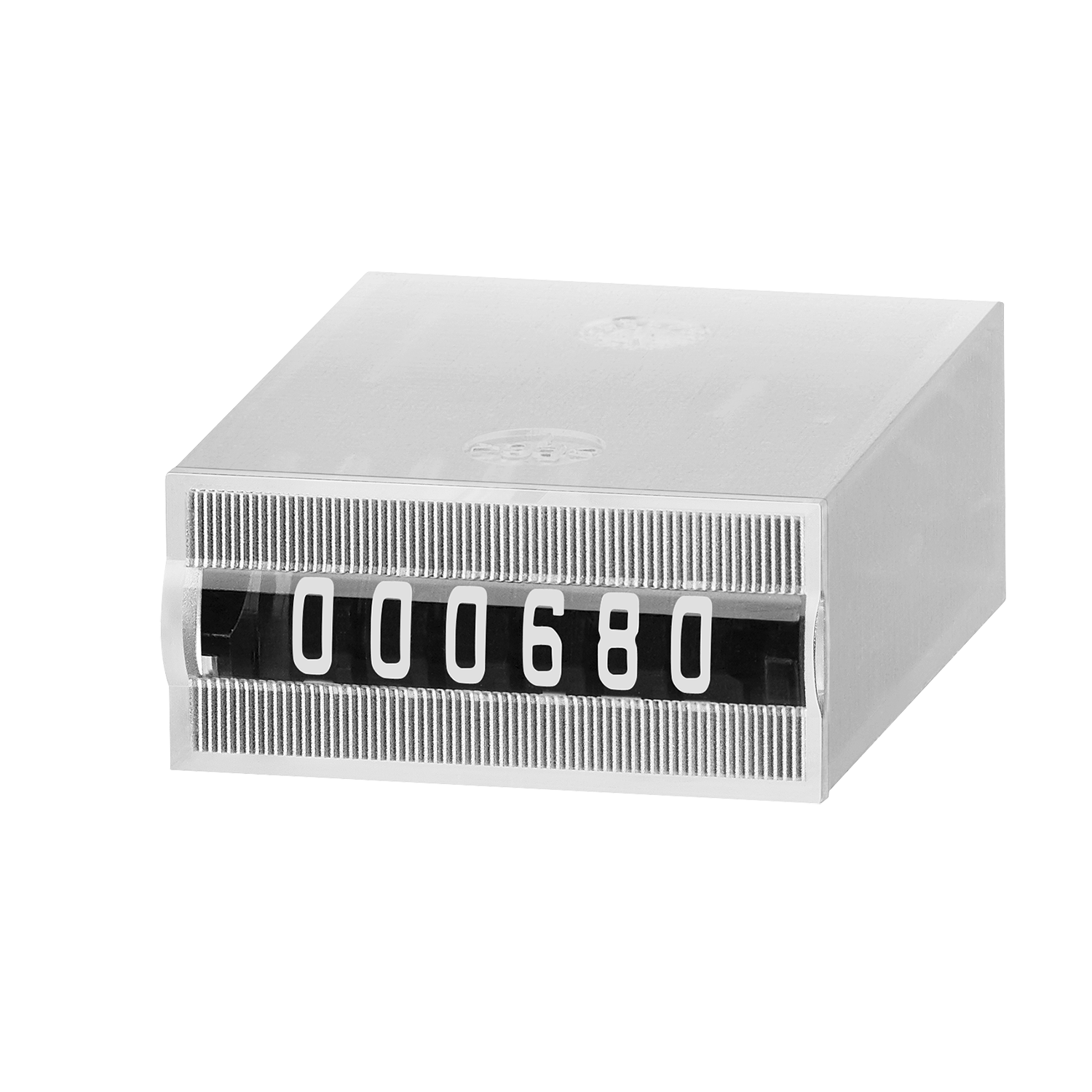

Pulse counter electromechanical
K06
|
|
Micro pulse counter, 6-digit.
The micro totalizer families K 04 to K 07 and AK 07 offer many variants and can be used in both DC and AC applications. As built-in, surface-mounted and print counters with very high shock resistance, they can be used in various application areas.| Mechanical | |
|---|---|
| Model | electromechanical |
| Dimension 1 |
25 x 13,8 mm 25,2 x 31 mm 29 x 14 mm 30 x 20 mm | 27 x 14 mm 32 x 15 mm | 30 x 13 mm |
| Protection level |
IP65 |
| Working temperature | -10 °C ... +60 °C |
| Weight | 18 g |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Power supply |
115 V AC 230 V AC 3 V DC 4,5 V DC 12 V DC 24 V DC |
Properties
General quantity counting, alarm systems, coin-operated machines, electricity meters, vending and gambling machines, photocopying machines, medical technology, washing systems
- Low power consumption; suitable for battery operation.
- Very compact design, optically large digits.
- Various reading options.
- Built-in meters with injection-molded snap-in springs, surface-mounted meters with screw mounting or print meters for circuit board mounting.
- Versions with additional magnetic shielding by sheet steel housing (K 0X.40 and K 0X.50).
- Machine solderable and washable.
- Retains value in the event of power failure.
- High shock resistance, long service life, IP65 protection.
