Measuring Wheel Systems

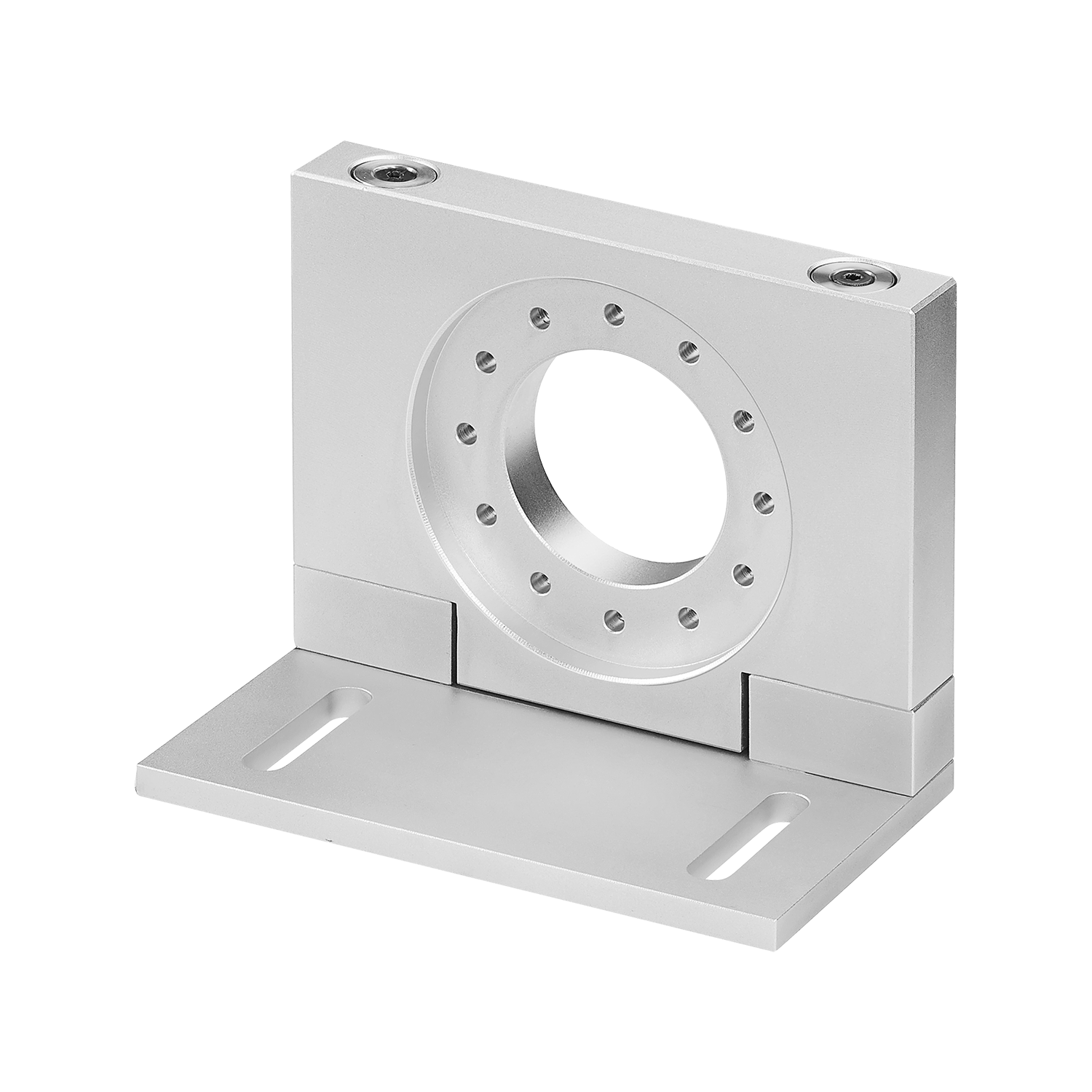

MWE40
|
|
Spring bracket for incremental encoders KIS50, 5000 and 5805 as well as for absolute encoders M58, F58 and 58
The MWE40 spring bracket in combination with a rotary encoder and a measuring wheel is the ideal solution for reliable speed, position and distance measurement in applications with linear movements. An integrated spring ensures the contact pressure of the measuring wheel on the measuring surface required for reliable measured value acquisition. The system's compact design makes it suitable for even the tightest installation spaces and it can be quickly and easily installed horizontally or vertically.| Mechanical | |
|---|---|
| Measuring system | Measuring Wheel Systems |
| Contact force |
25 N |
| Working temperature | - 20 °C ... + 70 °C |
| Weight | 350 g |
| Electrical |
|---|
Accessories
Measuring wheel in different surfaces: cross knurls, knobs, plastic smooth or ribbed and natural rubber smooth
Measuring wheels for measuring the length of products in movement, e.g. in the paper, metal, textile, wood or plastic industry. Different wheel surfaces to meet the requirements of the various surfaces of the product to be measured – different circumferences, designed for use with Kübler encoders, available for metric and imperial systems. For evaluation, you can rely on a multitude of counters and displays from our Codix portfolio.| 8.0000.3XXX.00XX |
