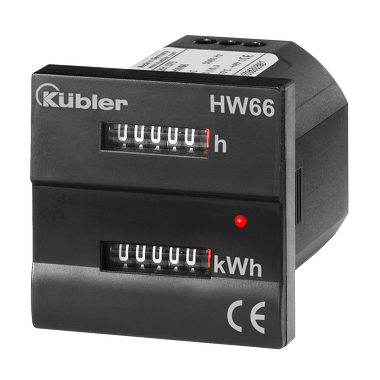

Energy time counter electromechanical

HW66 / HW66 M

  • Displays both values
    in parallel
  • High measuring accuracy
  • Can be / calibrated (MID approval)
  • Dimension
    · 48 x 48 mm | 45 x 45 mm
  • Supply voltage:
      · 115 V AC
      · 230 V AC
  • Display 6-digit number, mech. roller counter

Energy counter and hour meter in a single device (MID).

The HW 66 and HW 66 M combination meters consist of an hour meter and an energy meter. As built-in counters with a small installation depth, they can be used in various application areas. The counting pulses can be transmitted via the S0 output.
Further version: MID version for custody transfer applications.

Mechanical
Model Dual-function device electromechanical
Functions Multifunction devices
Hour meters / timers
Dual-function display
Dimension 1 48 x 48 mm | 45 x 45 mm
Protection level IP65
Working temperature -20 °C ... +55 °C

(1) Front panel size | Panel cut-out
Electrical
Supply voltage 115 V AC
230 V AC
Product features
  • Metering of hours run and energy consumption in one compact device – panel mounting
  • Wide temperature range
  • Remote readout via SO outputs on request
  • Shows both values in parallel
  • Easy-to-read display – can also be read if no voltage present
Benefits
  • Tamper-proof fixed installation with high degree of protection
  • High measuring accuracy
  • Can be officially calibrated (MID)
Applications
Dehumidifiers, hire equipment and machinery, air-conditioning, production equipment, current generators
