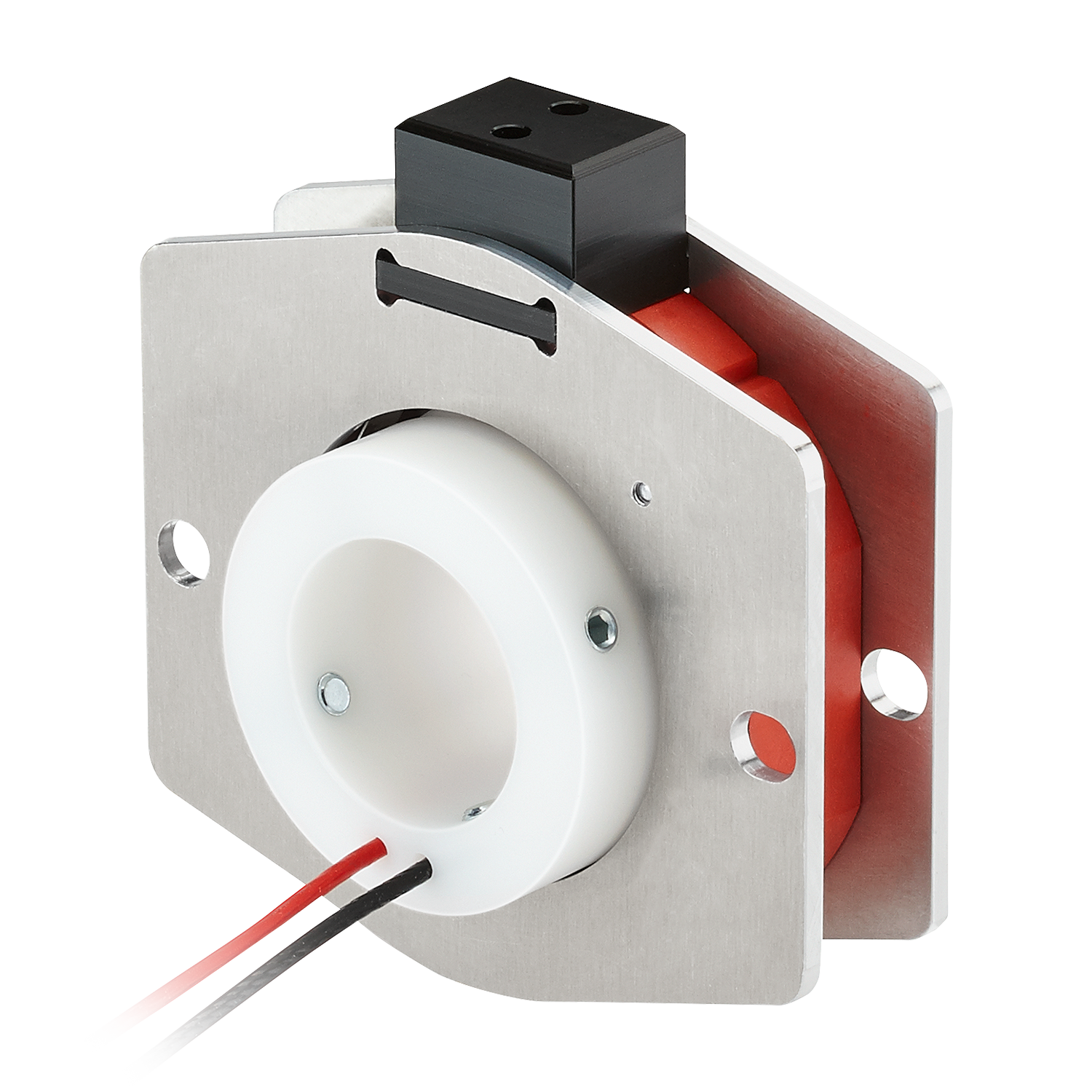

SR085B

Slip ring

SR085B

  • Compact solution
  • Economical
  • Space and cost savings

Kit solution – economical slip ring solution in compact design.

The SR085B slip ring is characterized by its flat design and short overall length. The advantage of this compact dimension is demonstrated by its ease of mounting in tight installation spaces. The bearingless modular system can be extended with transmission channels on a custom basis. The innovative contact materials guarantee a long service life and high reliability.

Mechanical
Dimension 85 mm
Mounting type 20 mm Hollow shaft, through
24 mm Hollow shaft, through
25 mm Hollow shaft, through
30 mm Hollow shaft, through
34 mm Hollow shaft, through
Working temperature 0 °C ... +75 °C
Protection level IP40
Rotational speed 200 min-1
Service life 500 million revolutions
Maintenance cycles 100 million revolutions
Electrical
Max. number of signal channels 10
Max. number of load channels 10
Load current transmission 16 A, 240 V AC
Flexible and flat
• In the modular construction system, optionally combinable.
• Installation depth from 33 mm.
• Cost-effective bearingless structure.
• Long service life and long maintenance cycles.
Data sheet

SR085B

PDF ∼ 124,9 KB | 02.2016
DE
EN
FR
Installation manual

SR085B

Multilingual: German, English
PDF ∼ 422,3 KB | 12.2014

mechanical CAD / STEP

SR085B

ZIP ∼ 29,6 MB | 11.2014

Declaration of conformity

SR060E / SR085 / SR085B / SRI085

Multilingual: German, English, French
PDF ∼ 67,5 KB | 04.2017
