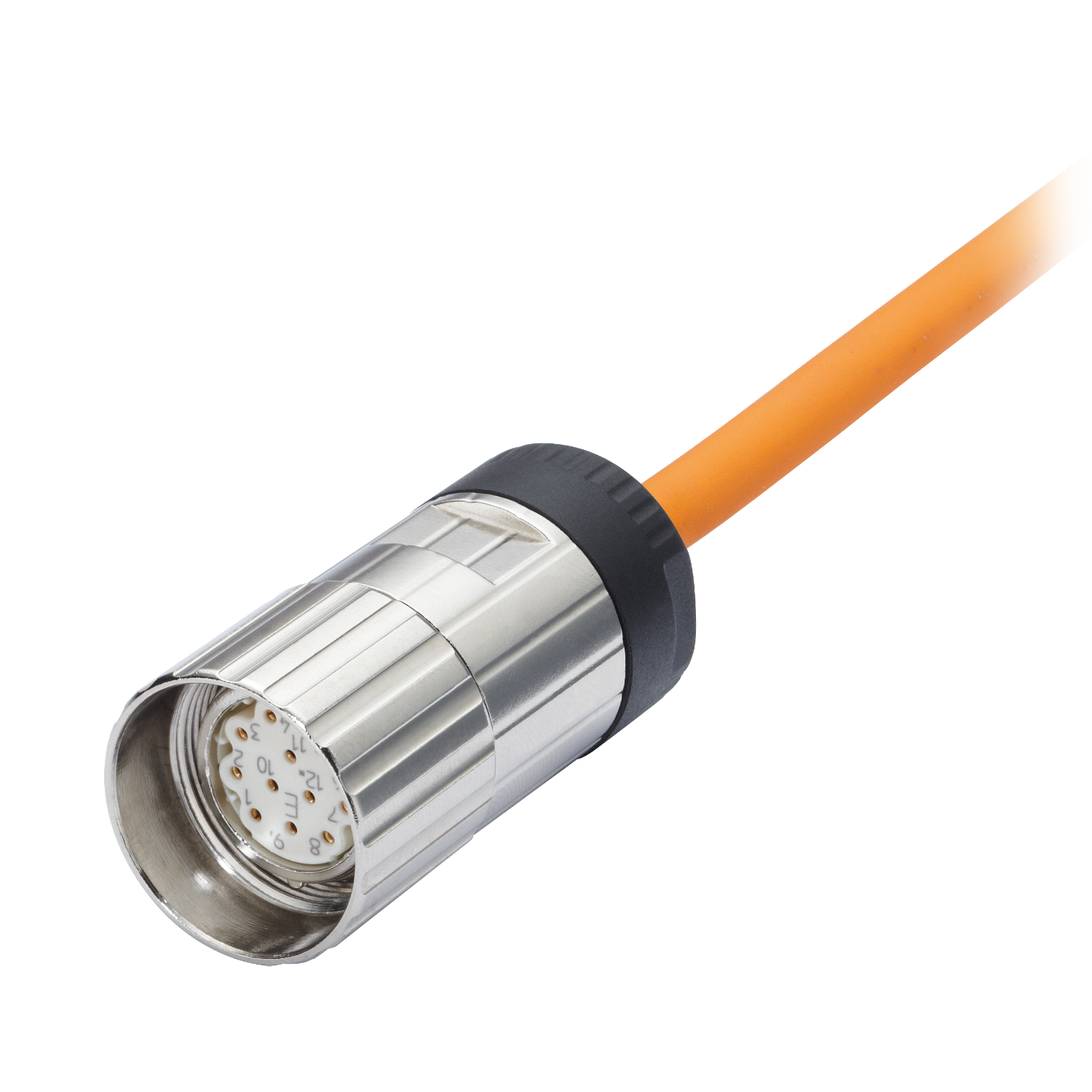

    M23 Connector with cable ,
    M23 Connector with cable ,

    Preassembled cable set

    M23 Connector with cable ,

    HTL
    TTL / RS422
    Open Collector
    SSI
    SSI + 2048 ppr SinCos
    SSI + 2048 ppr RS422
    BiSS
    BiSS + 2048 ppr SinCos
    BiSS + 2048 ppr RS422
    Order code: 8.0000.6901.XXXX

    Mechanical
    Type M23
    Protection level IP67
    Cable material PVC
    Cable lengths * 1.00 m
    2.00 m
    3.00 m
    5.00 m
    8.00 m
    10.00 m
    12.00 m
    15.00 m
    20.00 m
    25.00 m
    30.00 m
    * Special cable lengths upon request
    Features UV resistant
    Acid-resistant
    Electrical
    PIN options Counting direction CW
    Interfaces HTL
    TTL / RS422
    Open Collector
    SSI
    SSI + 2048 ppr SinCos
    SSI + 2048 ppr RS422
    BiSS
    BiSS + 2048 ppr SinCos
    BiSS + 2048 ppr RS422
    Configuration
    • Female connector
    • straight
    • 12-pin
    • Metal
    • Open cable lines









    Data sheet

    M23 cable set, PVC, socket, 12-pin, counting direction cw, end open

    PDF ∼ 1,1 MB | 10.2022
