    M23 Connector ,
    M23 Connector ,

    Field-wireable connector

    M23 Connector ,

    HTL
    TTL / RS422
    SinCos
    Open Collector
    SSI
    SSI + 2048 ppr SinCos
    SSI + 2048 ppr RS422
    BiSS
    BiSS + 2048 ppr SinCos
    BiSS + 2048 ppr RS422
    Order code: 8.0000.5015.0000

    Mechanical
    Type M23
    Protection level IP67
    Electrical
    PIN options COUNT_WAY_CWW
    Interfaces HTL
    TTL / RS422
    SinCos
    Open Collector
    SSI
    SSI + 2048 ppr SinCos
    SSI + 2048 ppr RS422
    BiSS
    BiSS + 2048 ppr SinCos
    BiSS + 2048 ppr RS422
    Configuration
    • Male connector
    • straight
    • 12-pin
    • Metal
    • Solder connection
    • field-attachable connections









    Data sheet

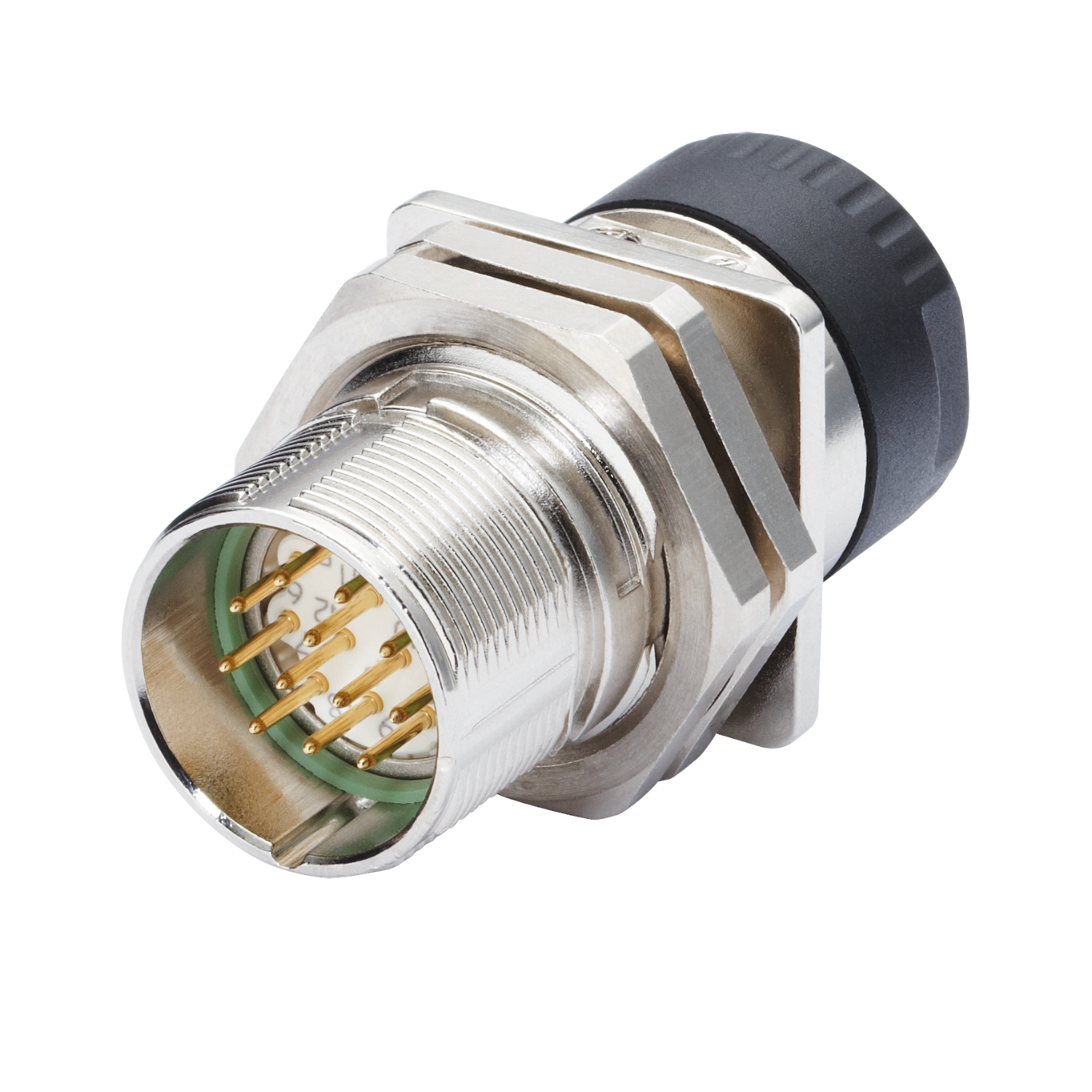

    M23 connector, male, central fixing for panel feed-through, 12-pole, counting direction ccw

    PDF ∼ 622,8 KB | 11.2021
    DE
    EN
    FR
