Preassembled cable set

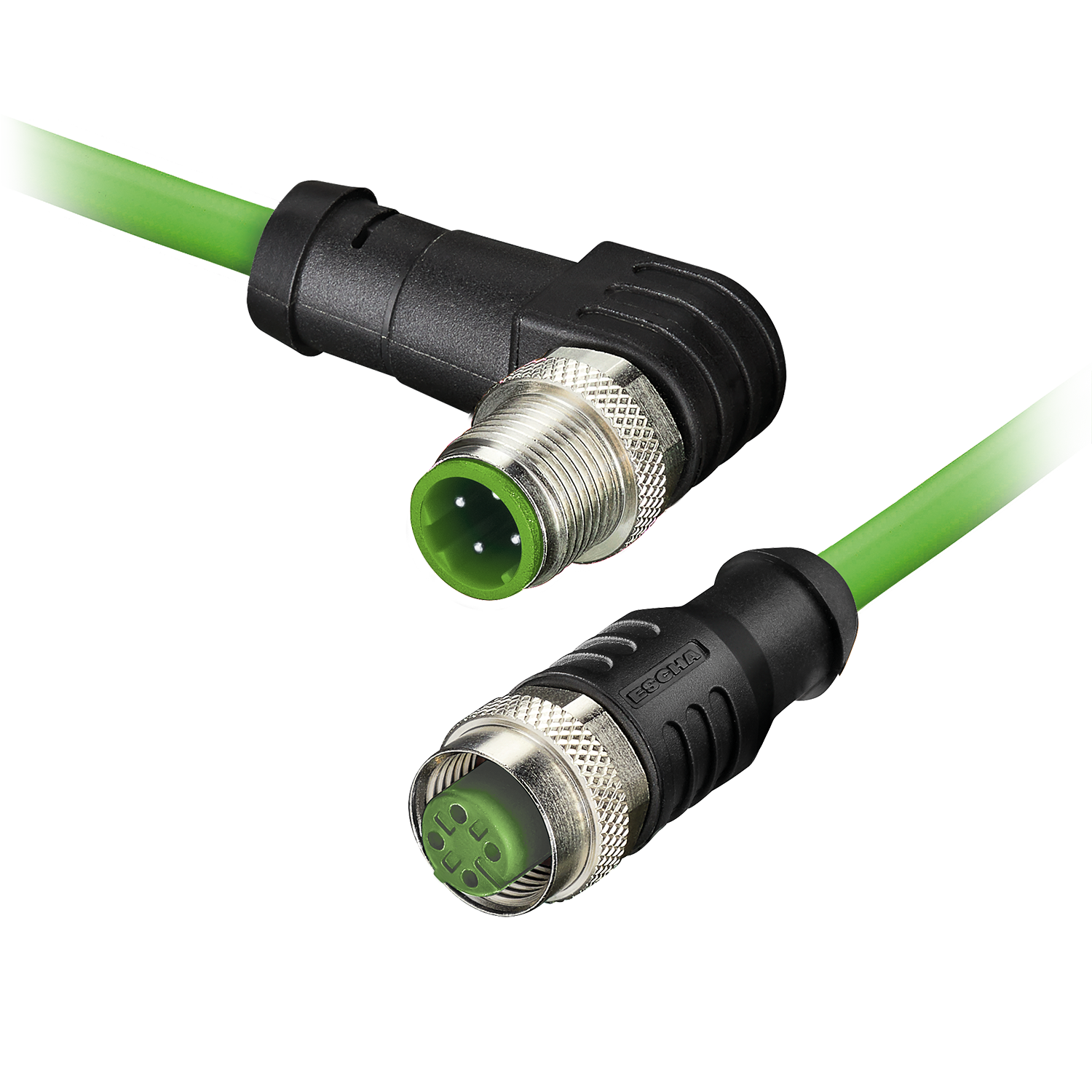

M12 Connector with cable ,
Order code: 05.00.6031.4542.XXXM
| Mechanical | |
|---|---|
| Type | M12 |
| Protection level | IP68 |
| Cable material | PUR |
| Cable lengths * |
2.00 m 5.00 m 10.00 m 15.00 m 20.00 m 30.00 m |
| * Special cable lengths upon request | |
| Features |
Halogen-free Flame retardant UV resistant Oil resistant Acid-resistant |
| Electrical | |
|---|---|
| PIN options |
D-coded |
| Interfaces |
EtherNet/IP EtherCAT PROFINET IO |
| Configuration |
|---|
|
 |
|
