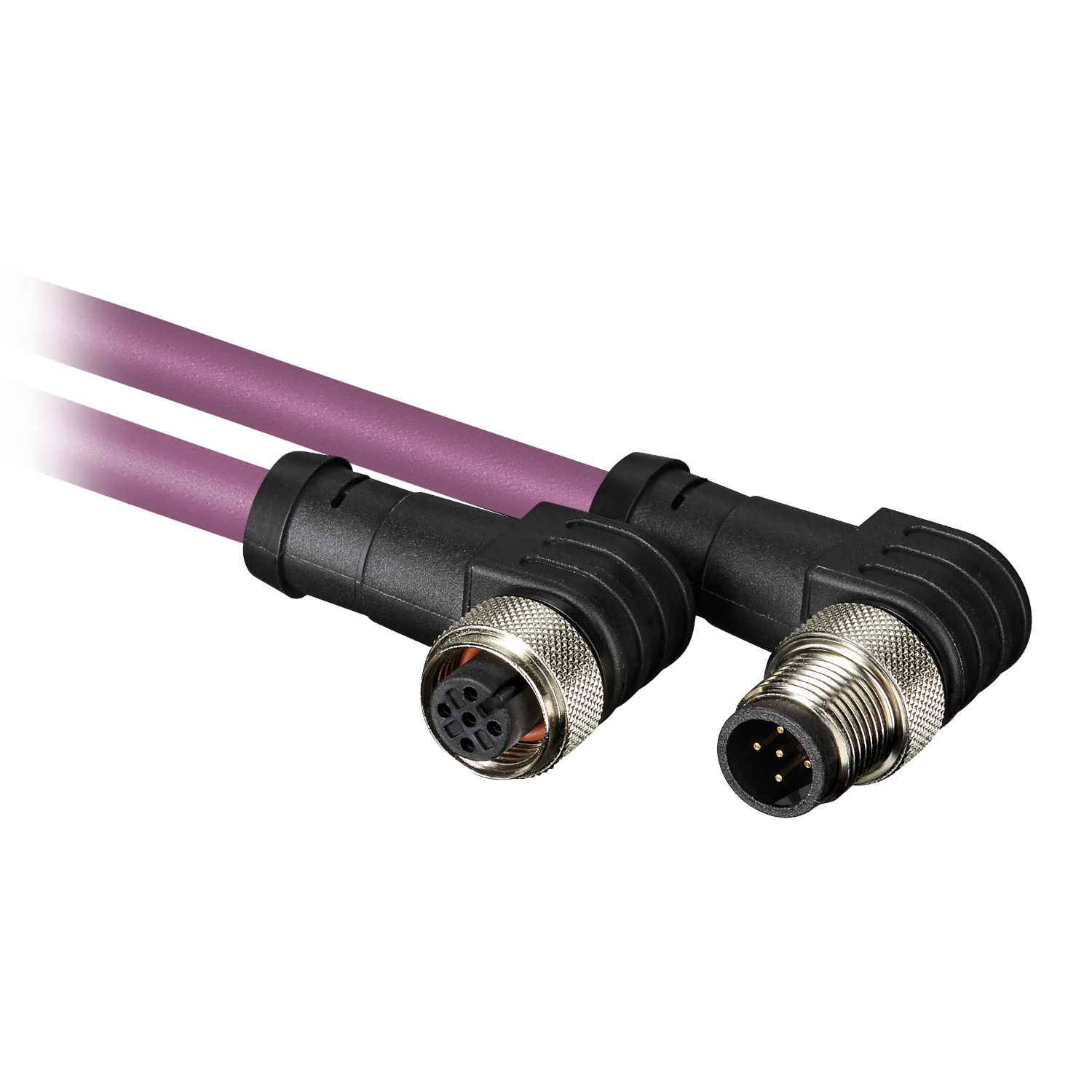

    M12 Connector with cable ,

    Preassembled cable set

    M12 Connector with cable ,

    Order code: 05.00.6011.3533.XXXM

    Type M12
    Protection level IP67
    Cable material PUR
    Cable lengths * 1.00 m
    2.00 m
    3.00 m
    5.00 m
    8.00 m
    10.00 m
    12.00 m
    15.00 m
    20.00 m
    30.00 m
    * Special cable lengths upon request
    PIN options B-coded
    Interfaces PROFIBUS DP
    • Female connector
    • angled
    • 5-pin
    • Metal + plastic
    • M12 connector axial
    • Male connector
    • angled
    • 5-pin
    • Metal + plastic
    • M12 connector axial
    Data sheet

    M12 PUR, 2 x 0,34 mm2 Profibus 05.00.6011.3533.002M

    PDF ∼ 190,6 KB | 08.2019
