B75

Draw-Wire Encoders

B75

  • Flexible assembly
  • Integrated water drain holes
  • Encoder freely selectable
  • 360° encoder adjustment
  • Measuring length 3 m
  • Speed 0,8 m/s
  • max. Linearity ±0,35 %
Analog 0–10 V
EtherNet/IP
CANopen
EtherCAT
Push-pull
TTL / RS422
SAE J1939
PROFIBUS DP
PROFINET IO
BiSS

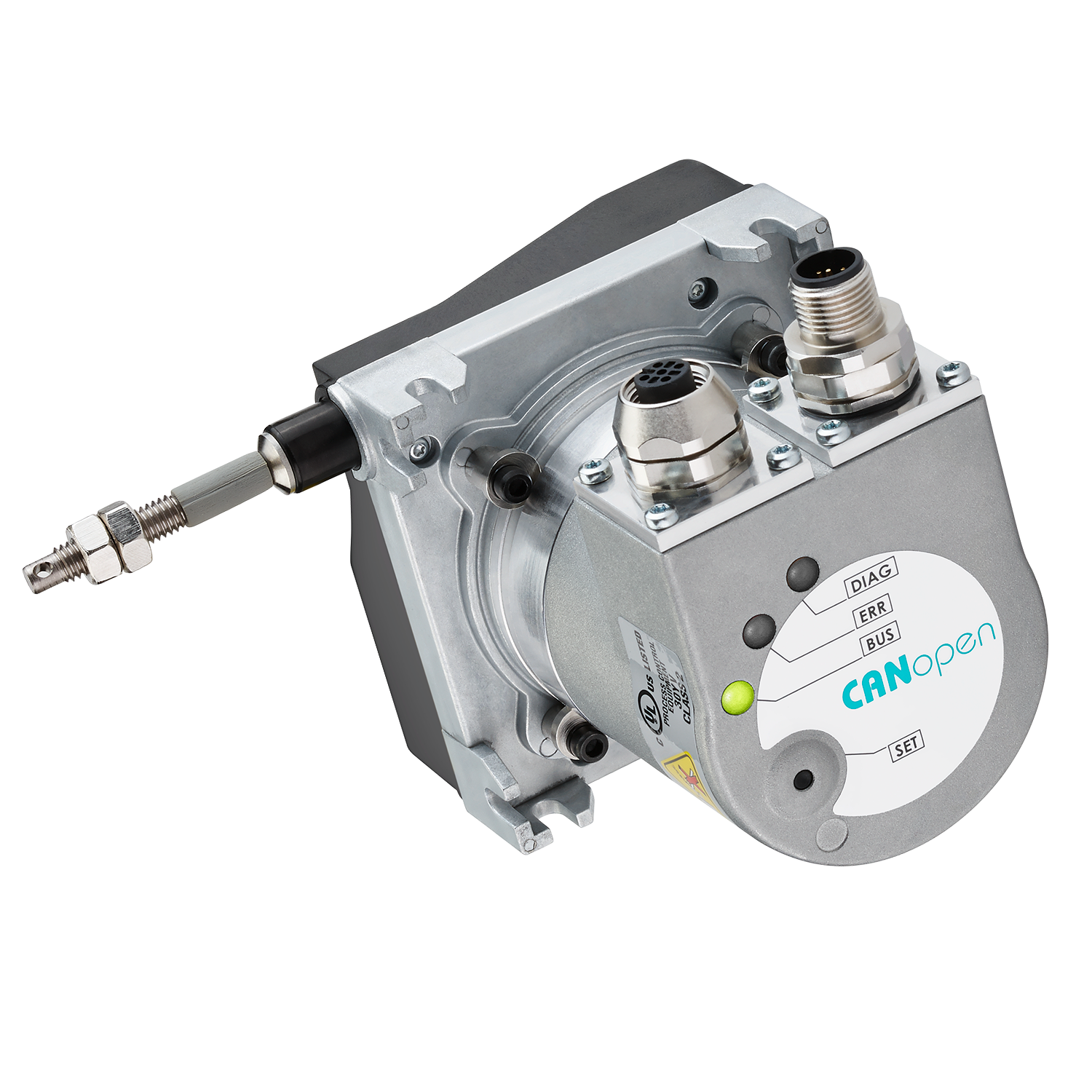

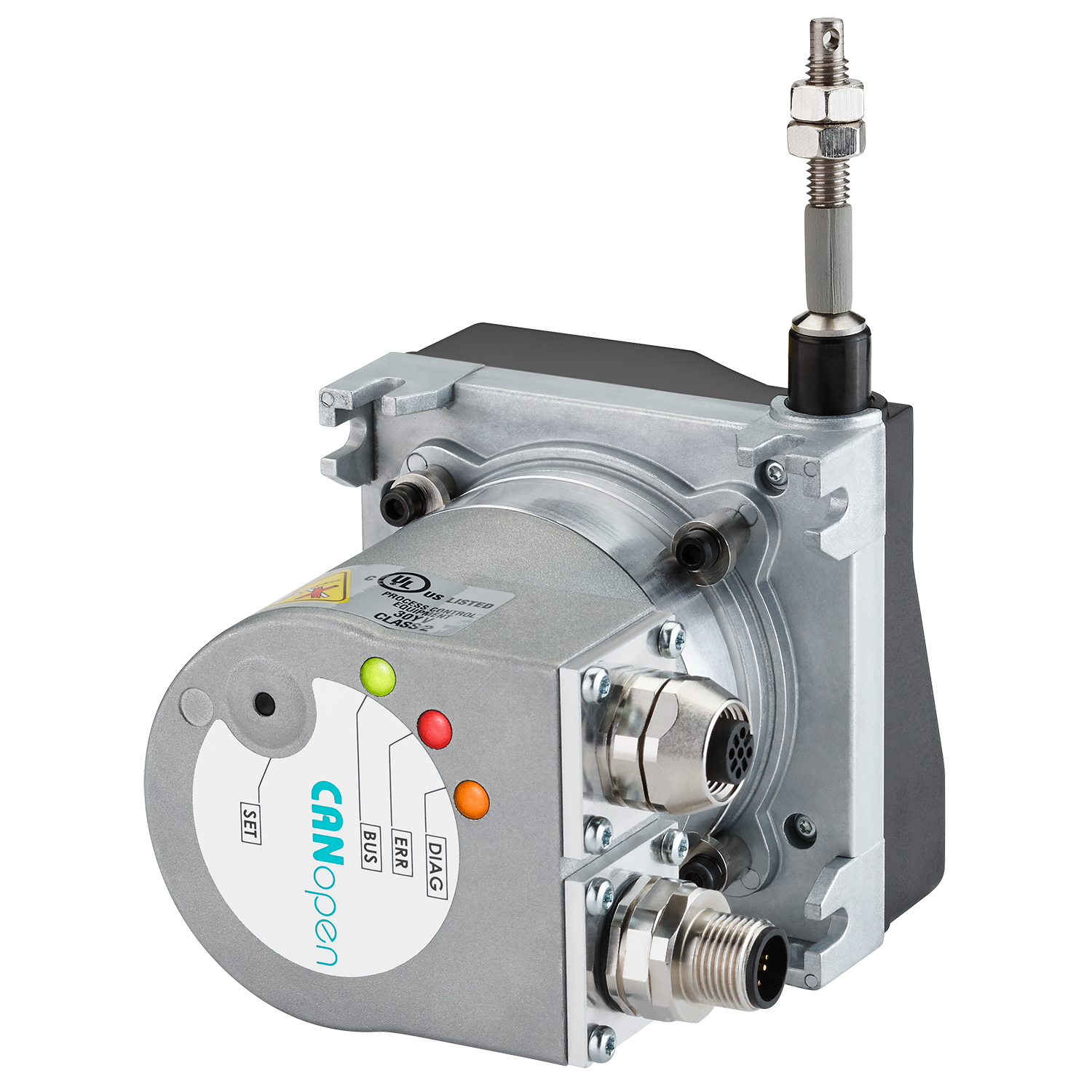

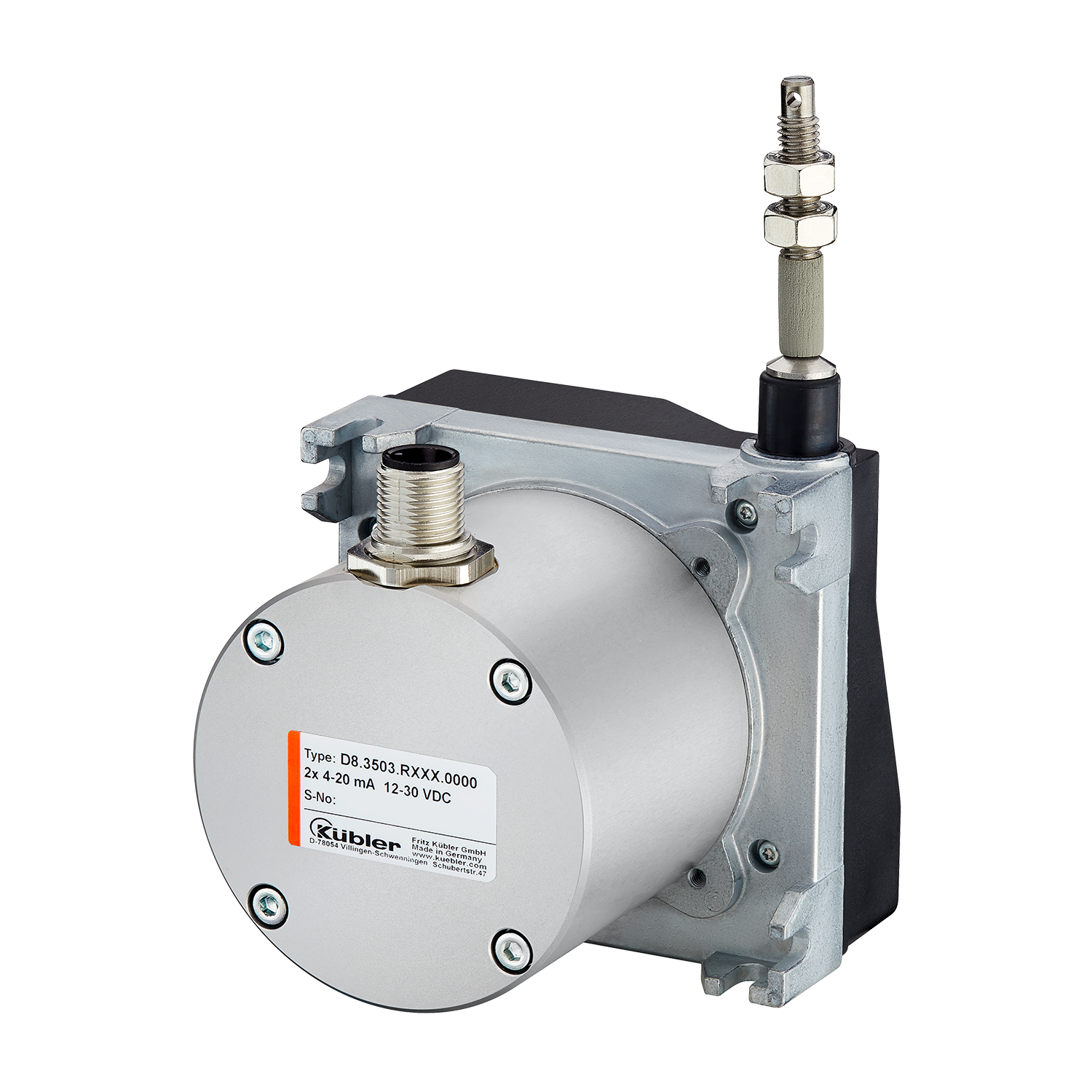

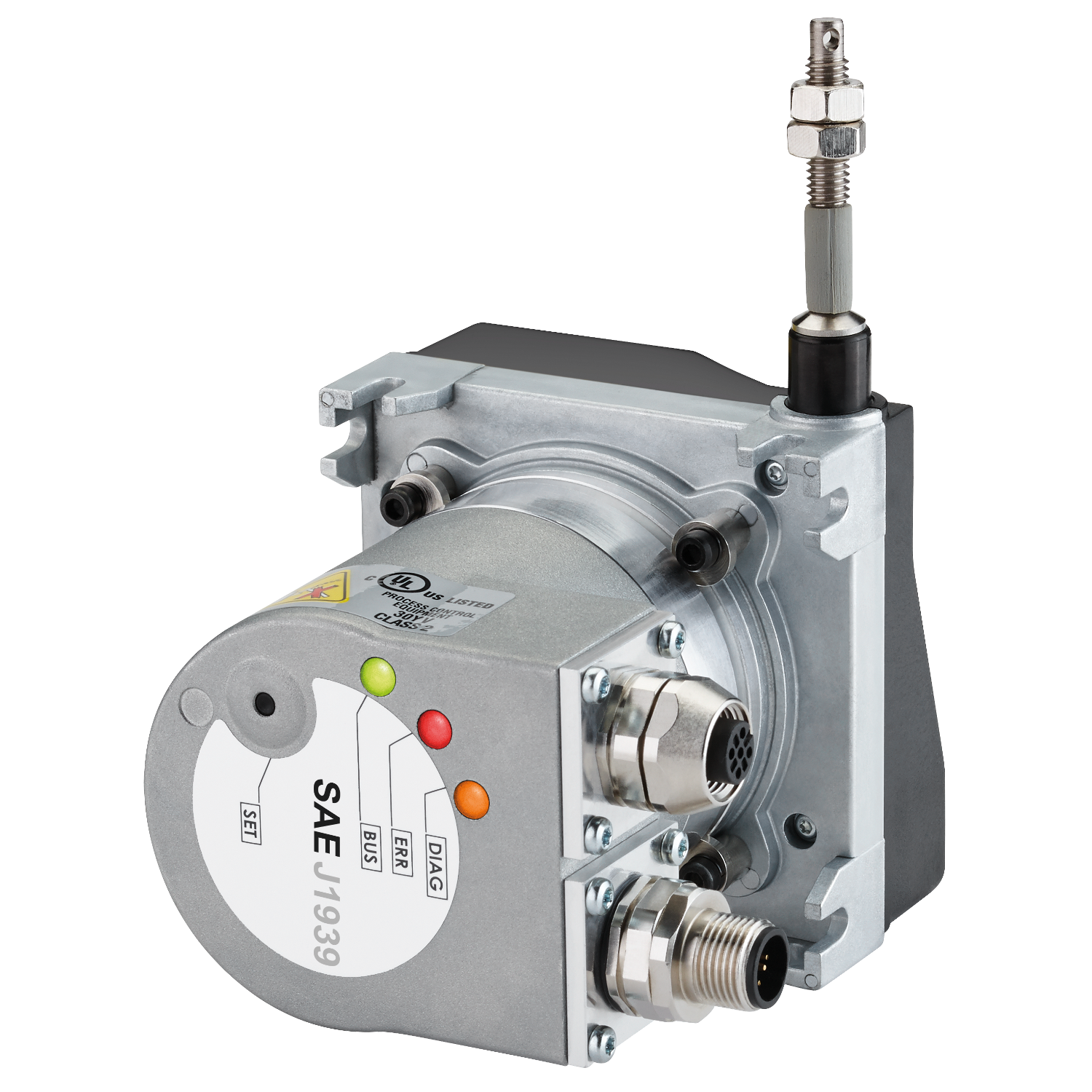

Draw-wire encoder B75

The B75 draw-wire encoder can be used up to a measuring length of 3 meters.
This draw wire can be combined with the proven Kübler Sendix encoders with incremental or absolute interface as well as with analog sensors.

Mechanical
Measuring system Draw-Wire Encoders
Measuring length 3 m
Speed 0,8 m/s
Dimension 78 mm x 78 mm x 55 mm
Working temperature -40 °C ... +85 °C
Protection level IP65
Weight 500 g
Electrical
max. Linearity ±0,35 %
Interfaces Analog 0–10 V
EtherNet/IP
CANopen
EtherCAT
Push-pull
TTL / RS422
SAE J1939
PROFIBUS DP
PROFINET IO
BiSS
Supply voltage 15...28 V DC
Compact and versatile
  • Compact housing
  • Variable mounting options
  • Low-wear wire opening
Data sheet

B75

PDF ∼ 548,1 KB | 08.2019
DE
EN
FR
User manual

B75

Multilingual: German, English
PDF ∼ 966,0 KB | 10.2016

Installation manual

Draw-wire encoders

Multilingual: German, English, French, Italian
PDF ∼ 160,6 KB | 05.2017

Safety characteristics

B75 MTTFd

Multilingual: German, English
PDF ∼ 153,2 KB | 06.2019

Device file

58x8 CANopen / EDS-File

ZIP ∼ 63,9 KB | 02.2018

58x8 EtherCAT / XML-File

ZIP ∼ 42,7 KB | 05.2017

58x8 PROFIBUS / GSD-File

ZIP ∼ 35,8 KB | 08.2017

58x8 PROFINET / GSDML-File

ZIP ∼ 15,2 KB | 09.2016

F58x8 CANopen / EDS-File

ZIP ∼ 11,2 KB | 10.2014

M58x8 MT CANopen / EDS-File

ZIP ∼ 10,9 KB | 11.2016

F58xx ST Ethernet/IP / EDS-File

ZIP ∼ 14,9 KB | 08.2019

CAD / STEP

B75

ZIP ∼ 6,3 MB | 02.2017

Declaration of conformity

A30 / A40 / A41 / B75 / C105 EG declaration of conformity

Multilingual: German, English, French
PDF ∼ 355,5 KB | 11.2018

Brochures

Portfolio overview Draw-wire encoders

Multilingual: German, English
PDF ∼ 221,1 KB | 11.2019

Mobile Automation

PDF ∼ 3,7 MB | 10.2019
DE
EN

Accessories

Extension cable Paraleine

Extension cable Paraleine

With extension cables, the actual measuring range can be used without any loss of resolution. We offer numerous extension cables in our portfolio for this purpose.
2 m 8.0000.7000.0032

Extension cable steel

Extension cable steel

With extension cables, the actual measuring range can be used without any loss of resolution. We offer numerous extension cables in our portfolio for this purpose.
2 m 8.0000.7000.0033
5 m 8.0000.7000.0034
10 m 8.0000.7000.0035

Idler pulley

Idler pulley

With idler pulleys, linear movements can also be directed around obstacles. This not only increases their flexibility but can also compensate for installation tolerances. Idler pulleys can also act to clean off dirt and break ice.

Technical data:
  • Installation angle (anodized aluminum)
  • Idler pulley (plastic POM)
  • Ball bearing (Type 696-2R5)
Scope of delivery:
  • 2 x countersunk screws for side fixing
  • 2 x Allen screws for fixing on a flat surface
8.0000.7000.0045

Cables and Connectors

M12 Connector plug with cable

M12 Connector plug with cable

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4 pin
05.00.6031.4411.XXXM

Data sheet
M12-Kabelsatz-PUR_Stift-4-pol-D+offen_05.00.6031.4411.002M
DE EN FR

M12 Connector plug with cable

M12 Connector plug with cable

Preassembled cable set

Female connector 5 pin
05.00.6081.2211.XXXM

Data sheet
M12-Kabelsatz-PVC_Buchse-5-pol-A+offen_05.00.6081.2211.002M
DE EN FR

M12 Connector plug

M12 Connector plug

Field-wireable connector

Female connector 5 pin
05.B-8151-0/9

Data sheet
M12_Buchse_5-polig-05.B-8151-0_9
DE EN FR

M12 Connector plug

M12 Connector plug

Field-wireable connector

Analog ±10 V
Female connector 4 pin
05.B8141-0

Data sheet
M12_Buchse_4-polig-A_05.B8141-0
DE EN FR

M12 Connector plug

M12 Connector plug

Field-wireable connector

Female connector 4 pin
05.B8241-0

Data sheet
M12_Buchse-gew_4-polig-A_05.B8241-0
DE EN FR

M12 Connector plug

M12 Connector plug

Field-wireable connector

Male connector 5 pin
05.BS-8151-0/9

Data sheet
M12_Stift_5-polig-A_05.BS-8151-0_9
DE EN FR

M12 Connector plug

M12 Connector plug

Field-wireable connector

Male connector 4 pin
05.BS8141-0

Data sheet
M12_Stift_4-polig-A_05.BS8141-0
DE EN FR

M12 Connector plug  Edelstahl V4A

M12 Connector plug Edelstahl V4A

Field-wireable connector

Female connector 8 pin
8.0000.5136.0000.V4A

Data sheet
M12_Buchse-V4A_8-polig-A_8.0000.5136.0000.V4A
DE EN FR
