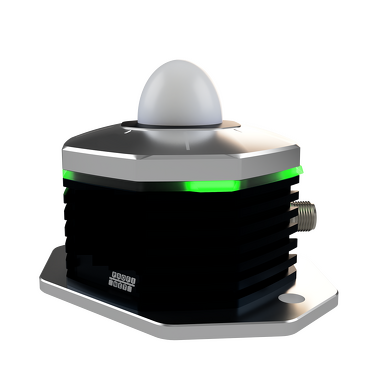

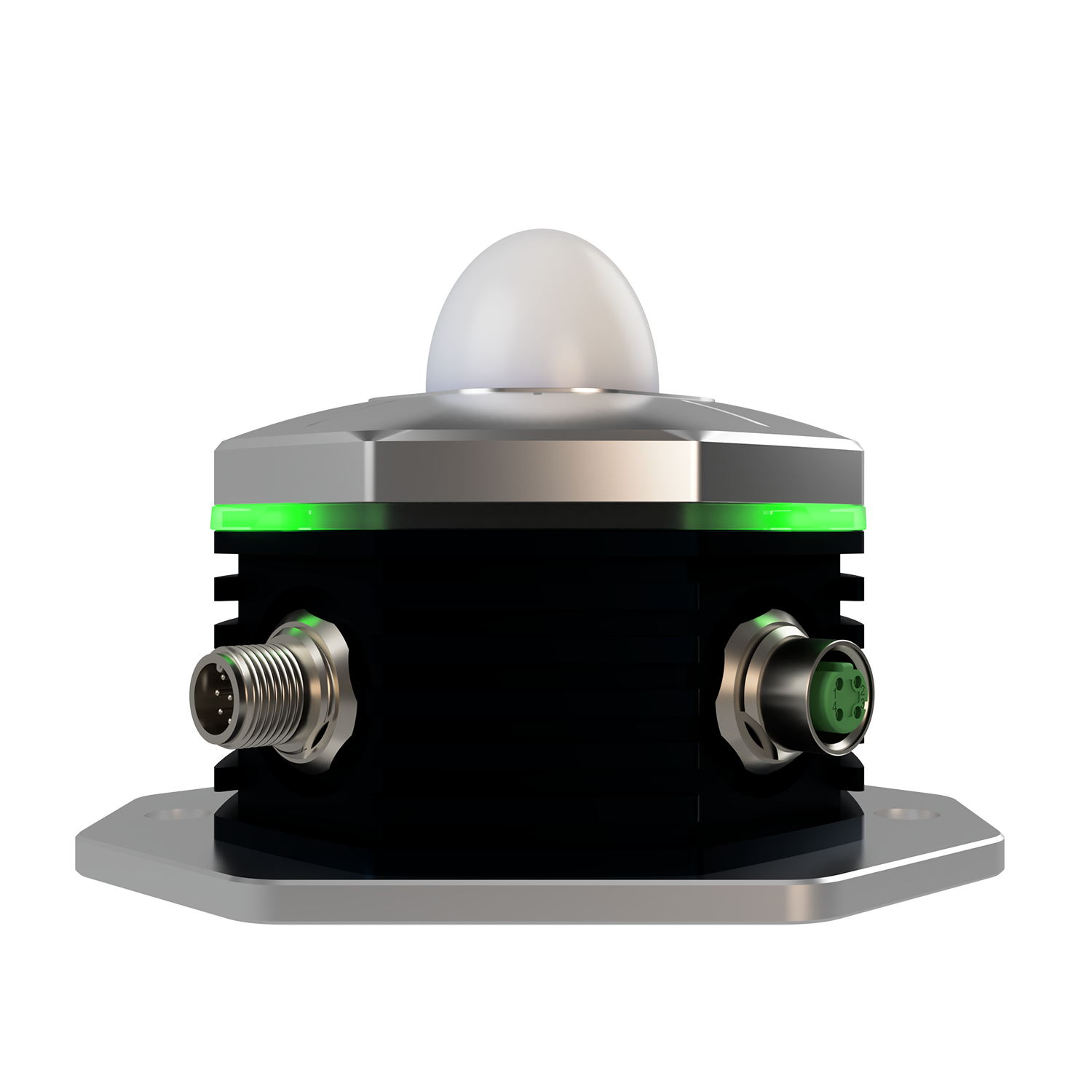

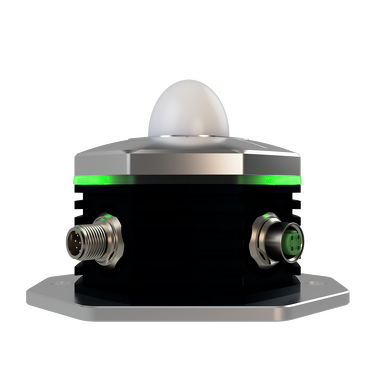

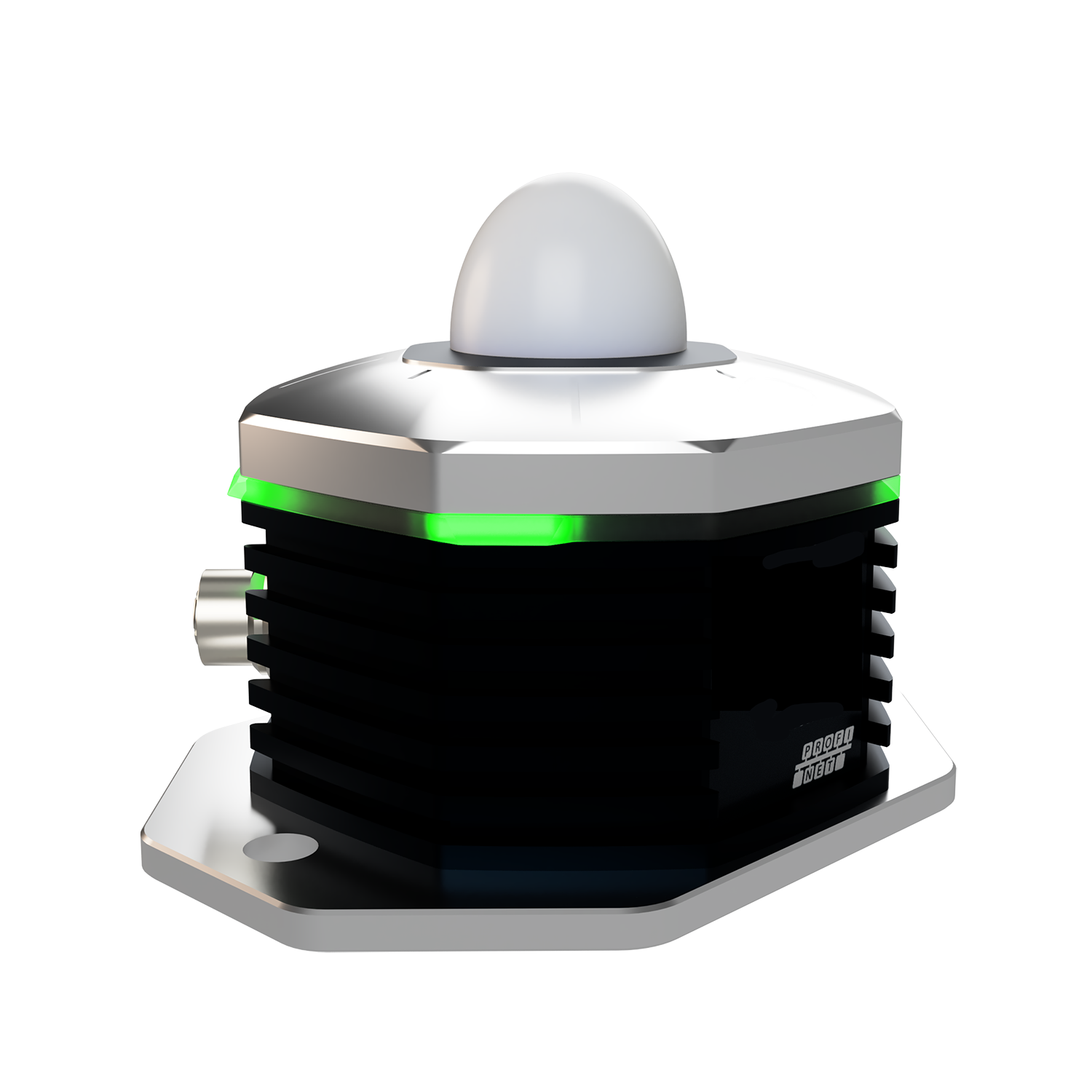

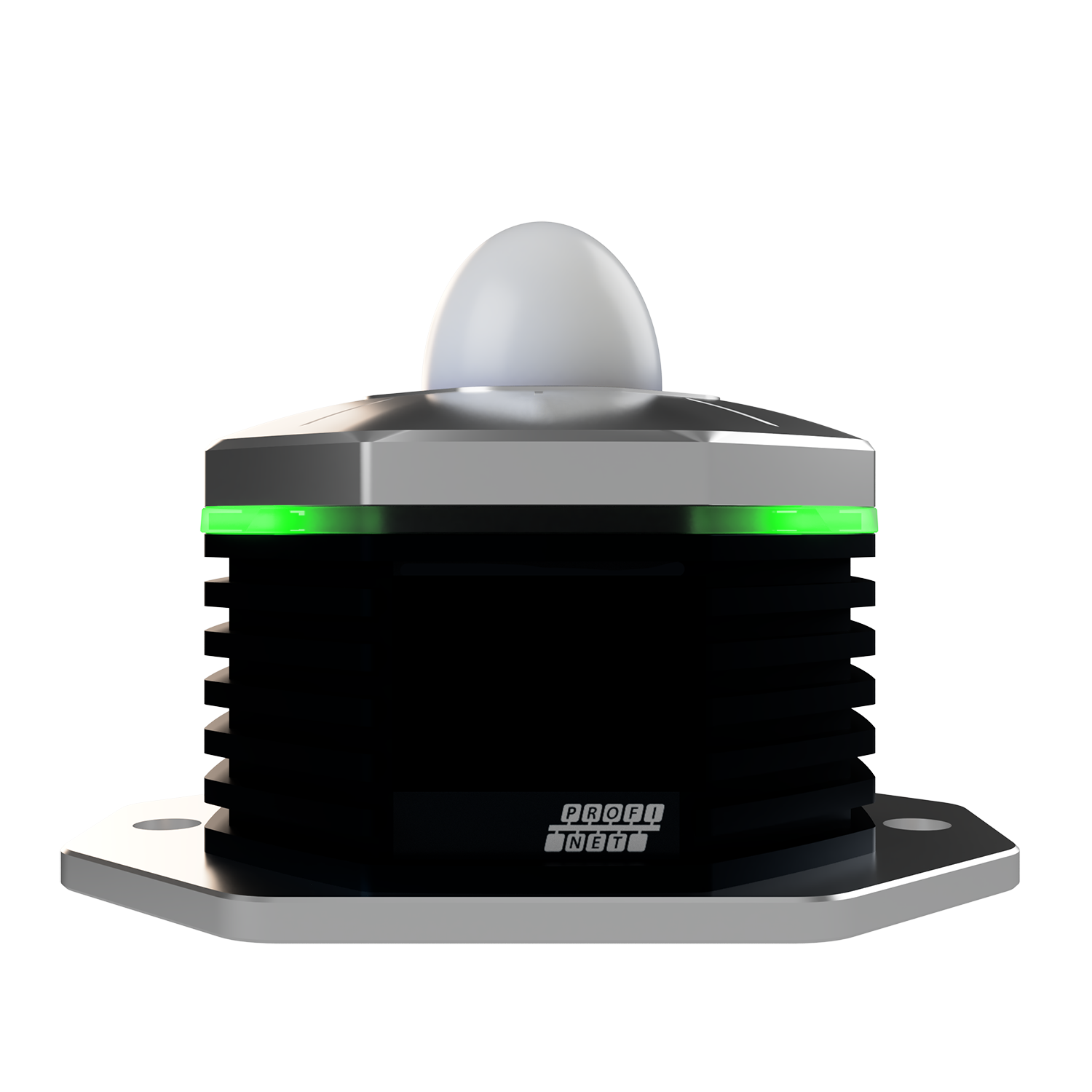

RAD78L
|
|
Radar sensors for distance/displacement measurement. Ultra-precise.

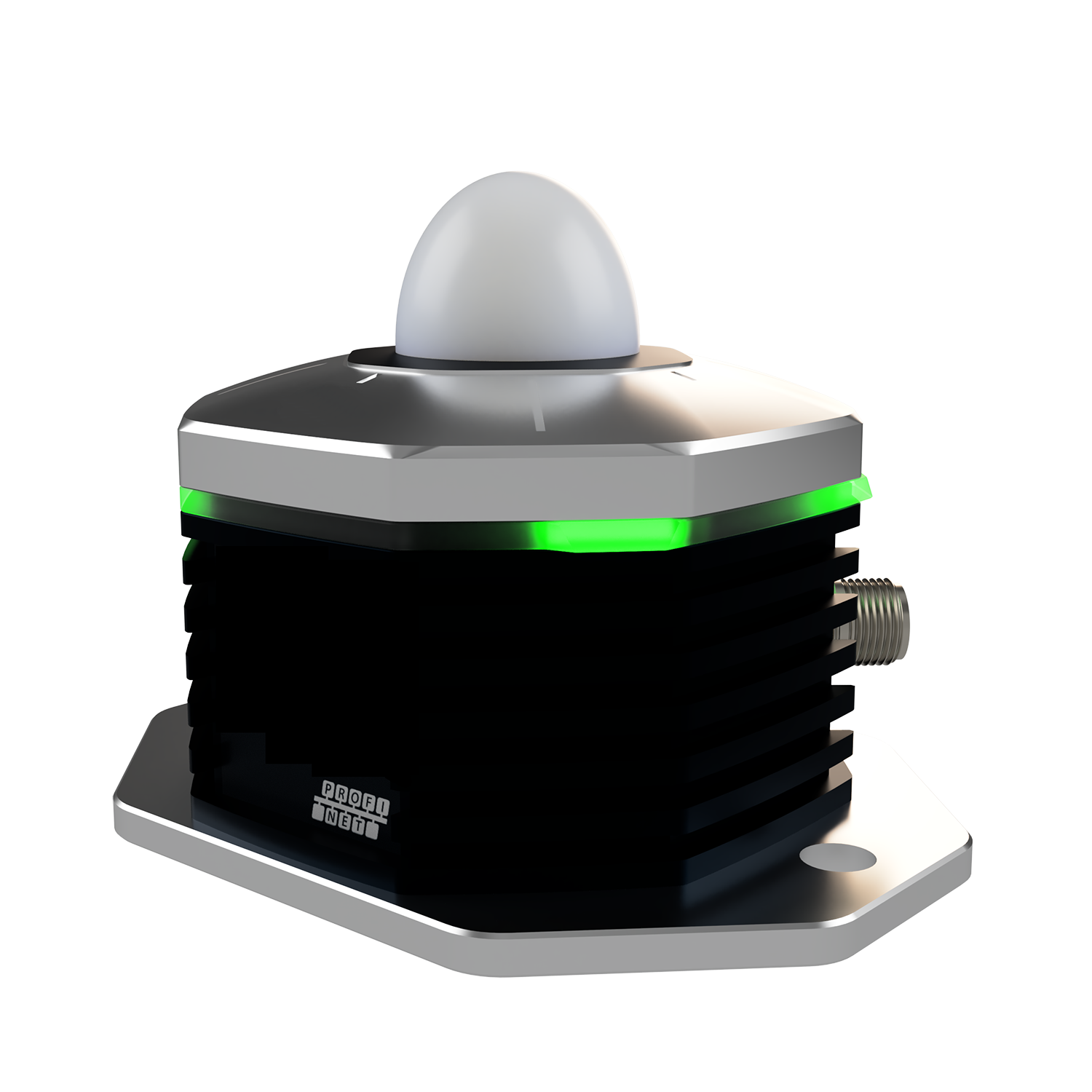

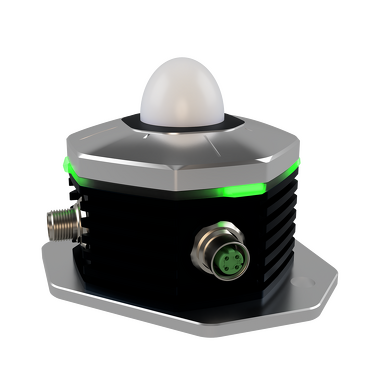

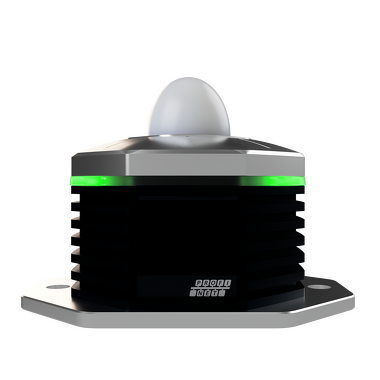

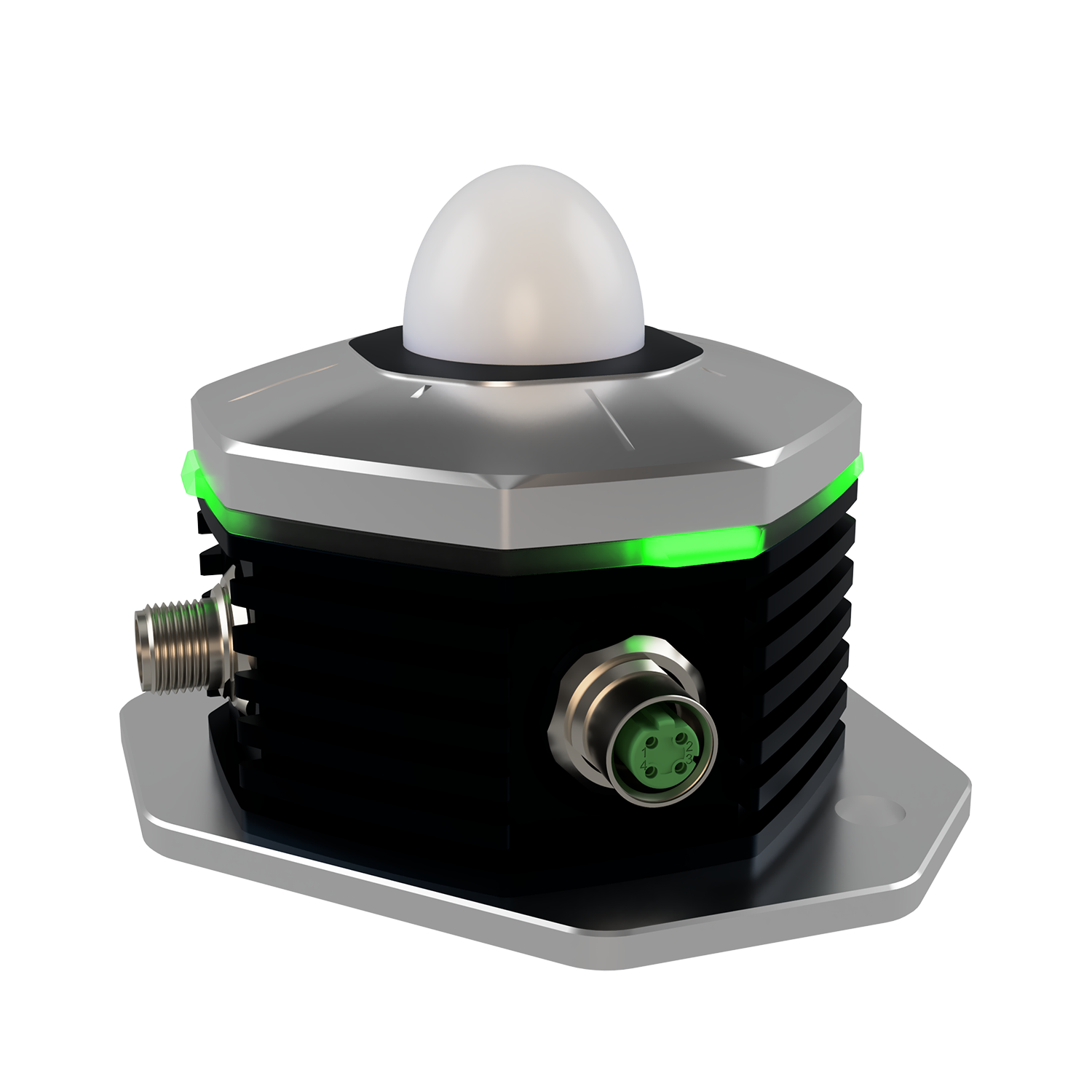

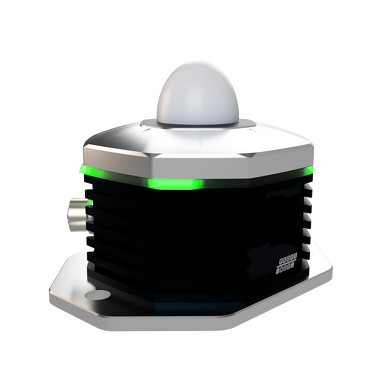

The RAD78L radar sensor with PROFINET interface and integrated web server is specially designed for level measurement of liquid metal. Thanks to the intuitive GUI (Graphical User Interface), the sensor is easy to implement in the application and the associated control concept.An extremely narrow opening angle of just ±1.5° (3°) offers maximum focusing. With a measuring rate of 500 Hz, measurements can be taken not only precisely but also quickly with a repeat accuracy of up to ±0.1 mm.
| Mechanical | |
|---|---|
| Connection types |
M12 connector |
| Working temperature | -40 °C ... +70 °C |
| Protection level |
IP67 |
| Weight | 740 g |
| Electrical | |
|---|---|
| Accuracy |
±0,1 mm / ±0,2 mm |
| max. linearity |
bis ±0,7 mm / ±1 mm / ±2 mm |
| Interfaces |
Analog 4–20 mA PROFINET IO |
| Power supply |
24 V DC |
Fast and precise with maximum focus
- Real-time measurement rate up to 500 Hz
- Repeatability ±0.1 mm
- Extremely narrow opening angle of ±1.5° (3°)
- Measuring range from 0.1 m to 6 m
- Measuring range from 0.15 to 20 m
- Latest radar technology in a robust metal housing
- Air-cooled protective housing for extreme radiant heat
- Even with dust, ash, water vapor and heat, the radar sensor measures the level of liquid metal reliably and accurately
- High level of integration into the application thanks to compact design
- Suitable accessories for easy connection and alignment to the application
- Visual feedback on the alignment of the sensor to the measurement object or visualization of the signal strength via LEDs.
- Industrie 4.0 ready
- Integrated web server
- Additional 4 ... 20 mA interface and three digital switching outputs PNP/NPN
- Graphical user interface for easy handling
- Browser-based configuration software
- Visualization of the echo curve (see what the sensor sees)
- Numerous setting options and features for ideal adaptation to and increased performance in the application
| General information | ||
|---|---|---|
|
Radar Spot Size Calculator XLSX ∼ 263,2 KB | 02.2026 |
EN |
Accessories
Radar angle reflector 100 mm
Increasing the signal strength received from a target.
Increasing the possible angle between sensor and target.
Increasing the measurement accuracy by increasing the signal strength.
- Side length: 100 mm
- Radar cross section: 17 m²
- Object detection range: 0.5 m - 20 m
- Material: 1.4301 (stainless steel)
- Weight: 120 g
- Dimensions: 100 mm x 82 mm x 91 mm
- Fastening: 2 x M6
| 8.0000.7000.0081 |
Radar angle reflector 250 mm
Increasing the signal strength received from a target.
Increasing the possible angle between sensor and target.
Increasing the measurement accuracy by increasing the signal strength.
- Side length: 250 mm
- Radar cross section: 677 m²
- Object detection range: 10 m - 30 m
- Material: 1.4301 (stainless steel)
- Weight: 775 g
- Dimensions: 250 x 171 x 221 mm
- Fastening: 2 x M8
| 8.0000.7000.0082 |

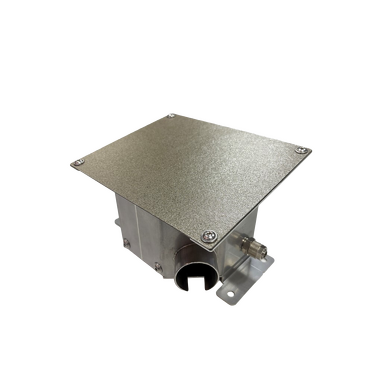

Heat protection housing with air cooling connection
Air-cooled enclosure for extreme radiant heat, e.g., from molten metal.Resistance up to 1600 °C
Short-term stress tolerance up to 700 °C
Suitable for ambient temperatures up to 120 °C
| 8.0000.7000.0085 |

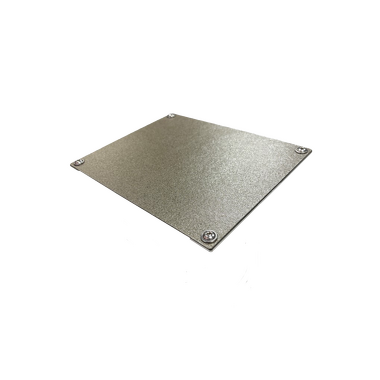

Heat window
Spare part for protective housing with connection for air cooling.| 8.0000.7000.0086 |

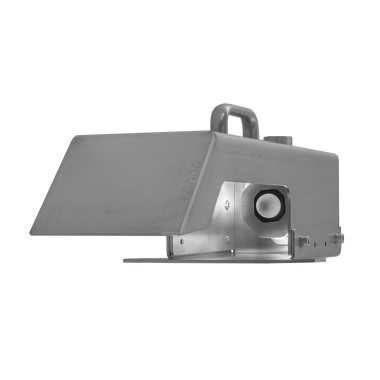

Protective housing with deflection and connection for air cooling
| 8.0000.7000.0087 |

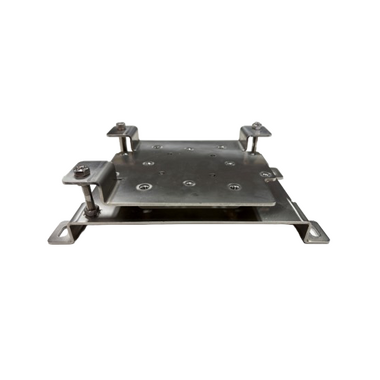

Mounting plate for sensor fine adjustment
Mounting plate for fine adjustment of the RAD78x radar sensor within the mounting plate for optimal alignment of the sensor with the measurement target.| 8.0000.7000.0088 |

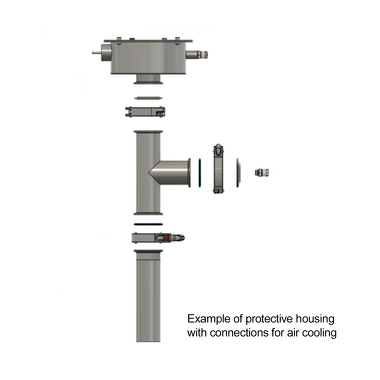

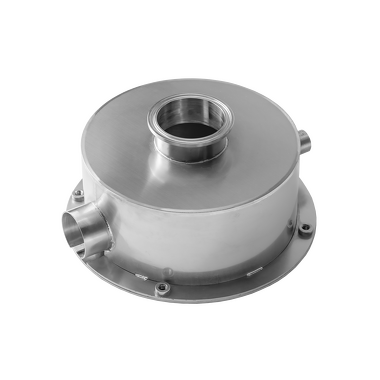

Heat protection housing with connections for air cooling
Heat protection housing with connection for air cooling for closed furnaces and containers with high process temperatures.| 8.0000.7000.0092 |
