Draw-wire encoders

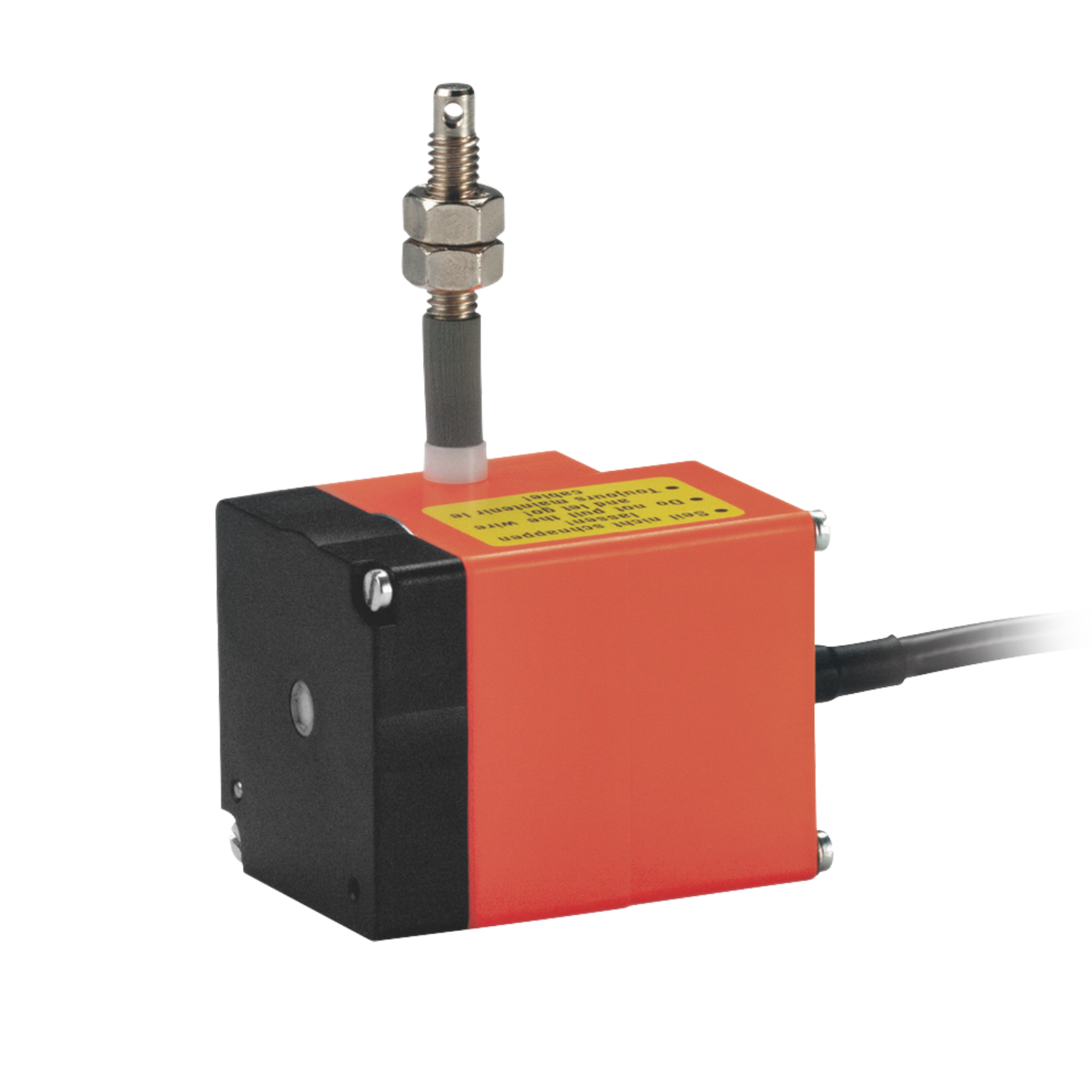

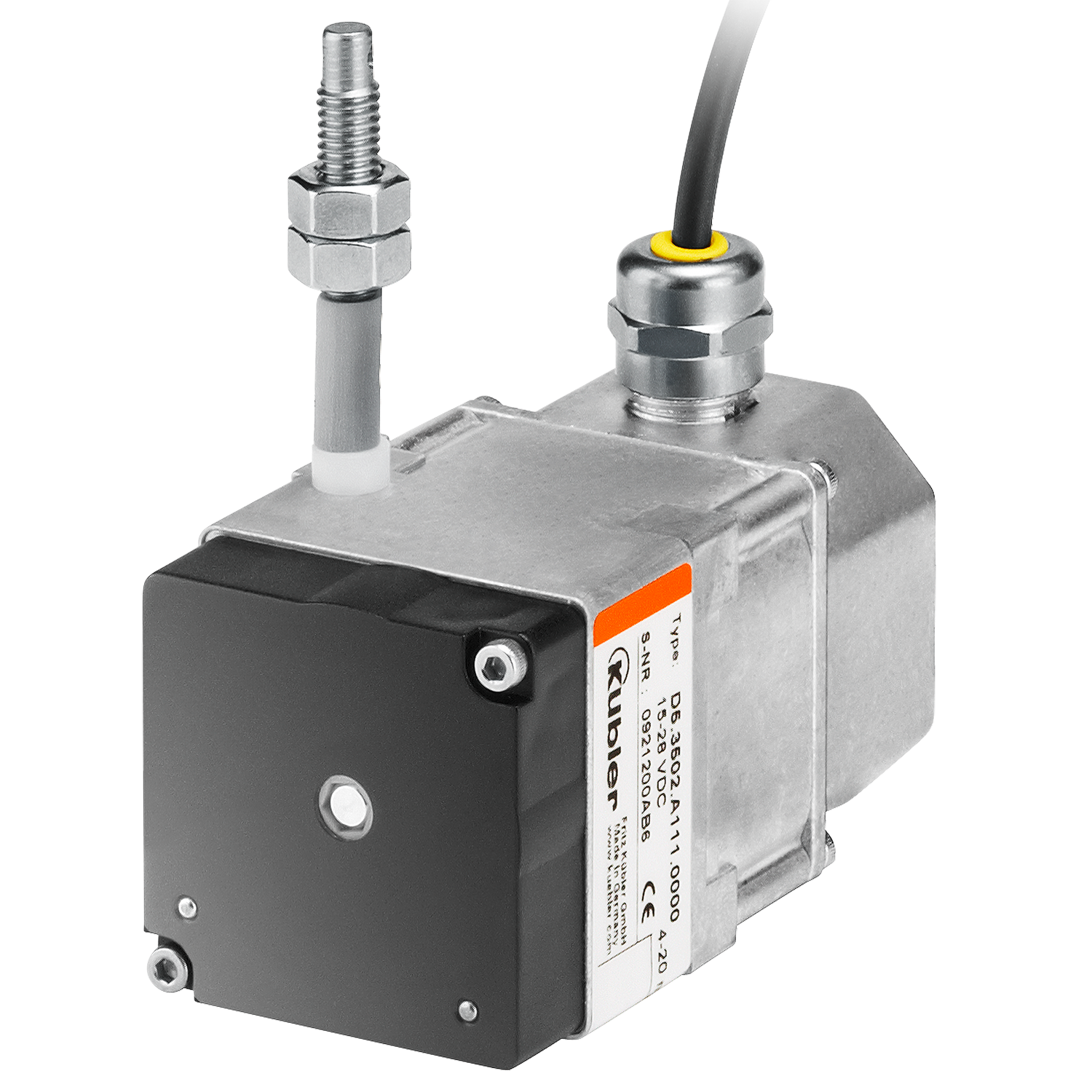

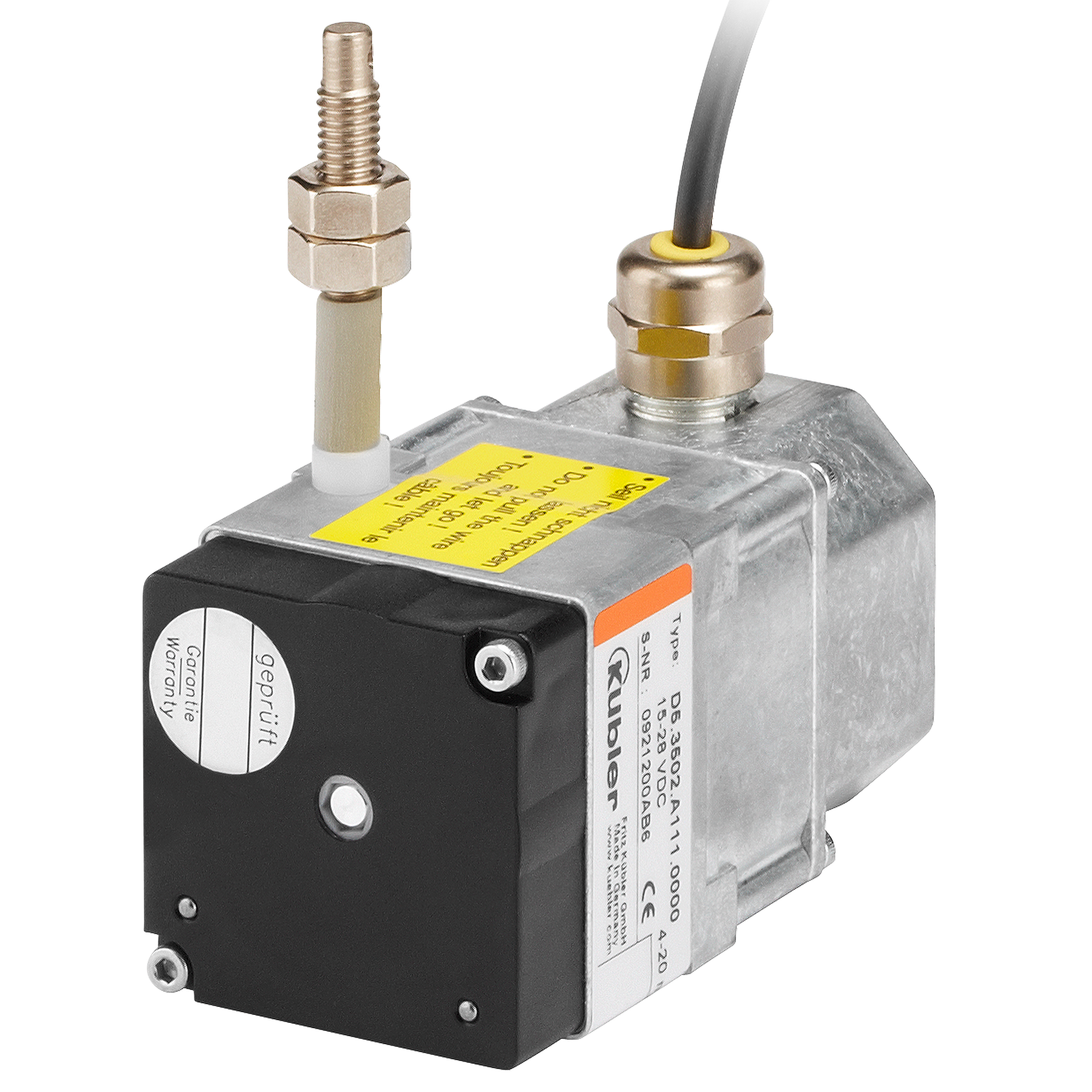

A40/A41

  • Extremely compact
  • Flexible assembly
  • Wide temperature range
  • Max. measuring length 2 m
  • Speed 1 m/s
  • max. linearity ±0,35 %
Analog 0–10 V

Draw-wire mechanism with analog sensor.

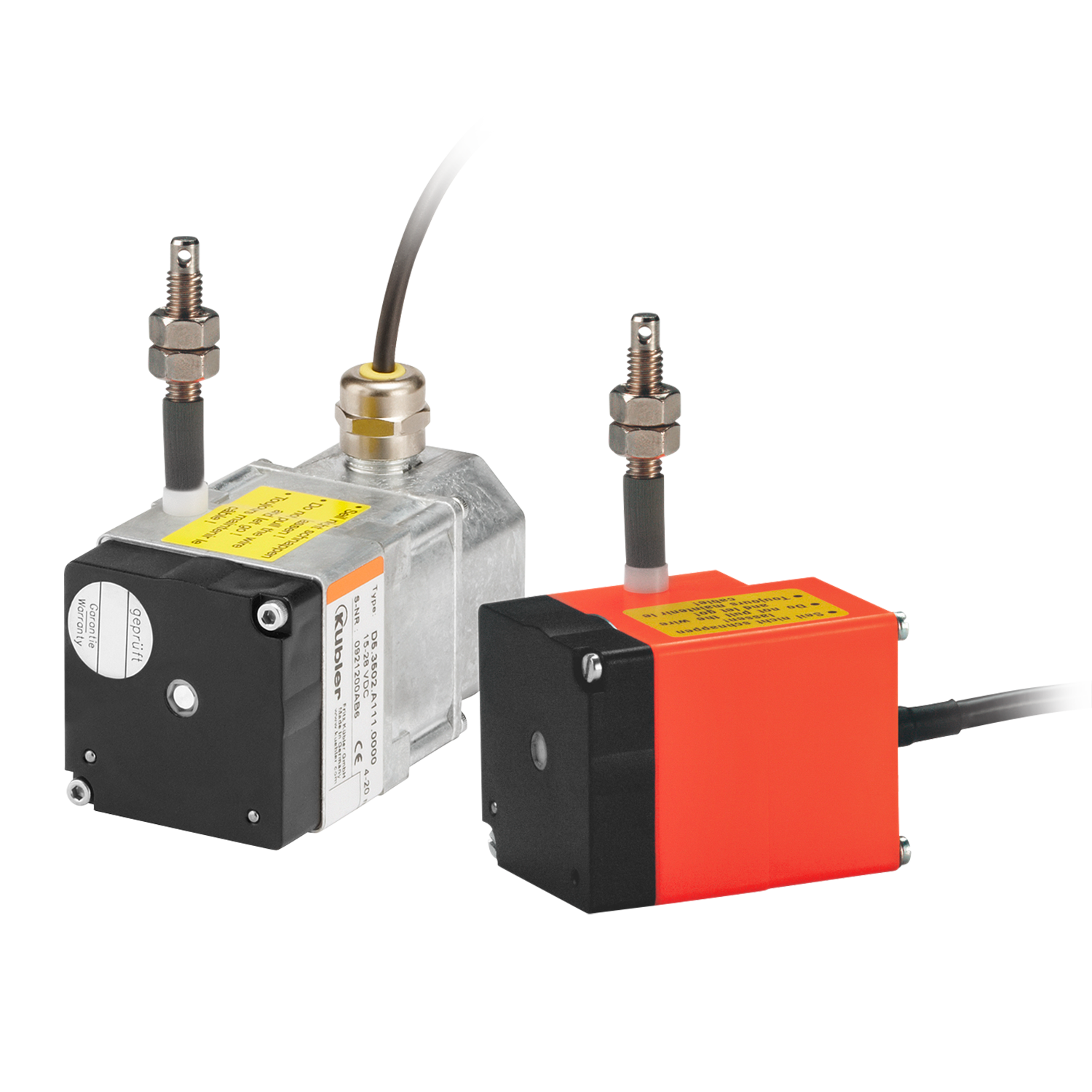

The draw-wire encoders A40 and A41 with analog output is characterized by its compact design. They are available with a potentiometer, voltage or current output.

Mechanical
Measuring system Draw-wire encoders
Measuring length 1 m
2 m
Speed 1 m/s
Dimension 50 mm x 50 mm x 77 mm
Connection types Axial cable
M12 connector
Working temperature 0 °C ... +50 °C
Protection level IP50
IP65
Electrical
max. linearity ±0,35 %
Interfaces Analog 0...10 V
Analog 4–20 mA
Potentiometer output
Power supply 15...28 V DC
Compact and simple
  • Measuring length up to 2000 mm.
  • For applications with a low traversing speed.
  • Easy to install.
  • Robust zinc die-cast housing.
Data sheet

A40 / A41

PDF ∼ 1,0 MB | 11.2023
DE
EN
FR
Operation Manual

A40 / A41

Multilingual: German, English, English (USA), French
PDF ∼ 1,2 MB | 10.2016

Installation manual

Safety Advice for Draw-wire encoders

Multilingual: German, English, French, Italian
PDF ∼ 160,6 KB | 05.2017

Safety characteristics

A40/A41 MTTFd

Multilingual: German, English
PDF ∼ 153,7 KB | 06.2019

Declaration of conformity

A30 / A40 / A41 / B75 / C105 CE

Multilingual: German, English, French
PDF ∼ 355,5 KB | 11.2018

Mechanical CAD / STEP

A40

ZIP ∼ 103,8 KB | 05.2019

Brochures

Solutions for Mobile Automation

PDF ∼ 6,8 MB | 05.2024
DE
EN
FR
Flyer

Portfolio overview Draw-wire encoders

Multilingual: German, English
PDF ∼ 221,1 KB | 11.2019

Accessories

Extension cable Paraleine

Extension cable Paraleine

With extension cables, the actual measuring range can be used without any loss of resolution. We offer numerous extension cables in our portfolio for this purpose.
2 m 8.0000.7000.0032

Extension cable steel

Extension cable steel

With extension cables, the actual measuring range can be used without any loss of resolution. We offer numerous extension cables in our portfolio for this purpose.
2 m 8.0000.7000.0033
5 m 8.0000.7000.0034
10 m 8.0000.7000.0035

Guide pulley

Guide pulley

With guide pulleys, linear movements can also be directed around obstacles. This not only increases their flexibility but can also compensate for installation tolerances. Idler pulleys can also act to clean off dirt and break ice.

Technical data:
  • Installation angle (anodized aluminum)
  • Guide pulley (plastic POM)
  • Ball bearing (Type 696-2R5)
Scope of delivery:
  • 2 x countersunk screws for side fixing
  • 2 x Allen screws for fixing on a flat surface
8.0000.7000.0045
Mechanical CAD / STEP
8.0000.7000.0045

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin PUR Ø 4,7 mm ± mm
4x0,34 mm2
05.00.6061.6211.XXXX

Data sheet
M12 cordset, PUR, socket, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 5,5 mm ± 0,2 mm
5 x 0,25 mm2
05.00.6081.2211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin
05.B8141-0

Data sheet
M12 socket, 4-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin
05.B8241-0

Data sheet
M12 socket, angled, 4-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Male connector 4-pin
05.BS8141-0

Data sheet
M12 pin, 4-pin, A-coded
DE EN FR
