IN88 IN88 IN88
IN88

Inclinometer

IN88

  • Parameterizable filter setting
  • Robust design
  • Stackable assembly for redundancy
Modbus

1-dimensional inclinometer. Unmistakable accuracy – even in harsh environments.

The IN88 inclinometer is used for the acquisition of a tilt angle in the measuring range from 0 to 360°. Due to its high robustness and protection up to IP69k, as well as its wide temperature range from -40°C to +85°C, it is excellent for, among other uses, outdoor use in mobile automation.

Mechanical
Dimension 60 mm x 80 mm x 23 mm
Connection types M12 connector
Working temperature -40 °C ... +85 °C
Protection level IP67
IP69k
Electrical
Measuring range ± 85°
Accuracy ± 0,2°
Interfaces Modbus
Supply voltage 10...30 V DC
Robust
  • High IP67 and IP69k protection in one device.
  • Highest resistance due to metal housing.
  • Stable accuracy over the entire temperature range from -40 to +85°C.
  • No long-term drift thanks to sensor array technology.

Versatile
  • Parameterizable filter.
  • Measuring direction 1- or 2-dimensional.

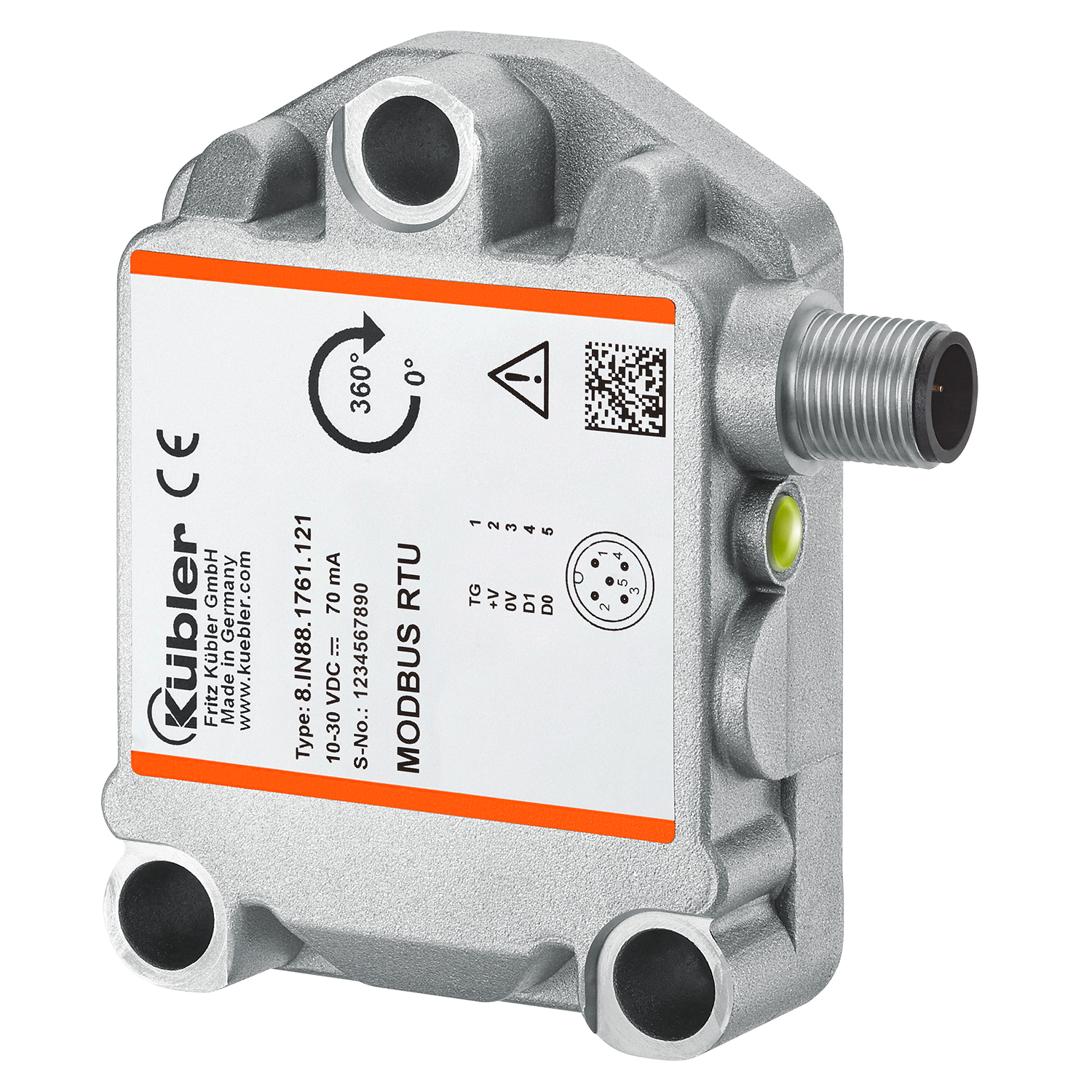

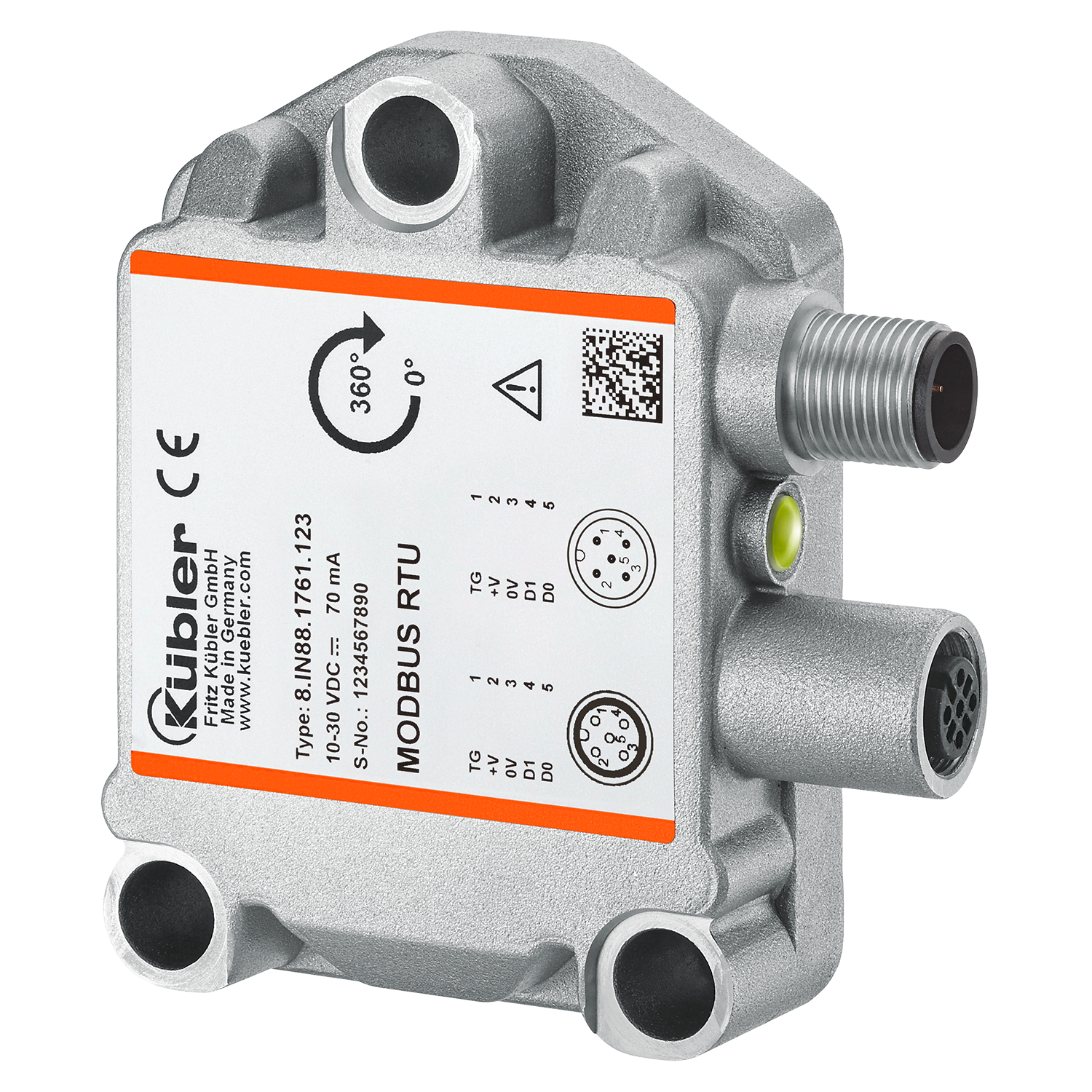

  • With 1 x M12 plug or 2 x M12 plugs.

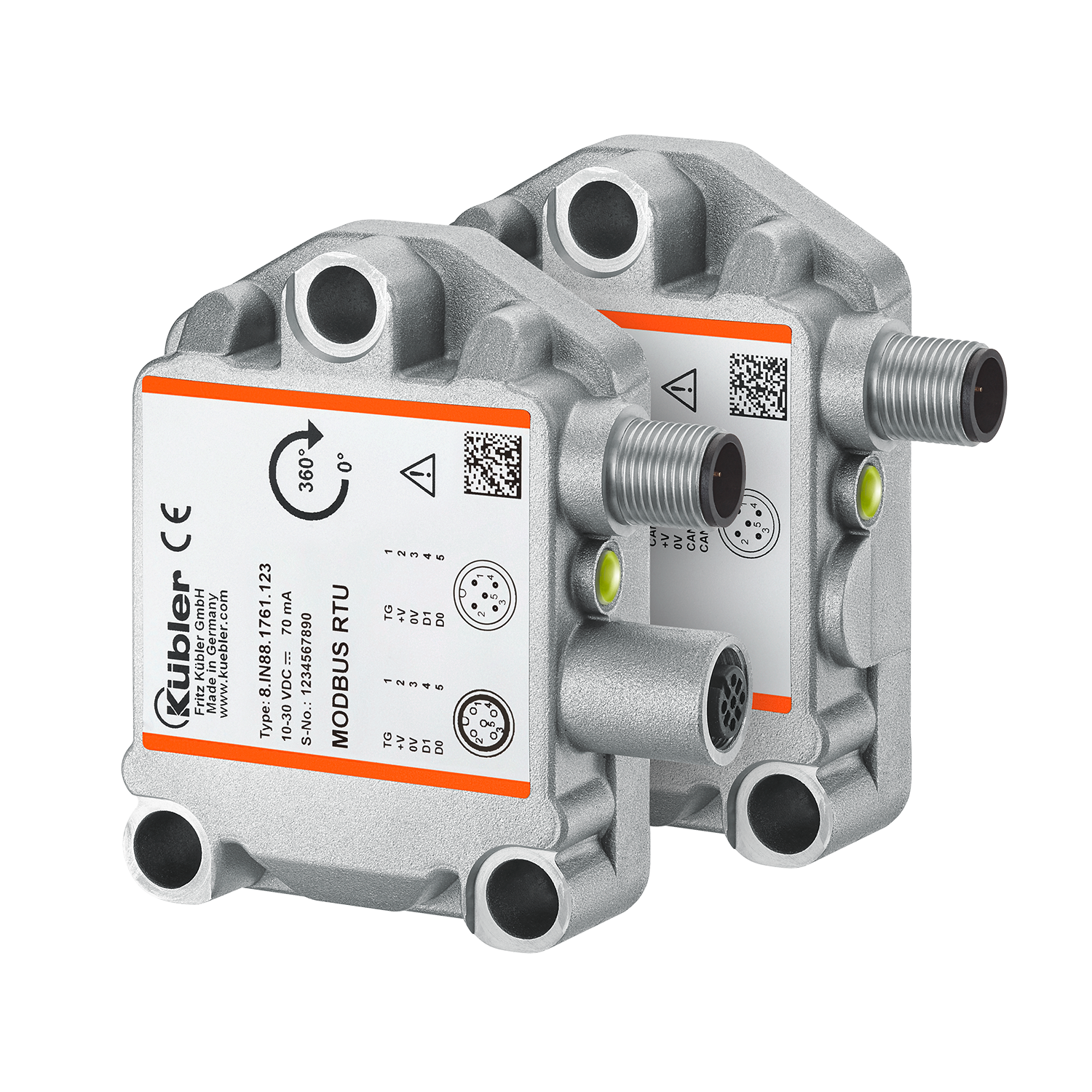

  • Stack mounting for redundancy possible.
Data sheet

IN88

PDF ∼ 934,7 KB | 07.2020
DE
EN
FR
Installation manual

IN81/IN88 - Installation manual

Multilingual: German, English
PDF ∼ 760,8 KB | 10.2017

Safety characteristics

IN88 MTTFd

Multilingual: German, English
PDF ∼ 183,3 KB | 06.2019

Manual

IN88 Modbus

PDF ∼ 1,3 MB | 01.2018
DE
EN
FR
mechanical CAD / STEP

IN88

ZIP ∼ 8,4 MB | 12.2017

Declaration of conformity

IN88 Modbus

Multilingual: German, English, English (USA), French
PDF ∼ 353,2 KB | 05.2017

electronic CAD / ePlan

IN88 Modbus

ZIP ∼ 2,0 MB | 02.2020

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Accessories

Cables and connectors
