Sendix M3668R new

Encoders Absolute multiturn

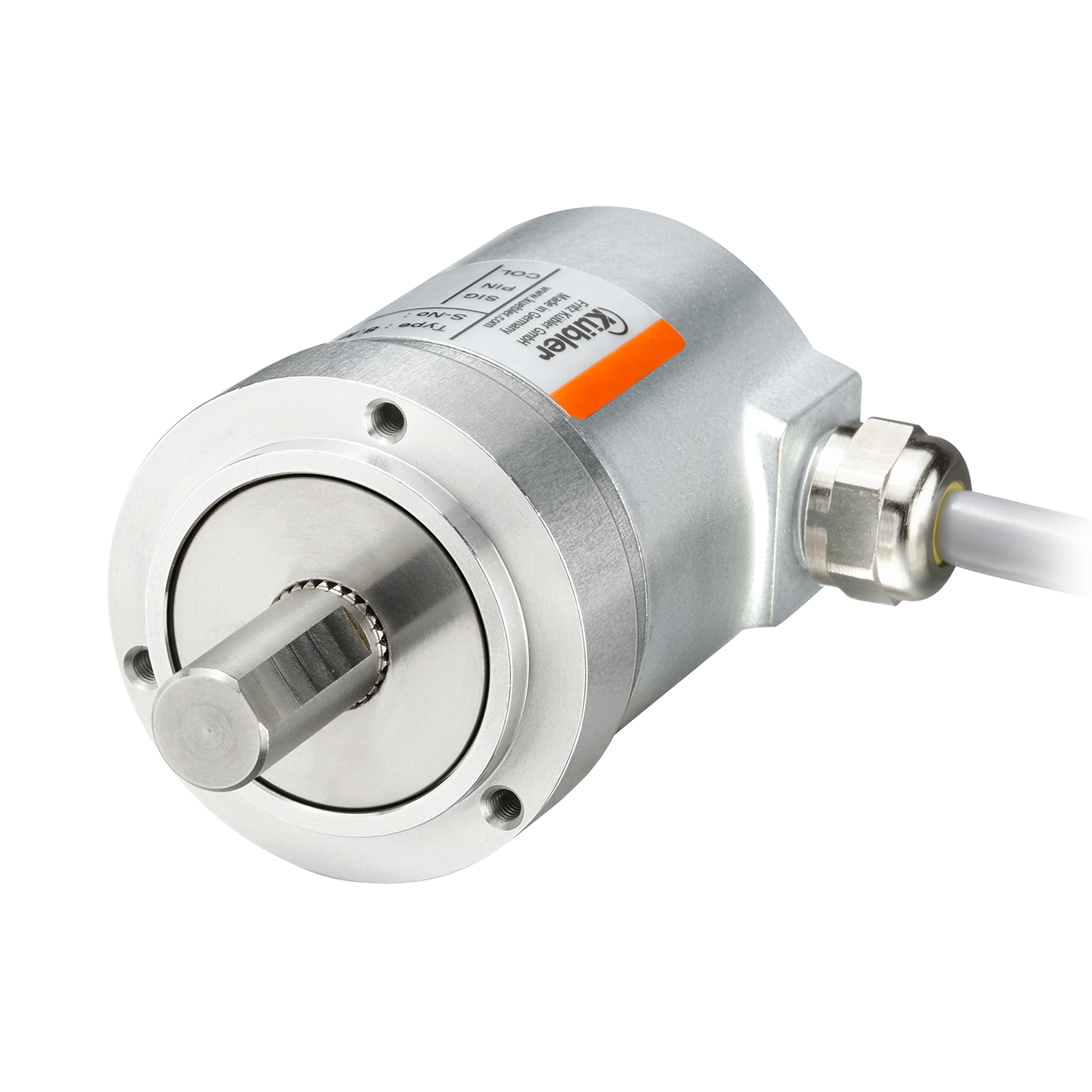

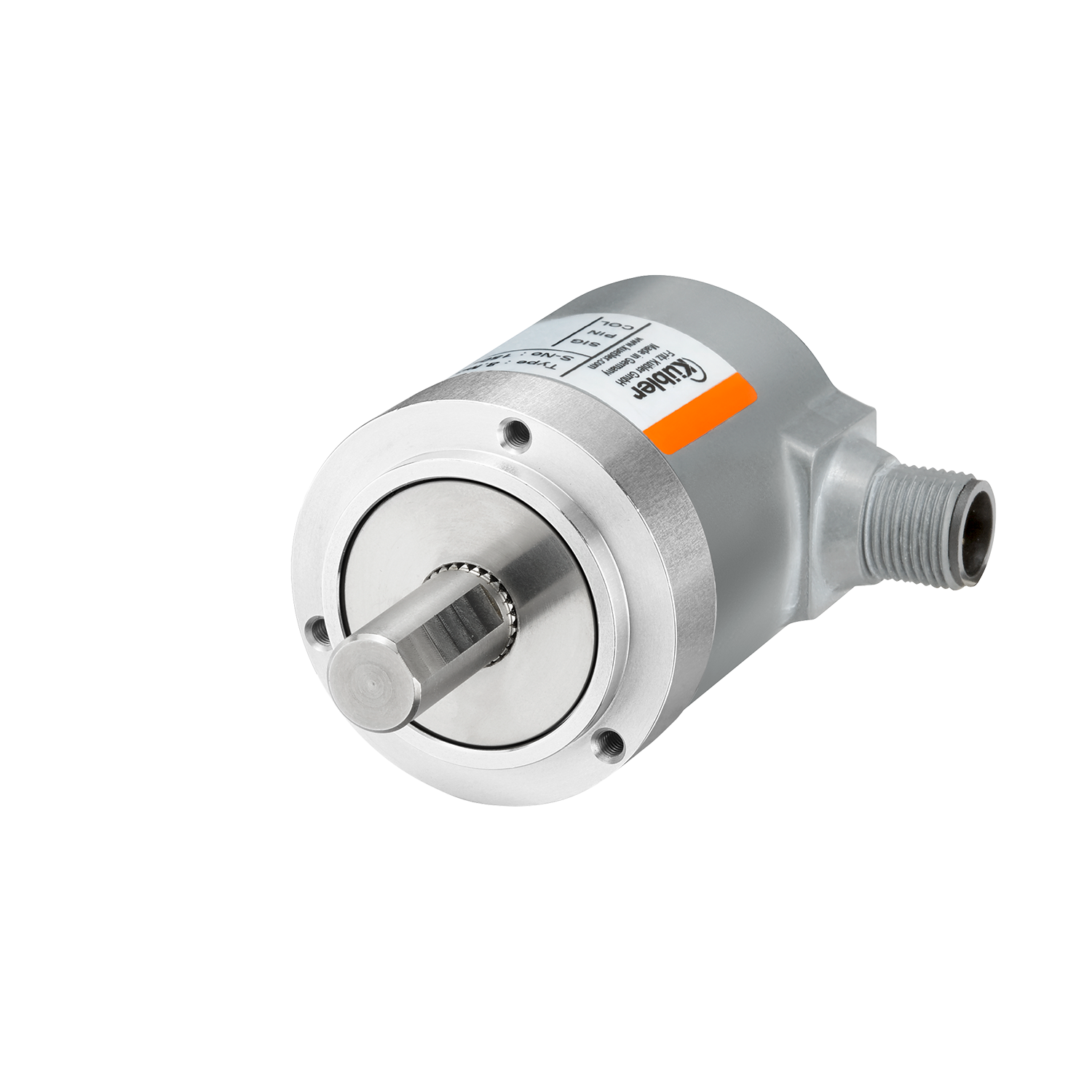

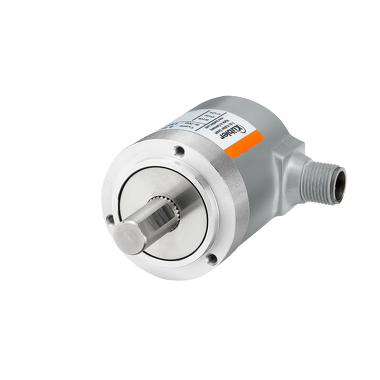

Sendix M3668R

  • Standalone operation in emergency
  • Extremely robust
  • Magnetic – robust
  • Dimension Ø 36 mm
  • 14 bits singleturn
  • 24 bits multiturn
  • Max 10 mm shaft, with flat surface
  • Max 1/4" shaft, with flat surface
SAE J1939

Energy Harvesting Technology: Electronic multiturn encoders – extremely robust!

The Sendix M36 with Energy Harvesting Technology is an electronic multiturn encoder in miniature format, without gear and without battery. It is characterized by robustness, reliability and cost-efficiency.
The “R”obust version is particularly suitable for use in harsh environments. Protected up to IP69k, resistance against shock and extreme temperature fluctuations, the Sendix M36 encoder is suitable even for demanding outdoor applications.

Mechanical
Dimension Ø 36 mm
Shaft type 6 mm shaft, with flat surface
8 mm shaft, with flat surface
10 mm shaft, with flat surface
1/4 " shaft, with flat surface
Flange type Ø 36.00 mm
Ø 42.00 mm
Working temperature -40 °C ... +85 °C
Protection level IP66
IP67
IP69k
Connection types Radial cable
M12 connector radial
Max. rotational speed 4.000 min-1
Weight 200 g
Electrical
Scanning magnetic
Resolution max. 14 bits singleturn
24 bits multiturn
Supply voltage 10...30 V DC
Interfaces SAE J1939
Highest robustness
  • Robust bearing construction in safety-Lockplus™ design for particularly high resistance.
  • Extra large bearings.
  • Mechanically protected shaft seal.
  • High IP67 and IP69k protection in one device.
  • Wide temperature range from -40°C to +85°C.
  • Energy Harvesting Technology without gears and without battery.
Up-to-the-minute fieldbus performance
  • Up-to-the-minute fieldbus performance in the application: SAE J1939 with CAN-highspeed to ISO 11898.
  • Universal Scaling Function.
  • Fast determination of the operating status via two-color LED.
Data sheet

Sendix M3668R SAE J1939

PDF ∼ 413,1 KB | 11.2019
DE
EN
FR
Operation Manual

General operating instructions

Multilingual: German, English, French
PDF ∼ 2,2 MB | 03.2020

Safety characteristics

Sendix M3668R MTTFd

Multilingual: German, English
PDF ∼ 215,3 KB | 06.2019

Manual

Sendix M3668 / M3688 / M3668R / M5868 SAEJ1939

PDF ∼ 3,5 MB | 08.2019
DE
EN
FR
Device file

Sendix M36xx J1939 / dbc-File

ZIP ∼ 13,8 KB | 06.2019

mechanical CAD / STEP

Sendix M366XR

ZIP ∼ 839,1 KB | 01.2017

Declaration of conformity

Sendix M36x1 / M36x3 / M36x8 / M36x1R / M36x3R / M36x8R / M58x1 / M58x3 / M58x8

Multilingual: German, English, French
PDF ∼ 358,0 KB | 04.2019

electronic CAD / ePlan

Sendix M3668R SAEJ1939

ZIP ∼ 1,8 MB | 02.2020

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

ATEX 2/22

Multilingual: German, English
PDF ∼ 862,4 KB | 11.2018

Additional sales information

Inquiry Form for SAE J1939

Multilingual: English
PDF ∼ 96,3 KB | 08.2020

Accessories

Bellows coupling

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).
Ø 19mm 8.0000.1102.XXXX
Ø 15mm 8.0000.1202.XXXX
Ø 25mm 8.0000.1502.XXXX
Data sheet
8.000xxxxx Accessories coupling
DE EN FR
mechanical CAD / STEP
8.0000.1102.XXXX Accessories Bellow coupling

Cables and connectors

DEUTSCH Connector with cable ,

DEUTSCH Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
DeviceNet
SAE J1939
CAN
Female connector 5-pin

Male connector 6-pin
05.00.6091.22C7.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
DeviceNet
SAE J1939
Modbus
IO-Link
Female connector 5-pin
05.00.6091.A211.XXXM

Data sheet
M12-Kabelsatz-PVC_Buchse-5-pol-A+offen_CANopen_05.00.6091.A211.002M
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Male connector 5-pin
8.0000.5111.0000

Data sheet
M12_Stift_5-polig-A_8.0000.5111.0000
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Female connector 5-pin
8.0000.5116.0000

Data sheet
M12_Buchse_5-polig-A_8.0000.5116.0000
DE EN FR

M12 Connector , für den Ex-Bereich

M12 Connector , für den Ex-Bereich

Field-wireable connector

Female connector 5-pin
8.0000.5116.0000.Ex

Data sheet
M12_Buchse-EX_5-polig-A_8.0000.5116.0000.Ex
DE EN FR

M12 Connector ,  Edelstahl V4A

M12 Connector , Edelstahl V4A

Field-wireable connector

Female connector 5-pin
8.0000.5116.0000.V4A

Data sheet
M12_Buchse-V4A_5-polig-A_8.0000.5116.0000.V4A
DE EN FR

Cable 3x2x0,25 mm<sup>2</sup>  ,

Cable 3x2x0,25 mm2 ,

Unassembled yard ware

CANopen
DeviceNet
PVC Ø 6,2 mm ± 0,2 mm
3x2x0,25 mm2
8.0000.6V00.XXXX
Data sheet
Kabel_CANopen_PVC_8.0000.6V00.XXXX
DE EN FR
Data sheet
Cable Ethercat-Profinet-Ethernet PUR 8.0000.6V00.XXXX
DE EN FR
