Sendix M3668R Sendix M3668R
Sendix M3668R Sendix M3668R

Encoders Absolute multiturn

Sendix M3668R

  • Standalone operation in emergency
  • Extremely robust
  • Magnetic – robust
  • Dimension Ø 36 mm
  • 14 bits singleturn
  • 24 bits multiturn
  • Max 10 mm shaft, with flat surface
  • Max 1/4" shaft, with flat surface
CANopen

Energy Harvesting Technology: Electronic multiturn encoders – extremely robust!

The Sendix M36 with Energy Harvesting Technology is an electronic multiturn encoder in miniature format, without gear and without battery. It is characterized by robustness, reliability and cost-efficiency.
The “R”obust version is particularly suitable for use in harsh environments. Protected up to IP69k, resistance against shock and extreme temperature fluctuations, the Sendix M36 encoder is suitable even for demanding outdoor applications.

Mechanical
Dimension Ø 36 mm
Shaft type 6 mm shaft, with flat surface
8 mm shaft, with flat surface
10 mm shaft, with flat surface
1/4 " shaft, with flat surface
Flange type Ø 36.00 mm
Ø 42.00 mm
Working temperature -40 °C ... +85 °C
Protection level IP66
IP67
IP69k

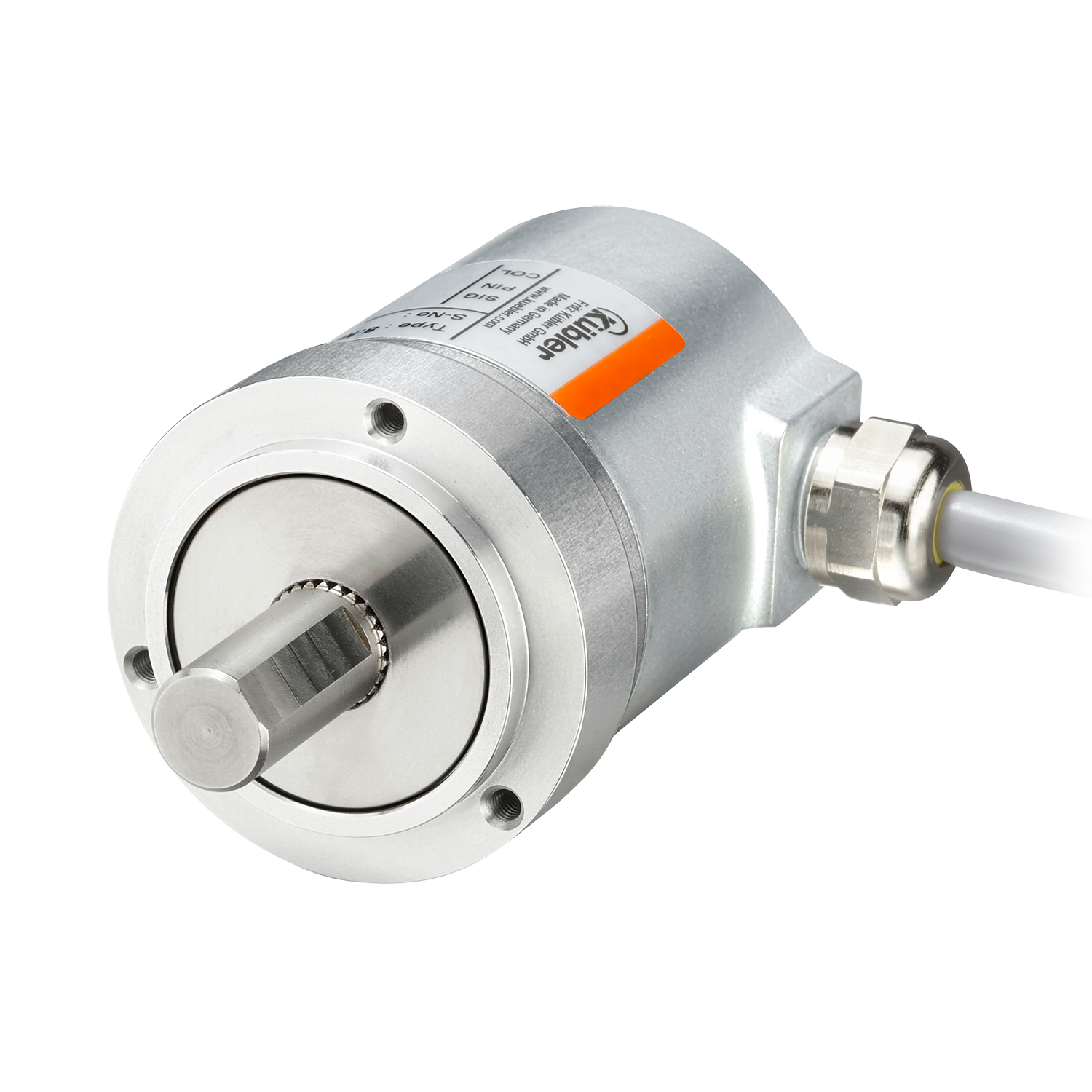

Connection types Radial cable

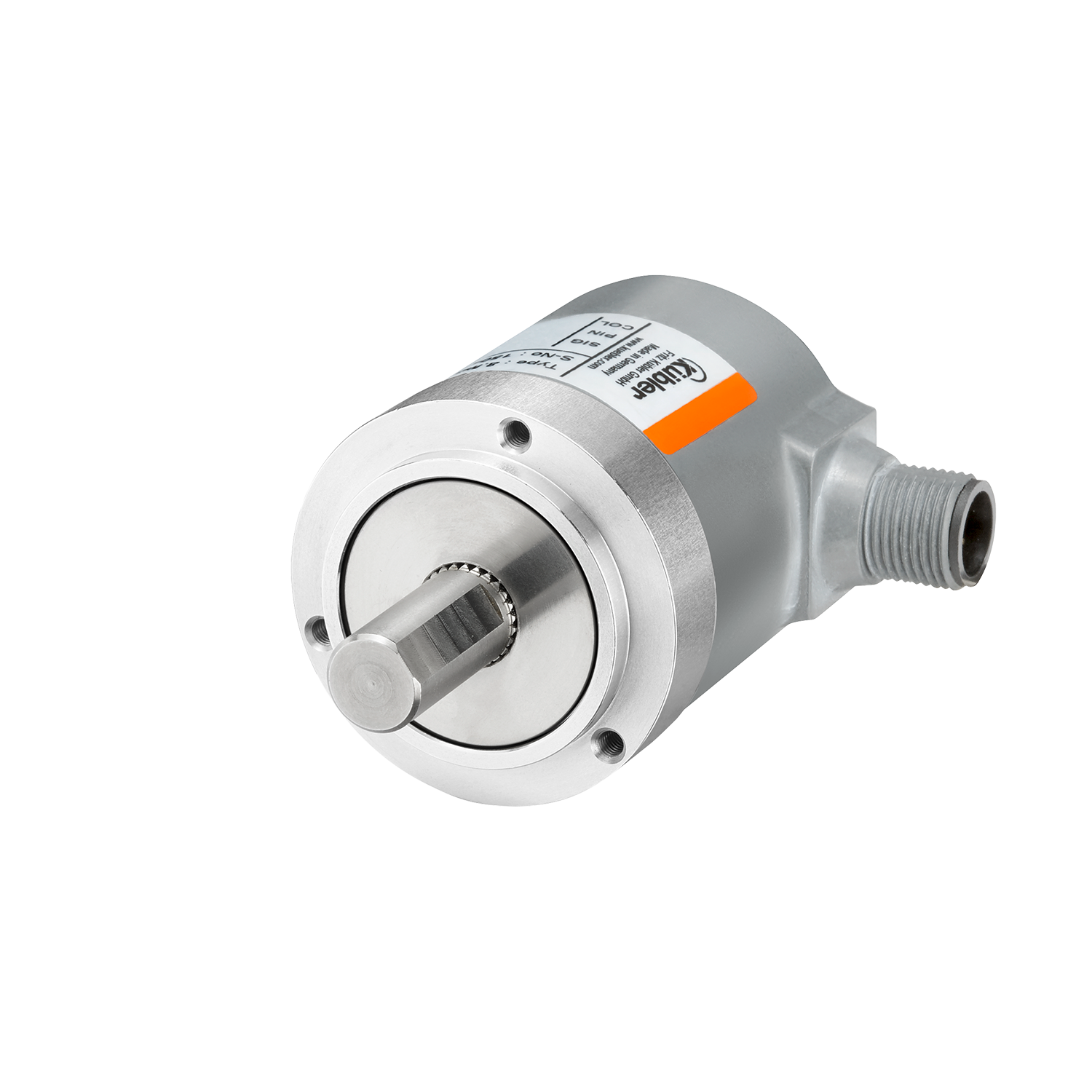

M12 connector radial
Max. rotational speed 4.000 min-1
Weight 200 g
Electrical
Scanning magnetic
Resolution max. 14 bits singleturn
24 bits multiturn
Supply voltage 10...30 V DC
Interfaces CANopen
Highest robustness
  • Robust bearing construction in safety-Lockplus™ design for particularly high resistance.
  • Extra large bearings.
  • Mechanically protected shaft seal.
  • High IP67 and IP69k protection in one device.
  • Wide temperature range from -40°C to +85°C.
  • Energy Harvesting Technology without gears and without battery.
Up-to-the-minute fieldbus performance
  • LSS services for configuration of the node address and baud rate.
  • Variable PDO mapping in the memory.
  • Universal scaling function.
  • Configuration management (bootloader).
Highest robustness
  • Robust bearing construction in safety-Lockplus™ design for particularly high resistance.
  • Extra large bearings.
  • Mechanically protected shaft seal.
  • High IP67 and IP69k protection in one device.
  • Wide temperature range from -40°C to +85°C.
  • Energy Harvesting Technology without gears and without battery.
Up-to-the-minute fieldbus performance
  • LSS services for configuration of the node address and baud rate.
  • Variable PDO mapping in the memory.
  • Universal scaling function.
  • Configuration management (bootloader).
Data sheet

Sendix M3668R CANopen

PDF ∼ 537,3 KB | 11.2019
DE
EN
FR
Operation Manual

General operating instructions

Multilingual: German, English, French
PDF ∼ 2,7 MB | 10.2020

Manual

Application Note - CANopen

PDF ∼ 486,4 KB | 08.2019
EN

Sendix M36x8 / M3668R / M5868 CANopen

PDF ∼ 1,6 MB | 05.2020
DE
EN
FR
Safety characteristics

Sendix M3668R MTTFd

Multilingual: German, English
PDF ∼ 215,3 KB | 06.2019

Declaration of conformity

Sendix M36x1 / M36x3 / M36x8 / M36x1R / M36x3R / M36x8R / M58x1 / M58x3 / M58x8

Multilingual: German, English, French
PDF ∼ 358,0 KB | 04.2019

Device file

M36x8R MT CANopen / EDS-File

ZIP ∼ 25,8 KB | 11.2016

Sendix M36xx J1939 / dbc-File

ZIP ∼ 13,8 KB | 06.2019

mechanical CAD / STEP

Sendix M366XR

ZIP ∼ 839,1 KB | 01.2017

electronic CAD / ePlan

Sendix M3668R CANopen

ZIP ∼ 2,0 MB | 02.2020

Product Certificates

ATEX 2/22

Multilingual: German, English
PDF ∼ 862,4 KB | 11.2018

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Accessories

Bellows coupling

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).
Ø 19mm 8.0000.1102.XXXX
Ø 15mm 8.0000.1202.XXXX
Ø 25mm 8.0000.1502.XXXX
Data sheet
8.000xxxxx Accessories coupling
DE EN FR
mechanical CAD / STEP
8.0000.1102.XXXX Accessories Bellow coupling

Cables and connectors

DEUTSCH Connector with cable ,

DEUTSCH Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
DeviceNet
SAE J1939
CAN
Female connector 5-pin

Male connector 6-pin
05.00.6091.22C7.XXXM

Data sheet
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
DeviceNet
SAE J1939
Modbus
IO-Link
Female connector 5-pin
05.00.6091.A211.XXXM

Data sheet
M12-Kabelsatz-PVC_Buchse-5-pol-A+offen_CANopen_05.00.6091.A211.002M
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Male connector 5-pin
8.0000.5111.0000

Data sheet
M12_Stift_5-polig-A_8.0000.5111.0000
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Female connector 5-pin
8.0000.5116.0000

Data sheet
M12_Buchse_5-polig-A_8.0000.5116.0000
DE EN FR

M12 Connector , für den Ex-Bereich

M12 Connector , für den Ex-Bereich

Field-wireable connector

Female connector 5-pin
8.0000.5116.0000.Ex

Data sheet
M12_Buchse-EX_5-polig-A_8.0000.5116.0000.Ex
DE EN FR

M12 Connector ,  Edelstahl V4A

M12 Connector , Edelstahl V4A

Field-wireable connector

Female connector 5-pin
8.0000.5116.0000.V4A

Data sheet
M12_Buchse-V4A_5-polig-A_8.0000.5116.0000.V4A
DE EN FR

Cable 3x2x0,25 mm<sup>2</sup>  ,

Cable 3x2x0,25 mm2 ,

Unassembled yard ware

CANopen
DeviceNet
PVC Ø 6,2 mm ± 0,2 mm
3x2x0,25 mm2
8.0000.6V00.XXXX
Data sheet
Kabel_CANopen_PVC_8.0000.6V00.XXXX
DE EN FR
Data sheet
Cable Ethercat-Profinet-Ethernet PUR 8.0000.6V00.XXXX
DE EN FR
