Encoders Absolute singleturn

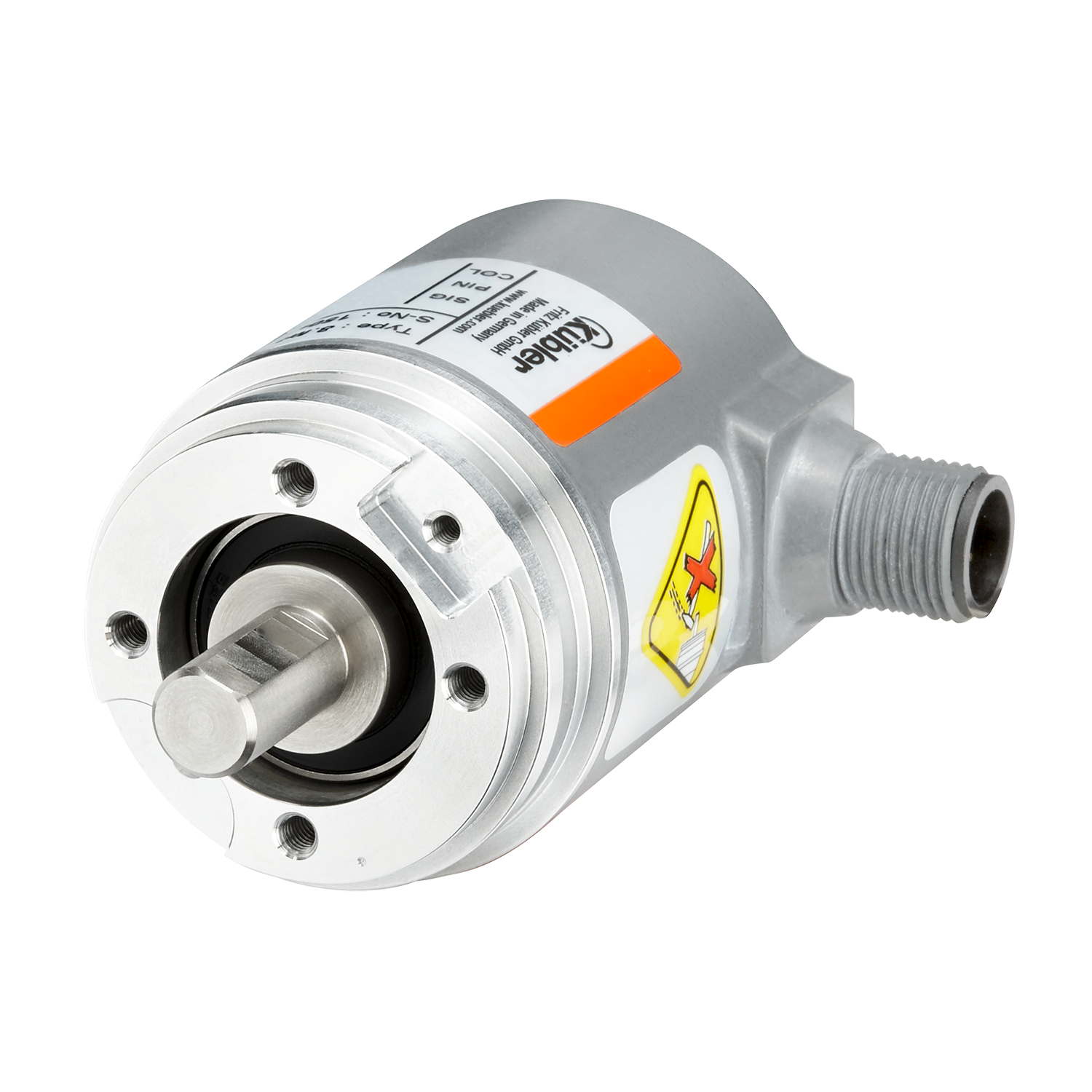

Sendix M3658A
|
|
Magnetic singleturn encoder with CANopen interface.
The Sendix M36 is a magnetic singleturn encoder in compact design.It is characterized by robustness, reliability and cost-efficiency.
| Mechanical | |
|---|---|
| Dimension | Ø 36 mm |
| Shaft type |
6 mm shaft, with flat surface 8 mm shaft, with flat surface 10 mm shaft, with flat surface 1/4 " shaft, with flat surface |
| Flange type |
Synchro flange / Servo flange Clamping flange Ø 36.00 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP65 IP67 |
| Connection types |
Axial cable Radial cable M12 connector axial M12 connector radial |
| Max. rotational speed |
6.000 min-1 |
| Weight | 210 g |
| Electrical | |
|---|---|
| Scanning | magnetic |
| Resolution max. |
14 bits singleturn |
| Power supply |
10...30 V DC |
| Interfaces |
CANopen |
Reliable and insensitive
- Sturdy bearing construction in Safety-Lock™ design for resistance against vibration and installation errors.
- Reduced number of components ensures insensitivity.
- IP67 protection and wide temperature range from -40 °C to +85 °C.
- LSS services for configuration of the node address and baud rate.
- Variable PDO mapping in the memory.
- Configuration management (bootloader).
Accessories
Bellows coupling
Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.Bellows coupling (stainless steel).
| 8.0000.1102.0606 |
