360 Sendix M3653AR Sendix M3653AR
Sendix M3653AR Sendix M3653AR

Encoders Absolute singleturn

Sendix M3653AR

  • Standalone operation in emergency
  • Particularly resistant
  • Magnetic – robust
  • Dimension Ø 36 mm
  • 14 bits singleturn
  • Max 10 mm shaft, with flat surface
  • Max 1/4" shaft, with flat surface
SSI, binary

For extreme requirements: Magnetic singleturn encoder with SSI interface.

The Sendix M3653AR are magnetic singleturn encoders in compact design. They are characterized by robustness, reliability and costefficiency.
The “R”obust version is particularly suitable for use in harsh environments. Protected up to IP69k, resistance against shock and extreme temperature fluctuations, the Sendix M36 encoders are suitable even for demanding outdoor applications.

Mechanical
Dimension Ø 36 mm
Shaft type 6 mm shaft, with flat surface
8 mm shaft, with flat surface
10 mm shaft, with flat surface
1/4 " shaft, with flat surface
Flange type Clamping flange

Ø 42.00 mm
Working temperature -40 °C ... +85 °C
Protection level IP66
IP67
IP69k

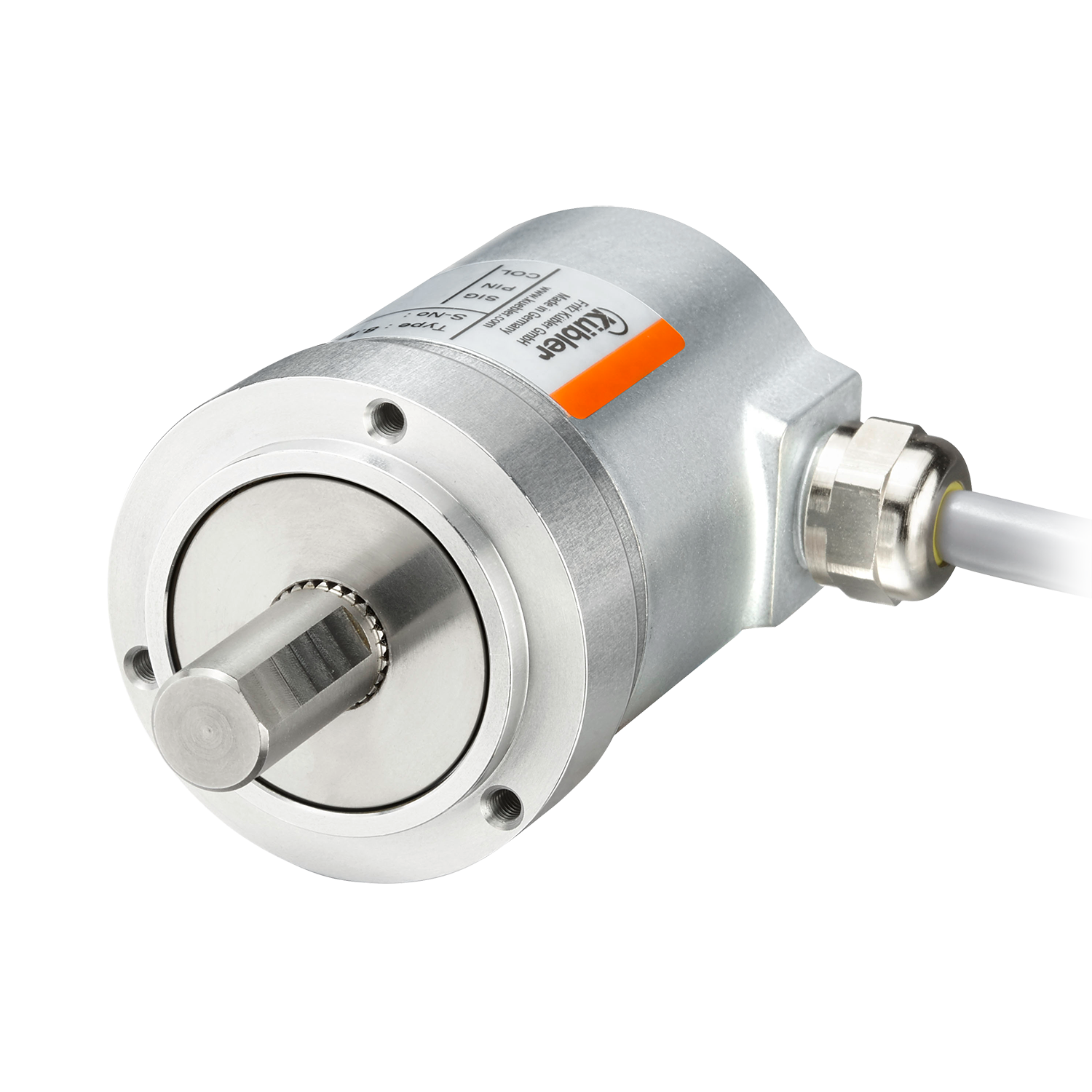

Connection types Radial cable

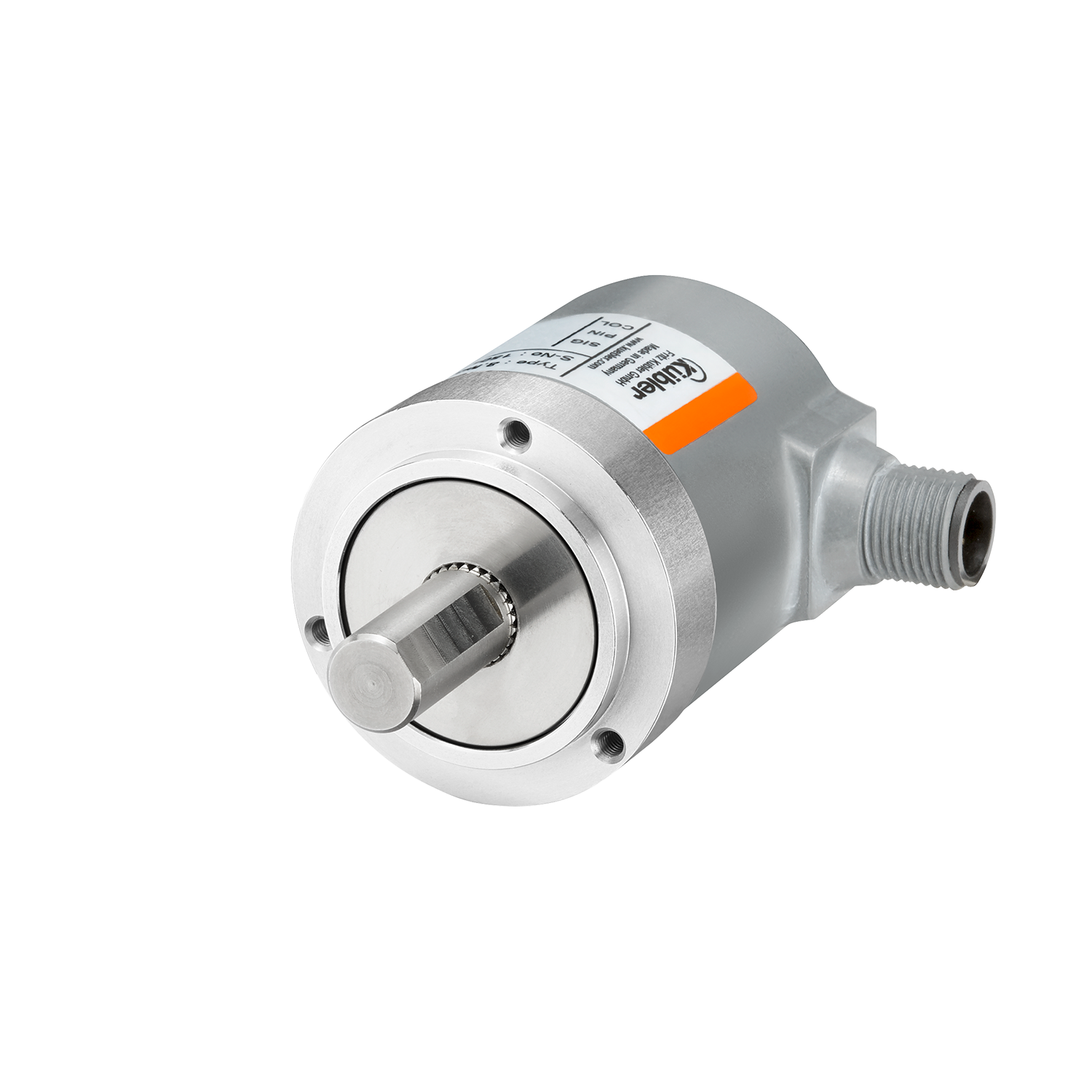

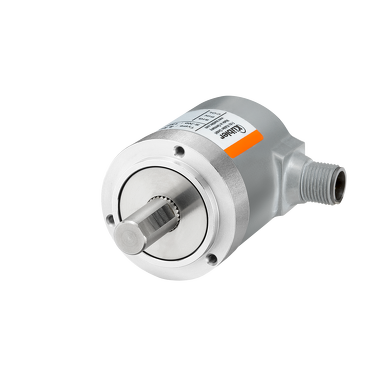

M12 connector radial
Max. rotational speed 4.000 min-1
Weight 250 g
Electrical
Scanning magnetic
Resolution max. 14 bits singleturn
Power supply 10...30 V DC
Interfaces SSI, binär
SSI, gray
Highest robustness
  • Robust bearing construction in safety-Lockplus™ design for particularly high resistance.
  • Extra large bearings.
  • Mechanically protected shaft seal.
  • High IP67 and IP69k protection in one device.
  • Wide temperature range from -40 °C to +85 °C.
Application oriented
  • Angular measurement deviation ±0,5°.
  • Repeat accuracy ±0.2°.
  • Short control cycles, clock frequency at SSI up to 2 MHz.
  • Resolution max. 14 bit.
Data sheet

Sendix M3653AR

PDF ∼ 962,7 KB | 11.2023
DE
EN
FR
Operation Manual

Operation manual for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 09.2022

Operating manual for encoders with ATEX 2/22

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 3,6 MB | 05.2023

Safety characteristics

Sistema-Library

Multilingual: German, English, French
ZIP ∼ 6,3 MB | 03.2024

Declaration of conformity

Sendix M3653A / M3653AR / M3673A / M5853A CE

PDF ∼ 69,2 KB | 10.2021
DE
EN
Mechanical CAD / STEP

M365XAR

ZIP ∼ 28,8 MB | 10.2021

Electronic CAD / ePlan

M3653A(R) / M3673A

ZIP ∼ 5,8 MB | 09.2022

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Salt spray test ManufacturersDeclaration

PDF ∼ 39,6 KB | 05.2023
DE
EN

Accessories

Bellows coupling

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).
8.0000.1102.XXXX
Data sheet
Bellows and spring washer couplings
DE EN FR
Mechanical CAD / STEP
Bellows and spring washer couplings

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PVC Ø 6,7 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6041.8211.XXXM

Data sheet
M12 cordset, PVC, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PVC Ø 6,7 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6041.8311.XXXM

Data sheet
M12 cordset, PVC, female 8-pin, A-coded, angled, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8211.XXXM

Data sheet
M12 cordset, PUR, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable , 05.00.6051.8284.XXXM

M12 Connector with cable , 05.00.6051.8284.XXXM

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
Open Collector
SSI
BiSS
Female connector 8-pin

Male connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8284.XXXM

Data sheet
M12 cordset, PUR, socket 8-pin, A-coded + pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
SSI
BiSS
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8311.XXXM

Data sheet
M12 cordset, PUR, socket, angled, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.F211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
SSI, binary
BiSS
Female connector 12-pin PUR Ø 7,5 mm ± mm
6 x 2 x 0,14 mm2
05.00.60B1.B211.XXXM

Data sheet
M12 cordset, PUR, socket, 12-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PUR Ø 6,2 mm ± 0,2 mm
4 x 2 x 0,25 mm2
05.00.60E1.8211.XXXM

Data sheet
M12 cordset, PUR, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin
05.CMB 8181-0

Data sheet
M12 socket, 8-pin, A-coded
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PVC Ø 7,2 mm ± 0,2 mm
8 x 0,205 mm2
05.E-WKC 8T-PX3-930-XXXX

Data sheet
M12 cordset, PVC, socket, 8-pin, A-coded, angled, with integrated control LEDs, open end
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin
8.0000.5136.0000.Ex

Data sheet
M12 socket, Ex 1/21 + Ex 2/22, 8-pin, A-coded
DE EN FR

M12 Connector ,  Stainless steel V4A

M12 Connector , Stainless steel V4A

Field-wireable connector

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin
8.0000.5136.0000.V4A

Data sheet
M12 socket, stainless steel V4A, 8-pin, A-coded
DE EN FR
