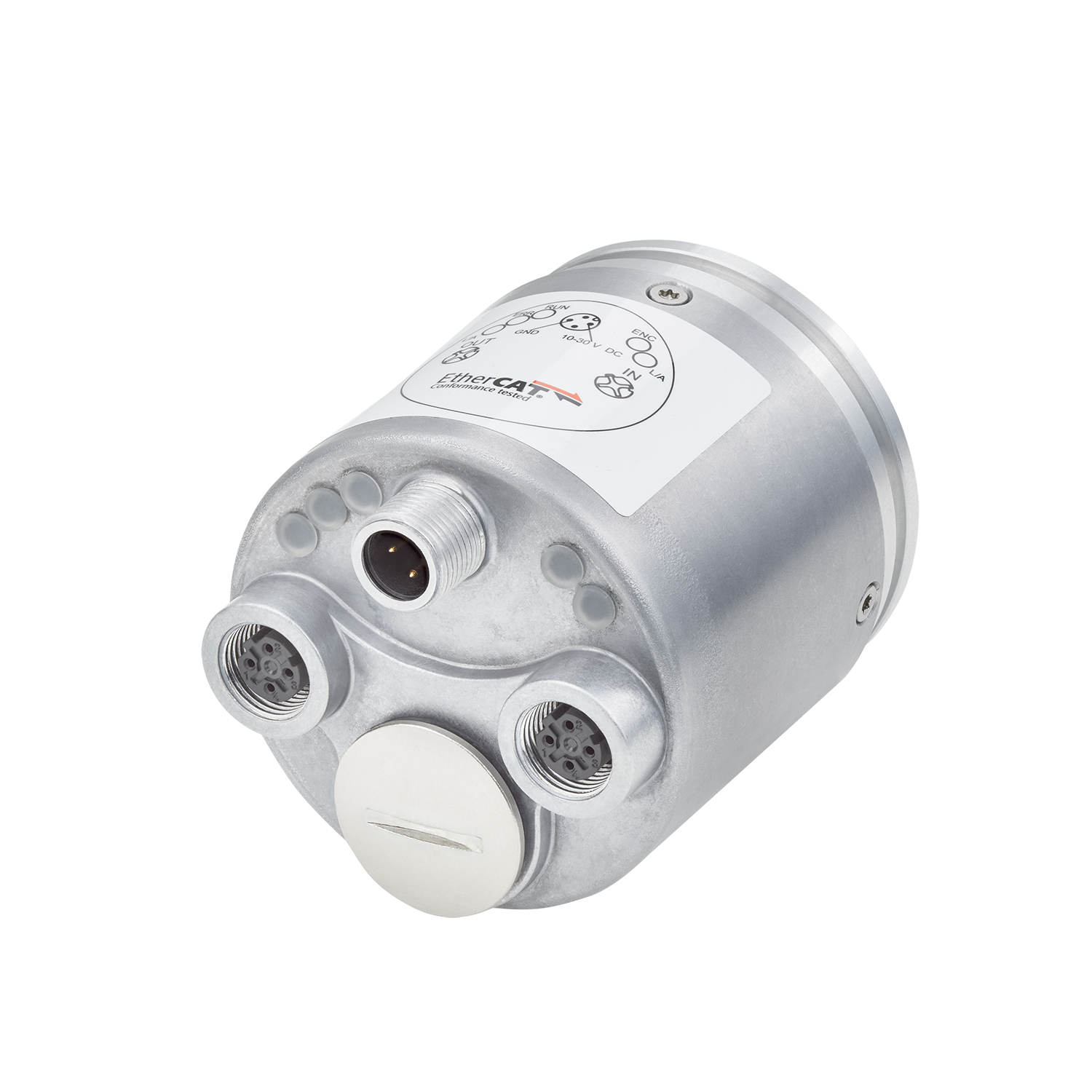

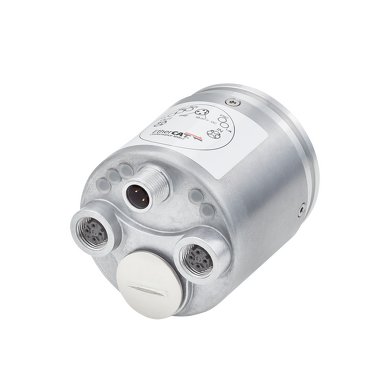

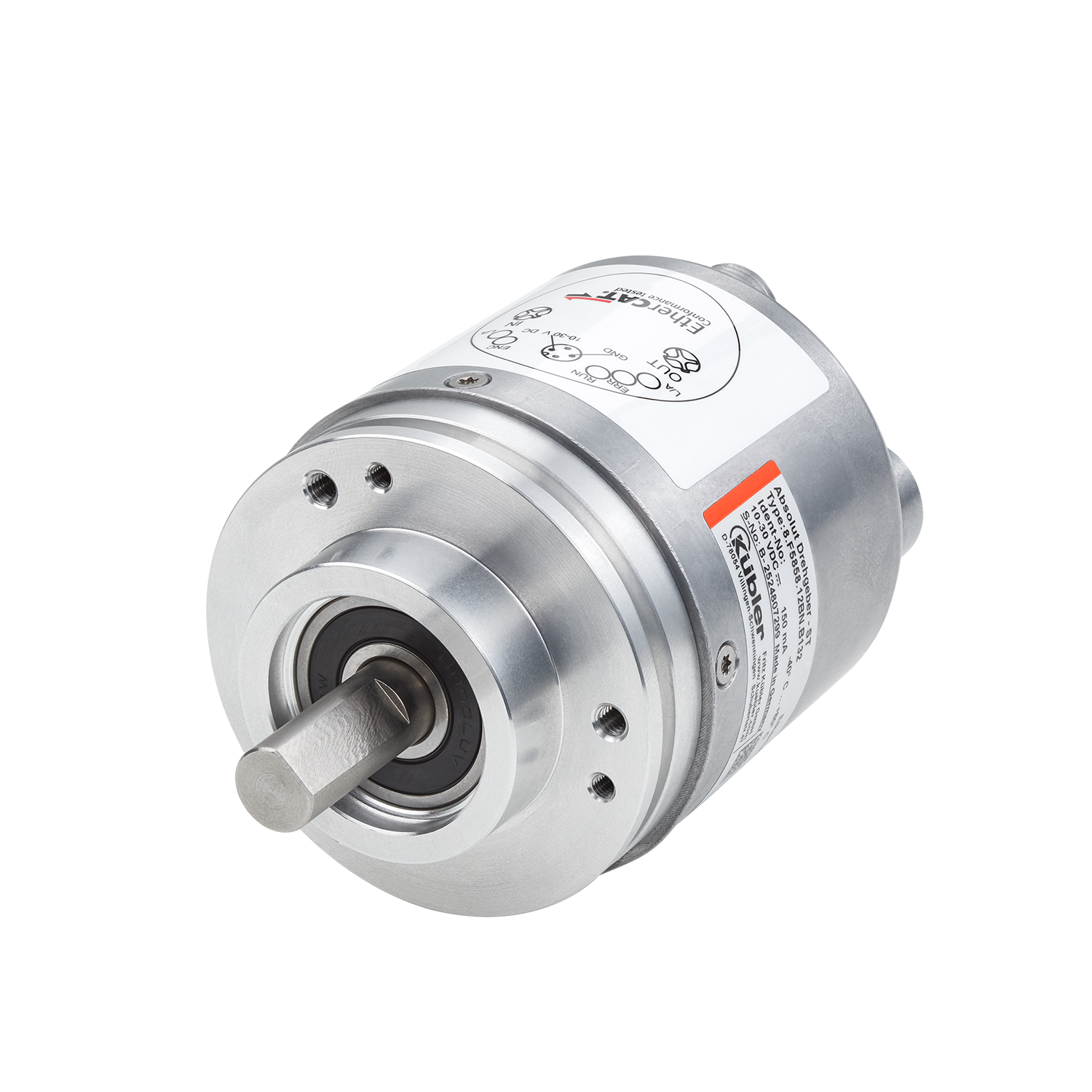

Sendix F5868
|
|
For real-time communication: Industrial Ethernet encoders with EtherCAT interface and cyber security.
The new Sendix F58 EtherCAT optical absolute encoders set new standards in terms of performance and flexibility. With extremely short cycle times of up to 150 µs and a wide range of adjustable parameters, they are ideal for demanding real-time applications. Features such as distributed clocks, scalable resolutions, and comprehensive diagnostic options make the F58 the first choice for modern automation solutions. Thanks to firmware updates via the network, the system can be expanded at any time – ready for tomorrow‘s requirements.| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
6 mm shaft, with flat surface 10 mm shaft, with flat surface 1/4 " shaft, with flat surface 3/8 " shaft, with flat surface |
| Flange type |
Synchro flange / Servo flange Clamping flange Square flange Ø 58.00 mm ❏ 63,50 mm |
| Working temperature | -40 °C ... +80 °C |
| Protection level |
IP65 IP67 |
| Connection types |
M12 connector axial |
| Max. rotational speed |
9.000 min-1 |
| Weight | 310 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
19 bits singleturn 24 bits multiturn |
| Power supply |
10...30 V DC |
| Interfaces |
EtherCAT |
| Options | |
|---|---|
| on request |
|
Features
Benefits
- Filter and variable integration time for different speed ranges.
- Support for cycle times up to 150 µs.
- Firmware update via EtherCAT FoE possible.
- Scaling of total resolution via gear factor possible.
- Supports EtherCAT functions such as Distributed Clocks and Hot Connect.
- High position resolution: Singleturn up to 19 bit, Multiturn up to 24 bit.
Benefits
- Direct mapping of pitch ratios, e.g. for gear ratios or gear reductions.
- Suitable for time-critical applications with high update frequencies.
- Easy maintenance and updating in the field.
- For precise position and speed detection.
- Suitable for dynamic and high-precision applications and torque control.
- Suitable for use in maritime or industrial environments.
Accessories
Bellows coupling ø 19 mm for shaft 6 mm
Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.Variants – for shaft diameters d1/d2 in mm
06/06 – 08/08 – 10/06 – 10/08 – 10/10 – 12/10 – 12/12
| 8.0000.1102.0606 |
Bellows coupling ø 19 mm for shaft 10 mm
Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.Variants – for shaft diameters d1/d2 in mm
06/06 – 08/08 – 10/06 – 10/08 – 10/10 – 12/10 – 12/12
| 8.0000.1102.1010 |
