360 Sendix F3653

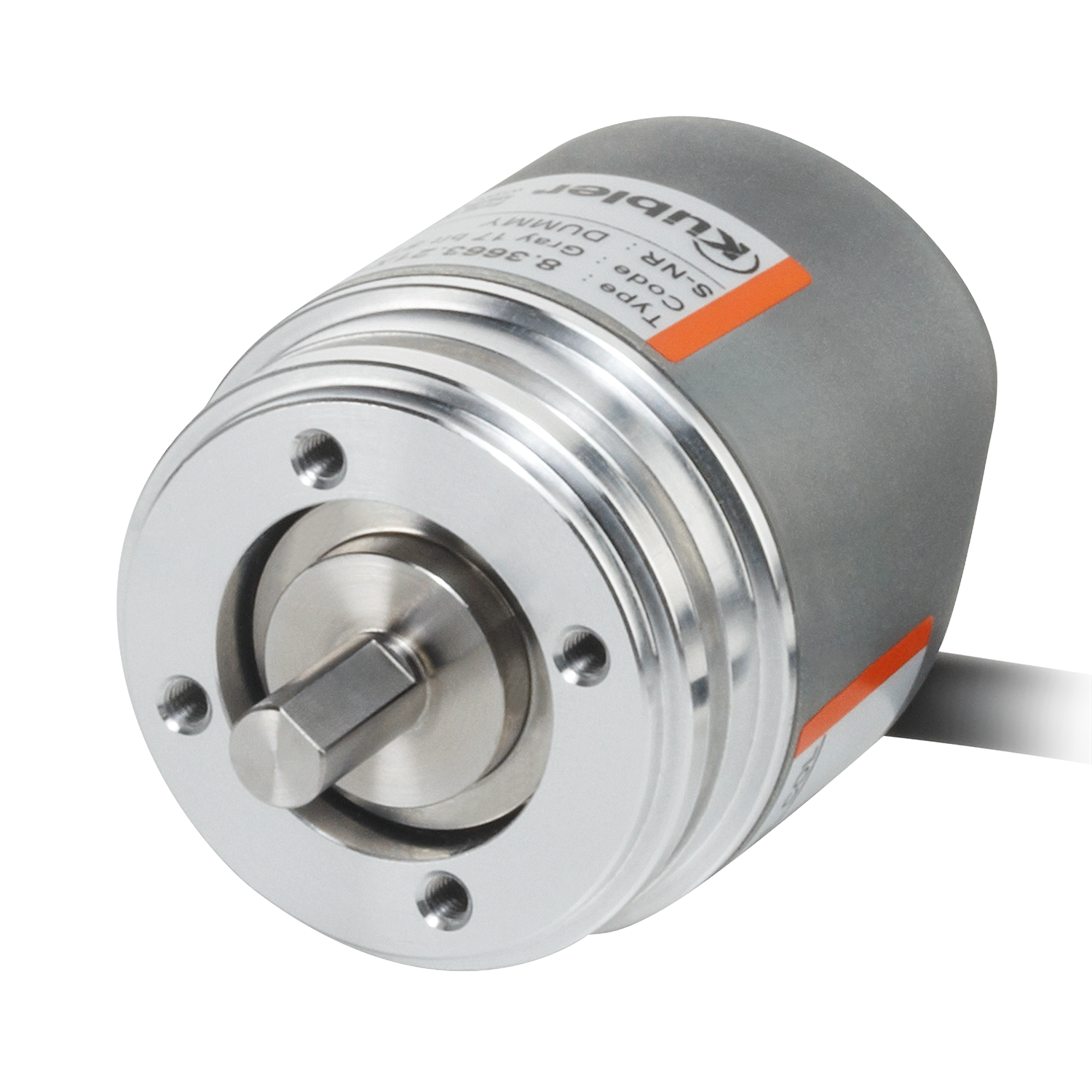

Sendix F3653

Encoders Absolute singleturn

Sendix F3653

  • High precision
  • Particularly resistant
  • Without gear with 100% magnetic insensitivity
  • Dimension Ø 36 mm
  • 2.048 ppr incremental
  • 17 bits singleturn
  • Max 10 mm shaft, with flat surface
  • Max 3/8" shaft, with flat surface
SSI, binary
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422

Intelligent Scan Technology™ – powerful and economical at the same time.

The absolute encoders Singleturn Sendix F3653 / F3673 with patented Intelligent Scan Technology™ and SSI or BiSS interface are characterized by special robustness and compactness. With dimensions of only 36 x 42 mm, a through hollow shaft up to 8 mm or a blind hollow shaft up to 10 mm is possible. The high-precision optical sensors achieve a resolution of 17 bits.

Mechanical
Dimension Ø 36 mm
Shaft type 6 mm shaft, with flat surface
8 mm shaft, with flat surface
10 mm shaft, with flat surface
1/4 " shaft, with flat surface
3/8 " shaft, with flat surface
Flange type Ø 36.00 mm
Working temperature -40 °C ... +90 °C
Protection level IP65
IP67
Connection types Tangential cable
M12 connector axial
Max. rotational speed 12.000 min-1
Weight 200 g
Electrical
Scanning optical
Resolution max. 2.048 ppr incremental
17 bits singleturn
Power supply 5 V DC
10...30 V DC
Interfaces SSI, binär
SSI, gray
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Reliable and insensitive
  • Robust bearing construction in safety Lock™ Design for resistance to vibration and installation errors.
  • Due to IP67 protection and wide temperature range from -40°C to +90°C also suitable for outdoor use.
  • Patented Intelligent Scan Technology™ with all single and multiturn functions on one OptoASIC - thus highest reliability, a high resolution of up to 17 bits and 100% magnetic insensitivity.
Performance optimized
  • High precision with a data update of the position value ≤ 1 µs.
  • High-resolution feedback in real time via SinCos and RS422 incremental outputs.
  • Short control cycles, clock frequency with SSI up to 2 MHz / with BiSS up to 10 MHz.
Data sheet

Sendix F3653 / F3673

PDF ∼ 695,2 KB | 07.2024
DE
EN
FR
Operation Manual

Operation manual for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 09.2022

Safety characteristics

Sendix F3653 MTTFd

Multilingual: German, English
PDF ∼ 157,8 KB | 06.2019

Declaration of conformity

Sendix F3653 / F3673 CE

Multilingual: German, English, French
PDF ∼ 385,9 KB | 04.2016

Device file

BiSS EDS

ZIP ∼ 1,4 KB | 07.2021

Mechanical CAD / STEP

Sendix F3653

ZIP ∼ 17,1 MB | 10.2014

Electronic CAD / ePlan

Sendix F3653 / F3673

ZIP ∼ 11,6 MB | 02.2020

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Salt spray test ManufacturersDeclaration

PDF ∼ 39,6 KB | 05.2023
DE
EN
Notice

BiSS - Protocol Description Bidirectional


Website

BISS - Protocol Description Unidirectional


Website

BISS - Encoder Profile PB3


Website

BISS - Drives list

Multilingual: German, English
PDF ∼ 23,6 KB | 07.2021

BiSS - Universal Profile PB0


Website

BiSS - Interface Homepage


Website
Brochures

BiSS

PDF ∼ 2,8 MB | 10.2022
DE
EN

Accessories

Bellows coupling

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).
8.0000.1202.XXXX
Data sheet
Bellows and spring washer couplings
DE EN FR
Mechanical CAD / STEP
8.0000.1202.XXXX

Fastening eccentrics

Fastening eccentrics

For shaft encoders with synchro flange ø 36 mm

Scope of delivery
- 3 eccentric
- 3 screws
8.0010.4200.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.4200.0000

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PVC Ø 6,7 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6041.8211.XXXM

Data sheet
M12 cordset, PVC, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PVC Ø 6,7 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6041.8311.XXXM

Data sheet
M12 cordset, PVC, female 8-pin, A-coded, angled, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8211.XXXM

Data sheet
M12 cordset, PUR, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable , 05.00.6051.8284.XXXM

M12 Connector with cable , 05.00.6051.8284.XXXM

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
Open Collector
SSI
BiSS
Female connector 8-pin

Male connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8284.XXXM

Data sheet
M12 cordset, PUR, socket 8-pin, A-coded + pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
SSI
BiSS
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8311.XXXM

Data sheet
M12 cordset, PUR, socket, angled, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.F211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PUR Ø 6,2 mm ± 0,2 mm
4 x 2 x 0,25 mm2
05.00.60E1.8211.XXXM

Data sheet
M12 cordset, PUR, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin
05.CMB 8181-0

Data sheet
M12 socket, 8-pin, A-coded
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PVC Ø 7,2 mm ± 0,2 mm
8 x 0,205 mm2
05.E-WKC 8T-PX3-930-XXXX

Data sheet
M12 cordset, PVC, socket, 8-pin, A-coded, angled, with integrated control LEDs, open end
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin
8.0000.5136.0000.Ex

Data sheet
M12 socket, Ex 1/21 + Ex 2/22, 8-pin, A-coded
DE EN FR

M12 Connector ,  Stainless steel V4A

M12 Connector , Stainless steel V4A

Field-wireable connector

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin
8.0000.5136.0000.V4A

Data sheet
M12 socket, stainless steel V4A, 8-pin, A-coded
DE EN FR
