Sendix 7178
Sendix 7178

Encoders Absolute singleturn

Sendix 7178

  • Pressure-resistant enclosure
  • Suitable aboveground/underground
  • Latest encoder profile
  • Dimension Ø 70 mm
  • 16 bits singleturn
  • Max 14 mm hollow shaft, blind hole
CANopen

Field bus communication in mining: Encoders with M2 mining approval.

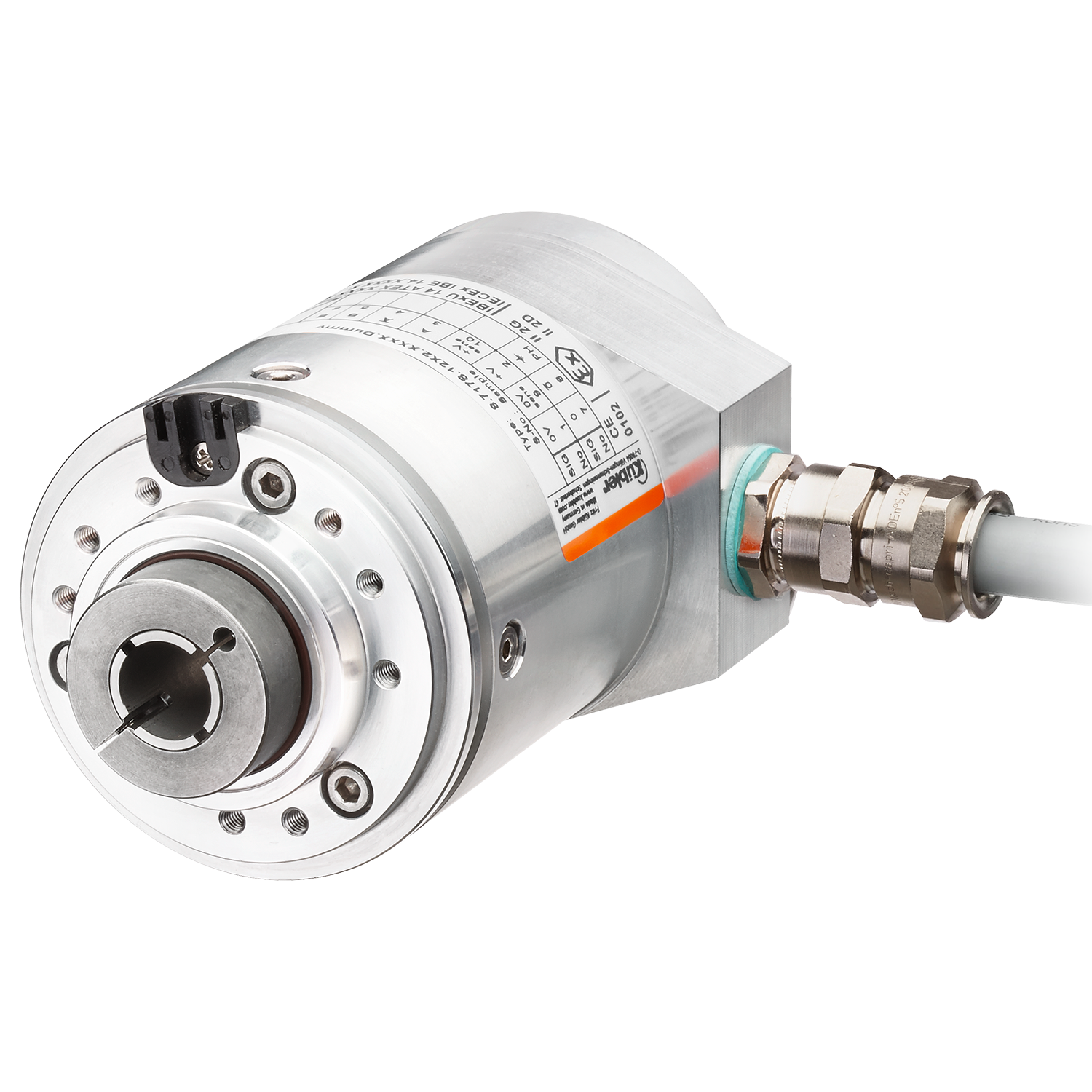

The absolute encoders Singleturn Sendix 7158 / 7178 in a compact 70 mm stainless steel housing with CANopen interface and optical sensors have ATEX/IECEx mining approval. These shock- and vibration-resistant encoders operate flexibly with a resolution of up to 16 bits and are available with axial and radial cable outlets.

Mechanical
Dimension Ø 70 mm
Shaft type 12 mm hollow shaft, blind hole
14 mm hollow shaft, blind hole
Flange type Ø 65.00 mm
Ø 70.00 mm
Working temperature -40 °C ... +60 °C
Protection level IP67
Connection types Axial cable
Radial cable
Max. rotational speed 3.000 min-1
Weight 2800 g
Electrical
Scanning optical
Resolution max. 16 bits singleturn
Power supply 10...30 V DC
Interfaces CANopen
Compact and safe
  • Installation in limited installation space possible.
  • Small installation depth, diameter 70 mm.
  • Compact cable outlet axial or radial.
  • Remains leak-free even in rough everyday use and offers high protection against field failures (IP67 protection).
Explosion protection
  • Mining application approval.
  • Type "Flameproof enclosure".
  • ATEX with EU type examination certificate.
  • IECEx with Certificate of Conformity (CoC).
Data sheet

Sendix 7158 / 7178 CANopen

PDF ∼ 1,3 MB | 11.2023
DE
EN
FR
Operation Manual

Sendix 7120, 7134, 7173, 7178, 7183, 7188

Multilingual: German, English
PDF ∼ 764,9 KB | 12.2016

Manual

Encoder with CANopen interface

PDF ∼ 7,3 MB | 03.2024
DE
EN
Declaration of conformity

Sendix 7158 / 7173 / 7178 CE

Multilingual: German, English, French
PDF ∼ 405,9 KB | 04.2016

Device file

Sendix 71x8 CANopen

ZIP ∼ 17,3 MB | 08.2020

Product Certificates

IECEx Certificate of Conformity - 71xx (Hollow shaft)
