Sendix 7168

Encoders Absolute multiturn

Sendix 7168

  • Pressure-resistant enclosure
  • Suitable aboveground/underground
  • Latest encoder profile
  • Dimension Ø 70 mm
  • 16 Bit Singleturn
  • 12 Bit Multiturn
  • Max 10 mm Shaft, with flat surface
  • Max 12 mm Shaft, with locknut
ATEX / IECEx M2 (Mining)
RoHS
CANopen

Field bus communication in mining: Encoders with M2 mining approval.

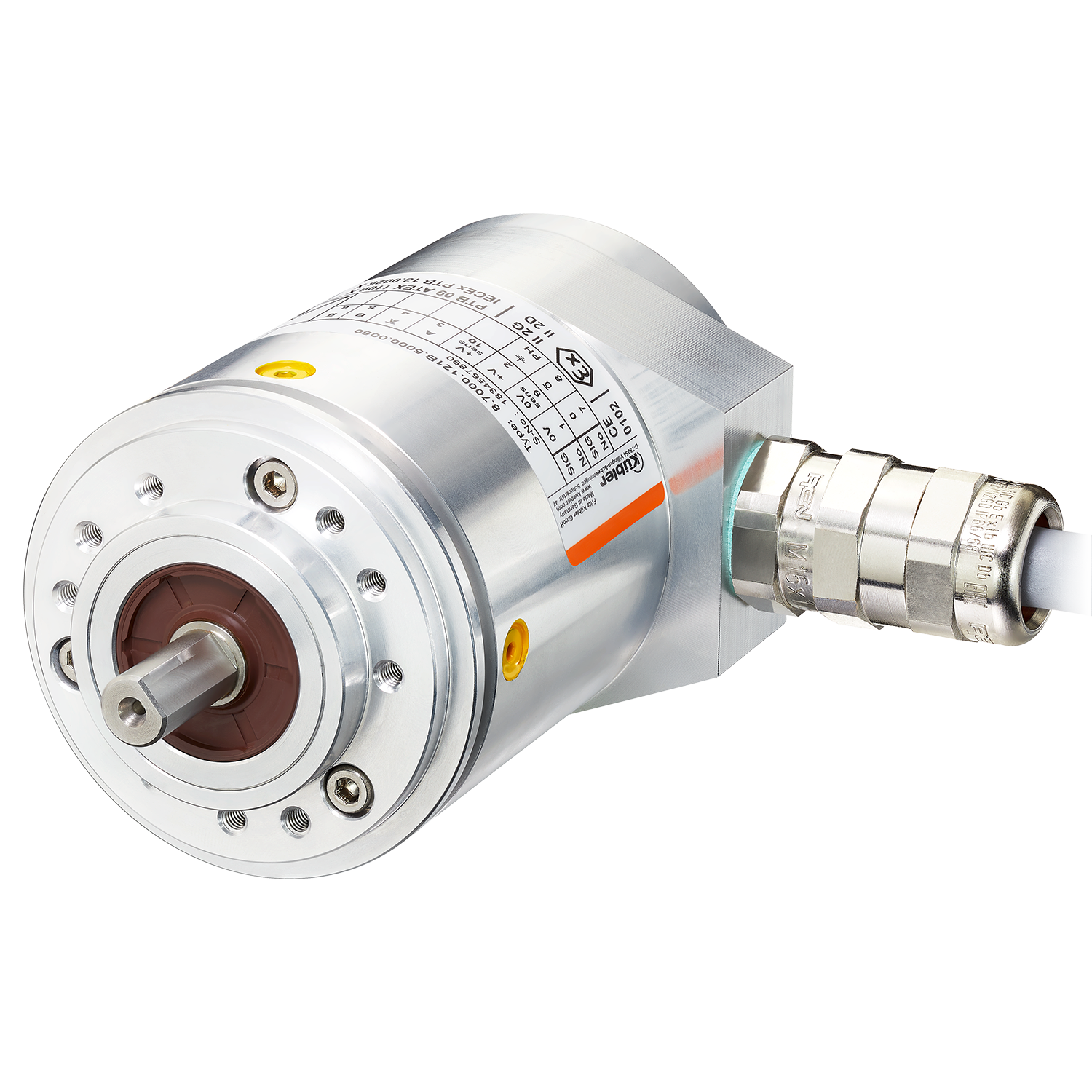

The absolute multiturn encoders Sendix 7168 / 7188 in a compact 70 mm stainless steel housing with CANopen interface and optical sensors have ATEX/IECEx mining approval. These shock- and vibration-resistant encoders operate flexibly with a total resolution of up to 28 bit and are available with axial and
radial cable outlet available.

Mechanical
Dimension Ø 70 mm
Shaft type Max 10 mm Shaft, with flat surface
Max 12 mm Shaft, with locknut
Flange type Synchro flange / Servo flange
Clamping flange

Ø 70.00 mm
Working temperature -40 °C ... +60 °C
Protection level IP67
Connections Axial cable
Radial cable
Speed 6.000 min-1
Weight 2800 g
Electrical
Scanning optical
Resolution max. 16 Bit Singleturn
12 Bit Multiturn
Supply voltage 10...30 V DC
Interfaces CANopen
Compact and safe
  • Installation in limited installation space possible.
  • Small installation depth, diameter 70 mm.
  • Compact cable outlet axial or radial.
  • Remains tight even in rough everyday use and offers high protection against field failures (IP67 protection)
Explosion protection
  • Mining application approval.
  • Type "Flameproof enclosure".
  • ATEX with EU type examination certificate.
  • IECEx with Certificate of Conformity (CoC).
Data sheet

Sendix 7168 / 7188 CANopen ATEX / IECEx

PDF ∼ 595,5 KB | 04.2019
DE
EN
FR
Installation manual

71xx ATEX / IECEx

PDF ∼ 115,7 KB | 10.2016
DE
EN

General Installation Manual Encoders

Multilingual: German, English, French, Spanish
PDF ∼ 635,0 KB | 10.2016

Safety Advice for Encoders

Multilingual: English, French
PDF ∼ 839,3 KB | 11.2017

Programming instruction

CANopen

PDF ∼ 119,6 KB | 03.2014
DE
Manual

70x8 71x8 CANopen

PDF ∼ 963,3 KB | 06.2018
DE
EN
FR
Safety characteristics

Sendix 7168 MTTFd

Multilingual: German, English
PDF ∼ 242,3 KB | 06.2019

Device file

71x8 CANopen / EDS-File

ZIP ∼ 20,0 KB | 12.2014

Declaration of conformity

Sendix 7168 / 7188 ATEX / IECEx

Multilingual: German, English, French
PDF ∼ 399,0 KB | 04.2016

Certificates

71xx Shaft IECEx Certificate of Conformity


Website

71xx ATEX Examination Certificate shaft

PDF ∼ 164,1 KB | 10.2014
DE
EN
Notice

Fieldbus Encoder

PDF ∼ 534,4 KB | 10.2016
DE
EN
FR
Mini flyer

Sendix 71xx ATEX / IECEx Miniflyer

PDF ∼ 354,9 KB | 11.2014
DE
EN
FR

Accessories

Flange, Ø 115mm Euroflange

Flange, Ø 115mm Euroflange

Adapter for converting a clamping flange into a synchro flange.
Flange adapter (aluminum), 3 screws for mounting on the encoder.

Encoders 580x/5000 8.0010.2160.0000
Encoders 580x/5000 Encoders 70xx 8.0010.2170.0000
Data sheet
Accessories shaft encoders
DE EN FR
CAD / STEP
8.0010.2170.0000 Accessories flange / CAD

Fastening eccentrics

Fastening eccentrics

Suitable for Kübler encoders with synchro flange
Material ACu Zn 39 Pb 3, surface galv. Ni
Scope of delivery:
3 attachments, 3 screws

Encoders Work position Electronics technician M3658 F3653 F3658 F3663 F3668 8.0010.4200.0000
Encoders Work position Electronics technician M3658 F3653 F3658 F3663 F3668 Encoders 5000 5803 5804 5805 5853 5858 5863 5868 F5863 F5868 5850 5852 7053 7058 7063 7068 8.0010.4100.0000
Data sheet
Accessories shaft encoders
DE EN FR
CAD / STEP
8.0010.4100.0000 Accessories fastening eccentrics
