Encoders Incremental

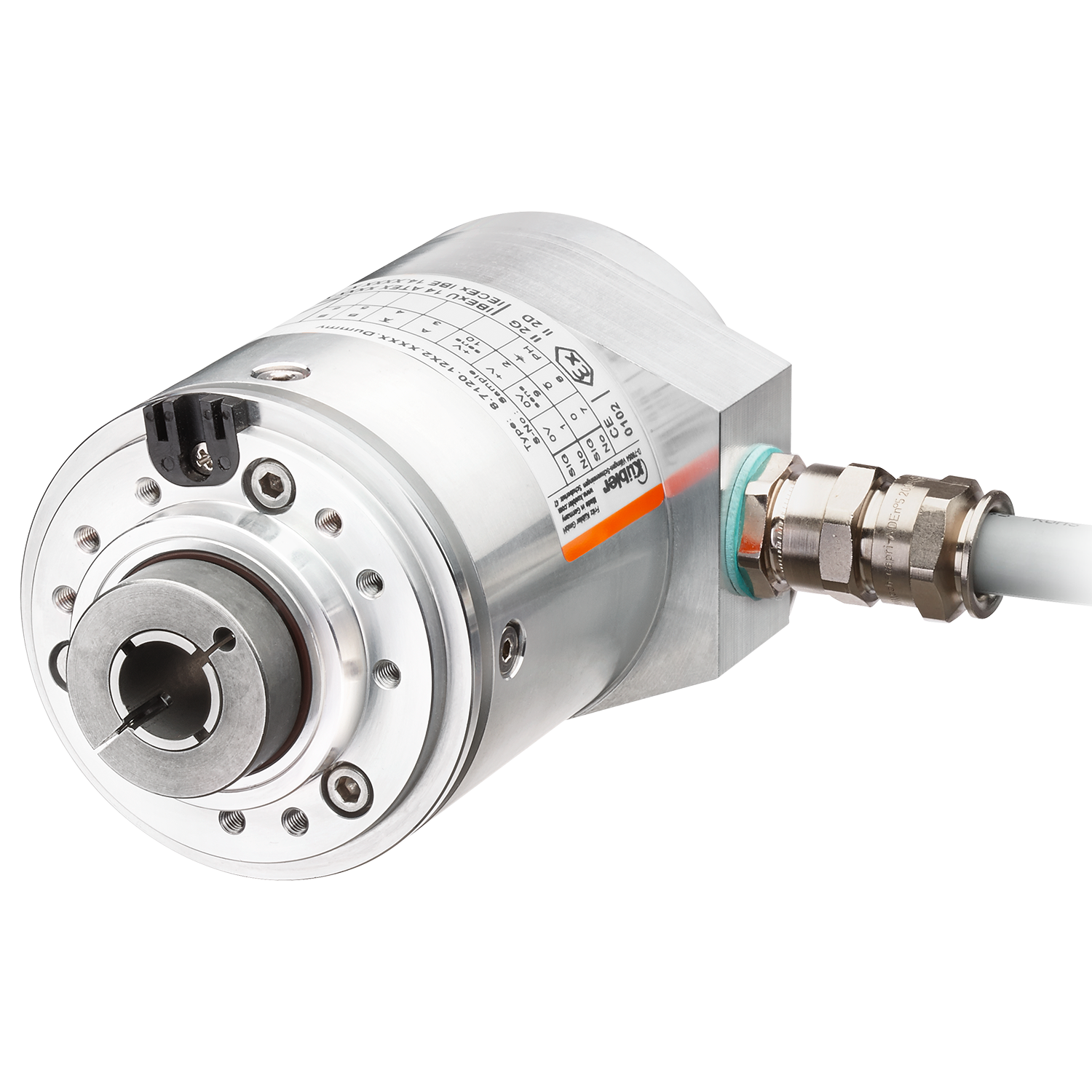

Sendix 7120
|
|
Safe for mining: Encoders with M2 mining approval.
The incremental encoders Sendix 7100 / 7120 in a compact 70 mm stainless steel housing have an ATEX/IECEx mining approval. These shock- and vibration-resistant encoders operate flexibly with a resolution of up to 5000 pulses per revolution and are available with axial and radial cable outlets. These encoders are ideally suited for potentially explosive areas in mines (above/ground underground).
| Mechanical | |
|---|---|
| Dimension | Ø 70 mm |
| Shaft type |
12 mm hollow shaft, blind hole 14 mm hollow shaft, blind hole |
| Flange type |
Ø 65.00 mm Ø 70.00 mm |
| Working temperature | -40 °C ... +60 °C |
| Protection level |
IP67 |
| Connection types |
Axial cable Radial cable |
| Max. rotational speed |
3.000 min-1 |
| Weight | 2800 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
5.000 ppr incremental |
| Power supply |
5 V DC 5...30 V DC 10...30 V DC |
| Interfaces |
Gegentakt TTL / RS422 |
- Installation in limited installation space possible.
- Small installation depth, diameter 70 mm.
- Compact cable outlet axial or radial.
- Remains leak-free even in rough everyday use and offers high protection against field failures (IP67 protection).
- Mining application approval.
- Type "Flameproof enclosure".
- ATEX with EU type examination certificate.
- IECEx with Certificate of Conformity (CoC).
Accessories
Cables and connectors
