Sendix 7020

Encoders Incremental

Sendix 7020

  • Pressure-resistant enclosure
  • Also for maritime areas
  • Particularly resilient
  • Dimension Ø 70 mm
  • 5.000 ppr Incremental
  • Max 14 mm Hollow shaft, Blind
ATEX 1,2,21,22
ATEX 2,22
Push-pull
TTL / RS422

Explosion protection: Encoders with ATEX / IECEx approval.

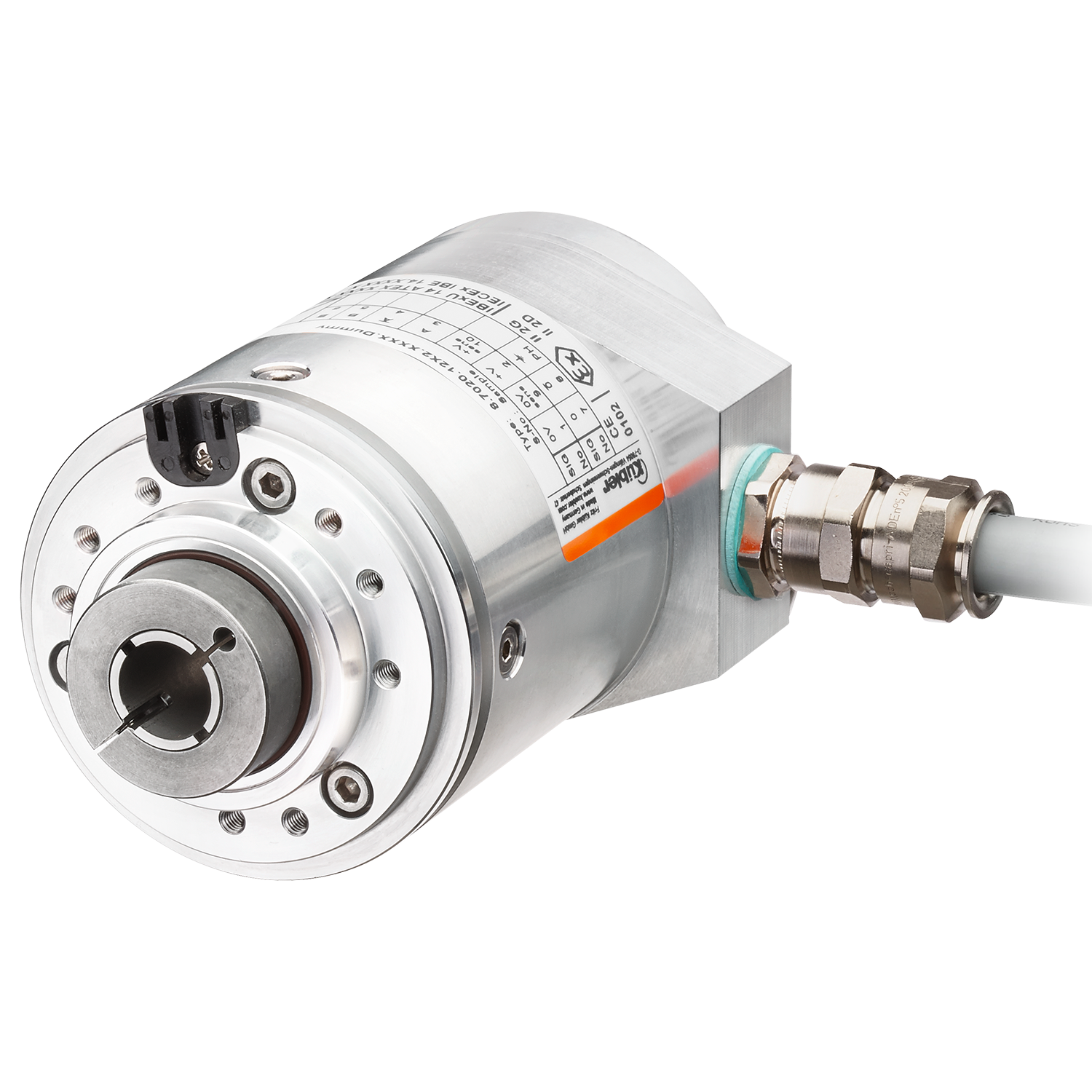

The Sendix 7000 / 7020 incremental encoders offer explosion protection in a compact 70 mm housing made of seawater-resistant aluminum. These shock- and vibration-resistant encoders operate flexibly with a resolution of up to 5000 pulses per revolution and are available with axial and radial cable outlets.

Mechanical
Dimension Ø 70 mm
Shaft type Max 14 mm Hollow shaft, Blind
Flange type Ø 65.00 mm
Ø 70.00 mm
Working temperature -40 °C ... +60 °C
Protection level IP67
Connections Axial cable
Radial cable
Speed 3.000 min-1
Weight 1500 g
Electrical
Scanning optical
Resolution max. 5.000 ppr Incremental
Supply voltage 5 V DC
5...30 V DC
10...30 V DC
Interfaces Push-pull
TTL / RS422
Compact and safe
  • Installation in limited installation space possible.
  • Small installation depth, diameter 70 mm.
  • Compact cable outlet axial or radial.
  • Can be used in maritime applications – housing and flange made of seawater-resistant aluminum.
  • Remains leak-free even in rough everyday use and offers high protection against field failures (IP67 protection).
Explosion protection
  • Type "Flameproof enclosure".
  • ATEX with EU type examination certificate.
  • IECEx with Certificate of Conformity (CoC).
Data sheet

Sendix 7000 / 7020 ATEX / IECEx

PDF ∼ 650,0 KB | 09.2018
DE
EN
FR
Installation manual

General Installation Manual Encoders

Multilingual: German, English, French, Spanish
PDF ∼ 635,0 KB | 10.2016

Safety Advice for Encoders

Multilingual: English, French
PDF ∼ 839,3 KB | 11.2017

User manual

ATEX Sackloch-Hohlwelle 70xx, Zone 1, 21, 2, 22

Multilingual: German, English
PDF ∼ 974,7 KB | 12.2016

CAD / STEP

Sendix 7020 ATEX / IECEx

ZIP ∼ 1,1 MB | 06.2015

Declaration of conformity

Sendix 7020 ATEX / IECEx

Multilingual: German, English, French
PDF ∼ 409,7 KB | 07.2017

Certificates

70xx Hollowshaft IECEx Certificate of Conformity

iecex.iec.ch
Website

70xx ATEX Examination Certificate hollowshaft

PDF ∼ 208,0 KB | 06.2017
DE
EN
Mini flyer

Sendix 70xx ATEX / IECEx Miniflyer

PDF ∼ 310,6 KB | 11.2014
DE
EN
FR

Accessories

Cylindrical pin, long with fastening thread

Cylindrical pin, long with fastening thread

Suitable for short spring element (8.0010.4H00.0000) and long spring element (8.0010.4I00.0000).

8.0010.4700.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
