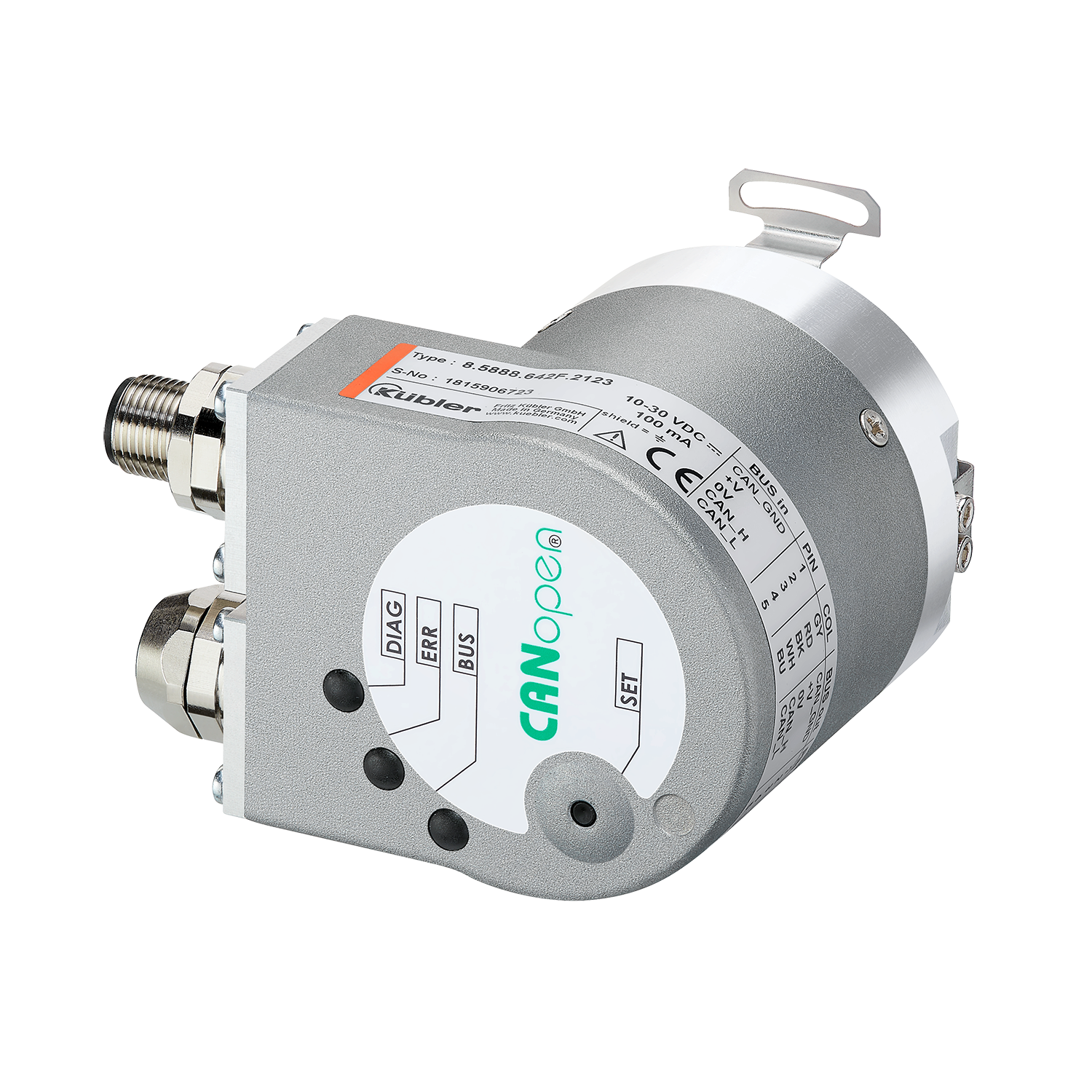

Sendix 5888
Sendix 5888

Encoders Absolute multiturn

Sendix 5888

  • Particularly resistant
  • Reliable
  • Latest encoder profile
  • Dimension Ø 58 mm
  • 2.048 ppr incremental
  • 16 bits singleturn
  • 12 bits multiturn
  • Max 1/4" hollow shaft, blind hole
  • Max 15 mm hollow shaft, blind hole
CANopen
CANopen-Lift

For field bus communication: Encoders with CANopen or CANopenLift interface.

The absolute encoders Multiturn Sendix 5868 / 5888 with CANopen or CANopenLift interface and optical sensors are the right encoders for field bus applications. With a maximum resolution of 28 bits, these encoders optionally have an additional RS422 incremental track with 2048 pulses.

Mechanical
Dimension Ø 58 mm
Shaft type 3/8 " hollow shaft, blind hole
10 mm hollow shaft, blind hole
12 mm hollow shaft, blind hole
14 mm hollow shaft, blind hole
1/4 " hollow shaft, blind hole
15 mm hollow shaft, blind hole
Flange type Ø 58.00 mm
Ø 63.00 mm
Ø 65.00 mm
Ø 72.00 mm
Working temperature -40 °C ... +80 °C
Protection level IP65
IP67
Connection types Radial cable
Sub-D connector
M23 connector radial
M12 connector radial
Max. rotational speed 9.000 min-1
Weight 570 g
Electrical
Scanning optical
Resolution max. 2.048 ppr incremental
16 bits singleturn
12 bits multiturn
Power supply 10...30 V DC
Interfaces CANopen
CANopen + 2048 ppr RS422
CANopen-Lift
Reliable
  • Excellent for applications such as mobile automation or medical technology.
  • With IP67 protection and wide temperature range from -40°C to +80°C also suitable for outdoor use.
Flexible
  • Node address configurable via rotary switch or software.
  • Baud rate and termination adjustable via DIP switches or software.
  • With bus hub or fixed connection and with M12 plug or cable connection
  • Universal Scaling Function.
Data sheet

Sendix 5868 / 5888 CANopen

PDF ∼ 1,5 MB | 11.2019
DE
EN
FR
Operation Manual

ATEX 2 / 22

Multilingual: German, English, French
PDF ∼ 3,0 MB | 10.2021

General operating instructions for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 11.2021

Manual

Sendix 58xx CANLift

PDF ∼ 1,7 MB | 10.2009
DE
EN
FR

CANopen-Schnittstelle

PDF ∼ 7,6 MB | 11.2021
DE
EN
Safety characteristics

Sendix 5888 MTTFd

Multilingual: German, English
PDF ∼ 215,0 KB | 06.2019

Declaration of conformity

Sendix 5868 / 5888

Multilingual: German, English
PDF ∼ 387,9 KB | 04.2016

Sendix 58x8 CANopen \ Conformance Test

PDF ∼ 123,7 KB | 10.2014
EN
Device file

Sendix 58x8 CANLift / EDS-File

ZIP ∼ 47,4 KB | 10.2014

Sendix 58x8 CANopen / EDS-File

ZIP ∼ 63,9 KB | 02.2018

mechanical CAD / STEP

Sendix 5888

ZIP ∼ 10,9 MB | 12.2017

electronic CAD / ePlan

Sendix 5868 / 5888

ZIP ∼ 8,5 MB | 02.2020

Product Certificates

ATEX 2/22

Multilingual: German, English
PDF ∼ 150,8 KB | 05.2021

Encoder Salt Spray Test (IEC 68-2-11/672h)

PDF ∼ 104,2 KB | 10.2014
DE
EN

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN
