360 Sendix 5873

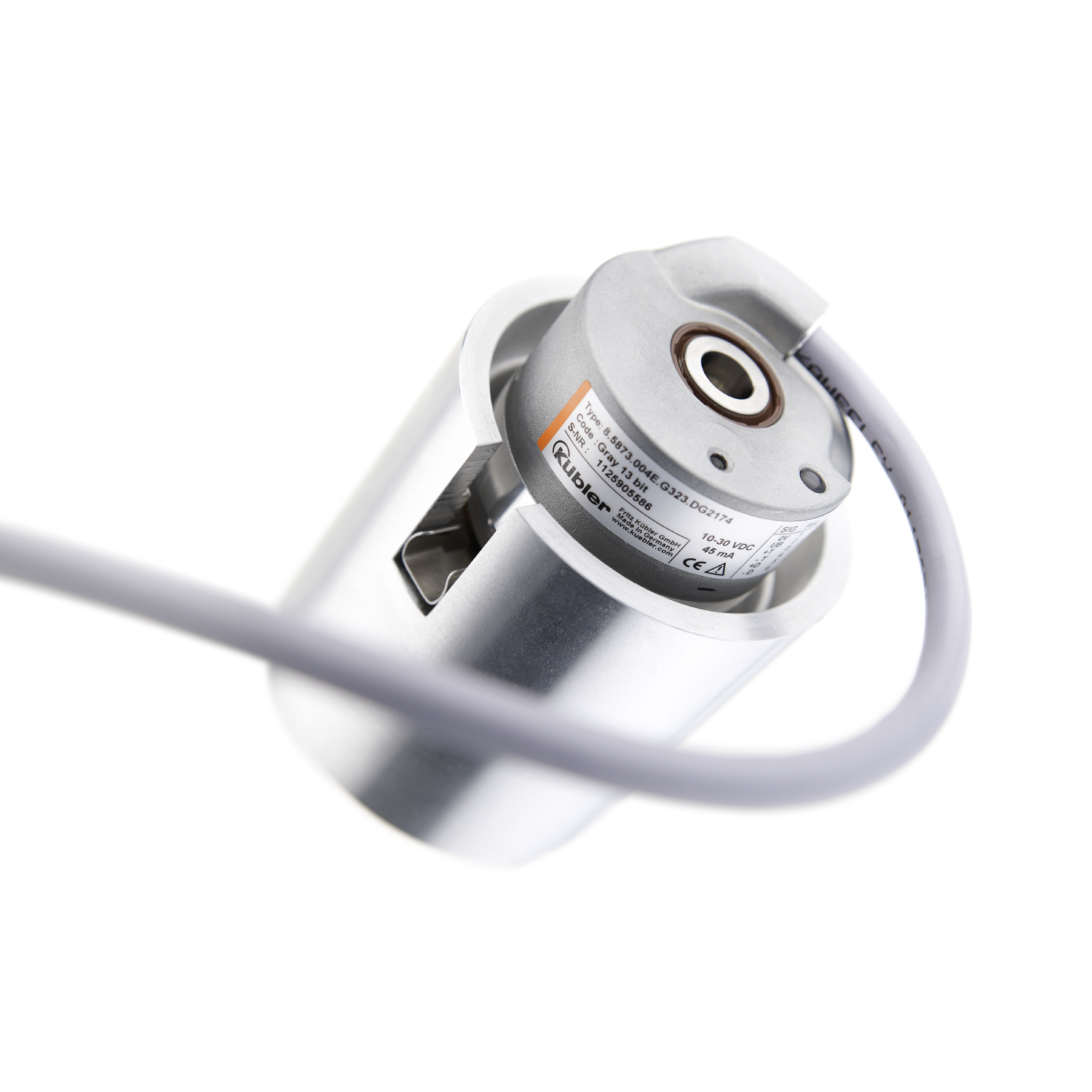

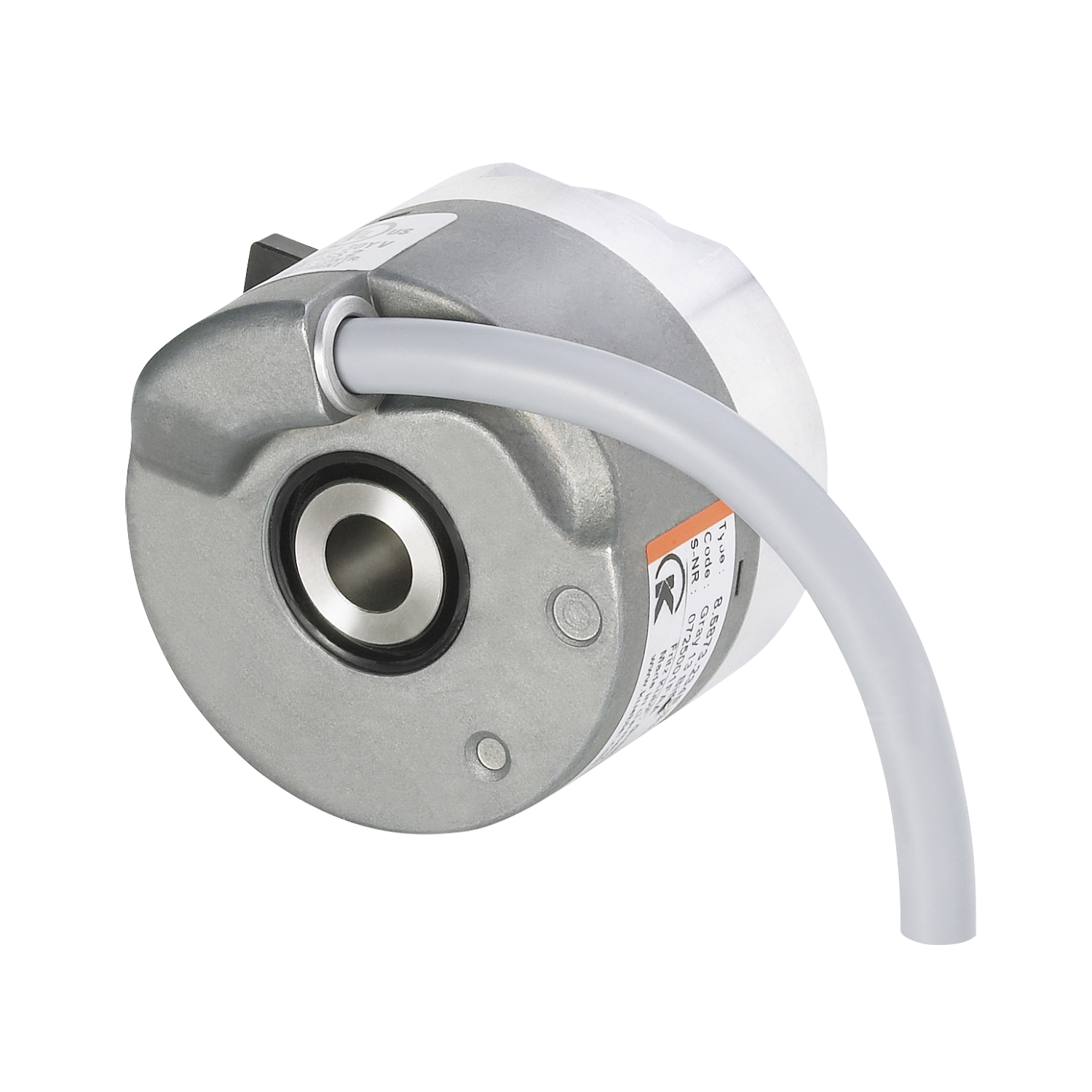

Sendix 5873

Encoders Absolute singleturn

Sendix 5873

  • High precision
  • Resilient
  • Reliable
  • Dimension Ø 58 mm
  • 2.048 ppr incremental
  • 21 bits singleturn
  • Max 15 mm hollow shaft, through
  • Max 3/8" hollow shaft, through
  • Max 1/2" hollow shaft, blind hole
SSI, binary
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422

For drive technology. Encoders with additional incremental track.

The absolute encoders Singleturn Sendix 5853 / 5873 with SSI or BiSS interface and optical sensor technology achieve a resolution of max. 21 bits.
These encoders are also available with an additional incremental track. Special design for attachment to direct drives in elevator technology.

Mechanical
Dimension Ø 58 mm
Shaft type 10 mm hollow shaft, through
12 mm hollow shaft, through
14 mm hollow shaft, through
15 mm hollow shaft, through
3/8 " hollow shaft, through
1/2 " hollow shaft, blind hole
Flange type Ø 58.00 mm
Ø 63.00 mm
Ø 65.00 mm
Ø 72.00 mm
Working temperature -40 °C ... +90 °C
Protection level IP65
IP67
Connection types Axial cable
Radial cable
Tangential cable
M23 connector radial
M12 connector radial
Max. rotational speed 9.000 min-1
Weight 350 g
Electrical
Scanning optical
Resolution max. 2.048 ppr incremental
21 bits singleturn
Power supply 5 V DC
10...30 V DC
Interfaces SSI, binär
SSI, gray
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Reliable and insensitive
  • Robust bearing construction in safety Lock™ Design for resistance to vibration and installation errors.
  • Due to IP67 protection and wide temperature range from -40°C to +90°C also suitable for outdoor use.
Versatile
  • High precision with a data update of the position value ≤ 1μs.
  • High-resolution feedback in real time via 21-bit fully digital or incremental SinCos and RS422 outputs.
  • BiSS-C Encoder Profile BP3.
  • Short control cycles, clock frequency with SSI up to 2 MHz / with BiSS up to 10 MHz.
Data sheet

Sendix 5853 / 5873

PDF ∼ 1,2 MB | 03.2021
DE
EN
FR
Operation Manual

General operating instructions for ATEX encoders 2 / 22

Multilingual: German, English, French
PDF ∼ 3,0 MB | 10.2021

General operation manual for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 11.2021

Installation manual

Sendix 5843 / 5873 Motor-Line

Multilingual: German, English
PDF ∼ 1,1 MB | 10.2016

Safety characteristics

Sendix 5873 MTTFd

Multilingual: German, English
PDF ∼ 159,1 KB | 06.2019

Declaration of conformity

Sendix 5853 / 5873

Multilingual: German, English, French
PDF ∼ 380,1 KB | 04.2016

Device file

BiSS EDS

ZIP ∼ 1,4 KB | 07.2021

Mechanical CAD / STEP

Sendix 5873

ZIP ∼ 1,4 MB | 11.2020

Sendix 5873.GKXX

ZIP ∼ 1,4 MB | 11.2020

Sendix 5873M

ZIP ∼ 3,2 MB | 07.2016

Electronic CAD / ePlan

Sendix 5853 / 5873

ZIP ∼ 6,5 MB | 02.2020

Product Certificates

ATEX 2/22 - Manufacturer declaration

Multilingual: German, English
PDF ∼ 150,8 KB | 05.2021

Encoder Salt Spray Test (IEC 68-2-11/672h)

PDF ∼ 104,2 KB | 10.2014
DE
EN

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN
Notice

BiSS - Protocol Description Bidirectional


Website

BISS - Protocol Description Unidirectional


Website

BISS - Encoder Profile PB3


Website

BISS - Drives list

Multilingual: German, English
PDF ∼ 23,6 KB | 07.2021

BiSS - Interface Homepage


Website
Brochures

BiSS

PDF ∼ 827,1 KB | 11.2016
DE
EN
General information

BISS EDS - Protocol description

PDF ∼ 295,6 KB | 07.2021
EN

Accessories

Stator coupling

Stator coupling

For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 32.5 mm
For lateral mounting on the encoder flange.
For applications with axial and radial play at high dynamics.

Scope of delivery
- Stator coupling (stainless steel)
- 4 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 3 screws

8.0010.1602.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.1602.0000

Torque stop, flexible

Torque stop, flexible

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 39.5 ... 142.75 mm
Designed for functional safety technology.
For applications with axial and radial play at low dynamics.

Scope of delivery
- Torque support (stainless steel)
- 3 M3x6 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 1 screw

8.0010.4047.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4047.00FS
Operation Manual
8.0010.4047.00FS - Accessories torque stop, flexible (FS)

Fastening arm set, rigid

Fastening arm set, rigid

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 32.5 ... 143.5 mm
Designed for functional safety technology.
For applications with very low axial and radial play at low dynamics.

Scope of delivery
- Torque support (stainless steel)
- 3 screws M3x6 for mounting to the encoder

Connection to the application (not included in delivery)
- 1 torque pin 8.0010.4049.0075
8.0010.4051.00FS
Mechanical CAD / STEP
8.0010.4051.00FS
Operation Manual
8.0010.4051.00FS - Accessories torque stop, rigid (FS)

Stator coupling (FS)

Stator coupling (FS)

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 31.5 mm
Designed for functional safety technology by 4-screw principle.

Scope of delivery
- Stator coupling (stainless steel)
- 4 screws M3x6 for mounting to the encoder

Connection to application (not included in delivery)
- 4 screws

8.0010.40B2.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.40B2.00FS
Operation Manual
Supplement to stator coupling operating instructions (FS)

Fastening arm, medium (flexible)

Fastening arm, medium (flexible)

For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 32.5 ... 45.75 mm
For applications with axial and radial play with constant rotary movements.

Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 1 screw
8.0010.40E0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.40E0.0000

Stator coupling

Stator coupling

For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 32.5 mm
For lateral mounting on the encoder flange.
For applications with axial and radial play at high dynamics.

Scope of delivery
- Stator coupling (stainless steel)
- 4 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 3 screws

8.0010.40L0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.40L0.0000

Fastening arm, short (flexible)

Fastening arm, short (flexible)

For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 32.25 mm
For applications with axial and radial play at low dynamics.

Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 1 screw
8.0010.40M0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.40M0.0000

Spring tether element

Spring tether element

For hollow shaft encoders
with flange ø 50 ... 58 mm
For applications with low radial and axial play and low dynamics.

Scope of delivery
- Wire spring element
- 1 screw for mounting on the encoder.

Connection to the application (not included in delivery)
- 1 screw
8.0010.40W0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR

Torque pin, long with fastening thread

Torque pin, long with fastening thread

For hollow shaft encoders
with flange ø 36 ... 58 mm
With mounting thread.

Suitable for:
- Spring element short (8.0010.4H00.0000)
- Spring element long (8.0010.4I00.0000)
8.0010.4700.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR

Stator coupling, double-winged

Stator coupling, double-winged

For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 31.5 mm
For lateral mounting on the encoder flange. For applications with high accuracy requirements.

Scope of delivery
- Stator coupling (stainless steel)
- 4 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 2 screws

8.0010.4D00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4D00.0000

Spring element, short

Spring element, short

For hollow shaft encoders
with flange ø 36 ... 58 mm
Mounting radius 16 ... 27 mm
For applications with limited axial play at low dynamics and limited installation space.

Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder

Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
8.0010.4H00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4H00.0000

Spring element, long

Spring element, long

For hollow shaft encoders
with flange ø 36 ... 58 mm
Mounting radius 30.7 ... 36.7 mm
For applications with high axial play, at low dynamics.

Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder

Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
8.0010.4I00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4I00.0000

Fastening arm, long, (flexible)

Fastening arm, long, (flexible)

For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 36.5 ... 85 mm
For applications with axial and radial play at low dynamics.

Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 1 screw
8.0010.4R00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4R00.0000

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin PVC Ø 6,7 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6041.8211.XXXM

Data sheet
M12 cordset, PVC, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin PVC Ø 6,7 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6041.8311.XXXM

Data sheet
M12 cordset, PVC, female 8-pin, A-coded, angled, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8211.XXXM

Data sheet
M12 cordset, PUR, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable , 05.00.6051.8284.XXXM

M12 Connector with cable , 05.00.6051.8284.XXXM

Preassembled cable set

Analog ±10 V
TTL / RS422
Open Collector
SSI
BiSS
HTL
Female connector 8-pin

Male connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8284.XXXM

Data sheet
M12 cordset, PUR, socket 8-pin, A-coded + pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
SSI
BiSS
HTL
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8311.XXXM

Data sheet
M12 cordset, PUR, socket, angled, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.F211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin PUR Ø 6,2 mm ± 0,2 mm
4 x 2 x 0,25 mm2
05.00.60E1.8211.XXXM

Data sheet
M12 cordset, PUR, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin
05.CMB 8181-0

Data sheet
M12 socket, 8-pin, A-coded
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin PVC Ø 7,2 mm ± 0,2 mm
8 x 0,205 mm2
05.E-WKC 8T-PX3-930-XXXX

Data sheet
M12 cordset, PVC, socket, 8-pin, A-coded, angled, with integrated control LEDs, open end
DE EN FR

M23 Connector ,

M23 Connector ,

Field-wireable connector

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin
8.0000.5012.0000

Data sheet
M23 connector, socket, 12-pin, counting direction cw
DE EN FR

M23 Connector ,

M23 Connector ,

Field-wireable connector

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin
8.0000.5017.0000


M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin
8.0000.5136.0000.Ex

Data sheet
M12 socket, Ex 1/21 + Ex 2/22, 8-pin, A-coded
DE EN FR

M12 Connector ,  Stainless steel V4A

M12 Connector , Stainless steel V4A

Field-wireable connector

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin
8.0000.5136.0000.V4A

Data sheet
M12 socket, stainless steel V4A, 8-pin, A-coded
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PVC Ø 6,7 mm ± 0,3 mm
12 x 0,14 mm2
8.0000.6201.XXXX

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PVC Ø 7,3 mm ± 0,2 mm
6 x 2 x 0,14 mm2
8.0000.6901.XXXX

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PVC Ø 7,3 mm ± 0,2 mm
6 x 2 x 0,14 mm2
8.0000.6901.XXXX.0031

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin

Male connector 12-pin PVC Ø 7,3 mm ± 0,2 mm
6 x 2 x 0,14 mm2
8.0000.6905.XXXX.0032

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw + pin, counting direction ccw
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin TPE Ø 8,5 mm ± 0,9 mm
5 x 2 x0,14 mm2
8.0000.6E01.XXXX

Data sheet
M23 Cordset, PE-X, female, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PUR Ø 6,7 mm ± 0,3 mm
10 x 0,14 mm2
8.0000.6J01.00xx.0043


M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PUR Ø 6,7 mm ± 0,3 mm
10 x 0,14 mm2
8.0000.6J01.00XX.0051

Data sheet
M23 cable set, PUR, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PUR Ø 6,7 mm ± 0,3 mm
10 x 0,14 mm2
8.0000.6J07.00xx.0043


„Do you have technical questions about Kübler encoders or are you looking for individual solutions? I would be pleased to help you.“

Rainer Grueninger
Application support
Rainer Grueninger
Application Engineering


rainer.grueninger@kuebler.com
+49 7720 3903 764
+49 7720 21564

„We will be pleased to give you information about prices and delivery times. We are looking forward to your inquiry.“

Fritz Kübler GmbH
Sales
Fritz Kübler GmbH
Sales Germany


info@kuebler.com
+49 7720 3903 871
+49 7720 21564
