Pulse counter electromechanical

K66

  • High shock resistance
  • High manipulation safety
  • High protection, IP65
  • Dimension
    · 25 x 13,8 mm
    · 25,2 x 31 mm
    · 30 x 20 mm | 27 x 14 mm
  • Power supply:
      · 3 V DC
      · 4,5 V DC
      · 5 V DC
      · 6 V DC
      · 12 V DC
      · 24 V DC
  • Display 6-digit number, mech. roller counter

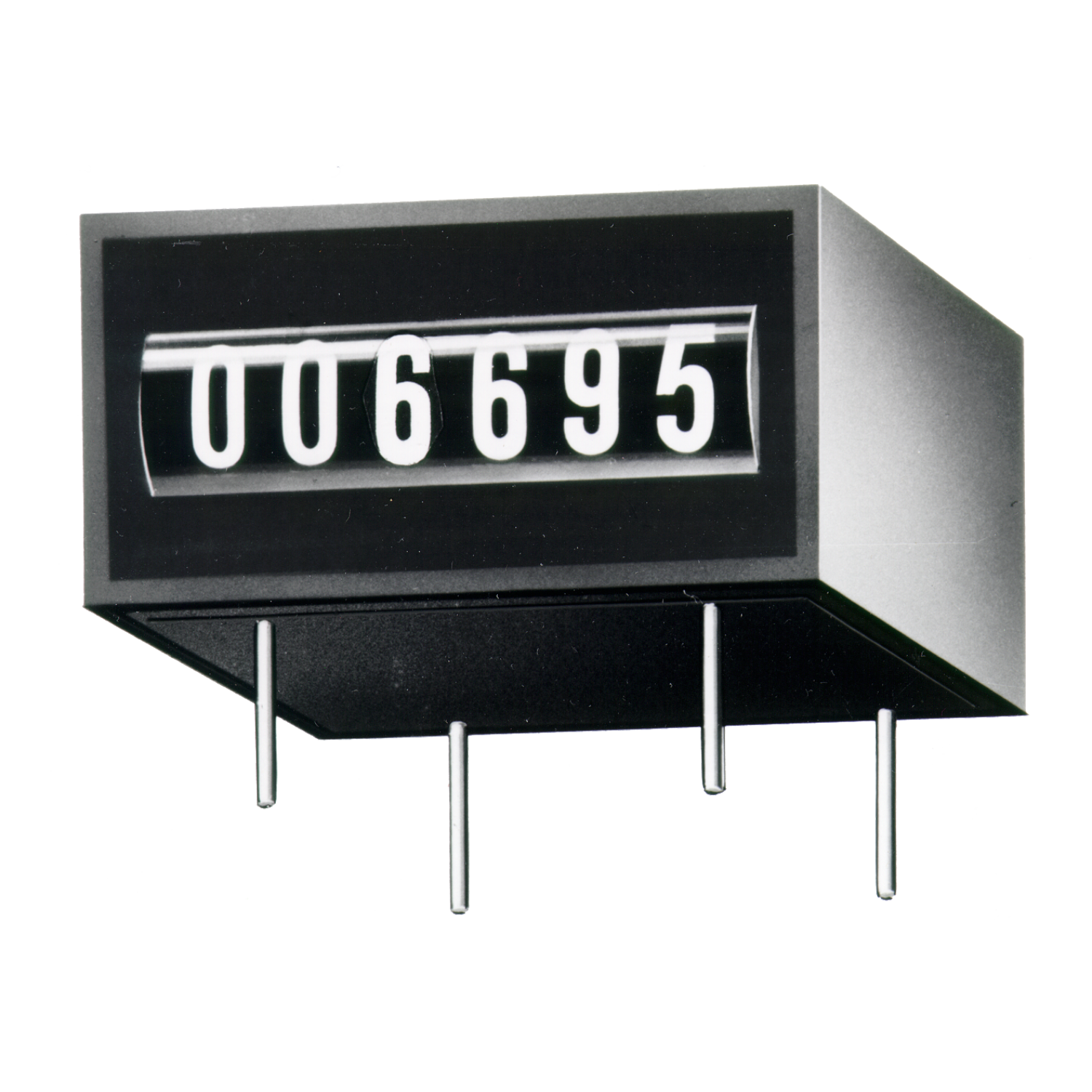

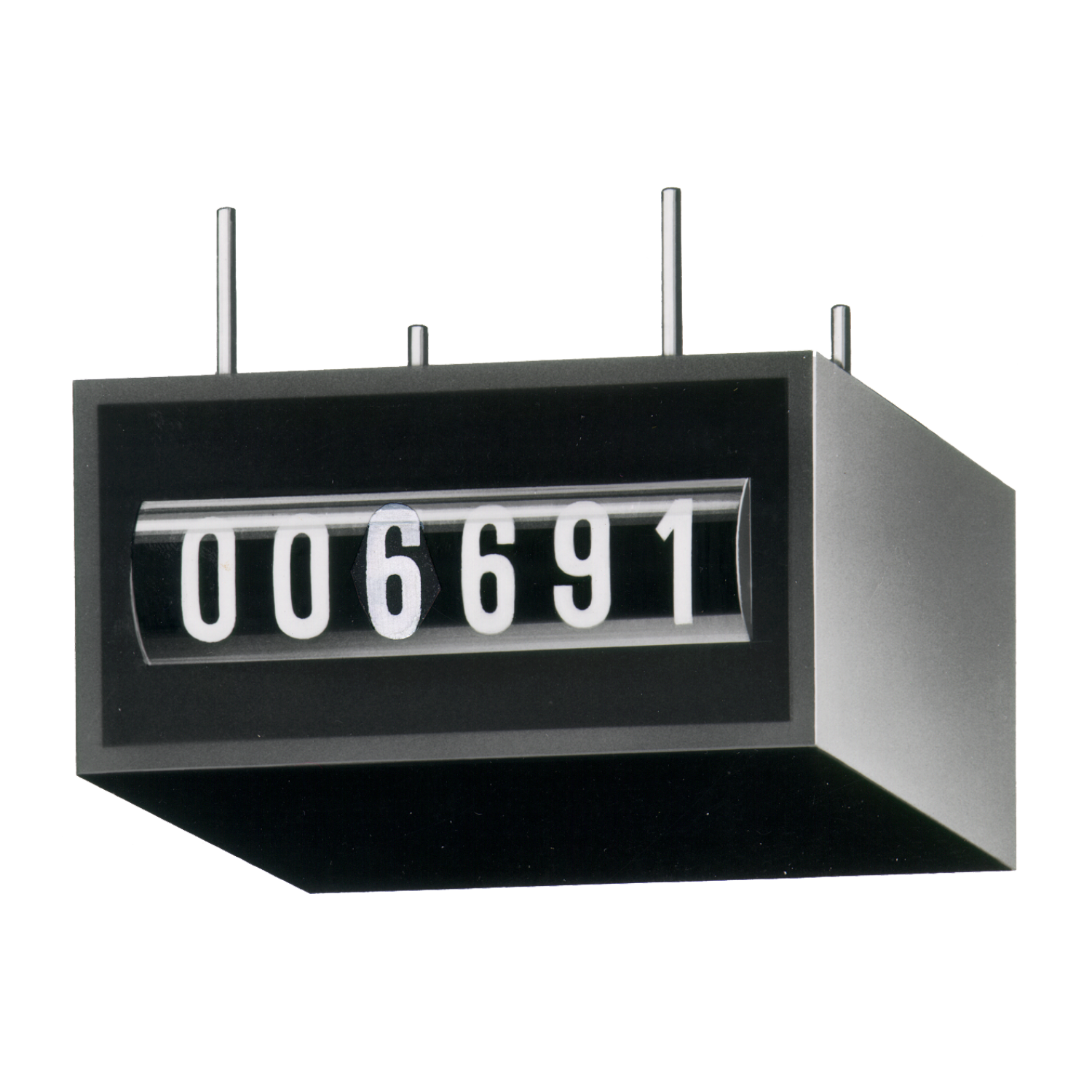

Micro pulse counter, 6-digit, resistant to magnetism.

The micro totalizer K 66 (6-digit) have a very high shock resistance and cannot be magnetically influenced by the patented ACR counting system. As built-in and print meters, it can be used in various application areas where a high level of protection against manipulation is required.

Mechanical
Model electromechanical
Dimension 1 25 x 13,8 mm
25,2 x 31 mm
30 x 20 mm | 27 x 14 mm
Protection level IP65
Working temperature -10°C °C ... +60°C °C
Weight 11 g

(1) Front panel size | Panel cut-out
Electrical
Power supply 3 V DC
4,5 V DC
5 V DC
6 V DC
12 V DC
24 V DC
Properties
  •  Not magnetically influenced, because moving parts are made of plastic or non-ferrous metal (patented system)
  •  Highest shock resistance, as a counter-rotating movement is required, ACR system (Air Coil Reverse patented)
  •  Low power consumption; suitable for battery operation
  •  Very compact design, large digits
  •  Various reading options

Benefits
  • Machine solderable and washable
  • High IP65 protection
  • Long service life
  • Retains value in the event of power failure

Applications
General quantity counting, photocopying machines, electricity meters, goods and gambling machines, coin-operated machines, washing machines, alarm systems, medical technology, heat quantity measurement
