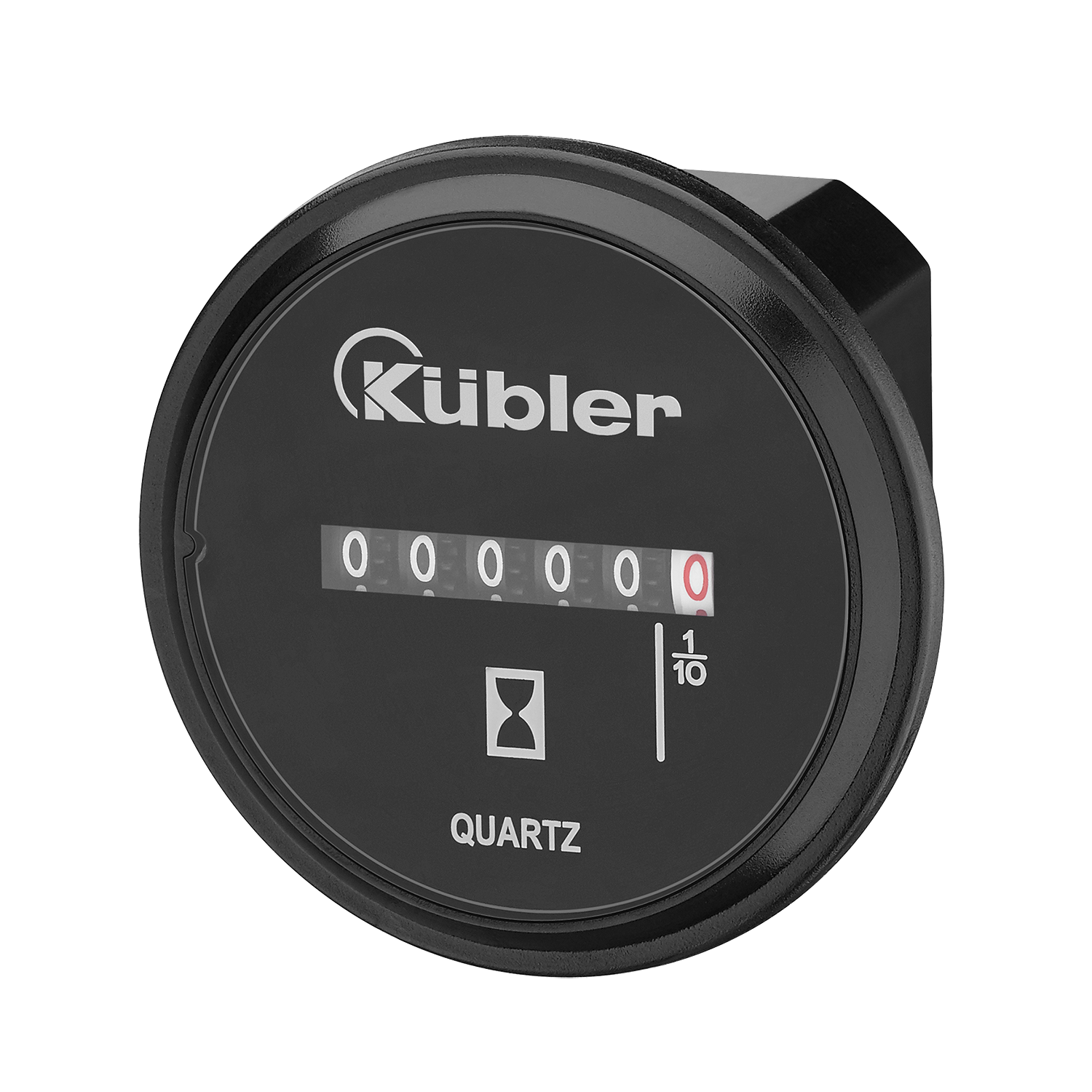

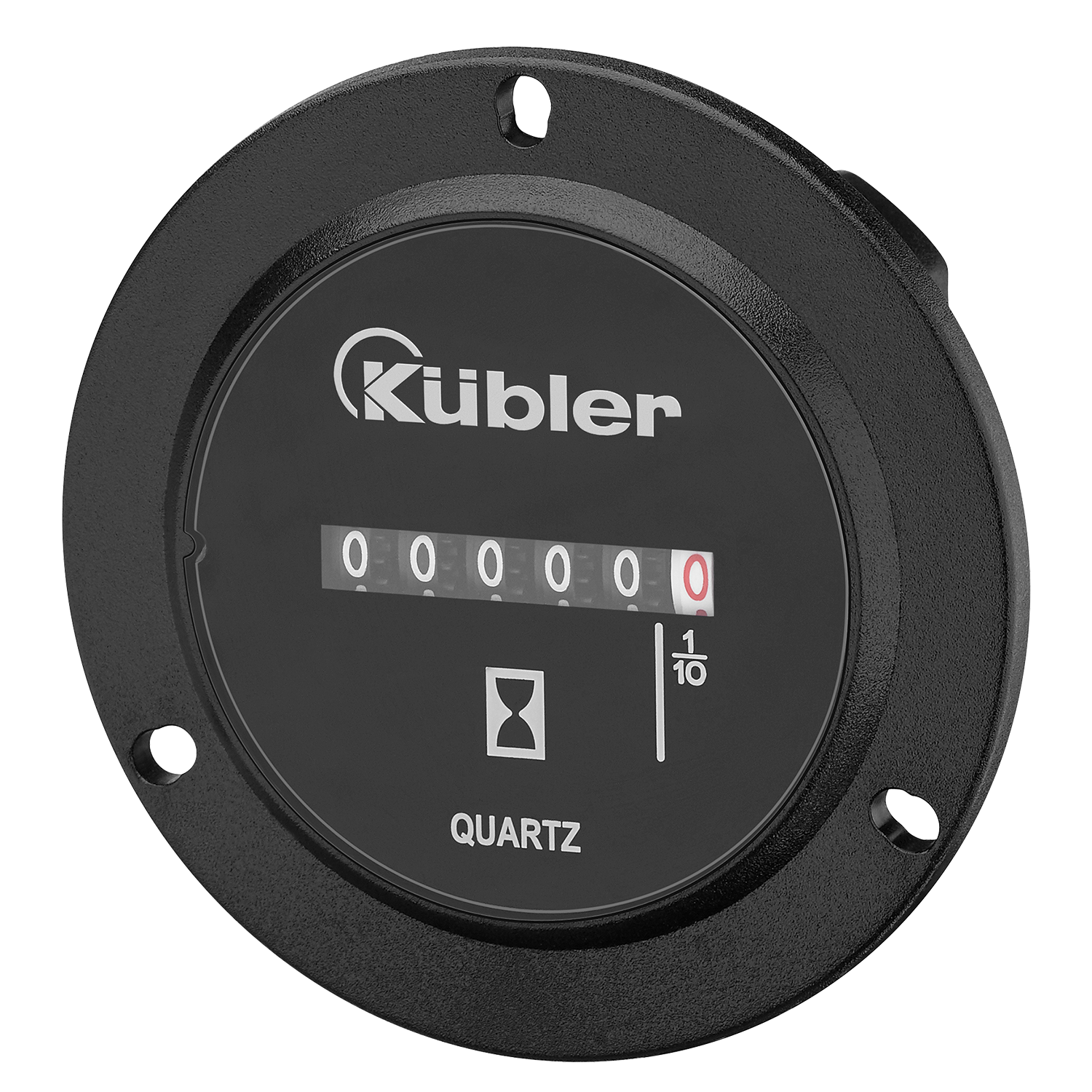

Hour meter electromechanical
HR76
|
|
Hour meter for round front panel cut-outs.
The HR 76 hour meters have a very high shock resistance. As built-in counters for round front panel cutouts, they can be used in various application areas. These non-resettable counters are very robust and extremely tamper-proof.| Mechanical | |
|---|---|
| Model | electromechanical |
| Function |
Hour meters / timers |
| Dimension 1 |
Ø 58 mm | Ø 50,5 mm Ø 71 mm |
| Protection level |
IP65 |
| Working temperature | -30 °C ... +65 °C |
| Weight | 56 g |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Power supply |
115 V AC 230 V AC 10...80 V DC |
Properties
Recording of operating hours for construction machinery, agricultural machinery, compressors, power generators
- 6-digit display
- Very inexpensive
- High shock resistance
- Low energy consumption
- Optically large digits
- IP65 protection
- Retains value in the event of power failure
- Long service life
- 50/60 Hz in one device
- Small installation depth
- Waterproof from front and rear
Recording of operating hours for construction machinery, agricultural machinery, compressors, power generators
| Product Certificates | ||
|---|---|---|
|
HR76 - UL PDF ∼ 100,5 KB | 09.2025 |
