Preset counter electronic

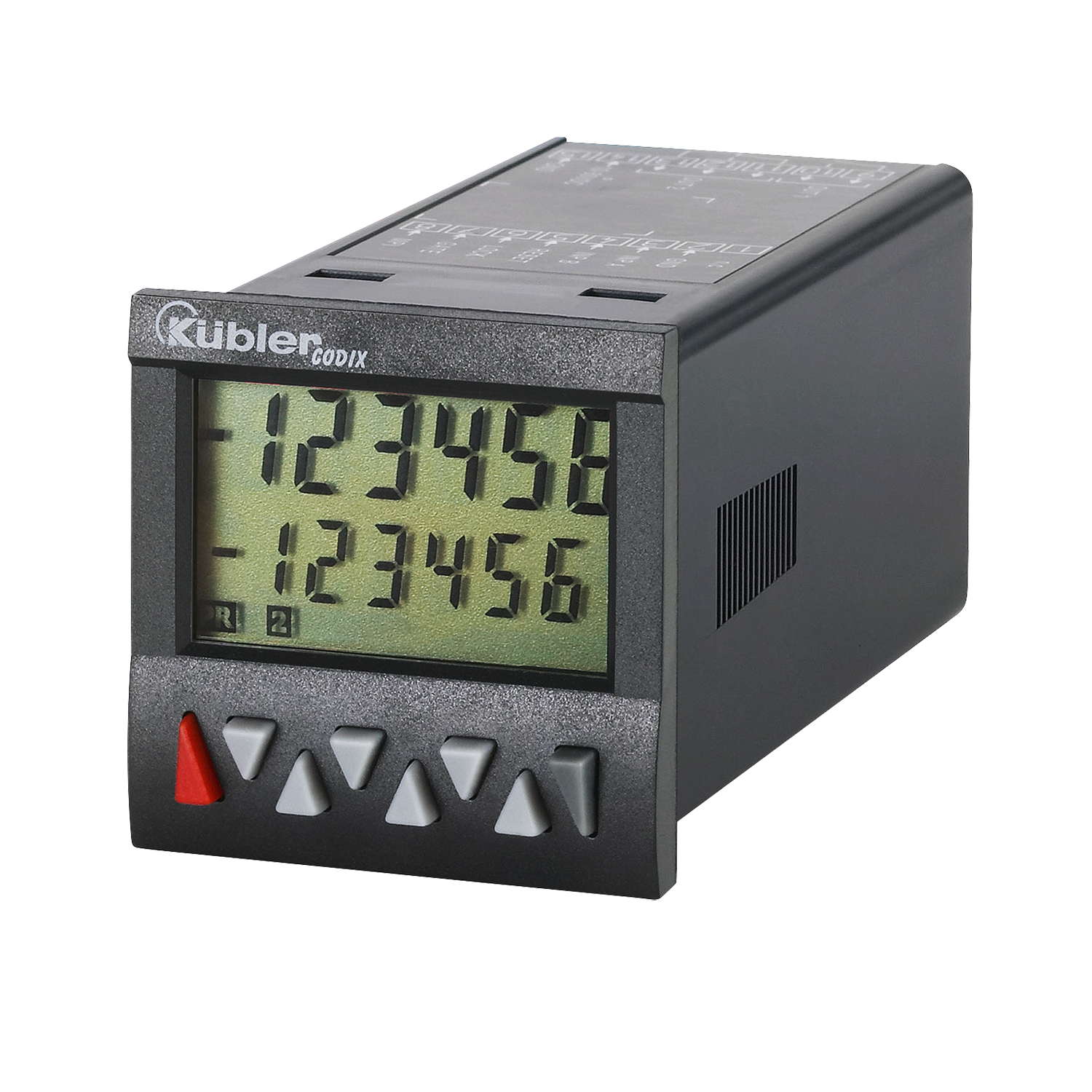

Codix 908
|
|
Preset counter – for pulse, time and position with two presets.
The pulse and time preset counters Codix 907 and 908 offer all essential counter functions at an amazing price-performance ratio. Due to their small installation depth and pluggable screw terminals, the meters are easy and convenient to install; the 2-line LCD display can optionally be additionally illuminated. This makes it even easier to read at first glance.| Mechanical | |
|---|---|
| Model | Multifunction device electronic |
| Functions |
Multifunction devices Time preset counter Short-time meter Position displays with limit values |
| Dimension 1 |
48 x 48 mm | 45 x 45 mm |
| Protection level |
IP65 |
| Working temperature | -10 °C ... +50 °C |
| Weight | 250 g |
| Reset |
electronic |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Power supply |
115 V AC 230 V AC 11...30 V DC |
| Signal input |
NPN PNP |
| Signal output |
2 x Relais |
Powerful
- For pulse, time and position
- Adding and subtracting
- Reset automatically when reaching the preset, by key or electrically
- Codix 907: 1 preset / Codix 908: 2 presets
- 2 x 6-digit display and preset indicators from -999999 to +999999

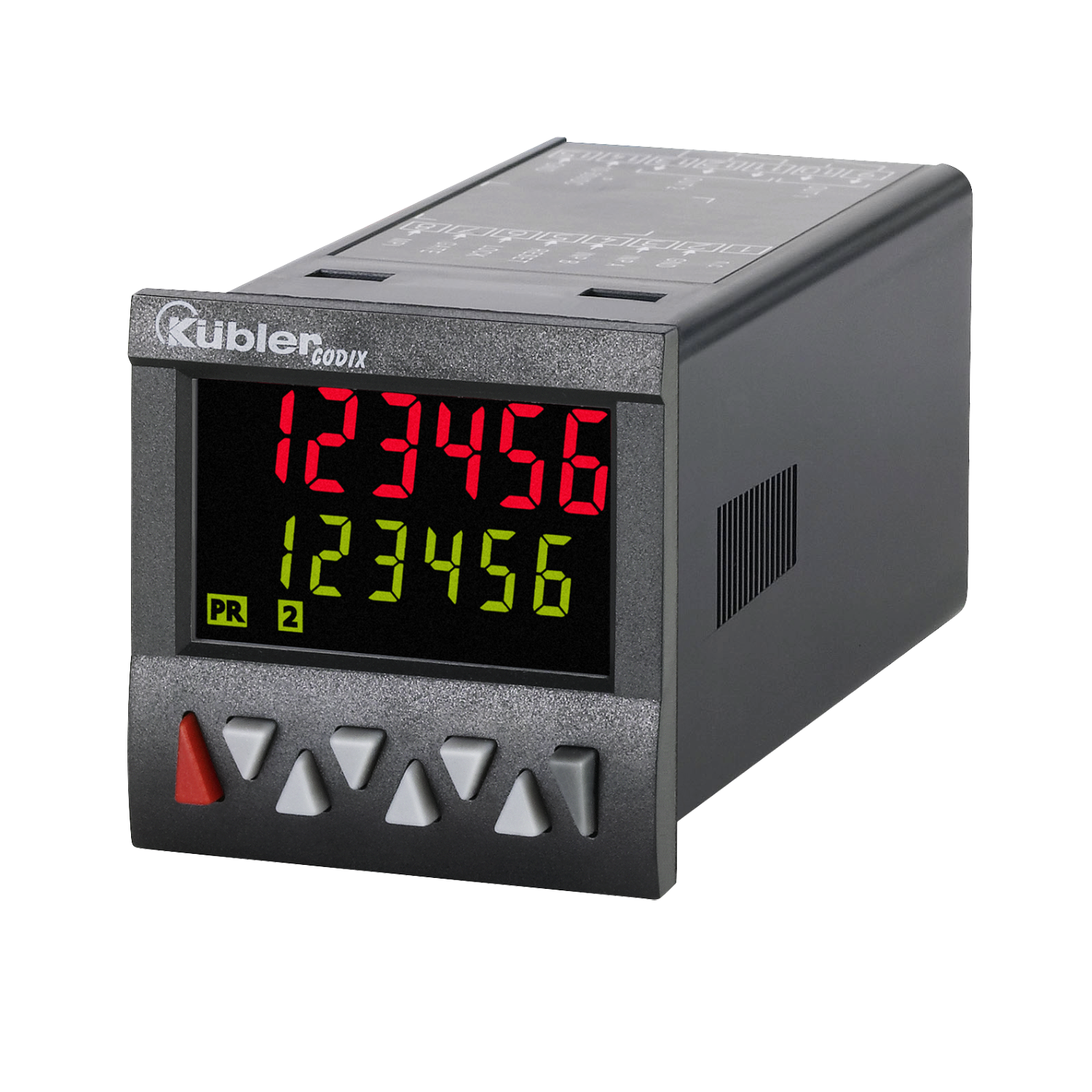

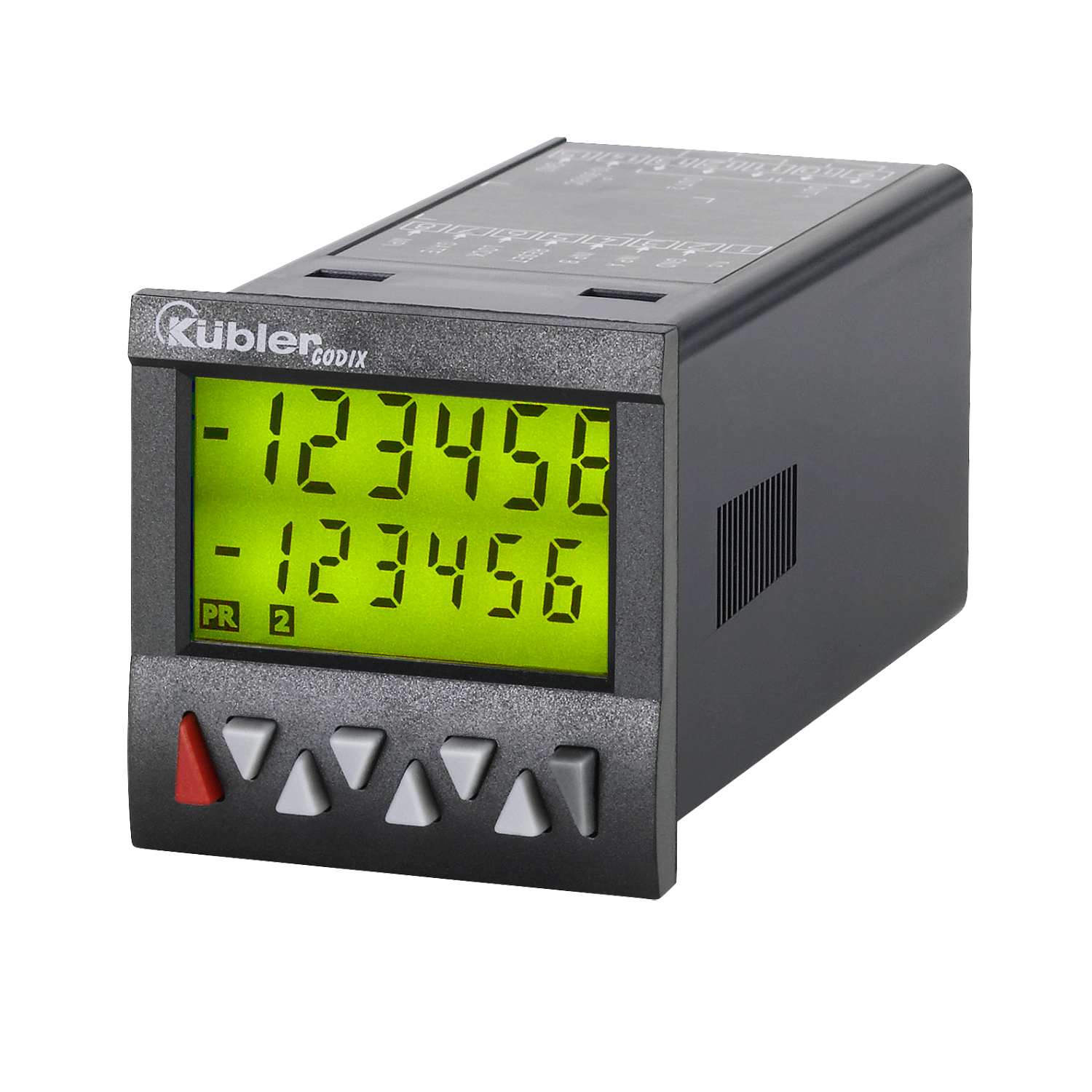

- Display with or without backlight, 2 colors
- Pluggable screw terminals
- Plain text programming
- Decade keypad
- DC or AC power supply
- Low installation depth
- High protection (IP65) with integrated front panel seal
- With preset indicators
Accessories
Sealing cover K2
Flexible sealing cap for dimension F2, IP65 protection. Suitable for BVa15.13, BVa15.31, BVa15.33 and HVa15.31 within F2B. 2 B counters or 2 HB counters and MVs16.03 in frame F2M and junction box 926.1. 716, 717 901, 907, 908, 923, 924 with adapter frame 45 (T.008.860).| Grau | G.008.302 |
| Schwarz | G.008.303 |
