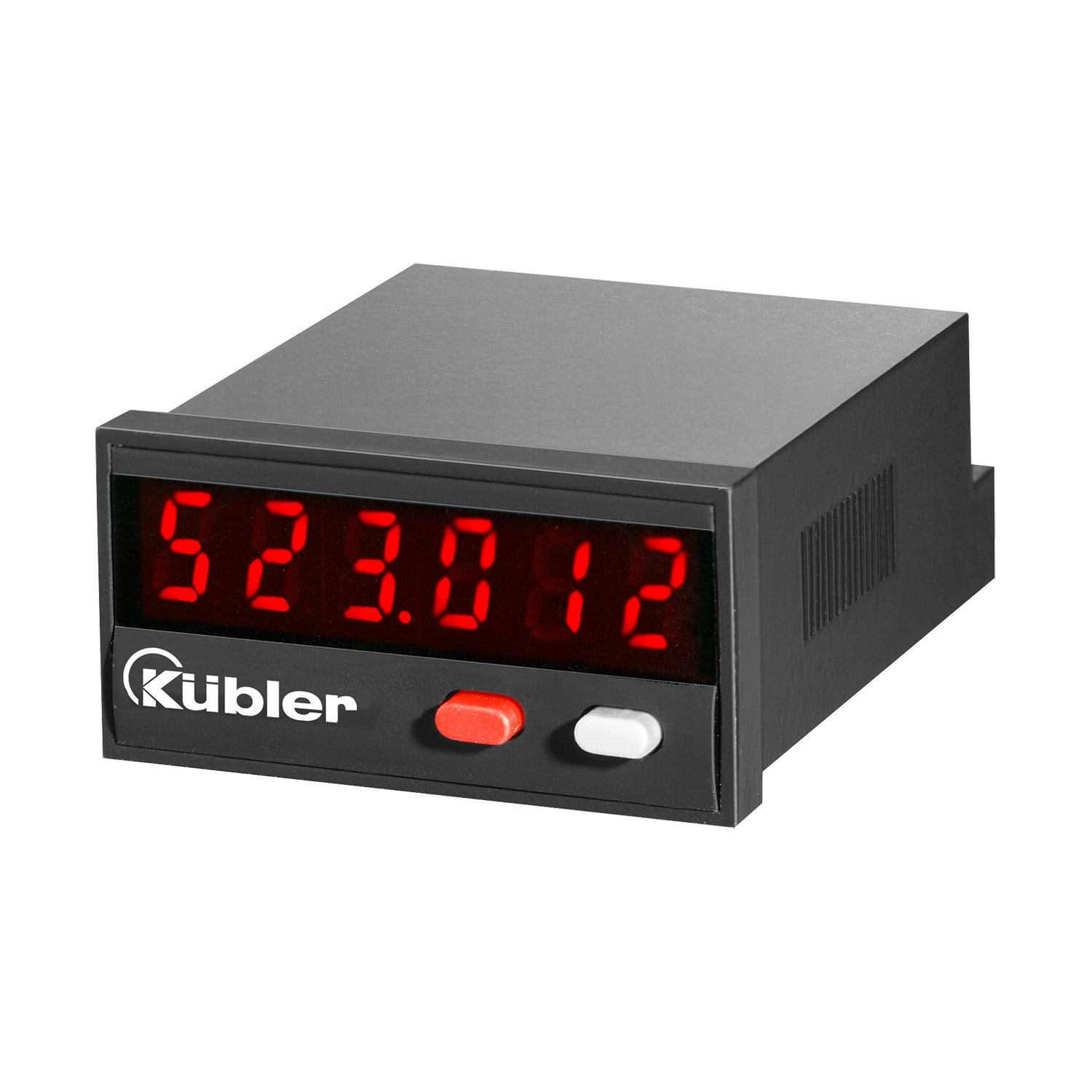

Codix 523
Codix 523

Hour meter electronic

Codix 523

  • Manual / electric reset
  • Programmable time base, start/stop
  • Optional output
  • Dimension
    · 48 x 24 mm | 45 x 22 mm
  • Power supply:
      · 10...30 V DC
  • Display 6-digit number, LED

Hour meters / timers with 4 start input types.

The Codix 523 is a power-supplied time counter, hour meter or short time meter with 4 start input types and individually adjustable time base. The 6-digit LED display shows the NPN, PNP input signals for pulse width or period duration measurement.

Mechanical
Model electronic
Functions Hour meters / timers
Short-time meter
Dimension 1 48 x 24 mm | 45 x 22 mm
Protection level IP65
Working temperature -20 °C ... +65 °C
Weight 50 g
Reset electronic

(1) Front panel size | Panel cut-out
Electrical
Power supply 10...30 V DC
Signal input NPN
PNP
Powerful
  • High accuracy thanks to quartz time base.
  • Robust housing – IP65 protected.
  • Very bright LED display, 8 mm high.
  • Time base can be set individually
-  hours, minutes or seconds, the decimal point allows setting it even more accurately, up to max. 3 decimal places.
-  smallest achievable resolution: milliseconds.
-  time base hours (minutes and seconds as real-time display).
  • Short start-up time – detects incoming pulses already 16 ms after having been switched on => no loss of pulses in case of a simultaneous motor start.
  • Individually adjustable Start/Stop function: 2 Start/Stop inputs allow achieving 4 different measuring principles such as, for example, active or passive pulse width measurement, time interval measurement with one single input or with separate inputs.
User-friendly and universal
  • Large keys – pressing either of the keys switches between displays (can also be operated wearing gloves).
  • Programming
-  simple uniform menu-driven programming and operation.
-  possibility to enter the programming mode also during operation with an authentication query.

  • Manual or electrical reset: Tamper-proof thanks to lockable reset function.
  • Freely programmable setpoint: Start time at which time counting begins.
  • As an alternative to the HTL inputs, devices with a 4 ... 30 V DC input level are available, for use as parallel displays for PLCs.
  • Optional output: 1 Hz clock pulse in case of active time measurement.
Data sheet

Codix 523

PDF ∼ 1,2 MB | 02.2022
DE
EN
FR
Operation Manual

Codix 521 - 524

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 981,6 KB | 09.2011

Declaration of conformity

Codix 52x

Multilingual: German, English, French
PDF ∼ 101,8 KB | 04.2022

Electronic CAD / ePlan

Codix 523

ZIP ∼ 1,6 MB | 03.2021

Product Certificates

UL Canada - Counters and process devices

PDF ∼ 78,6 KB | 01.2019
EN

UL USA - Counters and process devices

PDF ∼ 76,1 KB | 01.2019
EN

Accessories

Bezel adapter set

Bezel adapter set

Adapter front frame 72x36mm to 48x24mm for cutout 68x33mm to cutout 45x22.2mm. Available as a set in black and silver anodized.

2 front frame black and silver, 1 balance frame.
162.704.set
Data sheet
Adapter front bezel
DE EN FR

Blind housing 13x, 14x

Blind housing 13x, 14x

Blind housing for 22.2x45mm and 25x50mm cutout.

Blind housing, clamping bracket, seals, adapter front frame.
G.003.836
Data sheet
Enclosure blind
DE EN FR

Sealing cover K1

Sealing cover K1

Flexible sealing cap for front frame F1B and adapter front frame N003001 made of soft PVC with painted sheet steel frame and mounting screws. IP65 protection according to DIN 40050 when installed. Suitable for B15.31, B16.31, B16.30, B18.30, F1B15.01, F1B16.01, F1B16.00 and F1B18.00. With adapter frame N.003.001 for 130, 131, 132, 133, 134, 135, 136, 140, 141, 142, 143, 520, 521, 522, 523, 524, 52U, 52P, 52T.

Sealing cap (PVC) with sheet steel frame, 2 mounting screws M4x15.
Grau G.008.300
Schwarz G.008.301
Data sheet
Sealing cover
DE EN FR

Mounting frame, 24x48

Mounting frame, 24x48

For the installation of all counters, timers, process devices with DIN dimensions 24x48mm or 50x25mm. Cutout 25x50mm. For snap-on mounting on 35mm DIN top hat rail.

Meter holder (chrome-plated sheet steel), DIN hat-rail adapter (fiber-reinforced polyamide).
G.300.004
Data sheet
Mounting frame
DE EN FR

Bezel adapter

Bezel adapter

Adapter front frame 50x60mm for cutout F1B 54x29mm to 45x22.2mm for screw fastening with seal. Available in black.
N.003.001
Data sheet
Adapter front bezel (2)
DE EN FR

Transparent cover, lockable

Transparent cover, lockable

Screw-on transparent cover for front frame F1B and adapter front frame N003001, 1 DV, lockable for dimension F1. With seal over M4 mounting screws with own frame. Suitable for B15.31, B16.31, B16.30, B18.30, F1B15.01, F1B16.01, F1B16.00 and F1B18.00. With adapter frame N.003.001 for 130, 131, 132, 133, 134, 135, 136, 140, 141, 142, 143, 520, 521, 522, 523, 524, 52U, 52P, 52T.

Transparent cover, seal, 2 mounting screws.
N.003.002
Data sheet
Transparent cover 2
DE EN FR

Sealing gasket N.511034

Sealing gasket N.511034

Outer dimension: 49 x 25 [1.929 x 0.984"]
Inner dimension: 45 x 22 [1.772 x 0.866"]
N.511034
Data sheet
Gaskets
DE EN FR

Bezel adapter 37.1

Bezel adapter 37.1

Adapter front frame 37.1 for front panel cutout 50x25mm to 45x22.2mm with screw fastening. Available in black, gray and anthracite.
Schwarz T.008.161
Anthrazit T.008.181
Data sheet
Adapter front bezel
DE EN FR

Slip on bezel 37.2

Slip on bezel 37.2

Adapter front frame 37.2 for front panel cutout 50x25mm to 45x22.2mm. Available in black, gray and anthracite.
Grau T.008.164
Schwarz T.008.165
Anthrazit T.008.180
Data sheet
Adapter front bezel
DE EN FR

Bezel adapter

Bezel adapter

Adapter front frame 48x48mm to 48x24mm for cutout 45x45mm to cutout 45x22.2mm. Available in black.
T.008.883
Data sheet
Adapter front bezel (2)
DE EN FR
