Pulse counter electronic

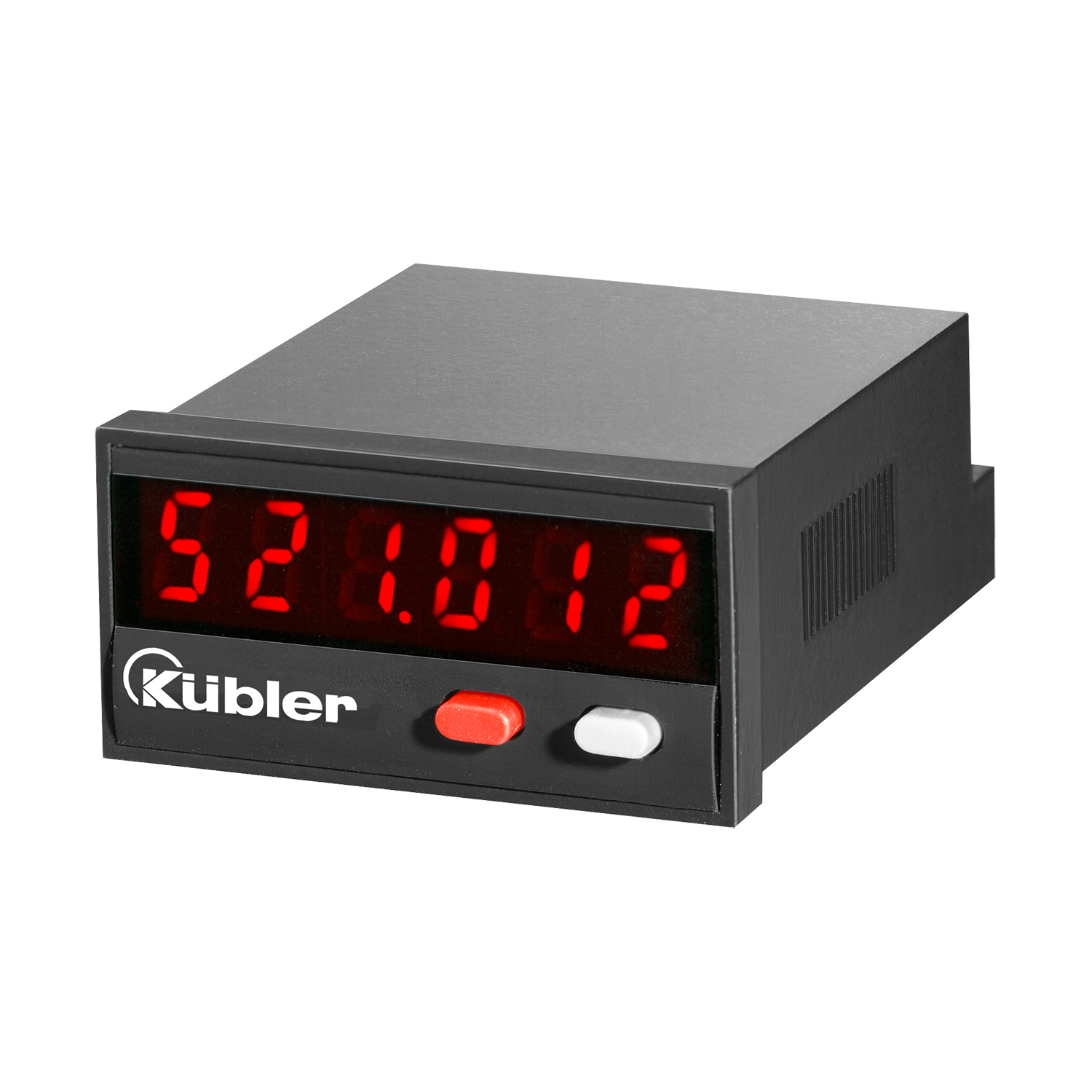

Pulse counter, double-channel with 6 types of counter inputs, freely scalable.The Codix 521 is a power-supplied pulse counter / position indicator for fast and slow counting pulses, with 6-digit LED display for NPN, PNP input signals. Counter input types: Counting direction, difference, addition, phase discriminator mode with 1-, 2- and Quadruple evaluation.
Position displays without limit values
48 x 24 mm | 45 x 22 mm
|Working temperature||-20 °C ... +65 °C|
(1) Front panel size | Panel cut-out
10...30 V DC
- Fast counting input - Input frequency of max. 60 kHz
- Robust housing - IP65 protected
- Very bright LED display, 8 mm high
- Position, difference, summing or counting direction detection
- Programmable for positive (PNP) or OV (NPN) switching input pulses
- Fast counter input with an input frequency of max. 60 kHz to attenuate mechanical contacts to 30 Hz
- Short start-up time
- After switching on the power supply already detects pulses received after 16 ms => no pulse loss with simultaneous engine start
- Large keys - can also be operated with gloves
- Simple and uniform programming and operation by plain text programming - access to programming also during operation with security confirmation
- Individually adjustable scaling: Multiplication and division factor (0.0001 to 99.9999), to display corresponding units e.g. position in 1/10 mm and speed to be displayed in /RPM
- 4 different counter input types:Two-channel input for detection of counting direction, difference or addition mode, phase discriminator with single, double, or quadruple evaluation
- Freely programmable set value
- HTL inputs or alternatively 4 to 30 V DC input level available for use as parallel display for PLC
- Optional with output - as zero signal
Sealing cover K1Flexible sealing cap for front frame F1B and adapter front frame N003001 made of soft PVC with painted sheet steel frame and mounting screws. IP65 protection according to DIN 40050 when installed. Suitable for B15.31, B16.31, B16.30, B18.30, F1B15.01, F1B16.01, F1B16.00 and F1B18.00. With adapter frame N.003.001 for 130, 131, 132, 133, 134, 135, 136, 140, 141, 142, 143, 520, 521, 522, 523, 524, 52U, 52P, 52T.
Sealing cap (PVC) with sheet steel frame, 2 mounting screws M4x15.
Mounting frame, 24x48For the installation of all counters, timers, process devices with DIN dimensions 24x48mm or 50x25mm. Cutout 25x50mm. For snap-on mounting on 35mm DIN top hat rail.
Meter holder (chrome-plated sheet steel), DIN hat-rail adapter (fiber-reinforced polyamide).
Transparent cover, lockableScrew-on transparent cover for front frame F1B and adapter front frame N003001, 1 DV, lockable for dimension F1. With seal over M4 mounting screws with own frame. Suitable for B15.31, B16.31, B16.30, B18.30, F1B15.01, F1B16.01, F1B16.00 and F1B18.00. With adapter frame N.003.001 for 130, 131, 132, 133, 134, 135, 136, 140, 141, 142, 143, 520, 521, 522, 523, 524, 52U, 52P, 52T.
Transparent cover, seal, 2 mounting screws.
