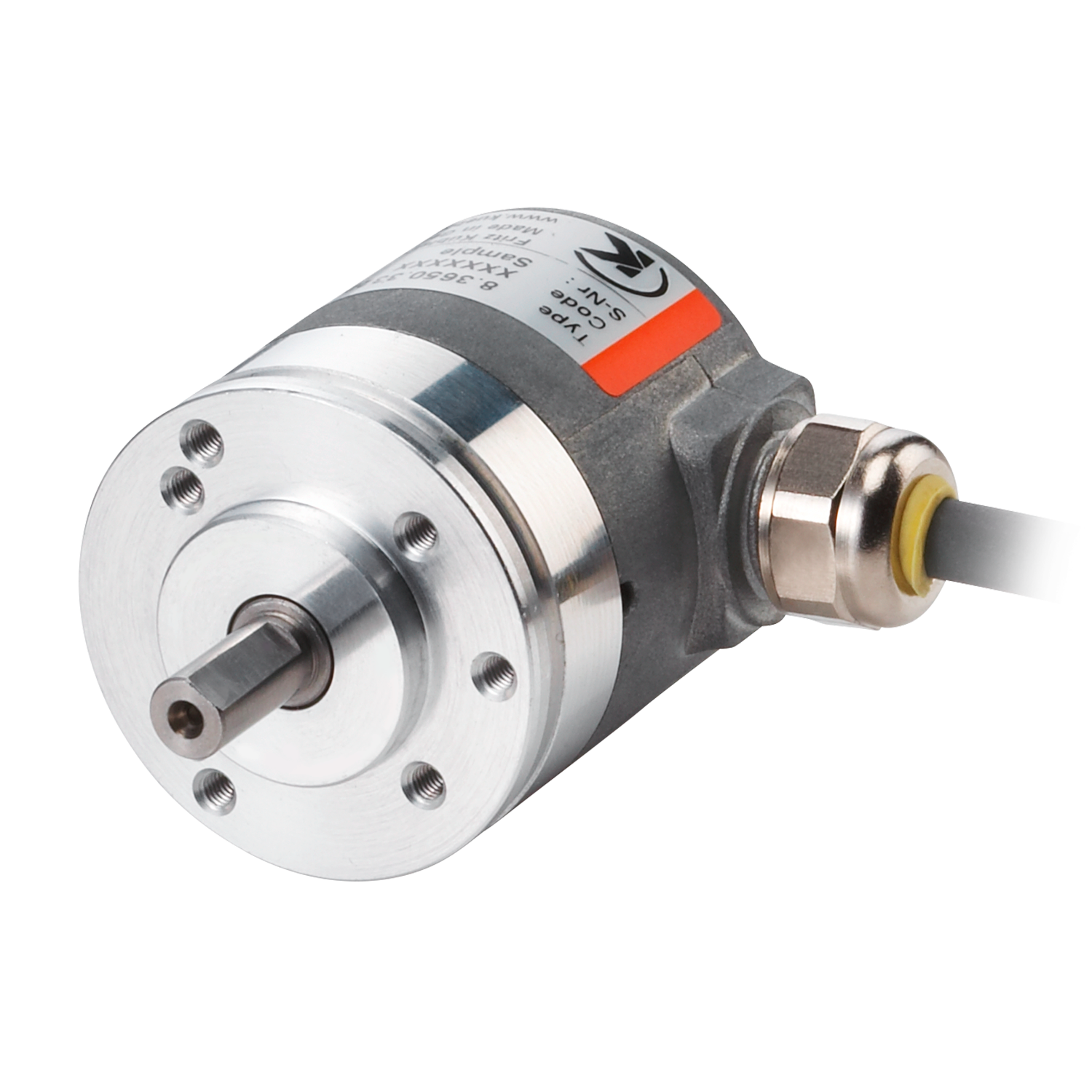

Sendix M3658
Sendix M3658

Encoders Absolute singleturn

Sendix M3658

  • Particularly resistant
  • Wear-free
  • Magnetic – robust
  • Dimension Ø 36 mm
  • 14 bits singleturn
  • Max 8 mm shaft, with flat surface
  • Max 1/4" shaft, with flat surface
CANopen

Product is discontinued

A new / comparable product is available for this product.


For challenging outdoor uses. Extremely robust encoders.

Energy Harvesting Technology. This technology makes the Sendix M36 multiturn encoders particularly robust, reliable and cost-efficient. Moreover, the high IP67 protection level ensures reliable outdoor operation. Its compact size of only 36 mm allows easy installation even in narrow spaces.

Mechanical
Dimension Ø 36 mm
Shaft type 6 mm shaft, with flat surface
8 mm shaft, with flat surface
1/4 " shaft, with flat surface
Flange type Ø 36.00 mm
Working temperature -40 °C ... +85 °C
Protection level IP67
IP69k
Connection types Radial cable
M12 connector radial
Max. rotational speed 6.000 min-1
Weight 200 g
Electrical
Scanning magnetic
Resolution max. 14 bits singleturn
Power supply 8...30 V DC
Interfaces CANopen
Secure technology
  • Increased resistance to vibration and installation errors.
  • Robust bearing construction in Safety Lockplus™ design.
  • Sturdy die-cast housing and protection up to IP69k.
Versatile applications
  • CANopen encoder profile DS406 V3.2.
  • Quick recognition of the position status by two-color LED.
  • With M12 plug or cable connection.
Data sheet

Sendix M3658 / M3678 CANopen

PDF ∼ 630,7 KB | 12.2019
DE
EN
FR
Operation Manual

Operating manual for encoders with ATEX 2/22

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 3,6 MB | 05.2023

Operation manual for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 09.2022

Manual

Encoder with CANopen interface

PDF ∼ 7,3 MB | 07.2024
DE
EN
Safety characteristics

Sendix M3658 MTTFd

Multilingual: German, English
PDF ∼ 157,6 KB | 06.2019

Sistema-Library

Multilingual: German, English, French
ZIP ∼ 6,3 MB | 07.2023

Declaration of conformity

Sendix M3658 / M3678 CE

Multilingual: German, English, French
PDF ∼ 383,3 KB | 04.2016

Device file

Sendix M36x8 ST CANopen

ZIP ∼ 21,7 KB | 03.2017

Mechanical CAD / STEP

Sendix M3658

ZIP ∼ 3,7 MB | 10.2020

Electronic CAD / ePlan

Sendix M3658 / M3678 CANopen

ZIP ∼ 4,6 MB | 02.2020

Product Certificates

Salt spray test ManufacturersDeclaration

PDF ∼ 39,6 KB | 05.2023
DE
EN

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Accessories

Fastening eccentrics

Fastening eccentrics

For shaft encoders with synchro flange ø 36 mm

Scope of delivery
- 3 eccentric
- 3 screws
8.0010.4200.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.4200.0000

Cables and connectors

DEUTSCH Connector with cable ,

DEUTSCH Connector with cable ,

Preassembled cable set

SAE J1939
Female connector 5-pin

Male connector 6-pin PVC Ø 6,5 mm ± 0,2 mm
8 x 0,205 mm2
05.00.6091.22C7.XXXM

Data sheet
German plug, cable set PVC, M12 socket
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
SAE J1939
Modbus
IO-Link
Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A411.XXXM

Data sheet
M12 cordset, PVC, male, 5-pin, A-coded, end open, CANopen
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Male connector 5-pin
8.0000.5111.0000

Data sheet
M12 pin, 5-pole, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000

Data sheet
M12 socket, 5-pin, A-coded
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
IO-Link
Power supply
Female connector 5-pin
8.0000.5116.0000.Ex

Data sheet
M12 socket, Ex 2/22, 5-pin, A-coded
DE EN FR

Cable 3 x 2 x 0,25 mm<sup>2</sup>  ,

Cable 3 x 2 x 0,25 mm2 ,

Unassembled by the meter

PVC Ø 6,2 mm ± 0,2 mm
3 x 2 x 0,25 mm2
8.0000.6V00.XXXX
Data sheet
Cable, 6-core, PVC electronic cable
DE EN FR
Data sheet
Cable, Ethercat-Profinet-Ethernet, PUR
DE EN FR
