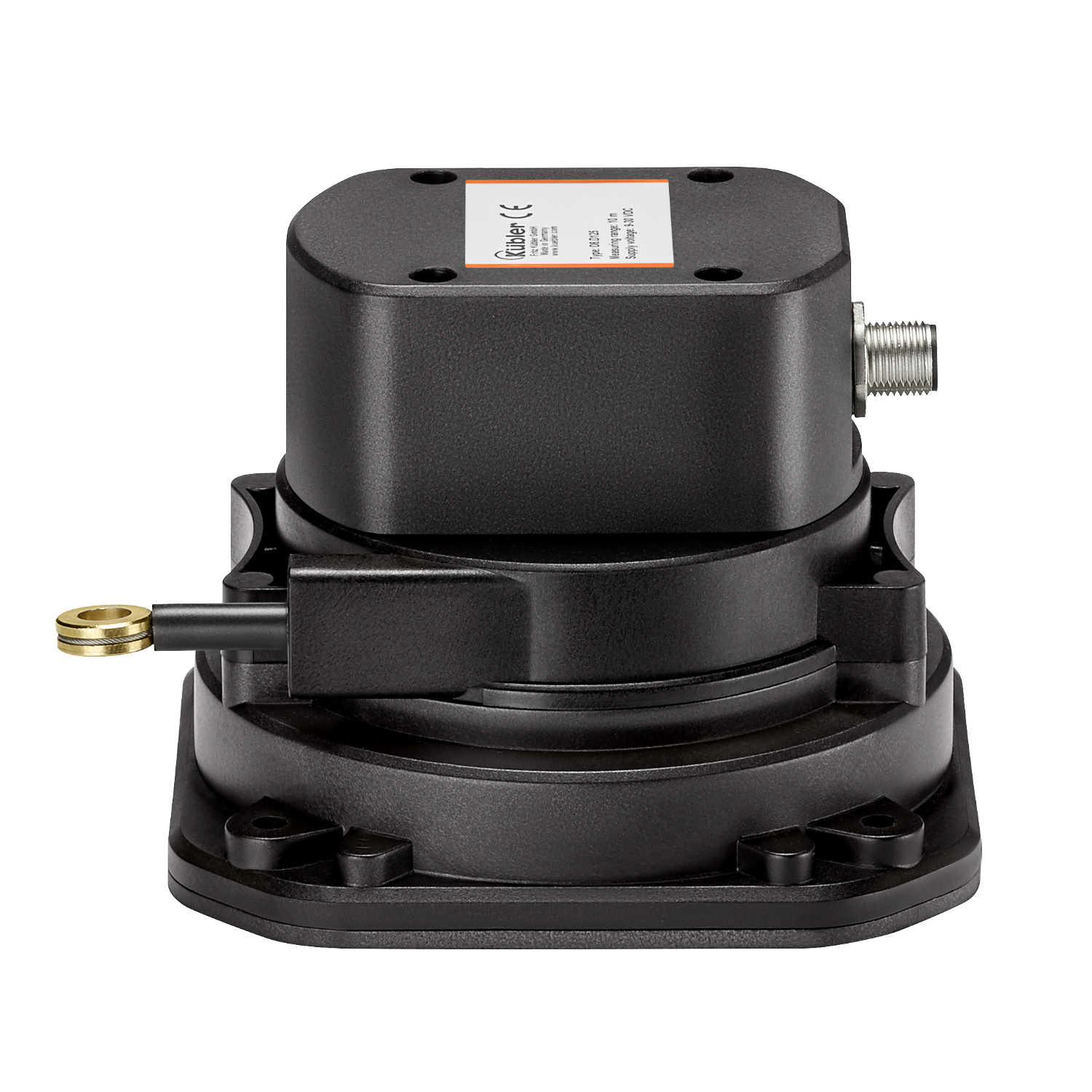

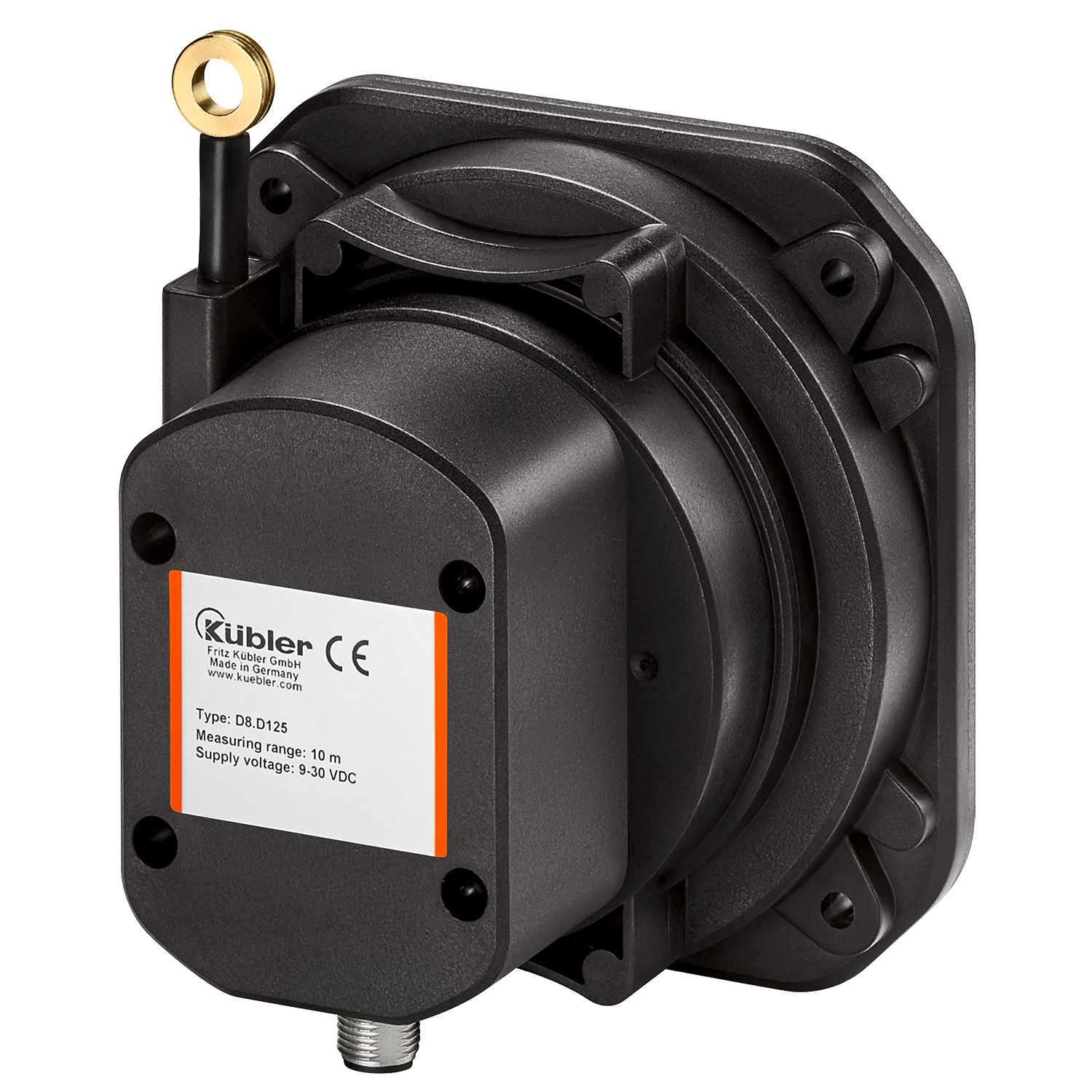

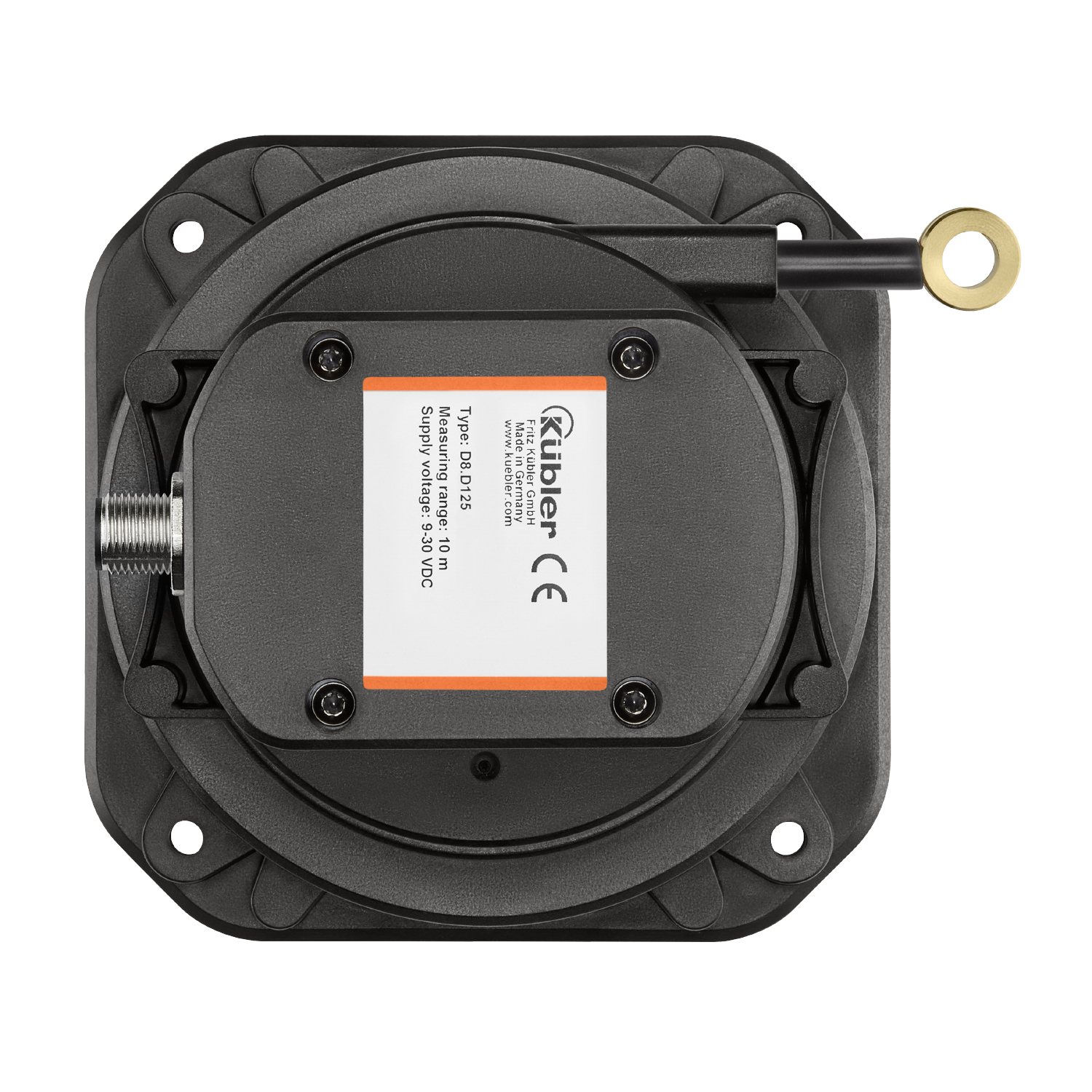

Draw-wire encoders

D125

  • Integrated inclinometer
  • Redundant sensors
  • High IP67 protection
  • Max. measuring length 10 m
  • Speed 1 m/s
  • max. linearity ±0,5 %
Analog 0.5–4.5 V
CANopen

Draw-wire encoders – economical and innovative.

The draw wire system D125 is more than a sensor for determining length-related position data. Variants with integrated inclinometer and redundant interfaces offer versatile application possibilities.
The contactless magnetic position scanning, a high IP67 protection level and the wider temperature range round off the product.

Mechanical
Measuring system Draw-wire encoders
Measuring length 6 m
7 m
8 m
9 m
10 m
Speed 1 m/s
Dimension 124 mm x 124 mm x 94 mm
Connection types M12 connector
Working temperature -40 °C ... +85 °C
Protection level IP67
Weight 970 g
Electrical
max. linearity ±0,5 %
Interfaces Analog 0.5–4.5 V
Analog 0...10 V
CANopen
Power supply 12...30 V DC
Characteristics
  • Measuring length 6 ... 10 m.
  • Integrated inclinometer.
  • Redundant sensors.
  • Different types of sensors (analog, CANopen).
  • Linearity up to ±0.5 % of the measuring range.
  • High protection level IP67 and wide temperature range from -40 °C ... +85 °C.
Advantages
  • The suitable measuring length for every application.
  • Cost, space and installation work saving.
  • For even higher plant availability.
  • Simple selection and fast installation.
  • High accuracy at economic prices.
  • Reliability and long service life for outdoor applications.
Data sheet

D125

PDF ∼ 1.003,5 KB | 11.2023
DE
EN
FR
Installation manual

Safety Advice for Draw-wire encoders

Multilingual: German, English, French, Italian
PDF ∼ 160,6 KB | 05.2017

Manual

C100 / D125

PDF ∼ 1,5 MB | 04.2020
DE
EN
Safety characteristics

D125 MTTFd

Multilingual: German, English
PDF ∼ 239,3 KB | 06.2019

D125 MTTFd

Multilingual: German, English
PDF ∼ 152,5 KB | 06.2019

Declaration of conformity

C100 / D125 CE

Multilingual: German, English, French
PDF ∼ 351,6 KB | 08.2018

Device file

C100 / D125

ZIP ∼ 2,9 KB | 04.2018

Mechanical CAD / STEP

D125

ZIP ∼ 287,5 KB | 05.2017

Flyer

Portfolio overview Draw-wire encoders

Multilingual: German, English
PDF ∼ 221,1 KB | 11.2019

Accessories

Guide pulley

Guide pulley

With guide pulleys, linear movements can also be directed around obstacles. This not only increases their flexibility but can also compensate for installation tolerances. Idler pulleys can also act to clean off dirt and break ice.

Technical data:
  • Installation angle (anodized aluminum)
  • Guide pulley (plastic POM)
  • Ball bearing (Type 696-2R5)
Scope of delivery:
  • 2 x countersunk screws for side fixing
  • 2 x Allen screws for fixing on a flat surface
8.0000.7000.0045
Mechanical CAD / STEP
8.0000.7000.0045

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin PUR Ø 4,7 mm ± mm
4x0,34 mm2
05.00.6061.6211.XXXM

Data sheet
M12 cordset, PUR, socket, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 5,5 mm ± 0,2 mm
5 x 0,25 mm2
05.00.6081.2211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8151-0/9

Data sheet
M12 socket, 5-pin
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8251-0/9

Data sheet
M12 socket, angled, 5-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000

Data sheet
M12 socket, 5-pin, A-coded
DE EN FR
