Draw-wire encoders
A30
|
|

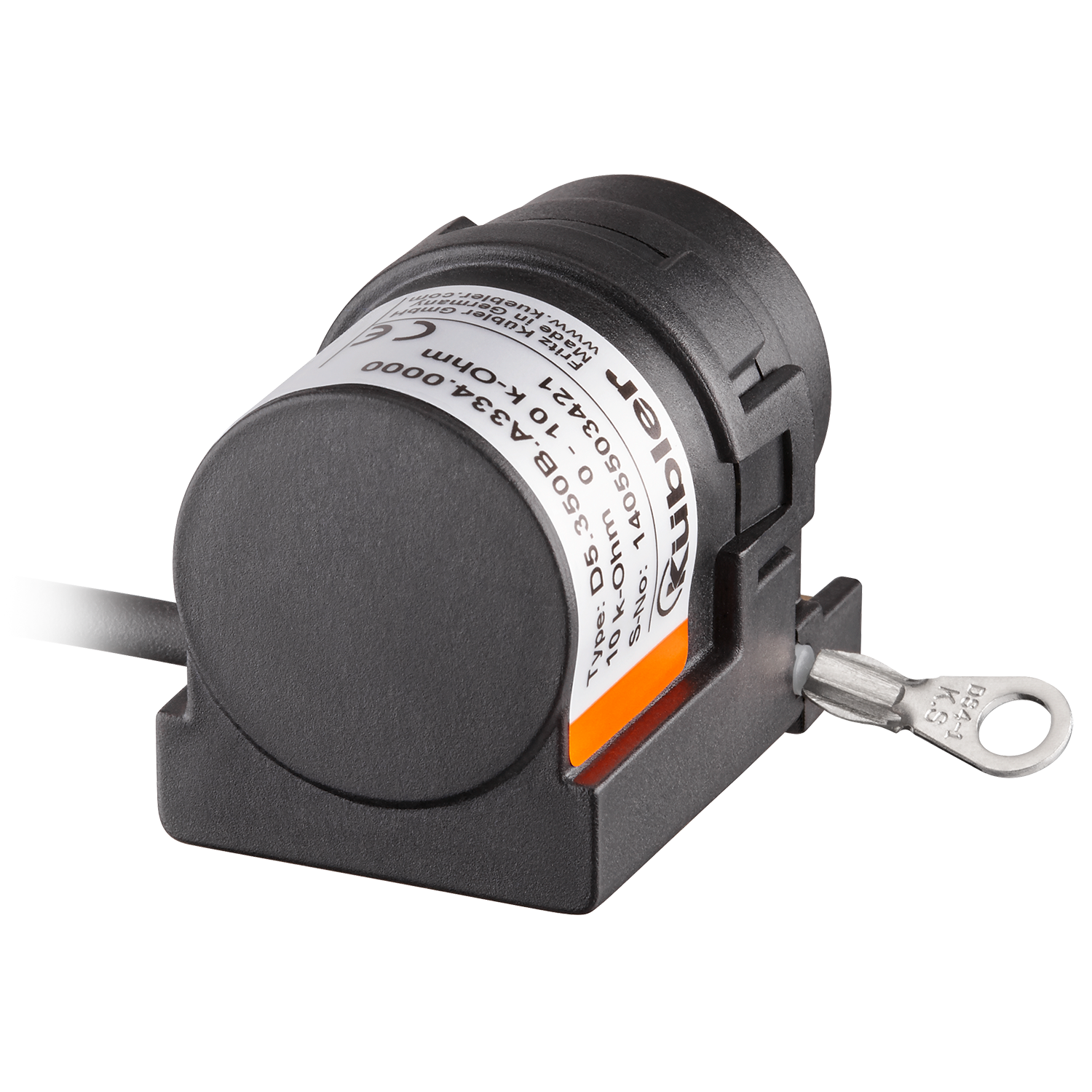

Miniature actuated encoder – ideal for simple applications.
The A30 draw-wire encoder with analog output impresses with its miniaturized design. It is available with potentiometer, voltage, or current output.| Mechanical | |
|---|---|
| Measuring system | Draw-wire encoders |
| Measuring length |
0.3 m 0.6 m |
| Speed |
0,8 m/s |
| Dimension | 28 mm x 41 mm x 33 mm |
| Connection types |
Radial cable |
| Working temperature | -10 °C ... +80 °C |
| Protection level |
IP50 |
| Weight | 60 g |
| Electrical | |
|---|---|
| max. linearity |
±0,35 % |
| Interfaces |
Analog 0...10 V Analog 4–20 mA Potentiometer output |
| Power supply |
15...28 V DC |
Miniaturized and simple
- Measuring length up to 600 mm.
- For applications with a low traversing speed.
- Easy to install.
- Housing of reinforced plastic.
Accessories
Guide pulley
With guide pulleys, linear movements can also be directed around obstacles. This not only increases their flexibility but can also compensate for installation tolerances. Idler pulleys can also act to clean off dirt and break ice.Technical data:
- Installation angle (anodized aluminum)
- Guide pulley (plastic POM)
- Ball bearing (Type 696-2R5)
- 2 x countersunk screws for side fixing
- 2 x Allen screws for fixing on a flat surface
| 8.0000.7000.0045 |
