RLI50
RLI50

Encoders Incremental

RLI50

  • with reference signal
  • Wear-free
  • Space and cost savings
  • Contactless
  • 3.600 ppr incremental
  • Max 35 mm hollow shaft, through
  • Max 1" hollow shaft, through
Push-pull
TTL / RS422

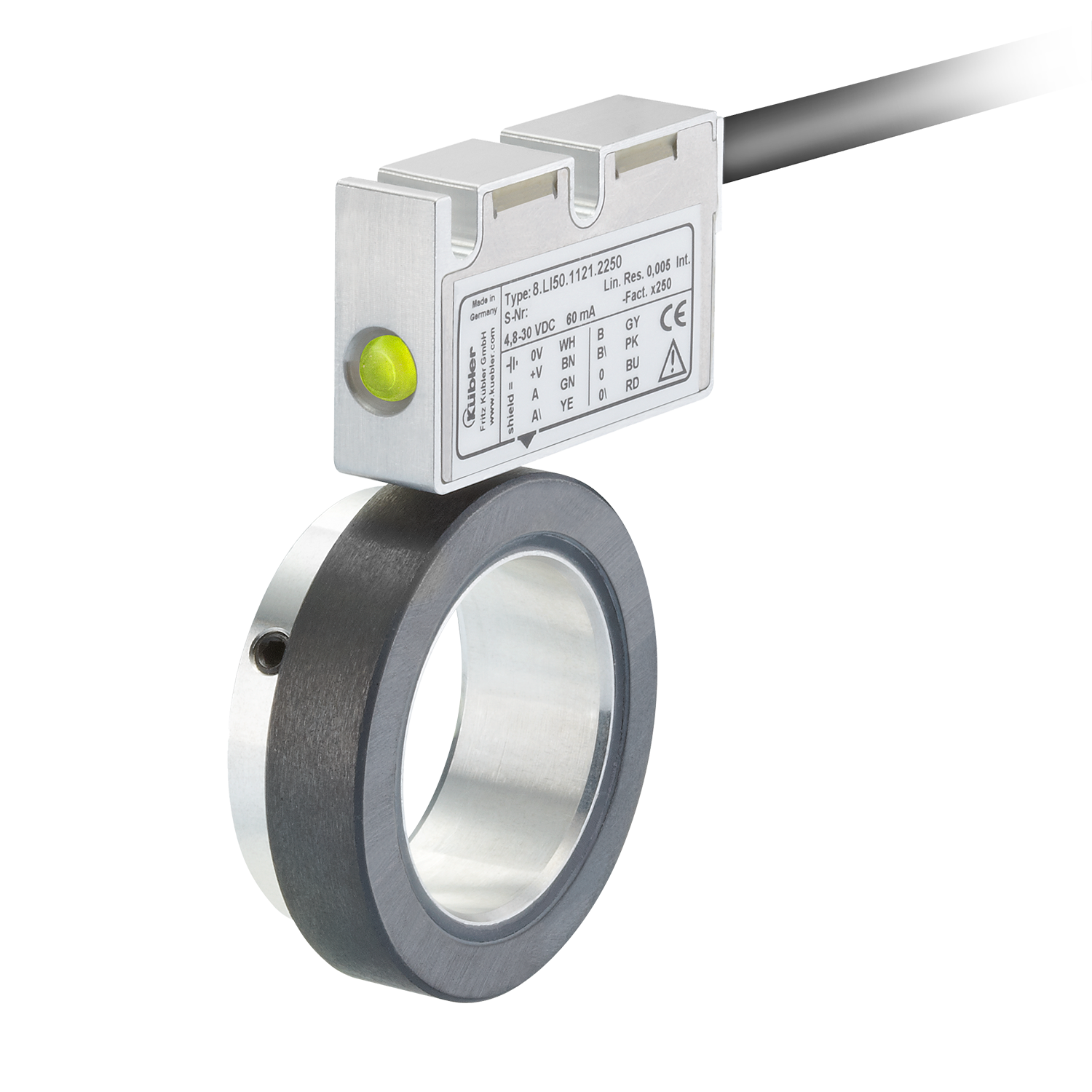

Bearingless encoder for shaft diameter up to 35 mm.

Thanks to its installation depth of only 16 mm, the bearingless magnetic rotary encoder RI50 / Limes LI50, comprising a magnetic ring and sensor head, is ideally suited for plants and machinery where space is very tight. The non-contact measuring principle allows for error-free use even under harsh environmental conditions, as well as ensuring a long service life. In contrast to our measuring system RI20 / Limes LI20, a single zero pulse is also implemented here.

For outdoor use with extremely sturdy aluminum housing and stainless steel cover, wide temperature range as well as a UV-resistant cable. IP68 / IP69k protection, special encapsulation technology and tested resistance to cyclic humidity and damp heat offer the highest levels of reliability, even in exposed outdoor use.

Mechanical
Shaft type 6 mm hollow shaft, through
8 mm hollow shaft, through
10 mm hollow shaft, through
12 mm hollow shaft, through
15 mm hollow shaft, through
20 mm hollow shaft, through
25 mm hollow shaft, through
30 mm hollow shaft, through
35 mm hollow shaft, through
5/8 " hollow shaft, through
1 " hollow shaft, through
Working temperature -20 °C ... +80 °C
Protection level IP67
IP68
IP69k
Connection types Radial cable
Max. rotational speed 12.000 min-1
Weight 200 g
Electrical
Scanning magnetic
Resolution max. 3.600 ppr incremental
Power supply 4,8...26 V DC
4,8...30 V DC
Interfaces Gegentakt
TTL / RS422
Resistant and insensitive
  • High shock and vibration resistance.
  • Sturdy housing with IP67 protection, optionally with special housing for high resistance against condensation (IP68 / IP69k, resistance against cyclic humidity per EN 60068-3-38 as well as humidity and heat per EN 60068-3-78).
  • Contactless and wear-free measuring system for long service life.
Fast commissioning
  • Function indication by LED.
  • Large mounting tolerance between magnetic ring and sensor head.
  • Requires very little installation space.
  • Easy adjustment by mounting via slotted holes.
Data sheet

RLI50

PDF ∼ 714,0 KB | 08.2021
DE
EN
FR
Installation manual

LI20, LI50, RLI20, RLI50

PDF ∼ 329,5 KB | 12.2016

Safety characteristics

RLI50 MTTFd

Multilingual: German, English
PDF ∼ 194,2 KB | 06.2019

Declaration of conformity

LI20 / RI20 / RLI20 / RLI200 / LI50 / RI50 / RLI50 / RLI500 CE

Multilingual: German, English, French
PDF ∼ 353,6 KB | 05.2017

Mechanical CAD / STEP

RLI50

ZIP ∼ 110,5 KB | 05.2017

Electronic CAD / ePlan

RLI50

ZIP ∼ 716,1 KB | 02.2020

Notice

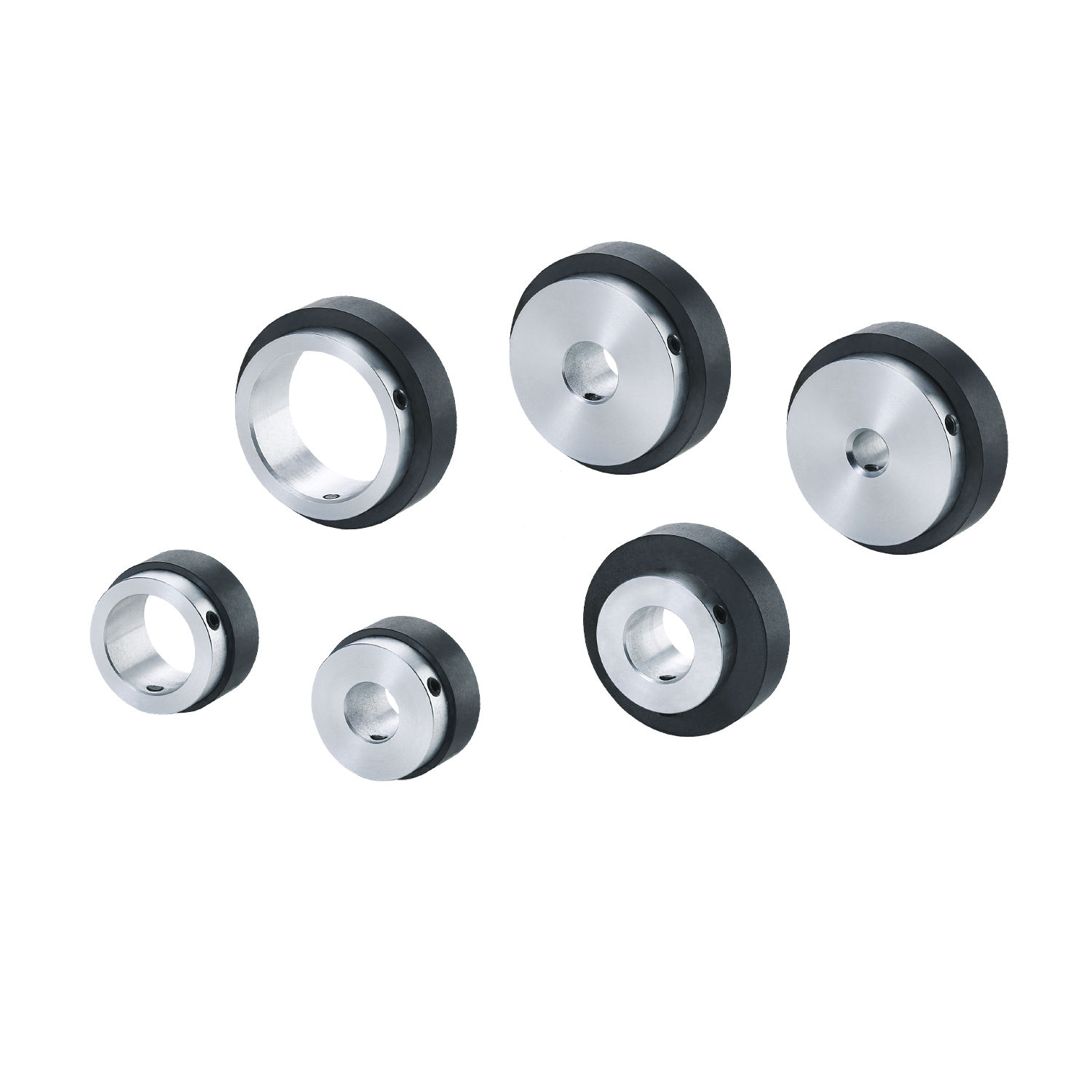

Safety instructions for magnetic rings

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 566,2 KB | 05.2017

Accessories

Cables and connectors
