Encoders Incremental

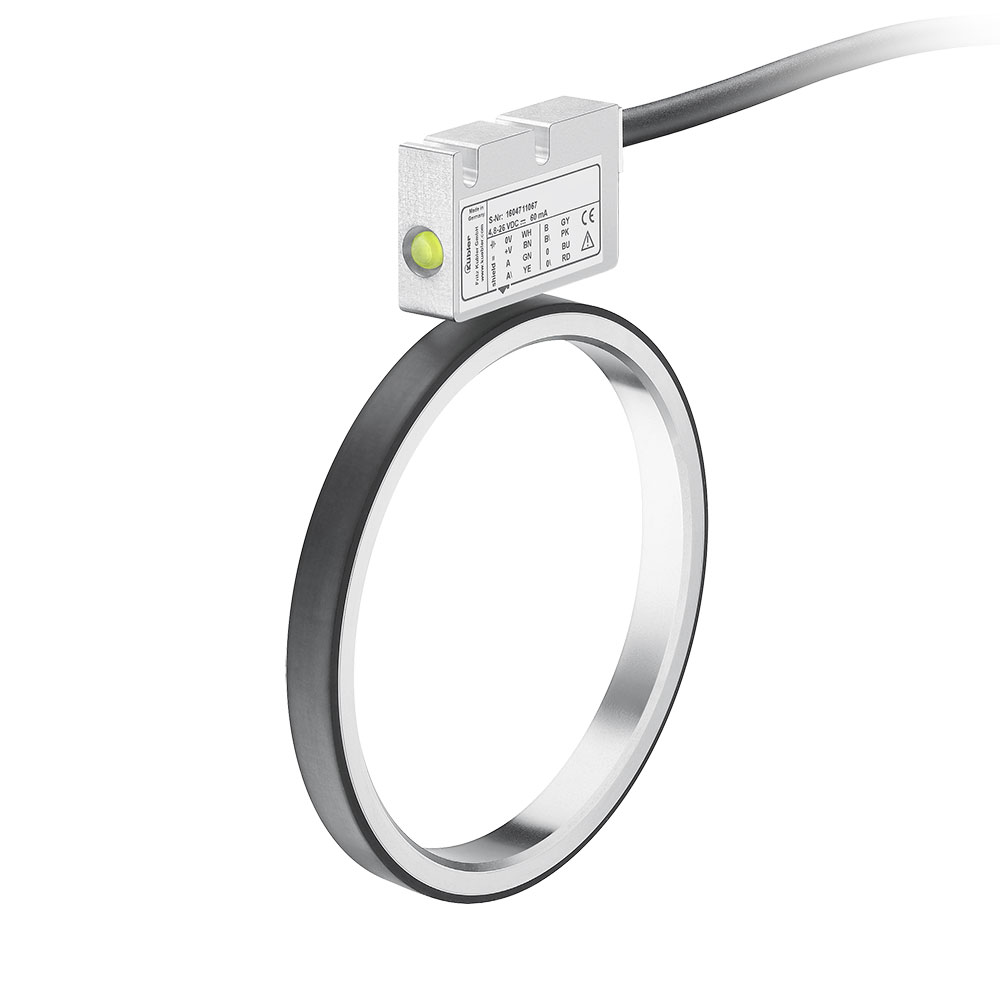

RIM500

  • High flexibility
  • Highest precision
  • Simple commissioning
  • Resistant and insensitive
  • 999.999 ppr incremental
  • Max 180 mm hollow shaft, through
  • Max 1 1/8" hollow shaft, through
Push-pull
TTL / RS422

High flexibility and performance with cost savings.

With a new technology approach based on digital signal processing independent of previous ASIC solutions, Kübler has expanded the range of applications for bearingless encoders. In conjunction with the available magnetic rings, the  best possible accuracy is now always achieved. Influences due to individual installation and temperature differences during operation are automatically compensated in the sensor head. This facilitates integration into applications and  makes the overall system even more powerful.

Mechanical
Shaft type 6 mm hollow shaft, through
8 mm hollow shaft, through
10 mm hollow shaft, through
12 mm hollow shaft, through
15 mm hollow shaft, through
20 mm hollow shaft, through
25 mm hollow shaft, through
28 mm hollow shaft, through
30 mm hollow shaft, through
35 mm hollow shaft, through
45 mm hollow shaft, through
180 mm hollow shaft, through
5/8 " hollow shaft, through
1 " hollow shaft, through
1 1/8 " hollow shaft, through
Working temperature -20 °C ... +80 °C
Protection level IP68
IP69
IP69k
Connection types Radial cable
Max. rotational speed 12.000 min-1
Electrical
Scanning magnetic
Resolution max. 999.999 ppr incremental
Power supply 4,8...26 V DC
Interfaces Gegentakt
TTL / RS422
High flexibility
  • Freely selectable resolution up to 999 999 ppr independent of the magnetic ring diameter.
  • Systems based on both 2 mm and 5 mm pole lengths are available. This allows you to choose between greater operating and mounting tolerances or a focus on the best possible performance.
  • Many variants of magnetic ring and bore diameters.
Highest precision
  • Active offset, phase and amplitude control automatically optimizes the sensor to the current operating situation. Influences due to individual installation and temperature differences during operation are automatically compensated in the sensor head.
Fast and easy commissioning
  • For use in small installation spaces.
  • Mounting tolerance between magnetic ring and sensor head are compensated by the electronics.
  • Simple adjustment by fastening via slotted holes.
  • Function display via LED.
Resistant and insensitive
  • Non-contact and wear-free measuring system for a long service life.
  • High shock and vibration resistance.
  • Sturdy housing with degree of protection IP67, optional:
  • Special housing for high resistance to condensation (IP68 / IP69k, Resistance to cyclical humidity acc. to EN 60068-3-38 and humidity-heat acc. to EN 60068-3-78).
