360 Sendix 5873FS3
Sendix 5873FS3

Encoders Absolute singleturn

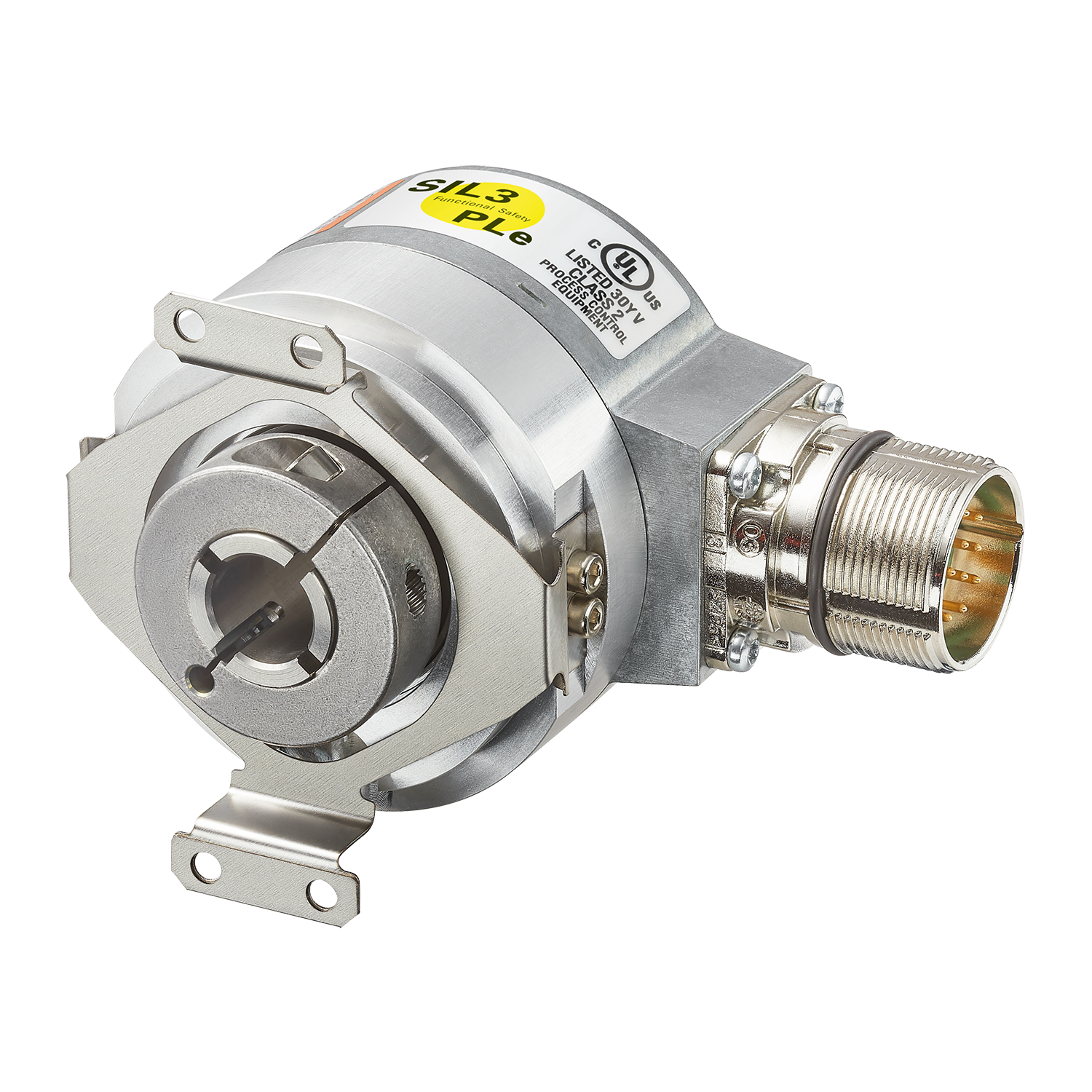

Sendix 5873FS3

  • For safe drive technology
  • Certified solution
  • Reliable
  • Dimension Ø 58 mm
  • 2.048 ppr incremental
  • 17 bits singleturn
  • Max 14 mm hollow shaft, through
SSI + 2048 ppr SinCos
BiSS + 2048 ppr SinCos

Safe position acquisition up to SIL3/PLe.

The absolute singleturn encoders 5853FS3 and 5873FS3 are suitable for use in safety-related applications up to SIL3 according to EN 61800-5-2 or PLe according to EN ISO 13849-1. The specially interlocked bearings in the Safety Lock™ design, the high integration density of the OptoASIC-based components and the stable die-cast housing make them perfect for demanding outdoor applications up to IP67.

Mechanical
Dimension Ø 58 mm
Shaft type 10 mm hollow shaft, through
12 mm hollow shaft, through
14 mm hollow shaft, through
Flange type Ø 58.00 mm
Ø 63.00 mm
Working temperature -40 °C ... +90 °C
Protection level IP65
IP67
Connection types Radial cable
Tangential cable
M23 connector radial
Max. rotational speed 9.000 min-1
Weight 450 g
Electrical
Scanning optical
Resolution max. 2.048 ppr incremental
17 bits singleturn
Power supply 5 V DC
10...30 V DC
Interfaces SSI + 2048 ppr SinCos
BiSS + 2048 ppr SinCos
Functional safety technology
  • Encoders with independent certificate from TÜV.
  • Suitable for applications up to SIL3 according to EN 61800-5-2.
  • Suitable for applications up to PLe according to EN ISO 13849-1.
  • SSI or BiSS interface with incremental SinCos tracks with 2048 ppr.
  • Certified mechanical mounting and electronics.
Flexible
  • Shaft and hollow shaft variants.
  • Cable and connector variants.
  • Different mounting variants available.
Data sheet

Sendix 5853FS3 / 5873FS3 absolute singleturn

PDF ∼ 1,1 MB | 04.2021
DE
EN
FR
Operation Manual

Sendix 58xxFS2 / 58xxFS3

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 5,9 MB | 03.2021

Safety characteristics

Sistema-Library

Multilingual: German, English, French
ZIP ∼ 1,9 MB | 08.2019

Declaration of conformity

Sendix 5853FS3 / 5873FS3

Multilingual: German, English, French
PDF ∼ 160,9 KB | 06.2020

Device file

BiSS EDS / EDS-File

ZIP ∼ 1,4 KB | 07.2021

mechanical CAD / STEP

Sendix 5873FSx

ZIP ∼ 40,7 MB | 07.2021

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Sendix 58xxFS3

Multilingual: German, English
PDF ∼ 629,5 KB | 05.2020

ATEX 2/22

Multilingual: German, English
PDF ∼ 150,8 KB | 05.2021

General information

BISS EDS Protocol Description

PDF ∼ 295,6 KB | 07.2021
EN

Accessories

Screw retention Loctite 243 (5 ml)

Screw retention Loctite 243 (5 ml)

One-component
Application Screw lock
Strength: medium
8.0000.4G05.0000
Data sheet
Schraubensicherung Loctite
DE EN FR

EMC shield terminal

EMC shield terminal

For EMC-compliant installation of the encoder cable.
- Mounting on top hat rail
- Shield diameter
8.0000.4G06.0312 (03-12 mm)
8.0000.4G06.0718 (07-18 mm)

- Weight approx. 7.4 g
- Clamp (spring steel, galvanized)
- Foot (spring steel)
8.0000.4G06.0312
8.0000.4G06.0718
Data sheet
EMV-Schirmklemme
DE EN FR
mechanical CAD / STEP
Step_8.0000.4G06.0XXX

Torque stop, flexible

Torque stop, flexible

Designed for functional safety.
For applications with axial and radial play and low dynamics.
Pitch circle diameter 79 ... 285 mm

8.0010.4047.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.4047.00FS Accessories torque stop, flexible (FS) / CAD
Operation Manual
8.0010.4047.00FS Accessories torque stop, flexible (FS)

Cylindrical pin (replacement)

Cylindrical pin (replacement)

suitable for:
Torque brackets 8.0010.4051.00FS
8.0010.4049.0075
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.4049.0075 Accessories cylindrical pin / CAD

Torque stop set, rigid

Torque stop set, rigid

Designed for functional safety.
For applications with very low axial and radial play and low dynamics.
Pitch circle diameter 65 ... 287 mm

8.0010.4051.00FS
mechanical CAD / STEP
8.0010.4051.00FS Accessories torque stop, rigid (FS) / CAD
Operation Manual
8.0010.4051.00FS Accessories torque stop, rigid (FS)

Stylus for the set key

Stylus for the set key

For easy operation of the set button on the encoder
Material POM (HKS8 orange)
8.0010.4052.0000
Data sheet
Betätigungsstift Set-Taste
DE EN FR

Stator coupling (FS)

Stator coupling (FS)

Designed for functional safety thanks to the 4-screw-principle.
Pitch circle diameter in 63 mm / 2.48"

8.0010.40B2.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.40B2.00FS Stator Coupling
Operation Manual
Supplement to stator coupling operating instructions (FS)

Cables and connectors

M23 Connector ,

M23 Connector ,

Field-wireable connector

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin
8.0000.5012.0000

Data sheet
M23_Buchse_12-polig-cw_8.0000.5012.0000
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PVC Ø 6,7 mm ± 0,3 mm
12 x 0,14 mm2
8.0000.6201.XXXX

Data sheet
8.0000.6201.xxxx
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PVC Ø 7,3 mm ± 0,2 mm
6 x 2 x 0,14 mm2
8.0000.6901.XXXX

Data sheet
M23_Kabelsatz-PVC_Buchse_12-polig-cw+offen_8.0000.6901.00xx
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PVC Ø 7,3 mm ± 0,2 mm
6 x 2 x 0,14 mm2
8.0000.6901.XXXX.0031

Data sheet
M23_Kabelsatz-PVC_Buchse_12-polig-cw+offen_8.0000.6901.00xx.0031
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin

Male connector 12-pin PVC Ø 7,3 mm ± 0,2 mm
6 x 2 x 0,14 mm2
8.0000.6905.XXXX.0032

Data sheet
M23_Kabelsatz-PVC_Buchse_12-polig-cw+Stift-ccw_8.0000.6905.00xx.0032
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin TPE Ø 8,5 mm ± 0,9 mm
5 x 2 x0,14 mm2
8.0000.6E01.XXXX

Data sheet
M23_Kabelsatz-PE-X_Buchse_12-polig-cw+offen_8.0000.6E01.00xx
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PUR Ø 6,7 mm ± 0,3 mm
10 x 0,14 mm2
8.0000.6J01.00XX.0051
